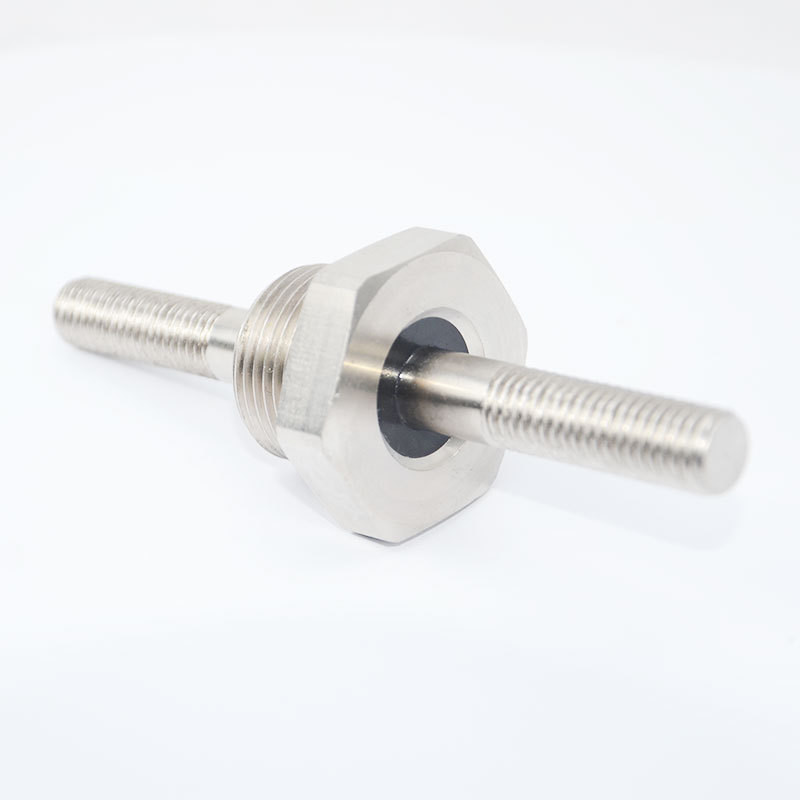

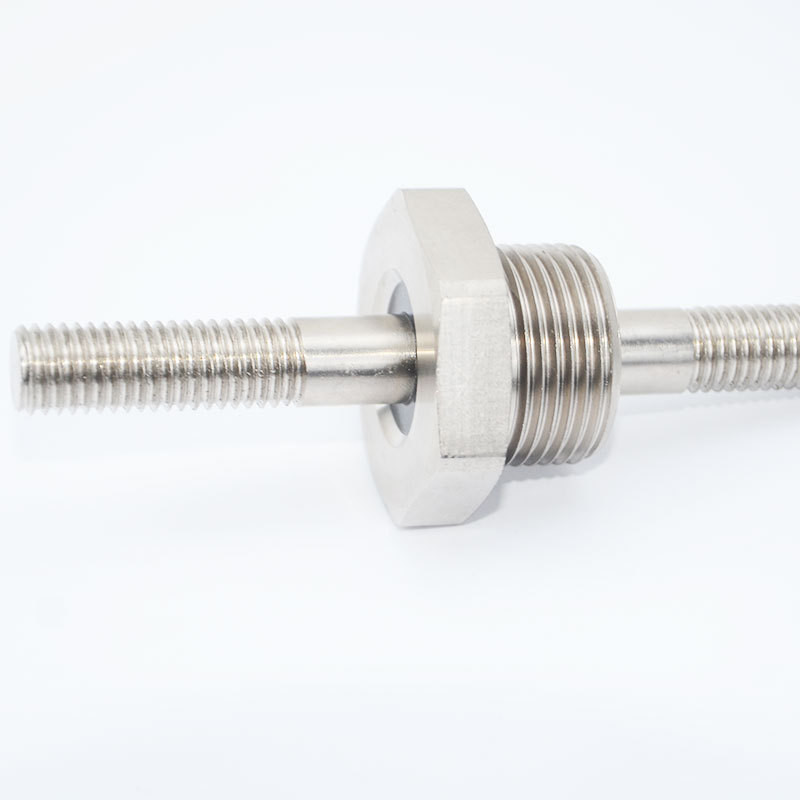

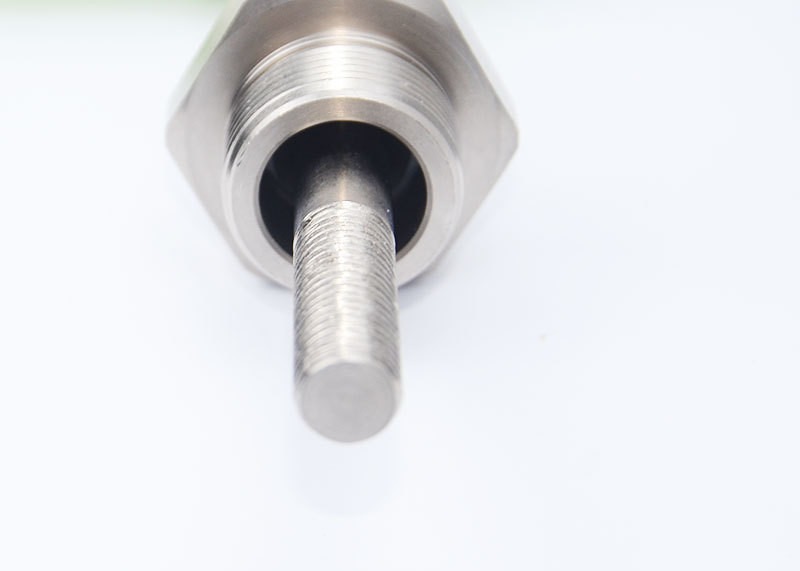

4MPa No Leak Hermetically Sealed Bulkhead Connectors Assembly

SScore Hermetic Connector Assemblies 220V-600V 45 Steel

Product Description:

We can offer customized sintered seal terminals that meet our customers’ specifications. The parameters for the terminals we produce include the material, hi-pot, IR, leak tests, burst tests, and operating temperature range:

Material - 45 Steel
Hi-pot - 3000v leak current ≤ 0.5MA
IR - 1000V IR > 1000MΩ
Leak Test - 4MPa N2 pressure No leak
Burst Test - 5MPa No leak
Operating Temperature Range - -70°C - 300°C

Features:

Our company provides all of its products using an environmentally friendly electroless nickel plating method with a coating thickness of 3 to 5 microns. This nickel coating does not contain any harmful substances like mercury, lead, cadmium, or hexavalent chromium. It also meets the standards of the EU and has undergone SGS environmental testing.

Such plating provides electrical connection to in connection to all our products.

Technical Parameters:

Applications:

The electronic connector plays an important role in ultra-high-power equipment. It is mainly used for sealing, insulating and voltage resistant power connection. It serves as an interface between various components, thus providing a safe and reliable electrical path.

Different types of electronic connectors are used to meet different needs. For example, the connectors in the audio system are usually used for impedance matching, but the connectors in the communication system require greater control of the transmission signal.

In the power transmission system, the electronic connector can be used to make a complete transmission line and connect it to the power supply. The connector has the characteristics of strong and reliable connection, good insulation, small size and light weight.

Customization:

• Brand Name: SSCore
• Place of Origin: ShenZheng
• Minimum Order Quantity: 5 pcs
• Price: 60-300$
• Packaging Details: Cato packing
• Delivery Time: 7 - 14 work days
• Payment Terms: L/C, D/A, T/T, D/P
• Supply Ability: 50w pieces a month
• Operating Temperature: -70°C To +300°C
• Connector Style: Mounting Screw
• Material: 45 Steel
• Surface treatment: Electroless Nickel
• Manufacturer: SSCore

SSCore offers Hermetic Seal Connectors, including hermetic connector assemblies, and hermetic sealing connectors. Our hermetic seal connectors have a wide operating temperature range of -70°C to +300°C and are made of high-quality 45 steel material and electroless nickel surface treatment. With a minimum order quantity of 5 pieces, our hermetic seal connectors are available at a competitive price of 60-300$ and can be delivered anywhere in the world in 7-14 work days. With a 50w pieces/month supply ability, SSCore is your source for hermetic seal connectors.

Support and Services:

At Hermetic Seal Connectors, we provide comprehensive technical support and services for our customers. Our knowledgeable staff is available to answer any questions you may have and provide assistance with the installation, operation, and maintenance of your Hermetic Seal Connectors products. We offer a variety of resources to help you get the most out of your purchase, including:

• Installation and setup assistance
• Maintenance and troubleshooting advice
• Help desk support
• Online resources, including product manuals and FAQs
• Live webinars and product demonstrations
• On-site training and technical support

Our goal is to ensure that you are completely satisfied with your Hermetic Seal Connectors product. Our team of experienced technicians is dedicated to providing you with the best possible experience. If you have any questions or need assistance, please don't hesitate to contact us.
