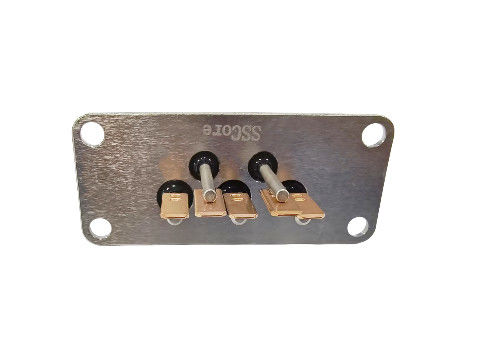

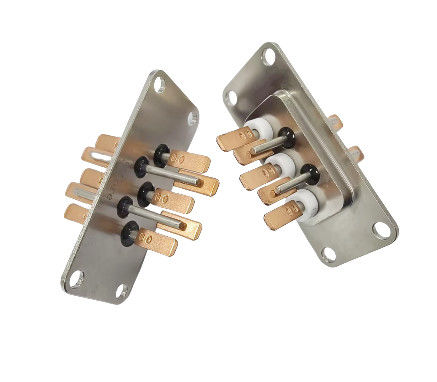

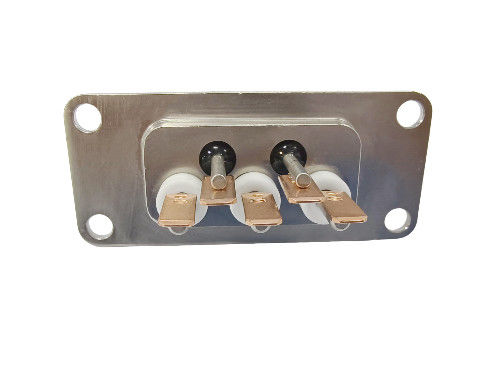

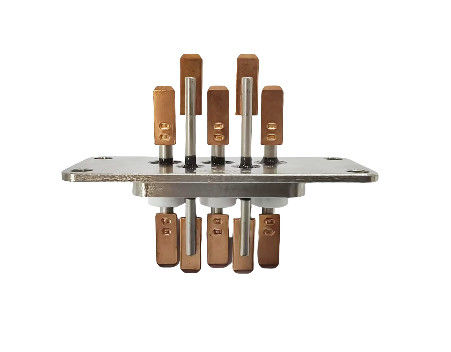

10 PINS Core Copper-Plated-Tin Hermetic Seal Terminal with Double Soldering Pads Made by Glass-Ceramic-Metal Sintering

Product Description:

I. Product Description

II. Product Materials

1. Base Material: Made of C45 steel (Plate - C45 Steel), which has excellent mechanical properties, ensuring the structural strength and stability of the terminal.
2. Pin Material: The pins are made of SUH446 stainless steel (Pins - SUH446 Stainless Steel). This type of stainless steel has outstanding corrosion resistance and can maintain good electrical conductivity under various environmental conditions.
3. Glass Material: We use Elan 48# glass (Glass - Elan 48#), which plays a key role in insulation and sealing in the glass - metal sintering process.
4. Ceramic Material: 95% alumina ceramic (Ceramic - 95% Al2O3) is adopted. This ceramic material has high insulation, high hardness, and high - temperature resistance, further enhancing the product's performance.
5. Tab Material: The tabs are specially treated (Tabs - SPC finish Sn - Cu plated) to ensure good soldering performance for easy electrical connection during installation.

III. Product Features

1. Multi - core Design: This terminal is designed with 10 cores, capable of meeting the requirements of multi - circuit connections and providing an efficient solution for circuit integration.
2. Sealing Performance: Through the glass - metal sintering process, the product has excellent sealing performance, effectively preventing external factors (such as moisture, dust, etc.) from interfering with the internal circuit, ensuring long - term stable operation.
3. High - precision Dimensions: From the detailed dimension markings in the drawings (such as 37±0.08, 14.25±0.3, etc.), it can be seen that the product has a high - precision processing technology, ensuring accurate fit during installation and use.
4. Corrosion and High - temperature Resistance: The use of stainless - steel pins and alumina ceramics makes the product have excellent corrosion and high - temperature resistance, enabling it to work properly under harsh environmental conditions.

IV. Shipping Guarantee

1. We use professional packaging materials and methods to ensure that the terminals are not damaged during transportation. The products will be properly packaged in anti - vibration and moisture - proof packaging materials to prevent collisions, squeezes, or moisture during transportation.
2. We cooperate with reliable logistics partners to ensure that the goods can be delivered to customers on time and safely. We provide full - track service so that customers can know the shipping status of the goods at any time.

V. Product Quality Assurance

1. Strict Production Process: Our glass - metal sintering process has been developed and practiced for many years, ensuring that each terminal meets high - standard quality requirements. During the production process, we strictly follow the ISO quality management system. From raw material procurement to production processing and finished product inspection, strict quality control is carried out at each stage.
2. Comprehensive Testing Procedures:
   • Hermeticity Test: The product undergoes a 4MPa hermeticity test to ensure no leakage (Hermeticity Test: 4MPa, No Leak).
   • Insulator Resistance Test: The insulator resistance test reaches 500MΩ/1000VDC (Insulator Resistance Test: 500MΩ/1000VDC), ensuring good insulation performance.
   • High - voltage Test: It can withstand a 3000VAC/1s high - voltage test without breakdown or flashover (Hi.Pot: 3000VAC/1s, No Breakdown or Flashover).
   • Max Leak Current Test: The maximum leakage current is controlled within 0.5mA (Max Leak Current: 0.5mA).
3. Working Condition Guarantee: The product can work stably within the working temperature range of - 30°C to + 150°C (Working Temperature: - 30°C ~ + 150°C), and the operating current is 25A (Operation Current: 25A), meeting the requirements of various practical application scenarios.

VI. Foreign Trade Transaction Methods

1. We support various foreign trade transaction methods, including but not limited to T/T (Telegraphic Transfer), L/C (Letter of Credit), etc., to meet the needs of different customers.
2. We provide flexible order quantities and delivery schedules. Whether it is a small - batch trial order or a large - batch long - term order, we can handle it efficiently and ensure on - time delivery.
3. We provide professional pre - sales consultation and after - sales technical support for customers. Our sales team and technical engineers are ready to answer questions about product selection, installation, and use for customers at any time, ensuring that customers can use our products smoothly.
