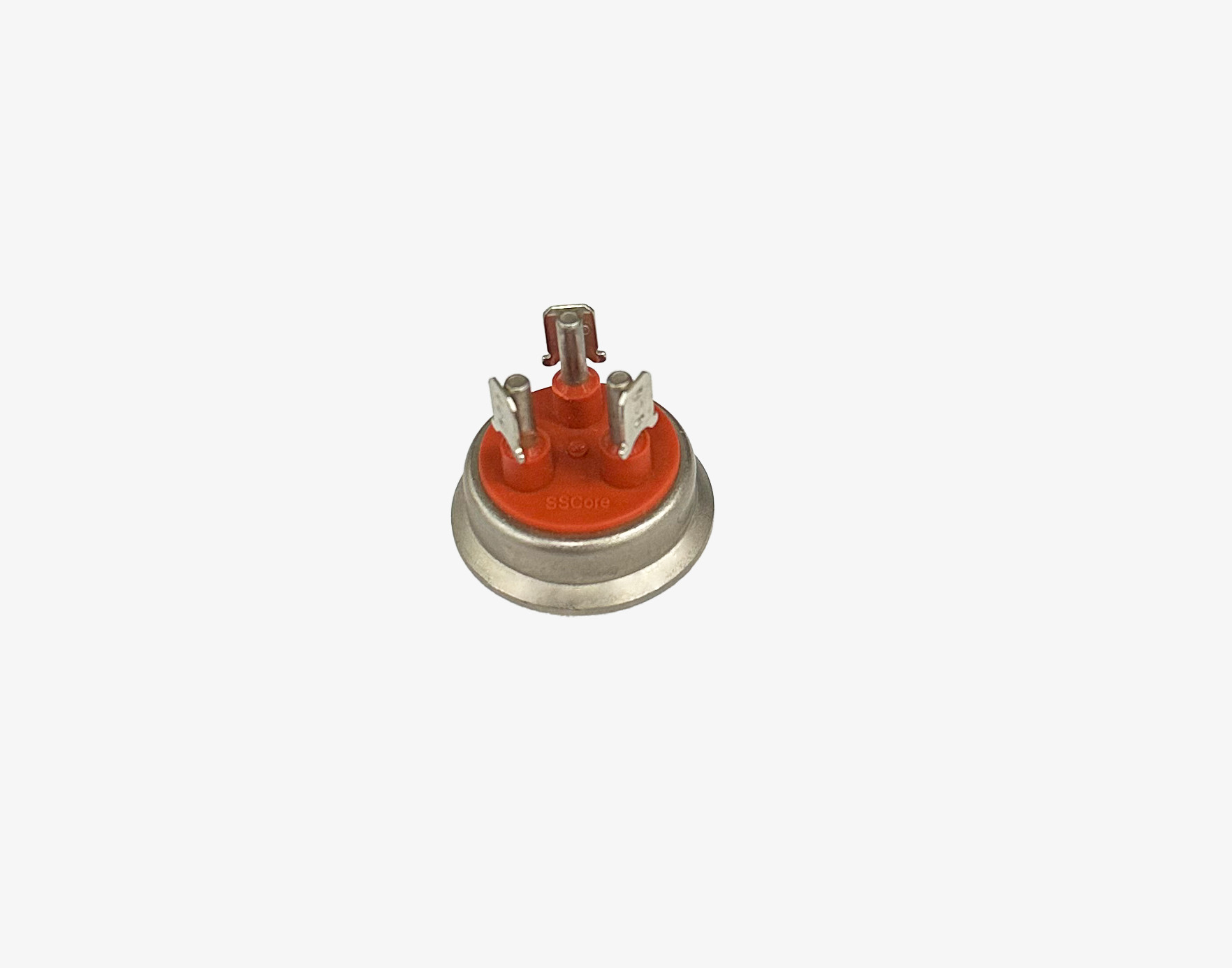

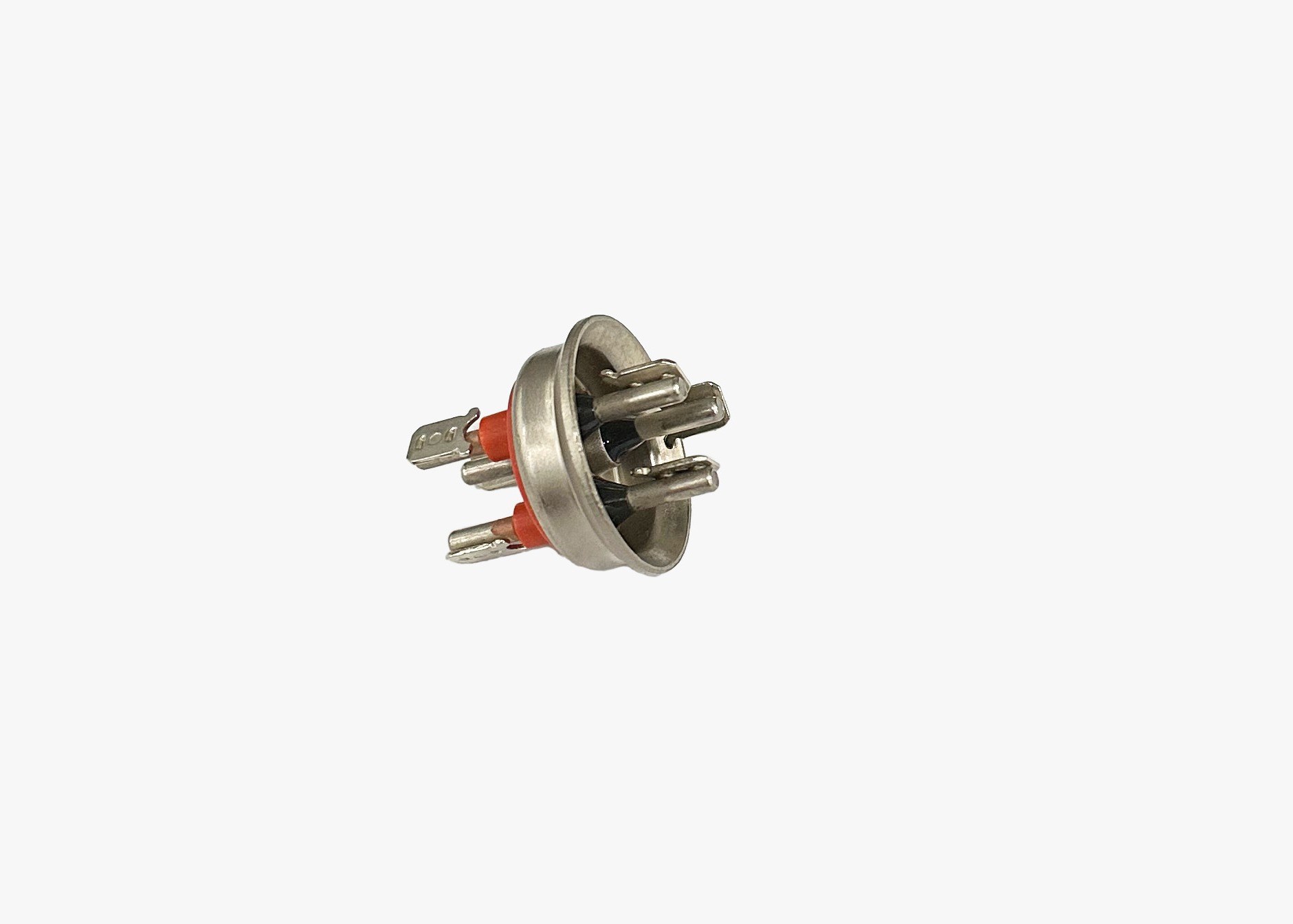

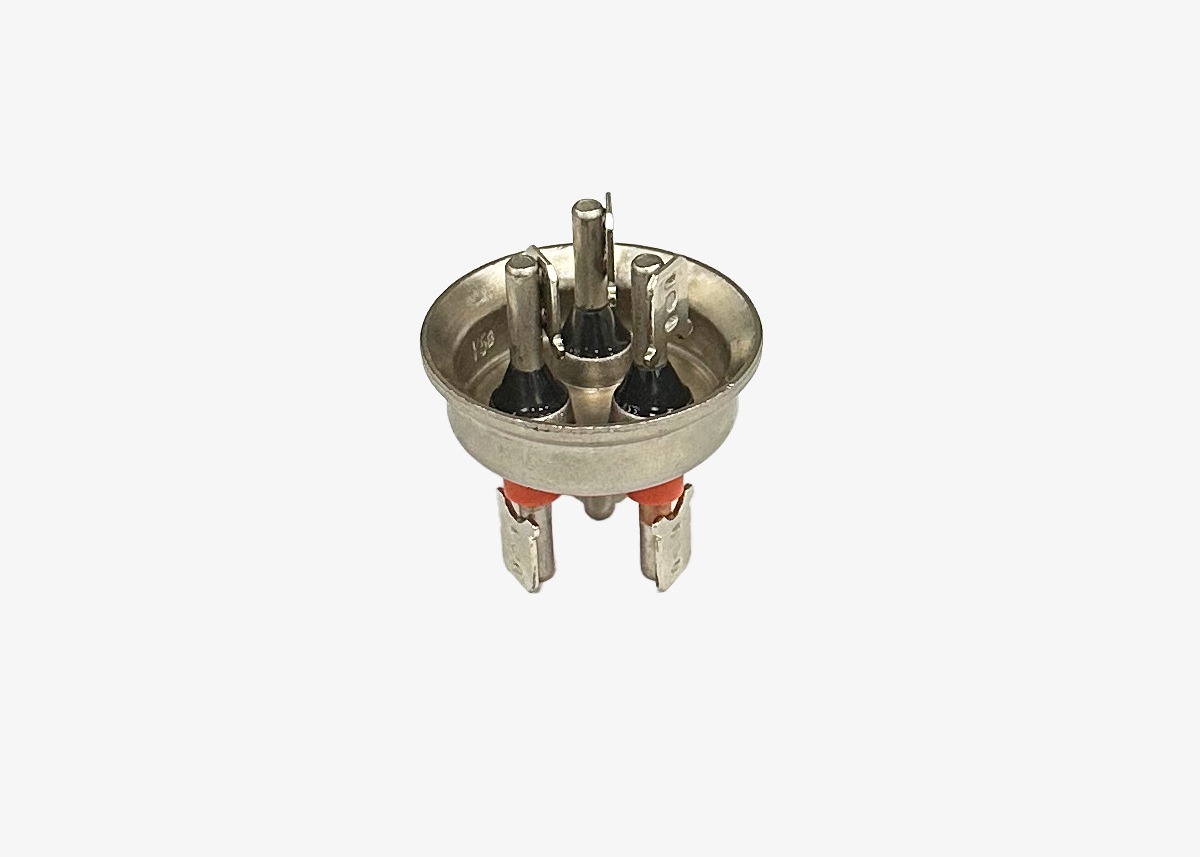

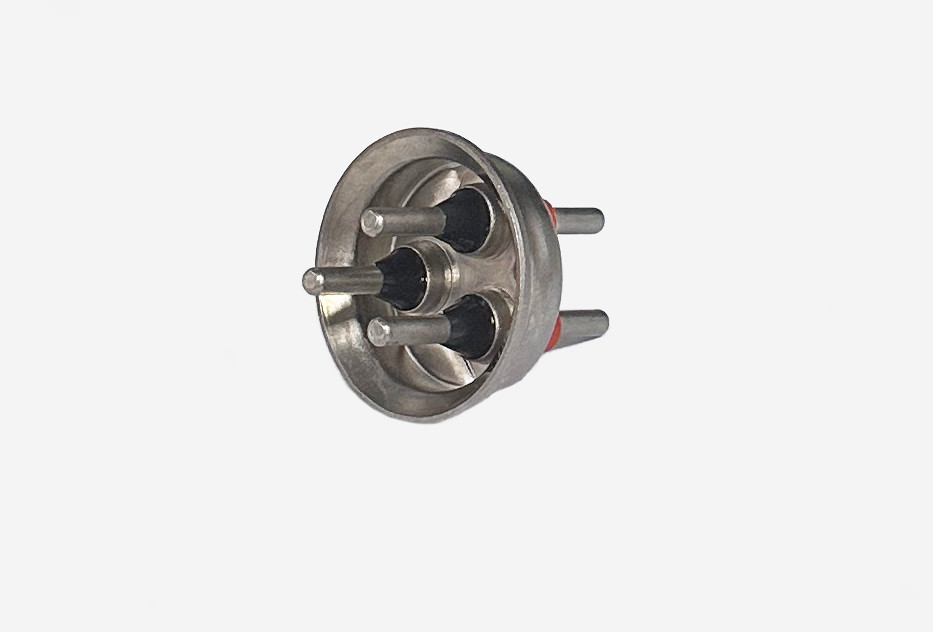

Wielding Identifying Compressor Terminals 25A For Refrigerator Appliances

20A-30A Fridge Compressor Terminals For Refrigerator Appliances

Product Description:

We can produce sintered seal terminals according to customer requirements. These terminals are made from 45 Steel. We also perform a variety of tests to make sure they perform up to standards.

The Hi-pot test determines the leakage current of the terminal, with a pass level being set at 3000v with a current leakage of less than 0.5mA. We use the IR test to make sure the insulation resistance of the terminals is greater than 1000MΩ. The leak test subjects the terminal to 4MPa of nitrogen pressure with no leaking of the material allowed. The burst test subjects the terminals to 5MPa with no leakage as well. The terminals have an operating temperature range of -70°C to 300°C.

Features:

The sintered seal terminal is mainly used on compressors of automobile air conditioning, typically ranging from 72V to 810V. This is because it plays an essential role in the connection, providing sealing, insulation, and resistance to voltage and pressure.

This effective and efficient way of connection is created through a process called "sintering." Here, several layers of metal are compressed at extremely high temperatures, resulting in the connection becoming one solid piece. As a result, the risks of electrical shorts are greatly reduced.

Given its effectiveness and durability, the sintered seal terminal is quickly becoming a preferred choice in the automobile air conditioning industry, as it can ensure reliable connectivity and better safety standards.

Technical Parameters:

Applications:

The company's products adopt electroless nickel plating technique. This technique enables a coating thickness of up to 5 microns without the presence of mercury, lead, cadmium and hexavalent chromium. It meets EU standards with SGS environmental testing report, providing safety and assurance to its users. The electroless nickel plating technique also serves as electrical connections, meeting its designated purpose.

Customization:

Support and Services:

We offer technical support and service for all our Fridge Compressor Terminals products. Our experienced team of engineers and technicians are on hand to answer any questions you may have and can provide assistance with installation, troubleshooting, and maintenance.

If you experience any problems with your Fridge Compressor Terminals product, please contact us at support@fct.com. Our team is available 24/7 to assist you.

We also offer training sessions to help you make the most of your Fridge Compressor Terminals product. Our courses are tailored to fit your specific needs and can be organized remotely or in-person.

For more information about our technical support and service, please visit our website at www.fct.com.
