3000v Fridge Commercial Refrigerator Compressor 5MPa In Air Conditioning
| Pin: | 4J28 | Application: | Refrigerator |
| Product Name: | Fridge Compressor Terminals | Operating Temperature: | -70°C To +300°C |
| Surface Treatment: | Electroless Nickel | Connector Type: | Circlip Or Wielding |
| Voltage: | 200V-400V | Current Rating: | 20A - 30A |
| High Light: | 3000v Fridge Commercial Refrigerator,5MPa Fridge Commercial Refrigerator,3000v Commercial Refrigerator Compressor |
||

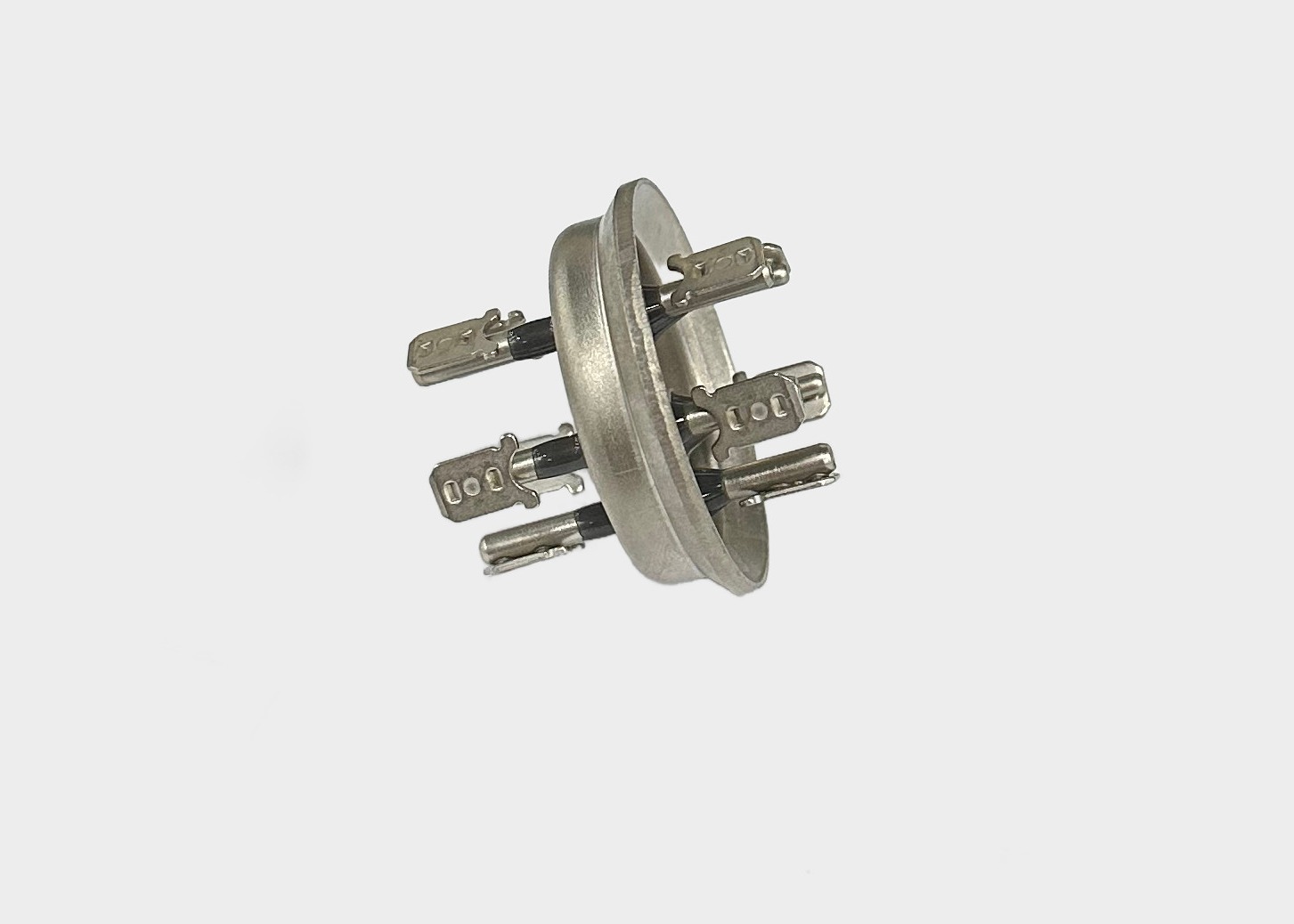

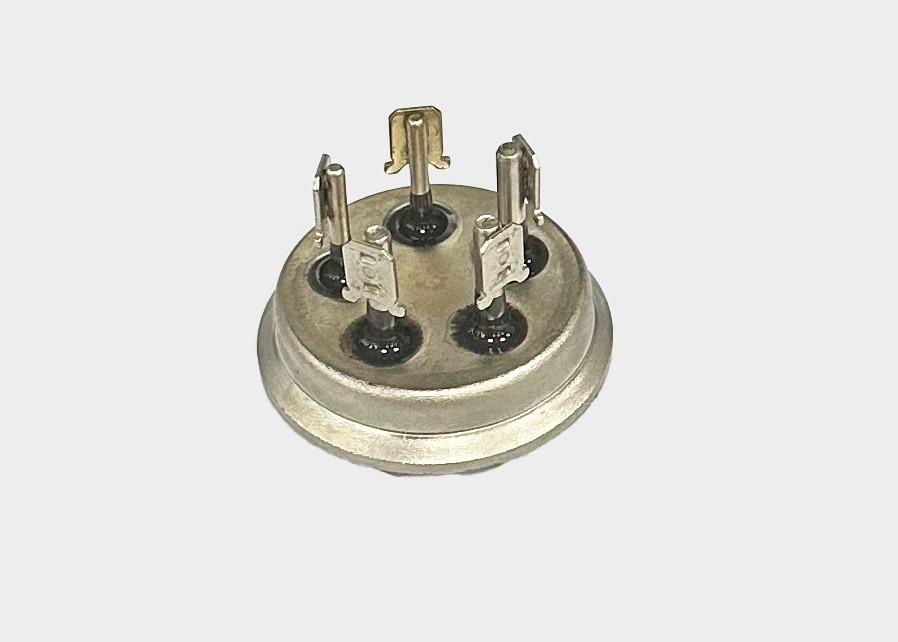

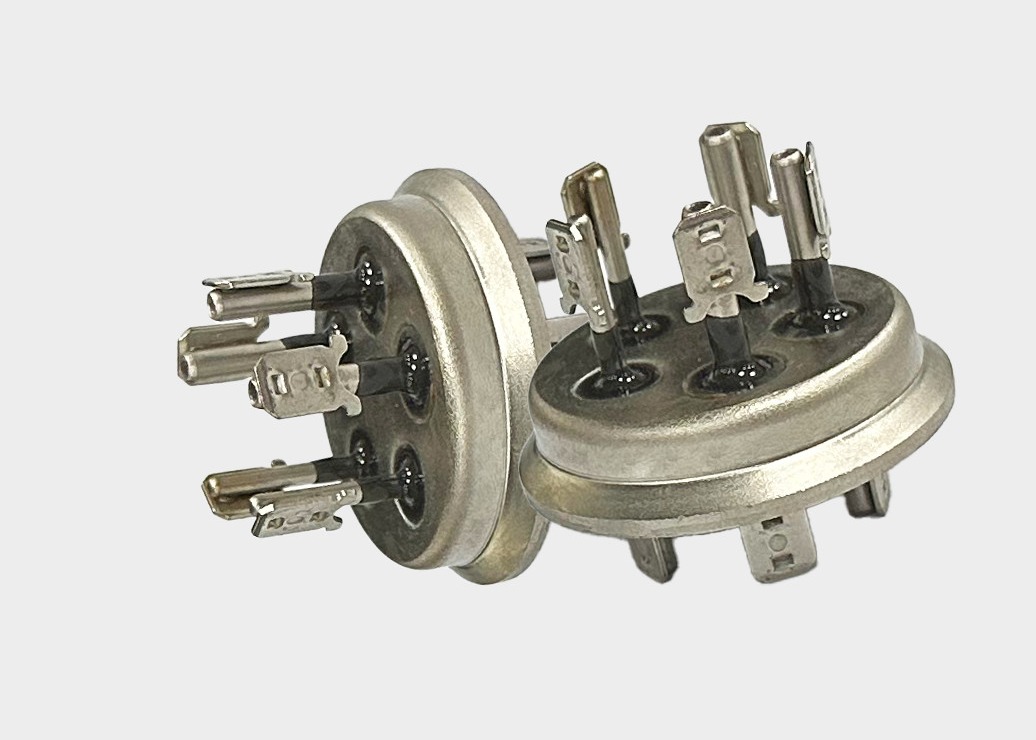

Cost-Effective Fridge Compressor Terminals - High Performance
Product Description:
- At our facility, we can customize various types of sintered seal terminals according to customers' needs. Our produced terminals are high in performance with the following parameters:
- Material: 45 Steel
- Hi-pot: 3000v, with a leak current ≤ 0.5MA
- Impedance Resistence (IR): 1000V, with a resistance over 1000MΩ
- Leak Test: 4MPa N2 pressure without leaks
- Burst Test: 5MPa, no leaks
- Operating Temperature Range: -70°C to 300°C
Features:
The sintered seal terminal is mainly used in automotive air conditioning compressors with voltages ranging from 72V to 810V, serving the purpose of both sealing and insulating the electrical connection, as well as withstanding voltage and pressure.
Technical Parameters:
| Product Name | Specification |
|---|---|
| Fridge Compressor Terminals | Surface Treatment: Electroless Nickel Voltage: 200V-400V Operating Temperature: -70°C To +300°C Pin: 4J28 Application: Refrigerator Connector Type: Circlip Or Wielding Current Rating: 20A - 30A |
Applications:
Our company only produces products that employ environmentally friendly electroless nickel plating method. The coating thickness ranges from 3 to 5 microns. This nickel coating does not contain hazardous substances, such as mercury, lead, cadmium or hexavalent chromium. It is in compliance with EU standards and exhibited SGS environmental testing report. The purpose of our products is to serve electrically connected purposes.
Customization:
- Brand Name: SSCore
- Place of Origin: ShenZheng
- Certification: UL
- Minimum Order Quantity: 5 pcs
- Price: 10 - 40 $
- Packaging Details: Cato packing
- Delivery Time: 7 - 14 work days
- Payment Terms: L/C, D/A, T/T, D/P
- Supply Ability: 50w pieces a month
- Surface Treatment: Electroless Nickel
- Connector Type: Circlip Or Wielding
- Operating Temperature: -70°C To +300°C
- Current Rating: 20A - 30A
- Product Name: Fridge Compressor Terminals
Support and Services:
Fridge Compressor Terminals offers a variety of technical support and service options to meet the needs of our customers. Our team of experienced technicians is available to provide assistance with product installation, troubleshooting, and repairs. We also offer extended warranties on all of our products to ensure that your purchase is protected against any unforeseen issues. If you have any questions or concerns, please don’t hesitate to contact our support team for assistance.
