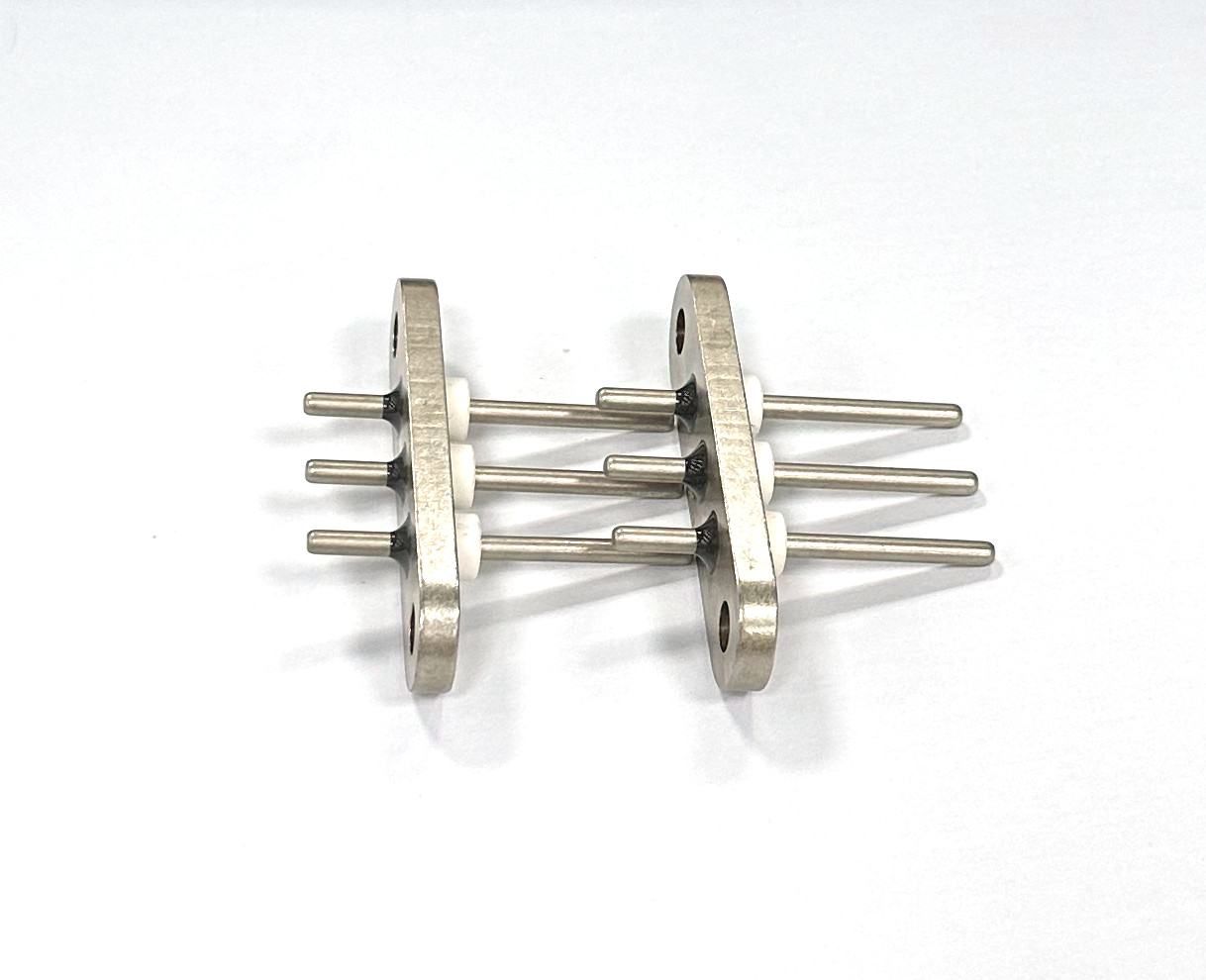

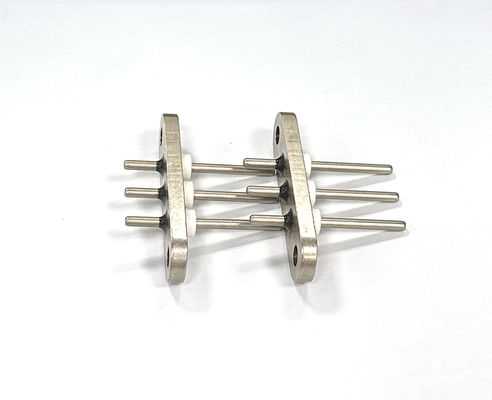

IATF Hermetic Single Seal Terminals Electroless Nickel Plated Rated Current 30A

45 Steel Electroless Nickel Plated Hermetic Single Seal Terminals Rated Current 30A

Product Description:

We are able to offer differently customized sintered seal terminals supported by customer requirements. The following performance parameters are confirmed during product examination:

• Material : 45 Steel
• Hi-pot Test : 3000v leak current ≤ 0.5MA
• Insulation Resistance:1000V IR > 1000MΩ
• Leak Test: 4MPa N2 pressure No leak
• Burst Test:5MPa No leak
• Operating Temperature Range:-70°C - 300°C

Features:

• Product Name: Hermetic Single Seal Terminals
• Rated Voltage: 600V
• Surface Treatment: Electroless Nickel Plating
• Rated Current: 30A
• Temperature Range: -70°C To 300°C
• Mounting Type: Terminal Fixation-bolts
• Specialized For: Fristam pump seals, Hydraulic Cylinder Seals

Technical Parameters:

Our company offers an environmentally friendly electroless nickel plating method for all of our products, with a coating thickness of 3-5 microns. This method does not contain harmful substances such as mercury, lead, cadmium, and hexavalent chromium, meeting even EU standards. Moreover, we have acquired the SGS environmental testing report, which can attest to our quality. In addition, the method can also serve as electrical connections.

Applications:

SSCore Hermetic Single Seal Terminals are designed to meet the highest quality standards and are certified with IATF16949. They are made of 45 steel with Electroless Nickel Plating and temperature range from -70°C to 300°C. These air cylinder seals are suitable for a wide range of applications and can handle up to 30A. With a minimum order quantity of 5 pieces and competitive prices from 10-40 $, these hermetic single seal terminals are great for component mechanical seals. We offer vacuum package and delivery time is 7-14 work days. Payment terms can be L/C, D/A, T/T, D/P and we are capable of supplying 50w pieces a month. Mounting type is terminal fixation-bolts.

Customization:

Hermetic Single Seal Terminals are provided by SSCore, a brand based in ShenZheng, China, with IATF16949 certification and a minimum order quantity of 5 pcs. The price range for these terminals is 10 - 40 $, and they come with a vacuum package. Delivery time is 7 - 14 workdays and payment terms are L/C, D/A, T/T, D/P. Our supply ability is up to 50w pieces a month. The material of these terminals is 45 Steel, with a rated current of 30A. The temperature range is -70°C To 300°C with Electroless Nickel Plating surface treatment. The mounting type is Terminal Fixation-bolts. Our Hermetic Single Seal Terminals are perfect for use in hydraulic cylinder seals, industrial mechanical seals, and other heavy duty applications.

Support and Services:

Hermetic Single Seal Terminals provide technical support and services to ensure our customers get the best results from their products. Our support team is comprised of experienced professionals who are knowledgeable in all aspects of the product and can provide advice and answers to any questions or concerns. We also offer a range of services such as installation, repair, and maintenance services for our products. Additionally, we provide ongoing support through our online portal, which can be used to access product documentation and technical assistance. We also offer training courses and workshops to ensure our customers are up to date with the latest technology and trends.
