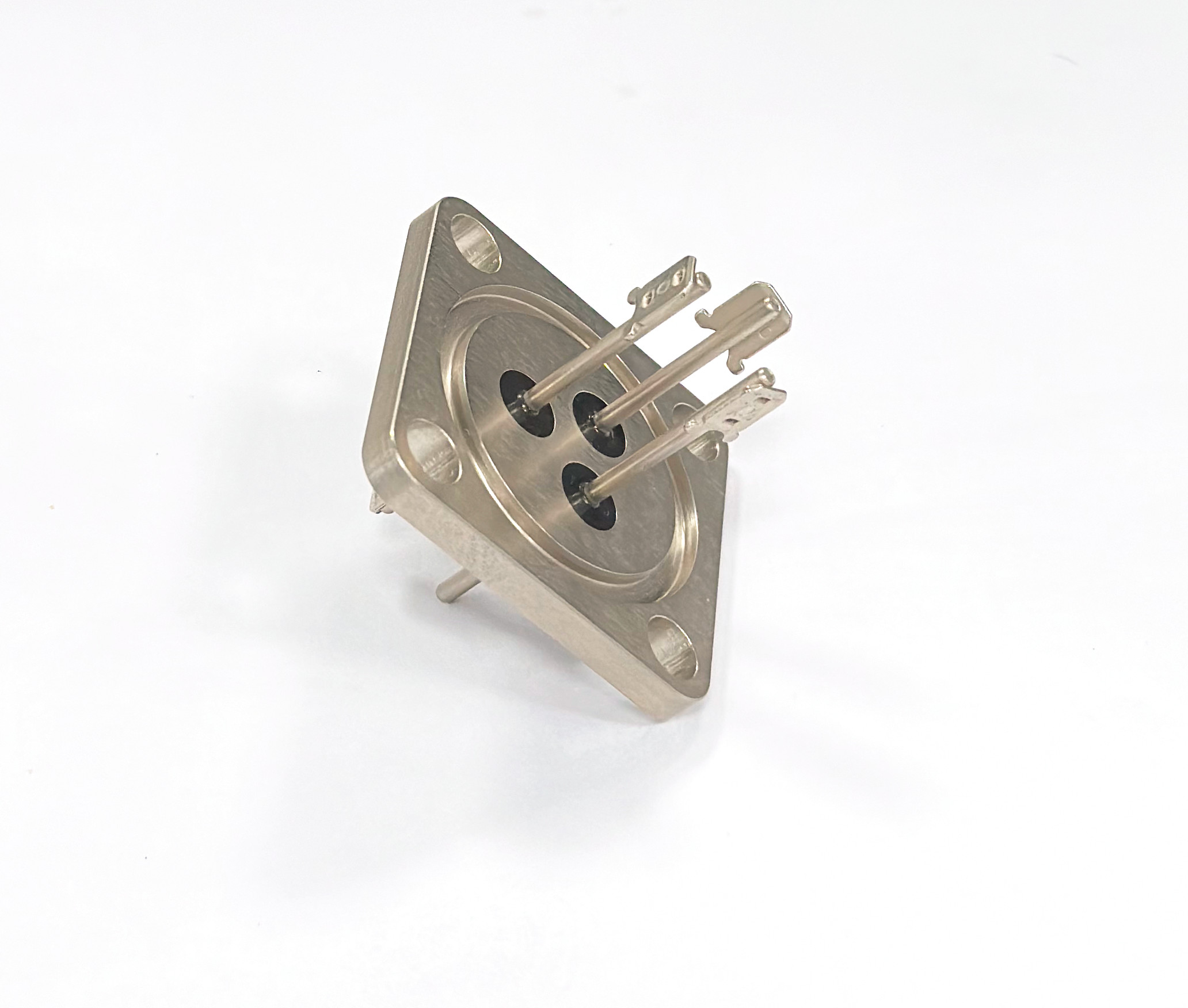

1000MΩ Insulation Resistance Hermetically Sealed Unit For Extreme Temperatures
Product Description:
At our company, we specialize in offering custom sintered seal terminals according to the exact specifications of customers. To ensure the quality and performance of these terminals, the parameters we adhere to are listed below:
- Material: 45 Steel
- Hi-pot: 3000v leak current ≤ 0.5MA
- IR: 1000V IR > 1000MΩ
- Leak Test: 4MPa N2 pressure No leak
- Burst Test: 5MPa No leak
- Operating Temperature Range: -70°C - 300°C
Features:
- Hermetically Sealed Equipment: Hermetically Sealed Terminal
- Material: 45 Steel
- Voltage Rating: 1000V
- Insulation Resistance: 1000MΩ
- Temperature Rating: -70°C - 300°C
- Impact Resistance: 200N
Technical Parameters:
Environmentally Friendly Electroless Nickel Plating
Our company offers an environment-friendly electroless nickel plating method, with the coating thickness of 3-5 microns. This green nickel plating does not contain any harmful elements such as mercury, lead, cadmium or hexavalent chromium, and it is up to the standard of EU. Ultimately, SGS environmental test report has been presented as a proof.
This electroless coating materials can be exclusively used for the purpose of protecting electrical connections from oxidation and other corrosion.
Applications:
SSCore Hermetically Sealed Terminal is a reliable, high-performance, and hermetically sealed equipment that has been designed and manufactured with strict production standards and certification of IATF16949. It is constructed from 45 Steel and features a voltage rating of 1000V, a temperature rating of -70°C to 300°C, and a dielectric strength of 3500VAC. Furthermore, it is highly resistant to salt spray, with the rusted area being less than 5% after 48 hours. This terminal is ideal for various applications such as hermetically sealed assemblies, hermetically sealed devices, and hermetically sealed equipment.
SSCore Hermetically Sealed Terminal is available in a variety of sizes at a competitive price, starting from 10 to 40 $. The minimum order quantity is 5 pcs, and it is packaged in vacuum package for secure transportation. The delivery time is usually 7 to 14 workdays, and we accept payment terms such as L/C, D/A, T/T, D/P. We also have a production capacity of 50w pieces per month.
Customization:
Hermetically Sealed Terminal
SSCore, from ShenZheng, IATF16949 Certified
Hermetically sealed units and devices are essential components of the hermetically sealed construction. The SSCore Hermetically Sealed Terminal is designed to provide superior performance and reliability in harsh industrial environments. With temperature range from -70°C to 300°C and voltage rating up to 1000V, this terminal can endure impact resistance of 200N and dielectric strength of 3500VAC, offering current rating up to 30A.
Specifications
- Brand Name: SSCore
- Place of Origin: ShenZheng
- Certification: IATF16949
- Minimum Order Quantity: 5 pcs
- Price: 10 - 40 $
- Packaging Details: Vacuum package
- Delivery Time: 7 - 14 work days
- Payment Terms: L/C, D/A, T/T, D/P
- Supply Ability: 50w pieces a month
- Temperature Rating: -70°C - 300°C
- Voltage Rating: 1000V
- Impact Resistance: 200N
- Current Rating: 20A-30A
- Dielectric Strength: 3500VAC
Support and Services:
Hermetically Sealed Terminal technical support and services include:
- 24/7 customer support
- Regular software updates
- On-site technical assistance
- Online tutorials
- Hardware and software troubleshooting
