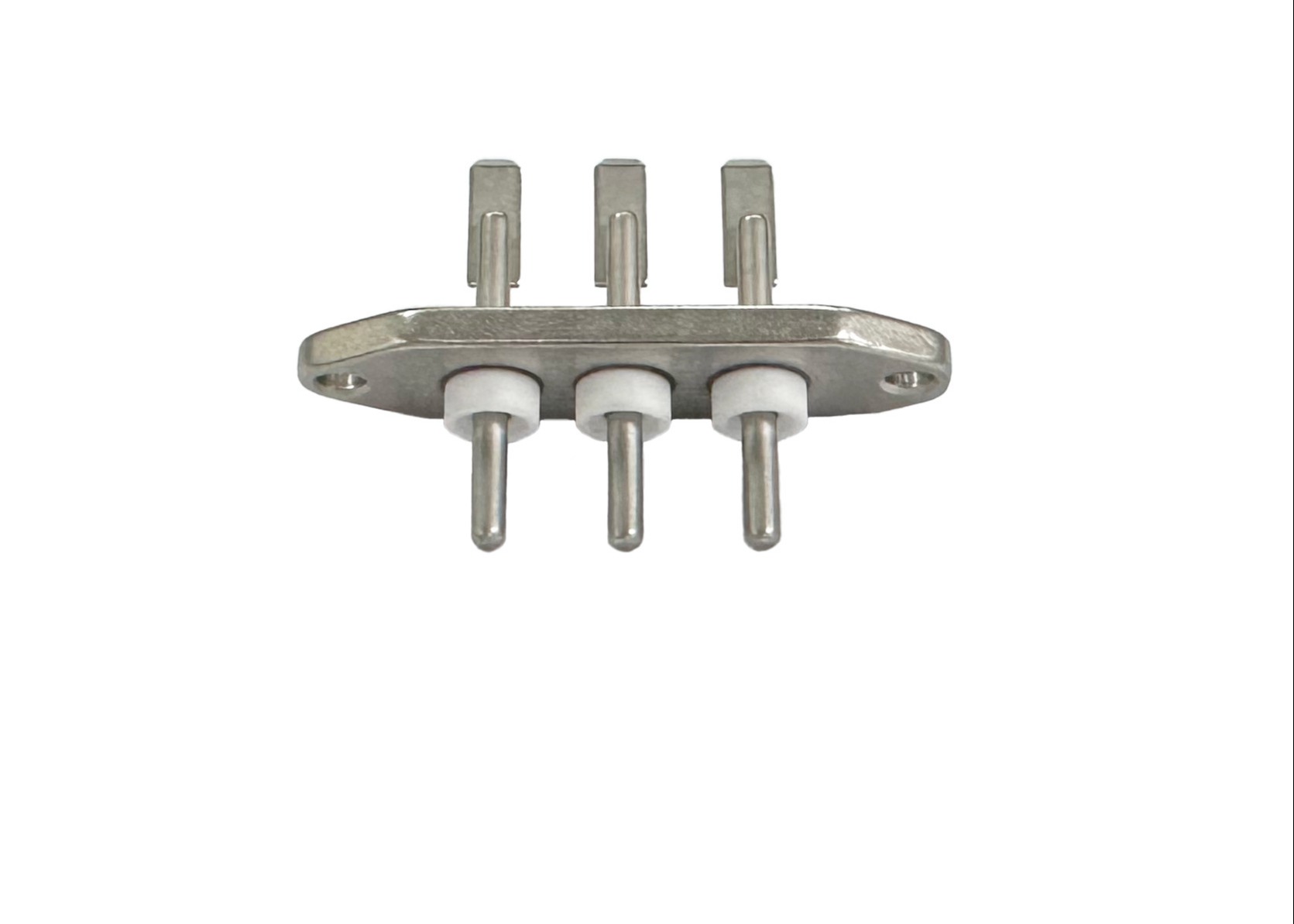

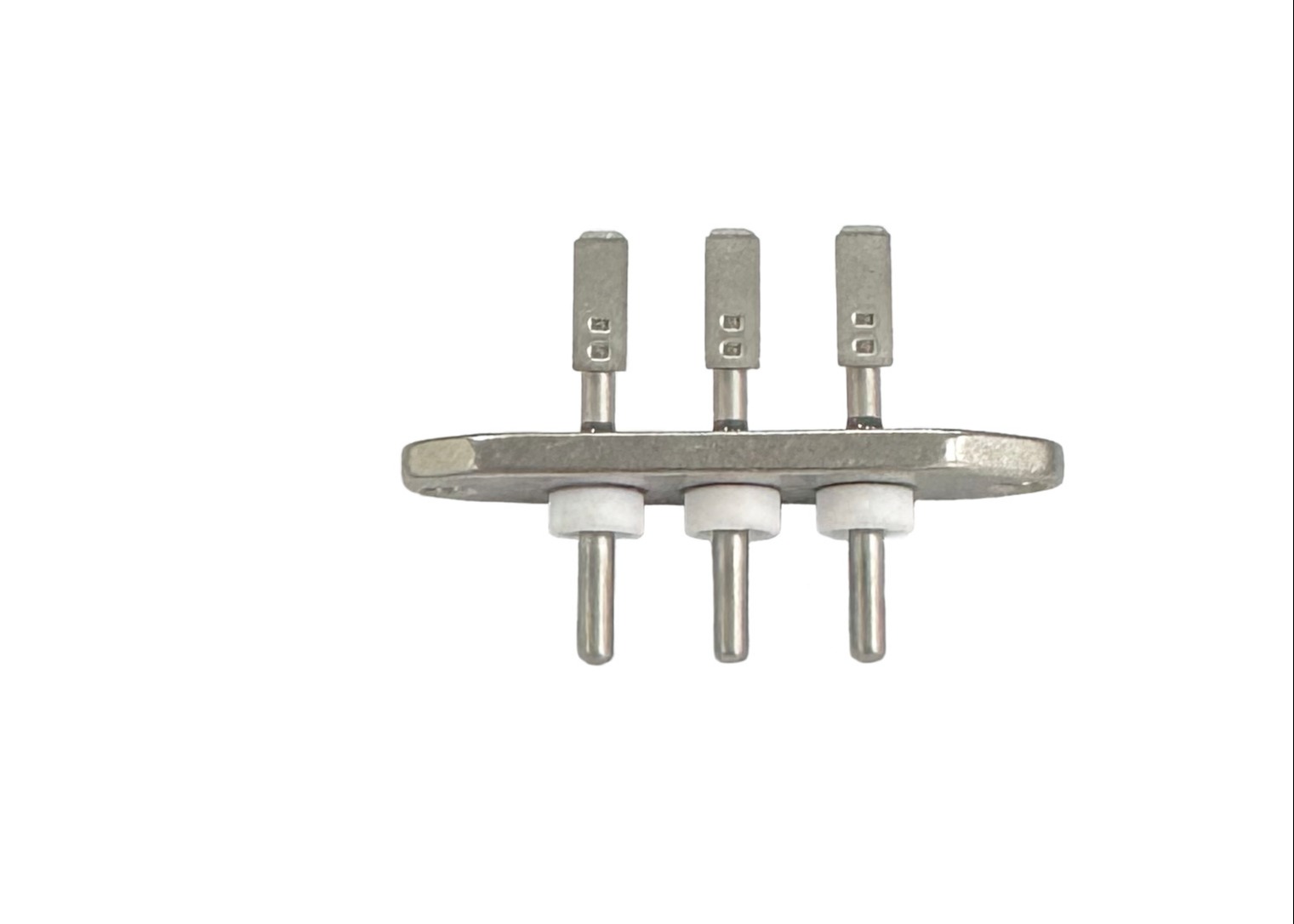

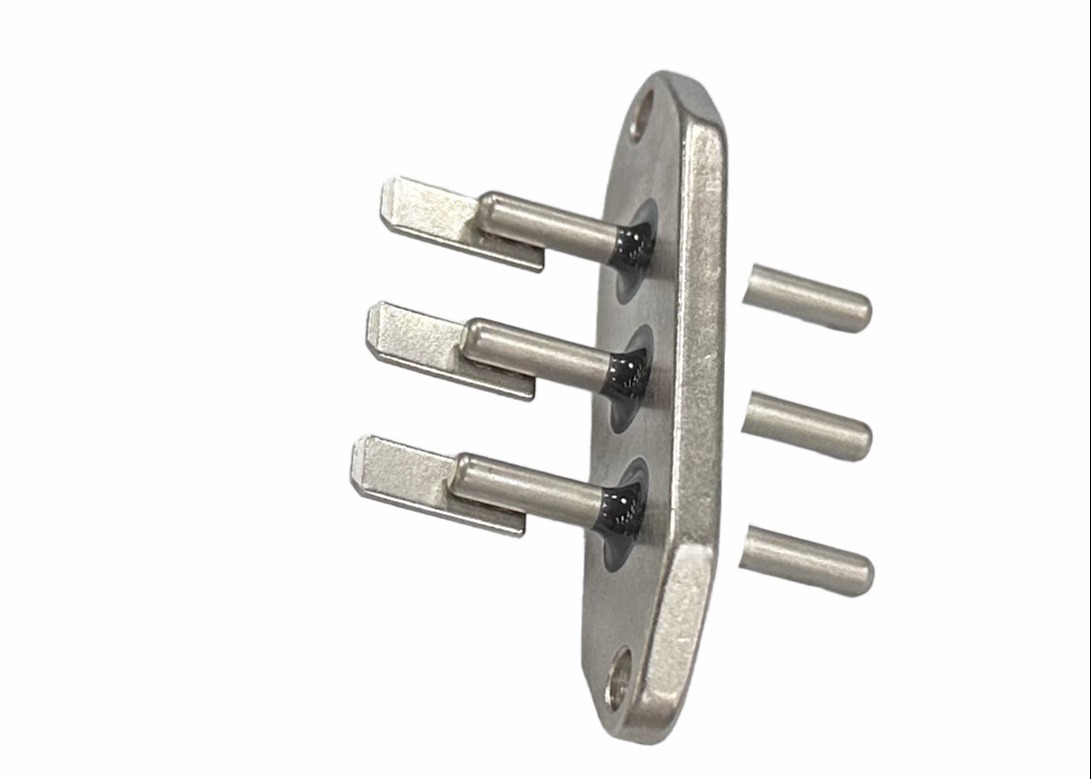

OEM Hermetically Sealed Electrical Connectors 12V-540V For Electric Vehicle
| Insulator Material: | Glass And Ceramic | Voltage Rating: | 108V-1000V |
| Mounting Type: | Terminal Fixation-bolts | Product Name: | Hermetic EV Connector |
| Current Rating: | 30A | Surface Treatment: | Electroless Nickel Plating |
| High Light: | OEM Hermetically Sealed Electrical Connectors,540V Hermetically Sealed Electrical Connectors,OEM Hermetic Electrical Connectors |
||
Hermetic EV Connector 12V-540V For Electric Vehicle
Product Description:
At our company, we specialize in sintered seal terminals, and can make customized designs upon request. Below are some of the specifications of the terminals that we can produce:
- Material: 45 Steel
- Hi-pot: 3000v, leak current ≤ 0.5MA
- IR:1000V IR > 1000MΩ
- Leak test: 4MPa N2 pressure with no leaks
- Burst test: 5MPa with no leaks
- Operating temperature range: -70°C - 300°C
Technical Parameters:
Our company offers products that have been processed with electroless nickel plating methods that are friendly to the environment. The coating has a thickness of 3-5 microns and does not contain any mercury, lead, cadmium, or hexavalent chromium — substances that can be harmful to humans and the environment. It meets European Union standards and has been tested by SGS, the world’s leading environmental testing company. These products also create electric connections.
Support and Services:
At Hermetic EV Connector, we provide technical support and services to ensure our customers get the most out of their products. Our team of experienced engineers and technicians are available to answer any questions you may have and provide technical support.
Our technical support team is dedicated to providing timely and efficient support to our customers. We will work closely with you to understand your needs and identify any problems you may have. Our team will then work to resolve any issues quickly and efficiently.
We offer a range of services to ensure our customers get the most out of their products. Our services include installation, maintenance, and repair. We can provide on-site assistance to ensure our customers are satisfied with the quality of their products and services.
