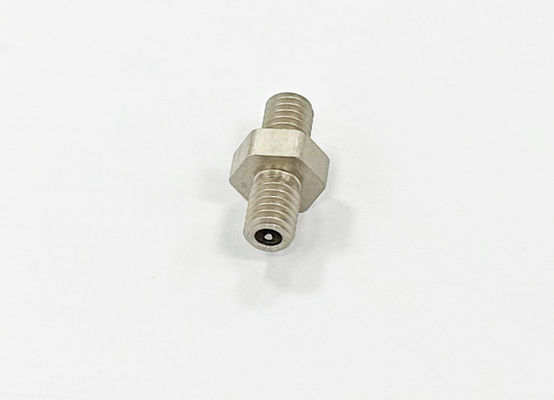

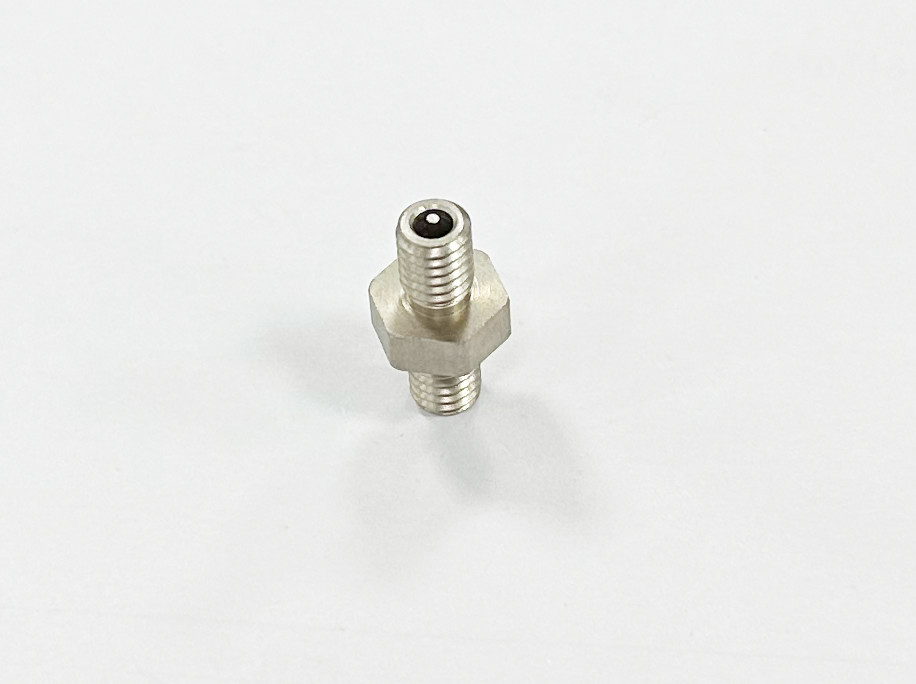

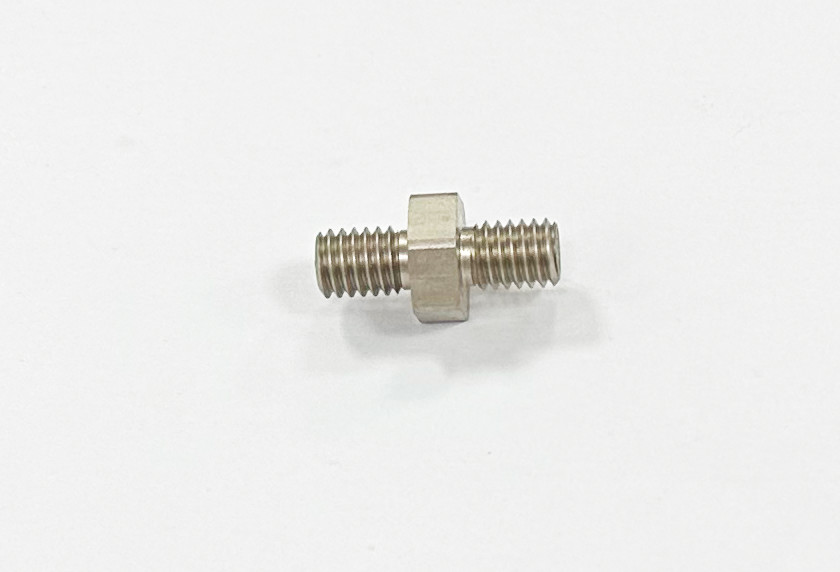

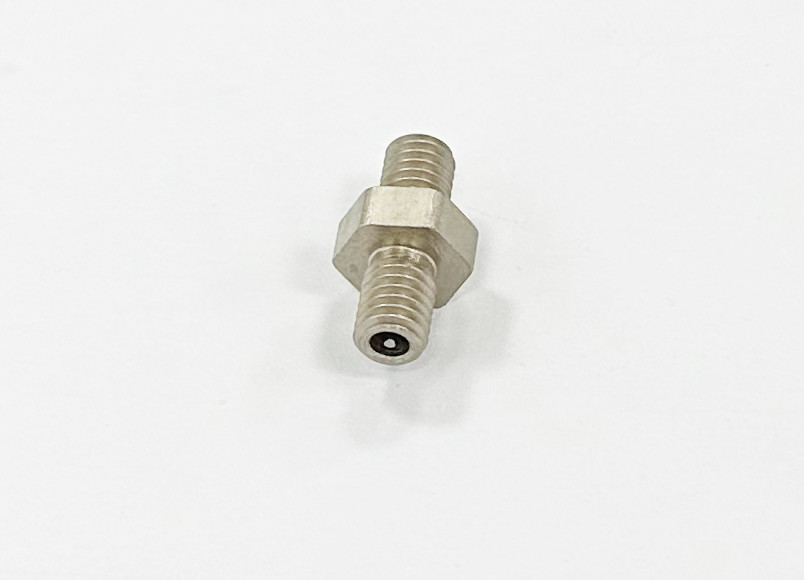

1mm Hermetically Sealed Electrical Connectors 4MPa N2 Pressure

Electroless Nickel Hermetic Feedthrough Connectors Core Column Φ0.5mm-Φ3.2mm

Product Description:

We can customize various types of sintered seal terminal based on customers’ requirement. The performance of the terminals we provide are listed in the below:

• Material: 45 Steel
• Hi-pot: 3000v, Leak Current: ≤ 0.5MA
• IR: 1000V, IR: > 1000MΩ
• Leak Test: 4MPa N2 pressure, no leak
• Burst Test: 5MPa, no leak
• Operating Temperature Range: -70°C - 300°C

Features:

• Product Name: Hermetic Feedthrough Connectors
• Material: 45 Steel
• Core column: Φ0.5mm-Φ3.2mm
• Mounting Type: Mounting Screw
• Manufacturer: SSCore
• Special Feature: Hermetic Seal Connectors, Hermetic Sealing Connectors, Hermetic Fitting Connectors

Technical Parameters:

Our company's products are all coated with an environmentally friendly electroless nickel plating method. The coating thickness of each product is between 3-5 microns.

It's environmentally friendly because the nickel coating does not contain any mercury, lead, cadmium, hexavalent chromium, or other harmful substances. In addition, our products have passed EU standards and have obtained a SGS environmental testing report.

Our electroless nickel plating provides electrical connections that are reliable.

Applications:

Sintered joints, which we provide, play a major role in sealing, insulating and pressure signal transmission for pressure, temperature and signal sensors.

Their uniqueness lies in their ability to withstand pressure and provide insulation to the sensors.

These joints have been designed to fulfill the utmost functionality and efficiency in providing safety to the sensors from harm.

Customization:

Support and Services:

Hermetic feedthrough connectors are designed for high-reliability applications in extreme environments. We provide comprehensive technical support and service to ensure that our customers are able to maximize the performance of our hermetic feedthrough connectors.

• Design Support: Our experienced engineering team is available to provide design and integration support for hermetic feedthrough connectors.
• Quality Assurance: We have quality assurance processes in place to ensure that hermetic feedthrough connectors conform to all applicable standards and specifications.
• Installation: Our certified technicians are available to provide installation services for hermetic feedthrough connectors.
• Maintenance: Our technicians are available to provide on-site maintenance and repair services for hermetic feedthrough connectors.
• Product Training: We offer product training courses to ensure that customers are able to properly maintain and operate hermetic feedthrough connectors.
