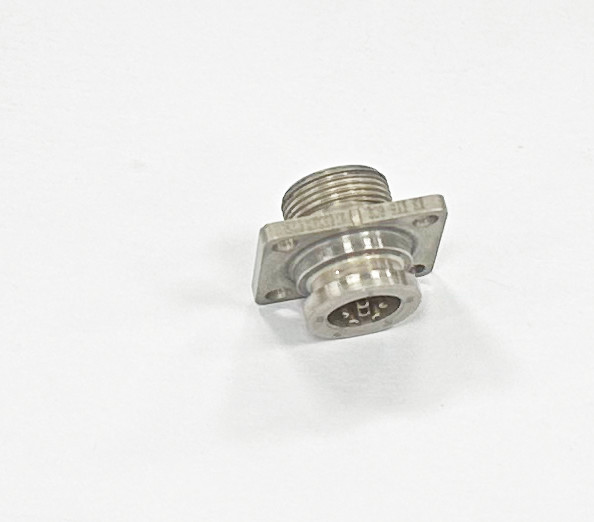

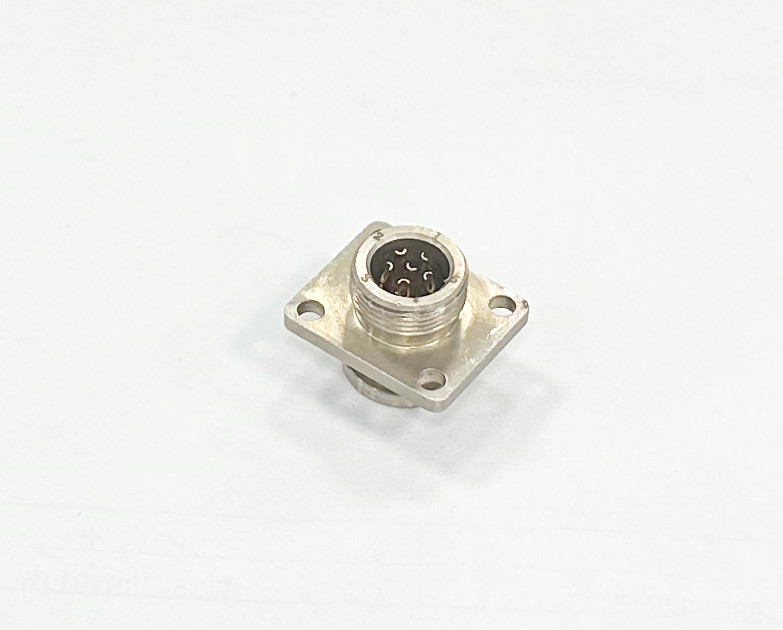

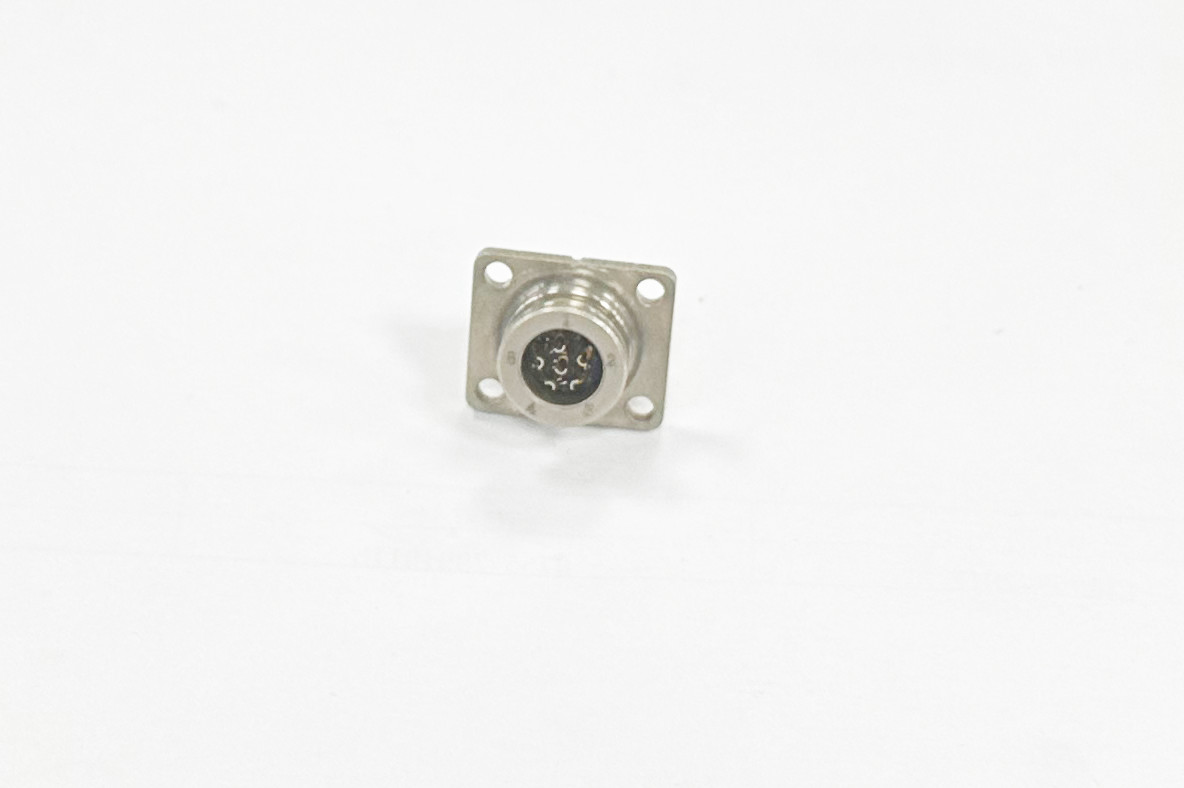

Φ0.5mm Hermetic Wire Feedthrough 45 Steel Sintered Seal Terminals

45 Steel Electroless Nickel Hermetic Feedthrough Terminals

Product Description:

At our company, we strive to provide the best solutions to meet our customer's requirements. Our terminals are made of 45 Steel and have excellent performance in regards to many parameters.

Firstly, it has a hi-pot of 3000v with leak current lower than 0.5MA. Secondly, it has a resistant of 1000V and IR > 1000MΩ. Thirdly, a leak test at 4MPa N2 pressure with no leak, and finally a burst test at 5MPa with no leak.

Furthermore, our terminals can withstand a wide operating temperature range from -70°C to 300°C.

Features:

• Product Name: Hermetic Feedthrough Connectors
• Manufacturer: SSCore
• Connector Type: Hermetic
• Core column: Φ0.5mm-Φ3.2mm
• Material: 45 Steel
• Contact Plating: Electroless Nickel
• Hermetic Feedthrough Adapters: Yes
• Hermetic Feedthrough Terminals: Yes
• Hermetic Feedthrough Couplers: Yes

Technical Parameters:

Our company provides a high-quality electroless nickel plating solution. This environmentally friendly coat ensures no heavy metabolic such as mercury, lead, cadmium, and hexavalent chromium are included, and meets the European Union standards with SGS environmental testing reports

As a protective coating, the thickness of the nickel is 3-5 microns, and it is also widely used in electrical connections as it improves corrosion protection.

Thanks to our system, you can benefit from a superior quality electroless nickel plating solution, while at the same time being environmentally aware. Contact us now and get more information about our products!

Applications:

Our sintered joints are highly versatile and can be used in a variety of circumstances. They are mainly used to seal, insulate, and withstand pressure signal transmission in pressure, temperature, and signal sensors.

These joints are able to maintain efficiency and long-term stability in the above applications, creating a reliable connection that can help many businesses and services.

Our team of experts developed these sintered joints with the highest standards of quality, making them the perfect solution for a variety of industries.

Customization:

SSCore offers customized Hermetic Feedthrough Connectors that are a perfect fit for your needs! Our Hermetic Fitting Connectors, Hermetic Feedthrough Couplers, and Hermetic Feedthrough Terminals are designed to meet the highest standards. Our Hermetic Feedthrough Connectors are made of 45 Steel and plated with Electroless Nickel for superior corrosion resistance. The temperature rating of our Hermetic Feedthrough Connectors is from -70°C To 300°C.

Brand Name: SSCore
Place of Origin: ShenZheng
Minimum Order Quantity: 5 pcs
Price: 10 - 60 $
Packaging Details: vacuum package
Delivery Time: 7 - 14 work days
Payment Terms: L/C, D/A, T/T, D/P
Supply Ability: 50w pieces a month
Connector Type: Hermetic
Material: 45 Steel
Contact Plating: Electroless Nickel
Temperature Rating: -70°C To 300°C.
Manufacturer: SSCore

Support and Services:

We provide technical support and services for our Hermetic Feedthrough Connectors. Our expert team of engineers provides comprehensive support from product selection and design to installation and maintenance. Our services include:

• Product Selection Assistance
• Design & Engineering Support
• Application Support
• Installation & Maintenance
• Repair & Replacement
