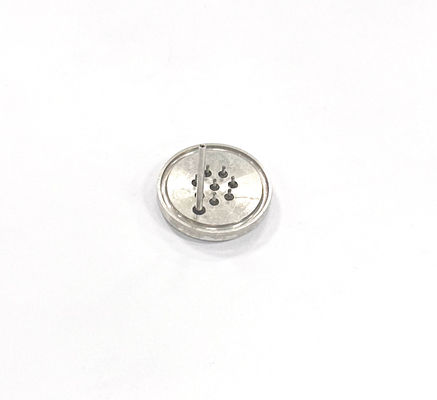

Insulation Resistance 1000MΩ Hermetically Sealed Terminal With Impact Resistance 200N
Product Description:
We can customize different types of sintered seal terminals according to customer requirements. Our terminals boast a range of performance parameters for use in a variety of applications, some of which are as follows:
- Material : 45 Steel
- Hi-pot : 3000v leak current ≤ 0.5MA
- IR:1000V IR > 1000MΩ
- Leak Test: 4MPa N2 pressure No leak
- Burst Test:5MPa No leak
- Operating Temperature Range:-70°C - 300°C
Features:
- Product Name: Hermetically Sealed Terminal
- Current Rating: 20A-30A
- Voltage Rating: 1000V
- Material: 45 Steel
- Insulation Resistance: 1000MΩ
- Impact Resistance: 200N
- Hermetically Sealed Interface
- Hermetically Sealed Unit
Technical Parameters:
Our company provide high-quality products thanks to an environmentally-friendly electroless nickel plating method, with a coating film of 3-5 microns. This method does not contain hazardous substances like mercury, lead, cadmium and hexavalent chromium, meeting EU requirements. This is verified with SGS environmental testing reports. The products can be used for making electrical connections.
Applications:
Hermetically Sealed Terminal
The Hermetically Sealed Terminal from SSCore is an excellent solution for any environment that requires reliable, safe and secure connections. It features hermetically sealed construction that prevents the entry of dust, dirt and moisture and ensures a long service life. The hermetically sealed kit is designed to meet the strict requirements of IATF16949 certification and can be easily installed with minimal effort. With a minimum order quantity of 5 pieces and prices ranging from 10 to 40 $, this product offers excellent value for money. The terminals are safely packaged in vacuum package and can be delivered within 7 to 14 work days. Payment methods include L/C, D/A, T/T, and D/P. The terminals are available in a wide range of options with dielectric strength up to 3500VAC and can handle current ratings from 20A to 30A. They are made from 45 steel and can operate in temperatures ranging from -70°C to 300°C. The SSCore hermetically sealed terminal is a great choice for any application where secure and reliable connections are needed and offers excellent supply ability with up to 50w pieces a month.
Customization:
Hermetically Sealed Terminal
Brand Name: SSCore
Place of Origin: ShenZheng
Certification: IATF16949 Certified
Minimum Order Quantity: 5 pcs
Price: 10 - 40 $
Packaging Details: Vacuum Package
Delivery Time: 7 - 14 work days
Payment Terms: L/C, D/A, T/T, D/P
Supply Ability: 50w pieces a month
Current Rating: 20A-30A
Salt Spray Resistance: 48h The Rusted Area < 5%
Impact Resistance: 200N
Temperature Rating: -70°C - 300°C
Voltage Rating: 1000V
Features:
- Hermetically Sealed Construction
- Hermetically Sealed Device
- Hermetically Sealed Interface
- Hermetically Sealed Terminals
- IATF16949 Certified
- Vacuum Package
- Salt Spray Resistance
- Impact Resistance
- Temperature Rating
- Voltage Rating
Support and Services:
Hermetically Sealed Terminal Technical Support and Service
The Hermetically Sealed Terminal is designed to provide reliable, long-term performance in hazardous and extreme environments. We offer the following technical support and service to ensure optimal performance:
Installation and Setup
We provide installation and setup services to ensure that the terminal is properly installed and configured according to your specifications.
Maintenance and Troubleshooting
We offer maintenance and troubleshooting services to diagnose and repair any issues that may arise.
Upgrades and Enhancements
We offer upgrades and enhancements to keep your system up to date and performing optimally.
Training and Documentation
We provide training and documentation services to ensure that you and your staff are fully familiar with the system and able to use it effectively.
