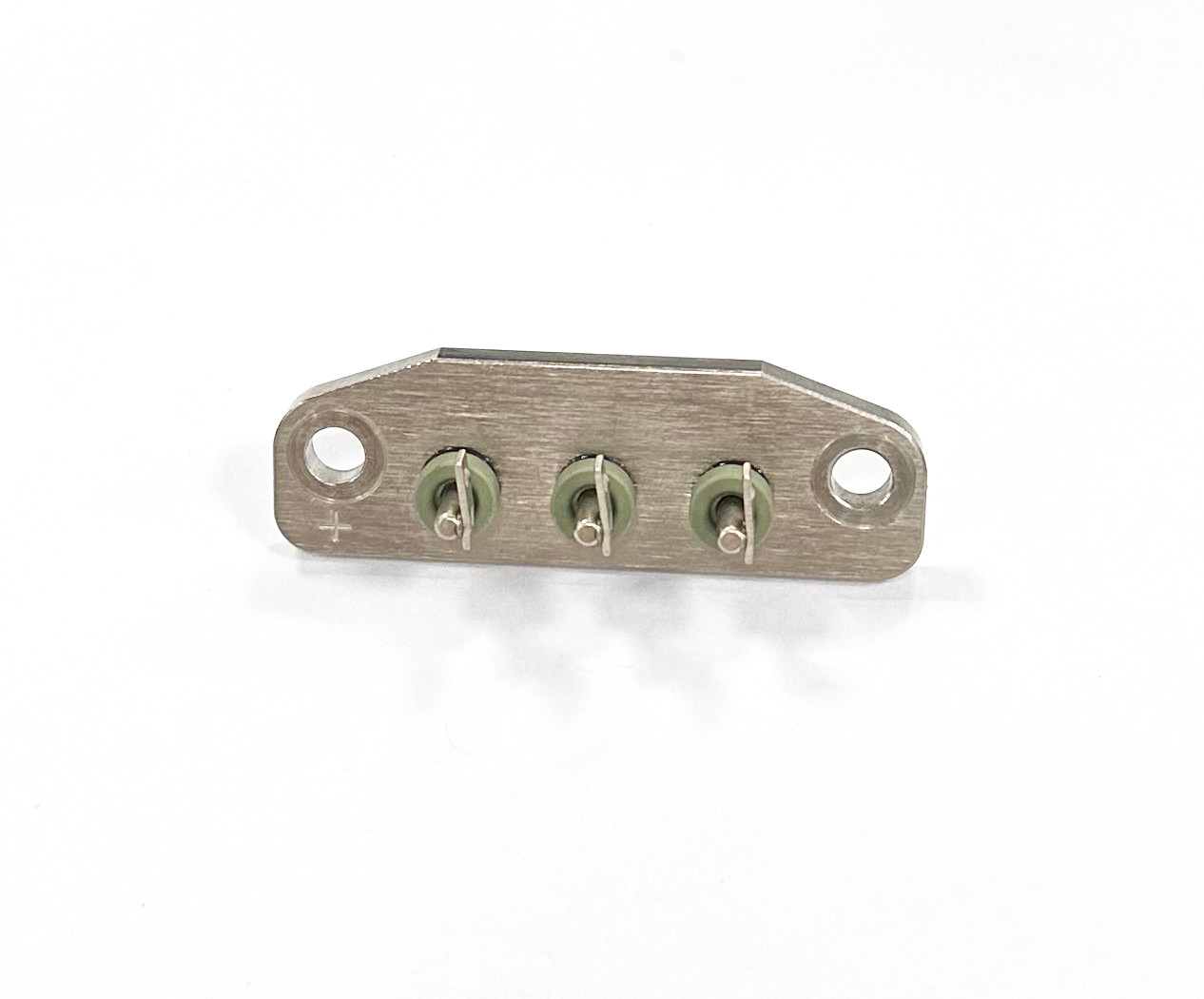

20A-30A Hermetically Sealed Device Enhanced Safety With 3500VAC Dielectric Strength
Product Description:
We offer our customers custom-made sintered seal terminals which come with various specialized performance parameters. The parameters that customers can expect from our terminals include:
- Material: 45 Steel
- Hi-pot: 3000v leak current ≤ 0.5MA
- IR: 1000V IR > 1000MΩ
- Leak Test: 4MPa N2 pressure No leak
- Burst Test: 5MPa No leak
- Operating Temperature Range: -70°C - 300°C
Features:
- Product Name: Hermetically Sealed Terminal
- Insulation Resistance: 1000MΩ
- Temperature Rating: -70°C - 300°C
- Voltage Rating: 1000V
- Dielectric Strength: 3500VAC
- Impact Resistance: 200N
Technical Parameters:
All products of our company adopt environmentally friendly electroless nickel plating method, with a coating thickness of 3-5 microns. This nickel coating does not contain harmful substances such as mercury, lead, cadmium and hexavalent chromium, staying up to EU standards, and coming along with a SGS environmental testing report. Furthermore, it has great roles in electrical connections.
Applications:
Hermetically Sealed Terminal, manufactured by SSCore in ShenZheng, is certified by IATF16949. The minimum order quantity is 5 pieces, and the price range is 10-40 $ per piece. The packaging details are vacuum package to ensure the quality. The delivery time is 7-14 work days, and the payment terms are L/C, D/A, T/T, D/P. The monthly supply ability is 50w pieces. The insulation resistance is 1000MΩ, salt spray resistance is 48h with the rusted area less than 5%, impact resistance is 200N and current rating is 20A-30A. The material is 45 steel.
Customization:
Hermetically Sealed Terminal
Features:
- Brand Name: SSCore
- Place of Origin: ShenZheng
- Certification: IATF16949
- Minimum Order Quantity: 5 pcs
- Price: 10 - 40 ¥
- Packaging Details: vacuum package
- Delivery Time: 7 - 14 work days
- Payment Terms: L/C, D/A, T/T, D/P
- Supply Ability: 50w pieces a month
- Material: 45 Steel
- Temperature Rating: -70°C - 300°C
- Salt Spray Resistance: 48h The Rusted Area < 5%
- Current Rating: 20A-30A
- Insulation Resistance: 1000MΩ
Product description:
Hermetically Sealed Terminal offers hermetically sealed interfaces, hermetically sealed terminals and hermetically sealed construction, certified by IATF16949. These terminals are made of 45 steel, and can resist temperature from -70°C to 300°C. The salt spray resistance is rated for 48h, with the rusted area of less than 5%. The current rating is 20A-30A and the insulation resistance is 1000MΩ.
Support and Services:
Hermetically Sealed Terminal Technical Support and Service
We provide technical support and service for our Hermetically Sealed Terminal products. Our team is available 24/7 for any questions or concerns.
Customer Support
Our customer support team is available to answer any questions you may have about our Hermetically Sealed Terminal products. We'll do our best to provide you with the information needed to make informed decisions regarding your purchase.
Installation and Maintenance
We offer installation and maintenance services for our Hermetically Sealed Terminal products. Our team of experts can help you install and maintain your terminal, ensuring that it is working properly and meeting all safety and compliance regulations.
Warranty and Repair
We offer a warranty on our Hermetically Sealed Terminal products. If you experience any issues with your terminal, our team can diagnose and repair it for you.
