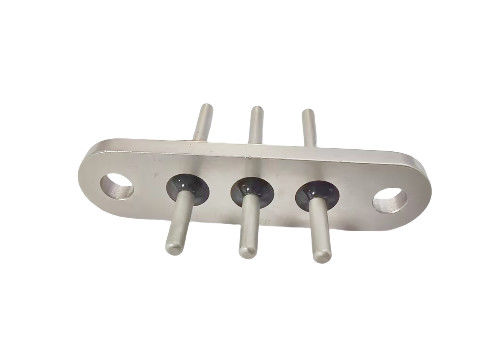

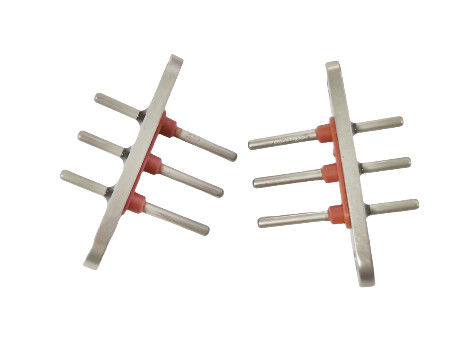

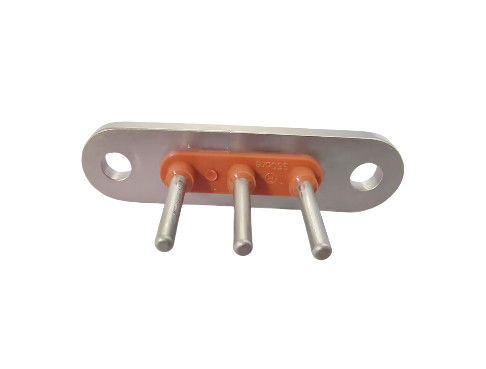

No. 45 Steel Needle with 45mm Length and Glue Injection Process for Air Conditioner Compressor

1. Product Materials

2. Technical Requirements

1. Electrical Insulation: It has a remarkable electrical insulation performance. Between the steel and iron components, the insulation resistance is 1000MΩ at 1000VDC. When tested with 3000VAC at 50Hz for 1 minute, the maximum leakage current does not exceed 0.5mA, ensuring reliable electrical isolation.
2. Gas Tightness: It can withstand a nitrogen pressure of 3.5MPa without leakage, demonstrating excellent gas - tightness, which is crucial for applications where maintaining a sealed environment is necessary.
3. Current - Carrying Capacity: The terminal can endure a maximum current of 30A for the steel part during short - circuit conditions and 25A under normal operating conditions, ensuring stable electrical conductivity.
4. Operating Temperature: It is designed to operate stably within a wide temperature range from - 40°C to 150°C, making it adaptable to various working environments.
5. Surface Treatment: The product undergoes a surface treatment of electroplating with a thickness of 3 - 5 microns (for welding areas), which not only enhances its corrosion resistance but also improves its appearance and welding performance.

3. Quality Assurance

1. Dimension Precision: All dimensions are strictly controlled. For example, the linear tolerance is ±0.13mm, and the angular tolerance is ±0.5°. The dimensional accuracy is interpreted in accordance with ASME Y14.5 - 2018 standards, ensuring a high - precision fit with other components.
2. Safety and Consistency: Safety and consistency are key product characteristics. Every product is rigorously tested to meet the specified technical requirements, guaranteeing reliable performance and user safety.

4. Foreign Trade Transportation

5. Foreign Trade Transaction Methods

1. Payment Terms: We accept various payment methods for the convenience of our customers. The commonly used methods include T/T (Telegraphic Transfer), where customers can transfer the payment directly to our designated bank account. For new customers or those with concerns about payment security, we also support payment through third - party platforms like PayPal. L/C (Letter of Credit) is another option, which provides a secure payment mechanism for both parties, especially for large - value transactions.
2. Order Placement: Customers can place orders through our official trading platform on [Platform Name], or by sending detailed order information via email. Our sales team will respond promptly to confirm the order details, including product specifications, quantity, and delivery address, and then proceed with the order processing.
