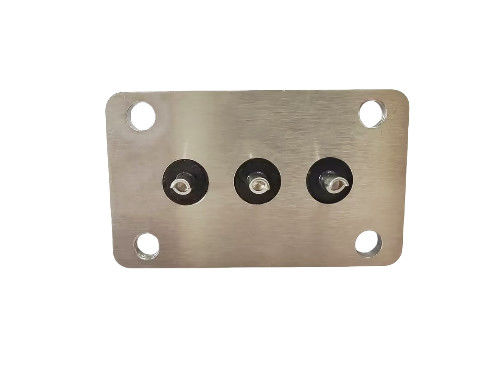

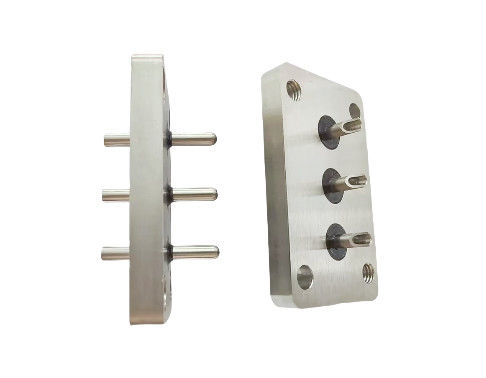

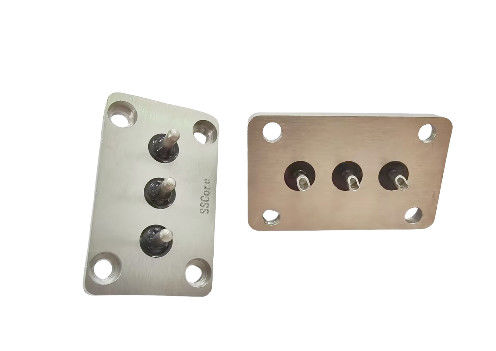

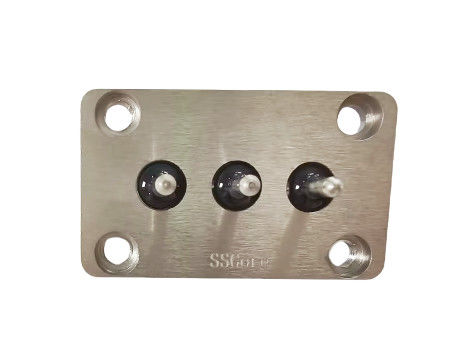

23.7mm Steel Pin with One Tapered End and Small Square Plate for Air Conditioner Compressor Sealing Terminal Plate

Basic Properties
Place of Origin: CHINA
Brand Name: SSC
Certification: IATF16949/ISO9001/ISO14001
Model Number: 41-X0502
Trading Properties
Minimum Order Quantity: 10pcs
Price: 10-15$
Payment Terms: L/C,D/A,D/P,T/T
Supply Ability: 10W per year
Tags

Hermetically Sealed Unit

Hermetic Terminal

Hermetically Sealed Equipment
Specifications
Installation Iron Shell: 45 Steel Nickel Plated: THICKNESS 2~4μm
Voltage Rating: Up To 24V Dielectric Strength: 1500VAC
Operating Temperature: Up To 150°C Maximum Current: 15A
Contact Resistance: 1000mΩ Max High Sealing Performance: 4MPa Does Not Leak
High Light:

Air Conditioner Compressor Steel Pin

,

Small Square Plate Steel Pin

,

23.7mm Steel Pin
Product Description

Product Description

1. Product Materials

Component Material
Body 45 Steel
Pins 45 Steel
Glass ELAN 48#


The 45 steel used for the body and pins offers excellent mechanical properties. It has high strength and good machinability, which ensures the product can withstand various mechanical forces during operation and manufacturing. The ELAN 48# glass provides reliable electrical insulation, preventing electrical leakage between different parts of the product.

2. Technical Requirements

  1. Electrical Performance:
    • Insulation Resistance: Must achieve 1000MΩ at 1000VDC in static check, ensuring effective electrical isolation.
    • Hi - POT Test: Pass a 3000VAC, 1 - second static check with leakage current less than 0.5mA and no breakdown or flashover, demonstrating its ability to withstand high - voltage stress.
  2. Leak - tightness: Pass a leak test with 4MPa N₂ pressure for 1 minute, ensuring excellent sealing performance.
  3. Surface Treatment: Undergo electroless nickel plating with a thickness of 2 - 4 microns, enhancing corrosion resistance and improving the appearance.
  4. Operating Conditions: Operate stably at 24V and 15A, within a working temperature range of - 40°C to + 150°C.
  5. Banned Substances: Comply with the requirements of GB/T 30512 - 2014 "Requirements for Banned Substance in Auto Parts", ensuring the product is free from harmful substances.

3. Quality Assurance

  1. Raw Material Inspection: Strictly inspect the incoming 45 steel and ELAN 48# glass. Check the chemical composition and mechanical properties of 45 steel, and verify the quality of ELAN 48# glass to ensure they meet the required standards.
  2. In - process Quality Control: Monitor and control the manufacturing process at critical points. Use precision measuring tools to ensure the dimensional accuracy of parts, and conduct regular checks on the plating process to maintain the quality of the surface treatment.
  3. Final Product Testing: Subject each finished product to a comprehensive set of tests, including electrical performance tests, leak tests, and checks for compliance with banned - substance requirements. Only products that pass all tests are approved for release.

4. Foreign Trade Transportation

  1. Express Shipping: For small - quantity orders or urgent requirements, we offer express shipping services like DHL, FedEx, or UPS. These services usually deliver the products within 3 - 5 working days, ensuring quick access to the goods.
  2. Sea Freight: For large - quantity orders, sea freight is a more cost - effective option. We cooperate with reliable shipping companies and use proper packaging materials to ensure the products are transported safely and arrive at the destination on time. The products are carefully packed to protect them from damage during transit.

5. Foreign Trade Transaction Methods


  1. Order Placement: You can seamlessly place orders through our user - friendly official trading interface on  terminal plate . The platform is designed for easy navigation, allowing you to quickly select product models, specify quantities, and input delivery details. If you prefer a more personalized approach, simply send us an email with comprehensive order information. Our dedicated sales team is always on standby to promptly respond, confirm order details, and address any queries you may have.
  2. Payment Options: We understand the importance of flexibility in international trade transactions. That's why we offer a diverse range of payment methods. For straightforward and common transactions, T/T (Telegraphic Transfer) is a popular choice. It enables you to transfer funds directly to our designated bank account with ease. For larger - scale deals where security is a top priority, we support L/C (Letter of Credit). This payment method provides a secure and reliable mechanism, safeguarding the interests of both parties involved. Moreover, we're open to exploring alternative payment methods such as payment through third - party platforms like PayPal for smaller orders, or other industry - recognized payment gateways upon mutual agreement. We strive to accommodate your specific requirements and preferences to ensure a smooth and hassle - free payment process.
