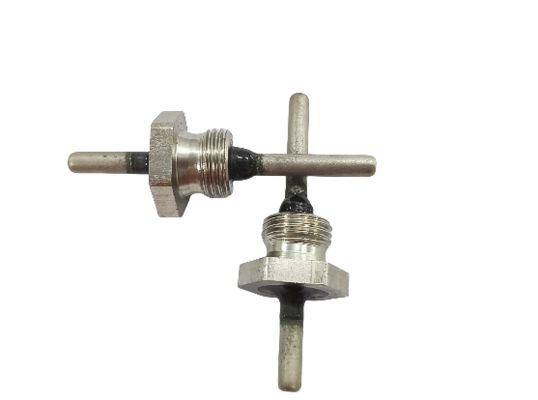

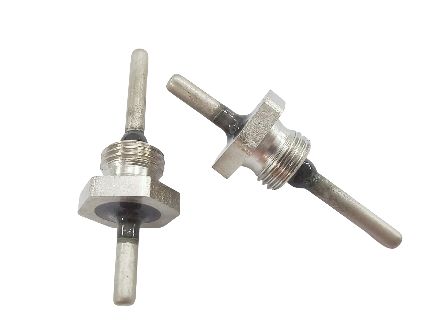

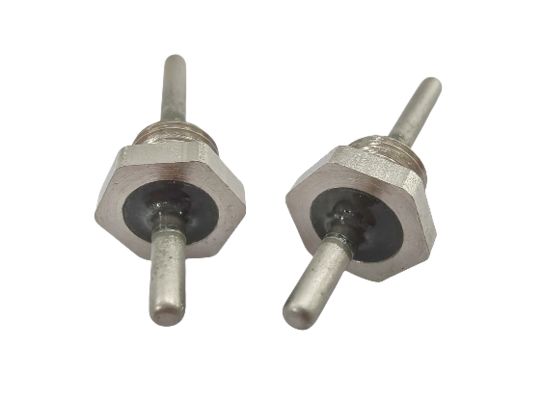

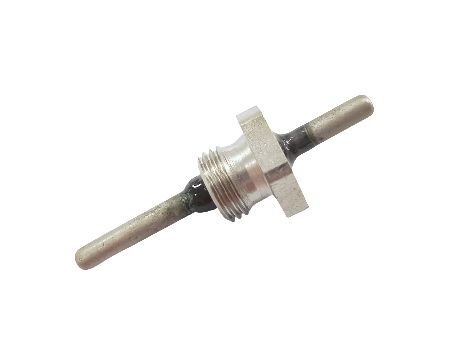

20 AWG Contact Size Hermetic Single Seal Terminals with 30A Rated Current

Product Description:

The Hermetic Single Seal Terminals are precision-engineered components designed to provide reliable and secure electrical connections in demanding industrial environments. These terminals are an essential part of Component mechanical seals, ensuring that electrical circuits remain intact and protected from external contaminants, moisture, and environmental hazards. With a focus on durability and performance, these terminals play a crucial role in maintaining the integrity of Industrial Mechanical Seals, contributing to the overall efficiency and longevity of mechanical systems.

One of the standout features of the Hermetic Single Seal Terminals is their contact size, which is rated at 20 AWG. This size is ideal for a variety of applications requiring moderate current-carrying capacity while maintaining a compact form factor. The terminals are designed to handle wire gauges ranging from 22 AWG to 12 AWG, offering versatility for different wiring needs. This broad wire gauge compatibility makes them suitable for a wide range of industrial applications, where flexibility in wiring is often required to meet specific system demands.

In terms of electrical performance, these terminals boast a voltage rating of 500 V, making them suitable for use in medium voltage environments. This voltage rating ensures that the terminals can safely operate under significant electrical loads without the risk of breakdown or failure. Additionally, the contact resistance of the Hermetic Single Seal Terminals is an impressively low 10 milliohms (MOhm), which minimizes energy loss and heat generation at the connection point. Low contact resistance is critical in maintaining efficient electrical flow and preventing potential hot spots that could lead to system failures.

The termination style of these terminals is straight, a design choice that facilitates straightforward and secure wiring connections. The straight termination style is particularly advantageous in applications where space constraints or wiring layout require a direct and uncomplicated connection path. This design also simplifies installation and maintenance, reducing downtime and labor costs associated with electrical system upkeep.

Hermetic Single Seal Terminals are commonly integrated into Cylinder Seal Kits, which are widely used in hydraulic and pneumatic systems. These kits depend on the reliability of their sealing components to prevent leaks and maintain pressure integrity. By incorporating high-quality Hermetic Single Seal Terminals, Cylinder Seal Kits benefit from enhanced electrical connectivity that supports sensor and control system functionality within sealed environments.

In industrial settings, where equipment is often exposed to harsh conditions such as extreme temperatures, chemicals, and mechanical vibrations, the robustness of the Hermetic Single Seal Terminals offers a significant advantage. Their hermetic sealing capability prevents the ingress of contaminants, thereby protecting sensitive electrical connections and extending the operational life of Industrial Mechanical Seals. This protection is vital for maintaining system reliability and avoiding costly downtime due to seal or electrical failures.

Overall, the Hermetic Single Seal Terminals combine mechanical robustness, electrical efficiency, and ease of installation to meet the rigorous demands of modern industrial applications. Their compatibility with a range of wire gauges, substantial voltage rating, low contact resistance, and straight termination style make them an indispensable component in the assembly of Component mechanical seals and Cylinder Seal Kits. Whether used in manufacturing plants, automotive systems, or heavy machinery, these terminals provide the dependable performance necessary to support complex mechanical sealing solutions and ensure optimal system functionality.

Features:

• Product Name: Hermetic Single Seal Terminals
• Operating Temperature Range: -55°C to 125°C
• Wire Gauge Compatibility: 22 AWG to 12 AWG
• Rated Current: 30A
• Contact Style: Pin
• Termination Style: Straight
• Includes Gasket Seal Kit for enhanced sealing performance
• Ideal for applications involving Hydraulic Cylinder Seals
• Designed to ensure reliable hermetic sealing in various environments

Technical Parameters:

Applications:

The SSCore Hermetic Single Seal Terminals are designed for a wide range of industrial applications requiring reliable and durable sealing solutions. Certified under the stringent IATF16949 standards, these terminals ensure exceptional quality and performance. Their robust construction supports a rated current of 30A and a voltage rating of 500V, making them ideal for use in demanding environments where electrical integrity and safety are paramount.

One of the primary application occasions for SSCore Hermetic Single Seal Terminals is within Air Cylinder Seals. These terminals provide airtight and secure connections that prevent leakage and contamination, which is critical for maintaining the efficiency and longevity of pneumatic systems. Their ability to operate reliably in extreme temperatures ranging from -55°C to 125°C makes them suitable for both cold storage facilities and high-temperature industrial settings.

In addition to their use in Air Cylinder Seals, these Hermetic Single Seal Terminals are frequently incorporated into Cylinder Seal Kits. These kits are essential for maintenance and repair operations in automated machinery and pneumatic cylinders, where quick and effective sealing solutions are required to minimize downtime. The terminals’ low contact resistance of 10 MOhm ensures minimal energy loss and stable electrical performance, which is vital for precision equipment.

The packaging details of SSCore Hermetic Single Seal Terminals include a vacuum package, which guarantees product integrity and protection against environmental factors during storage and transportation. Bulk packaging options are available, with a minimum order quantity of 5 pieces, catering to both small-scale maintenance needs and large-scale industrial deployments. With a supply ability of 50w pieces per month, SSCore can efficiently meet the demands of various industries.

Customers benefit from flexible payment terms such as L/C, D/A, T/T, and D/P, along with a delivery time of 7 to 14 workdays, ensuring timely procurement and project continuity. Priced between 10 to 40 ￥ per piece, these terminals offer a cost-effective solution without compromising on quality or performance.

Overall, SSCore Hermetic Single Seal Terminals are a reliable choice for applications involving Air Cylinder Seals and Cylinder Seal Kits, providing enduring performance, excellent sealing capabilities, and compliance with industry standards to support the needs of modern industrial processes.

Customization:

SSCore offers customized Hermetic Single Seal Terminals designed to meet your specific requirements. Certified under IATF16949, our products guarantee high quality and reliability. We support a minimum order quantity of 5 pieces, with prices ranging from 10 to 40 ￥ depending on specifications.

Our Hermetic Single Seal Terminals feature a straight termination style suitable for wire gauges from 22 AWG to 12 AWG, ensuring compatibility with a wide range of applications including Fristam pump seals, Air Cylinder Seals, and Hydraulic Cylinder Seals. With a contact resistance of 10 MOhm and insulation resistance of 1000 MOhm, these terminals provide excellent electrical performance and durability.

All products are packaged in vacuum-sealed bulk packaging to maintain integrity during transit. We offer a supply ability of 50,000 pieces per month, with delivery times between 7 to 14 work days. Payment terms include L/C, D/A, T/T, and D/P for your convenience.

Choose SSCore for reliable, customized Hermetic Single Seal Terminals that meet stringent industry standards and support your specialized sealing applications.

Support and Services:

Our Hermetic Single Seal Terminals are designed to provide reliable and secure electrical connections in environments where hermetic sealing is critical. These terminals ensure optimal performance by preventing moisture, dust, and other contaminants from entering the sealed enclosure.

For technical support, our team of experts is available to assist you with installation guidance, troubleshooting, and maintenance tips to maximize the lifespan and efficiency of your hermetic single seal terminals. We recommend following the specified torque settings and installation procedures to maintain the integrity of the hermetic seal.

We also offer comprehensive services including customization to fit specific application requirements, testing for quality assurance, and on-site support to ensure seamless integration with your systems. Our commitment is to deliver products and services that meet the highest standards of reliability and performance.

Packing and Shipping:

The Hermetic Single Seal Terminals are carefully packaged to ensure maximum protection during transit. Each terminal is individually sealed in anti-static, moisture-resistant packaging to prevent any damage or contamination. The terminals are then placed in sturdy, cushioned boxes designed to absorb shocks and vibrations.

For shipping, we use reliable carriers with tracking options to guarantee timely and safe delivery. Our packaging meets all industry standards for hazardous and non-hazardous materials, ensuring compliance and safety throughout the shipping process. Customers can expect their Hermetic Single Seal Terminals to arrive in perfect condition, ready for immediate use.

FAQ:

Q1: What brand manufactures the Hermetic Single Seal Terminals?

A1: The Hermetic Single Seal Terminals are manufactured by SSCore.

Q2: Is the Hermetic Single Seal Terminals product certified?

A2: Yes, it is certified under the IATF16949 standard.

Q3: What is the minimum order quantity for the Hermetic Single Seal Terminals?

A3: The minimum order quantity is 5 pieces.

Q4: What are the payment terms available for purchasing the Hermetic Single Seal Terminals?

A4: Payment terms include L/C, D/A, T/T, and D/P.

Q5: How long does it take to deliver the Hermetic Single Seal Terminals?

A5: The delivery time ranges from 7 to 14 working days.

Q6: What is the price range for the Hermetic Single Seal Terminals?

A6: The price ranges from 10 to 40 ￥ per piece.

Q7: How are the Hermetic Single Seal Terminals packaged?

A7: They are packaged in vacuum packages to ensure product integrity.

Q8: What is the monthly supply capacity for the Hermetic Single Seal Terminals?

A8: The supply ability is 50,000 pieces per month.
