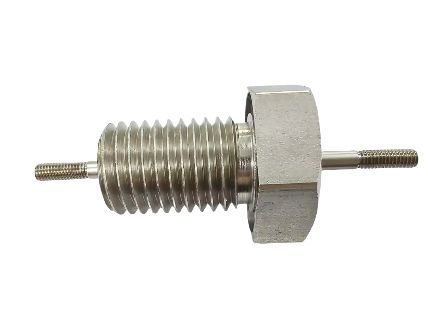

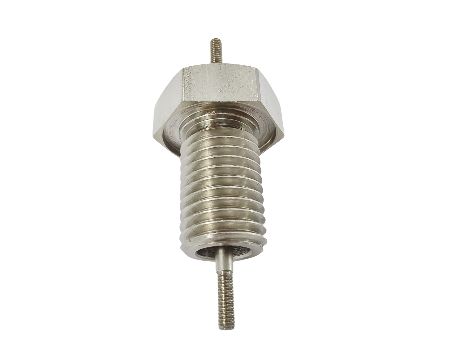

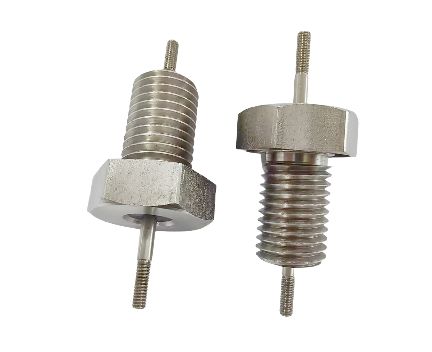

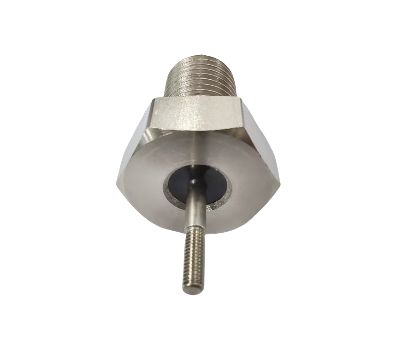

-70°C To 300°C Temperature Range Rated Hermetic Single Seal Terminals 30A Rated Current Rated for 20 AWG Contact Size

Product Description:

The Hermetic Single Seal Terminals are precision-engineered components designed to provide exceptional sealing performance and reliable electrical connectivity in demanding environments. Rated for a current of 30A and capable of operating within an extensive temperature range from -70°C to 300°C, these terminals are ideal for applications requiring robust thermal stability and electrical integrity. Their through-hole mounting type ensures secure attachment and mechanical stability, making them an excellent choice for various industrial and mechanical systems where durability and performance are paramount.

One of the standout features of these Hermetic Single Seal Terminals is their ability to maintain a hermetic seal, which is crucial in preventing the ingress of moisture, gases, and contaminants. This sealing capability is comparable to the effectiveness found in hydraulic cylinder seals, ensuring that the electrical connections remain protected even under harsh conditions. This makes them particularly suitable for use in environments where contamination could lead to equipment failure or reduced efficiency.

With a voltage rating of 500 V, these terminals support a wide range of electrical applications, delivering stable and secure connectivity for circuits requiring moderate voltage levels. The contact size, specified at 20 AWG, facilitates compatibility with standard wire gauges commonly used in industrial and commercial settings, ensuring ease of integration into existing systems. This balance of electrical capacity and mechanical robustness positions the Hermetic Single Seal Terminals as a versatile solution for many sealing and electrical connection challenges.

The design emphasizes the integration of component mechanical seals, which are essential for maintaining the integrity of both the electrical connection and the surrounding environment. These mechanical seals act as a barrier, safeguarding the contact points from mechanical wear, chemical exposure, and thermal fluctuations. When combined with the hermetic sealing properties, they create a comprehensive sealing system that enhances the longevity and reliability of the terminal connections.

Additionally, the Hermetic Single Seal Terminals can be used in conjunction with gasket seal kits to further enhance their sealing effectiveness. Gasket seal kits provide an added layer of protection by filling potential gaps and irregularities around the mounting area, thus preventing leaks and contamination. This combination is particularly beneficial in applications where environmental sealing is critical, such as in aerospace, automotive, and heavy machinery sectors.

These terminals are meticulously crafted to meet stringent quality standards, ensuring consistent performance even under extreme conditions. Their ability to function efficiently across a broad temperature spectrum makes them suitable for applications ranging from cryogenic systems to high-temperature industrial processes. The through-hole mounting not only ensures mechanical stability but also facilitates ease of installation and maintenance, reducing downtime and improving operational efficiency.

In summary, the Hermetic Single Seal Terminals represent a high-quality solution for electrical connections that demand exceptional sealing, thermal resilience, and mechanical reliability. Their rated current of 30A, voltage rating of 500 V, and compatibility with 20 AWG wire sizes make them adaptable to numerous applications. By incorporating features akin to hydraulic cylinder seals and integrating component mechanical seals, these terminals provide superior protection against environmental factors. When paired with gasket seal kits, they offer an enhanced sealing system that ensures longevity and dependable performance in critical industrial and mechanical applications.

Features:

• Product Name: Hermetic Single Seal Terminals
• Operating Temperature Range: -55°C to 125°C
• Wire Gauge Compatibility: 22 AWG to 12 AWG
• Termination Style: Straight
• Contact Style: Pin
• Contact Resistance: 10 MOhm
• Includes Gasket Seal Kit for enhanced sealing performance
• Compatible with Fristam pump seals for reliable industrial applications
• Gasket Seal Kit ensures hermetic sealing to prevent contamination

Technical Parameters:

Applications:

The SSCore Hermetic Single Seal Terminals are engineered for a wide range of demanding applications, providing reliable sealing and electrical connectivity in various industrial scenarios. Certified under IATF16949, these terminals meet stringent quality standards, ensuring superior performance and durability. With a contact resistance of just 10 MOhm and a voltage rating of 500 V, they are ideally suited for use in critical environments where electrical integrity and airtight sealing are paramount.

One of the primary application occasions for SSCore Hermetic Single Seal Terminals is in the assembly and maintenance of Air Cylinder Seals. These terminals provide a robust hermetic seal that prevents air leakage, maintaining optimal pressure and efficiency within pneumatic systems. Their through-hole mounting type and straight termination style allow for easy integration into existing assemblies, making them a preferred choice for manufacturers and service technicians working on air cylinders and related pneumatic equipment.

Another common scenario for the use of these terminals is within Gasket Seal Kits, where reliable hermetic sealing is essential to prevent contamination and ensure operational safety. The operating temperature range of -55°C to 125°C allows these terminals to function effectively in both extreme cold and high heat conditions, making them suitable for automotive, aerospace, and industrial machinery applications that require consistent sealing performance under fluctuating temperatures.

SSCore offers these Hermetic Single Seal Terminals in vacuum packaging to protect them during transport and storage, ensuring that each piece maintains its integrity until installation. With a minimum order quantity of just 5 pieces, they are accessible for both small-scale repairs and large production runs. The supply ability of 50,000 pieces per month guarantees that customers can rely on steady availability, while delivery times of 7 to 14 work days provide prompt fulfillment of orders.

Flexible payment terms including L/C, D/A, T/T, and D/P further facilitate business transactions, making the procurement process smooth and convenient for customers worldwide. Priced between 10 to 40 ￥ per piece, SSCore Hermetic Single Seal Terminals offer a cost-effective solution without compromising on quality or performance. Whether used in gasket seal kits, air cylinder seals, or other precision sealing applications, these terminals deliver dependable hermetic sealing and electrical performance for a variety of industrial needs.

Customization:

SSCore offers premium customization services for Hermetic Single Seal Terminals, ensuring high-quality solutions tailored to your needs. Our products are IATF16949 certified, guaranteeing exceptional reliability and performance. We accommodate minimum order quantities starting from 5 pieces, with competitive pricing ranging from 10 to 40 ￥ per unit.

Each terminal is carefully packaged in a vacuum package to maintain product integrity during shipping. Delivery times range from 7 to 14 work days, supported by flexible payment terms including L/C, D/A, T/T, and D/P. With a supply ability of 50w pieces a month, we are well-equipped to meet your demand promptly.

Our Hermetic Single Seal Terminals support wire gauges from 22 AWG to 12 AWG and feature a voltage rating of 500 V. Designed for through hole mounting, they operate reliably within a temperature range of -55°C to 125°C, and offer insulation resistance up to 1000 MOhm.

Whether you require components for Pump Mechanical Seal applications, Hydraulic Cylinder Seals, or Gasket Seal Kits, SSCore’s customization services ensure that your specific requirements are met with precision and durability.

Support and Services:

Our Hermetic Single Seal Terminals are designed to provide reliable and durable electrical connections in hermetically sealed environments. These terminals are ideal for applications requiring high integrity sealing to prevent gas or liquid ingress, ensuring optimal performance in harsh conditions.

Technical support for Hermetic Single Seal Terminals includes assistance with product selection, installation guidelines, and troubleshooting to maximize product lifespan and functionality. Our team can provide detailed specifications and compatibility information to help you integrate the terminals seamlessly into your systems.

We offer comprehensive services including custom configurations to meet specific application requirements, quality assurance testing, and compliance verification with industry standards. Whether you need support during initial setup or ongoing maintenance, our experts are available to provide prompt and effective solutions.

Additional services include repair and replacement options, as well as training resources to ensure proper handling and usage of Hermetic Single Seal Terminals. Our commitment is to help you achieve reliable sealing performance and maintain the safety and efficiency of your electrical installations.

Packing and Shipping:

Our Hermetic Single Seal Terminals are carefully packaged to ensure maximum protection during transit. Each terminal is individually sealed in anti-static packaging to prevent moisture and contamination. The products are then placed in custom-fitted foam inserts within sturdy, corrugated cardboard boxes to minimize movement and protect against impact.

For shipping, we use reliable carriers with tracking options to guarantee timely delivery. All packages are labeled clearly with handling instructions to maintain the integrity of the hermetic seals. Bulk orders are palletized and shrink-wrapped to facilitate safe and efficient transport.

We recommend inspecting the packaging upon receipt and reporting any damages immediately to ensure prompt resolution. Our commitment to quality packaging and shipping ensures that your Hermetic Single Seal Terminals arrive in perfect condition and ready for use.

FAQ:

Q1: What brand manufactures the Hermetic Single Seal Terminals?

A1: The Hermetic Single Seal Terminals are manufactured by SSCore.

Q2: Are these terminals certified for quality standards?

A2: Yes, the Hermetic Single Seal Terminals have IATF16949 certification, ensuring high quality and reliability.

Q3: What is the minimum order quantity for these terminals?

A3: The minimum order quantity for the Hermetic Single Seal Terminals is 5 pieces.

Q4: How are the Hermetic Single Seal Terminals packaged?

A4: They are packaged in a vacuum package to ensure product integrity and protection during shipping.

Q5: What are the payment terms and delivery time for an order?

A5: Payment terms accepted include L/C, D/A, T/T, and D/P. The delivery time typically ranges from 7 to 14 work days.

Q6: What is the price range for the Hermetic Single Seal Terminals?

A6: The price ranges from 10 to 40 ￥ per piece, depending on the order quantity and specifications.

Q7: What is the monthly supply capacity of these terminals?

A7: SSCore can supply up to 50,000 pieces of Hermetic Single Seal Terminals per month.
