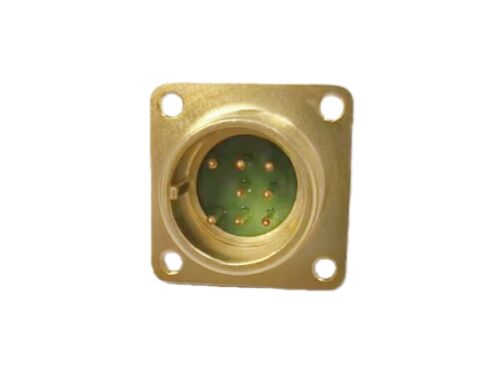

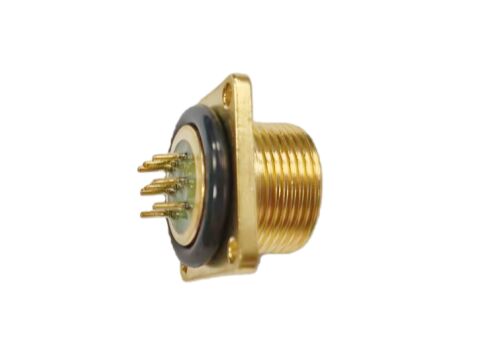

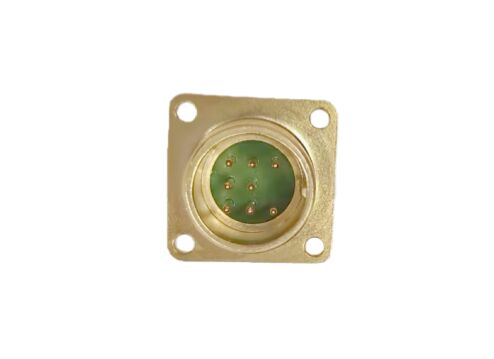

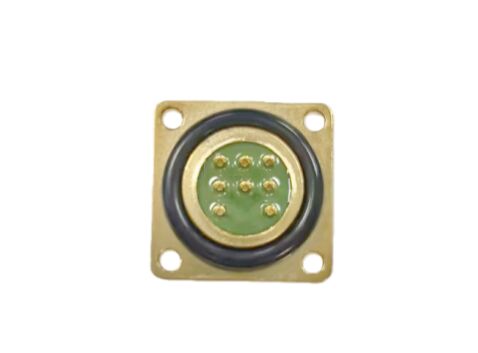

Straight Connector Orientation Glass Metal Seals Equipped with 8 Pins Providing Robust Electrical Connectivity Solutions

Product Description:

Glass To Metal Seals are a critical component in many high-reliability electrical and electronic applications, providing a robust and durable interface between metal and glass materials. These seals are designed to maintain hermeticity and electrical integrity under extreme environmental conditions, making them indispensable in industries such as aerospace, medical devices, telecommunications, and industrial automation. Our Glass To Metal Seals product line offers exceptional performance, combining advanced materials and precision engineering to deliver superior metal-to-glass bond seals that meet stringent quality standards.

One of the standout features of our Glass To Metal Seals is the availability of connector orientations to suit diverse application needs. Customers can choose between straight and right angle configurations, enabling flexible design options for circuit layouts and space constraints. Whether the installation requires a direct linear connection or a perpendicular approach, our metal seal connectors provide the adaptability necessary to optimize system design and functionality.

The product features an 8-pin configuration, making it suitable for complex signal transmission and multi-conductor applications. Each pin is manufactured from 4J50 alloy, a material known for its excellent mechanical strength, thermal stability, and corrosion resistance. The use of 4J50 alloy ensures that the pins maintain electrical conductivity and mechanical integrity even under demanding operational environments, contributing to the overall reliability of the metal-to-glass bond seals.

Thermal endurance is another critical parameter for Glass To Metal Seals, and our product excels in this regard by withstanding thermal cycles ranging from -60°C to +100°C. This wide thermal cycle capability ensures consistent performance across varying temperature extremes, making these metal seal connectors ideal for applications exposed to harsh environmental conditions such as rapid temperature fluctuations, outdoor installations, and high-power electronic devices. The ability to endure such thermal cycling without degradation in seal integrity or electrical performance highlights the robustness of our glass-to-metal seals.

Surface treatment plays a vital role in enhancing electrical contact reliability and corrosion resistance. Our Glass To Metal Seals feature gold plating on the pins and relevant contact surfaces, providing superior conductivity and minimizing contact resistance. Gold plating also prevents oxidation and tarnishing over time, further extending the lifespan and reliability of the connectors. This surface treatment ensures that the metal seal connectors maintain optimal electrical performance even in challenging environments where corrosion and wear could otherwise compromise functionality.

Overall, our Glass To Metal Seals product combines advanced materials, precise manufacturing techniques, and thoughtful design to deliver unparalleled performance in metal-to-glass bond seals. The combination of straight and right angle connector orientations, an 8-pin 4J50 alloy configuration, a broad thermal cycle range from -60°C to +100°C, and gold plating surface treatment makes these metal seal connectors highly versatile and reliable. They are engineered to meet the demanding requirements of applications that require hermetic sealing, electrical integrity, and mechanical durability.

By choosing our Glass To Metal Seals, customers benefit from a product that ensures long-term reliability and consistent performance in critical applications. These metal-to-glass bond seals are designed to provide secure, leak-proof connections that resist mechanical stress, thermal shock, and environmental contaminants. Whether used in aerospace systems, medical instrumentation, or industrial automation, our metal seal connectors guarantee superior protection and electrical connectivity, supporting the success of your high-performance electronic assemblies.

In summary, this product offers a comprehensive solution for applications requiring dependable metal-to-glass seals, combining the advantages of advanced 4J50 alloy pins, flexible connector orientations, robust thermal cycling capabilities, and gold plating surface treatment. Our Glass To Metal Seals set the standard for quality and reliability in metal seal connectors, ensuring your systems operate flawlessly even under the most challenging conditions.

Features:

• Product Name: Glass-to-Metal Seals
• Body Materials: SUS304 Stainless Steel
• Pin Material: 4J50 Alloy
• Surface Treatment: Gold Plating
• Thermal Cycle Range: -60°C to +100°C
• Contact Resistance: 100 MΩ
• High-quality Metal-Glass Bond Seals for reliable performance
• Durable Metal-Glass Seals ensuring excellent sealing and conductivity

Technical Parameters:

Applications:

SSCore's Glass To Metal Seals are precision-engineered components designed for a wide range of demanding applications where reliability and durability are paramount. These seals, also known as Glass-to-Metal Bond Seals, Metal-Glass Bond Seals, or Metal-to-Glass Bond Seals, are critical in environments requiring hermetic sealing between glass and metal parts, ensuring excellent electrical insulation and mechanical strength.

These products are ideal for use in the automotive industry, especially given their IATF16949 certification, which guarantees high-quality standards suitable for vehicle manufacturing and electronics. With a body made from SUS304 stainless steel and 4J50 alloy pins, the seals provide exceptional resistance to corrosion and thermal expansion, making them perfect for under-the-hood applications, sensors, and connectors that operate in harsh conditions.

Glass To Metal Seals from SSCore come with 8 pins, supporting wire sizes of solder contact up to 20 AWG, and are available in both straight and right-angle connector orientations. This versatility allows them to be used in various electronic assemblies, including aerospace instrumentation, medical devices, vacuum systems, and high-reliability industrial equipment, where maintaining a hermetic seal and electrical integrity is crucial.

The vacuum packaging ensures that each seal arrives in pristine condition, ready for immediate installation. With a minimum order quantity of just 5 pieces and competitive pricing ranging from 10 to 40 ￥, SSCore offers a cost-effective solution for both small-scale prototype development and large volume production runs, supported by a supply ability of 50,000 pieces per month.

Customers benefit from flexible payment terms including L/C, D/A, T/T, and D/P, and can expect delivery within 7 to 14 work days, making SSCore’s Glass To Metal Seals a reliable choice for projects with tight timelines. Whether you require Metal-Glass Bond Seals for electronic feedthroughs, sensors, or hermetic connectors, SSCore provides durable, high-performance solutions tailored to meet the demands of modern industrial and technological applications.

Customization:

SSCore offers customized Glass To Metal Seals with exceptional quality and reliability. Our Glass-Metal Seals are crafted using SUS304 stainless steel body materials and feature a durable gold plating surface treatment to ensure superior performance and longevity.

Certified by IATF16949, our Metal-Glass Seals meet stringent industry standards. We provide a minimum order quantity of 5 pieces, with prices ranging from 10 to 40 ￥ per unit, making it accessible for both small and large-scale applications.

Each Glass To Metal Seal is designed with a sealing method that guarantees excellent Metal-to-Glass Bond Seals, ensuring a contact resistance of 100 MΩ and accommodating wire sizes of solder contact up to ≤20 AWG.

Our products are carefully packaged in vacuum packages to maintain integrity during transit. We support flexible payment terms including L/C, D/A, T/T, and D/P to cater to diverse customer needs.

With a supply ability of 50,000 pieces per month and a delivery time of 7 to 14 work days, SSCore is your dependable partner for high-quality Glass-Metal Seals and related metal-to-glass bonding solutions.

Support and Services:

Our Glass To Metal Seals product is designed to provide reliable and durable sealing solutions for various industrial applications. For technical support, we offer comprehensive assistance including product selection guidance, installation instructions, and troubleshooting tips to ensure optimal performance.

Our services include detailed product documentation, custom design options, and quality assurance testing to meet specific customer requirements. We also provide training and consultation to help you maximize the efficiency and longevity of your Glass To Metal Seals.

Should you require further assistance, our technical support team is equipped to address your inquiries and provide expert advice to resolve any issues related to the product.

Packing and Shipping:

Our Glass To Metal Seals are carefully packaged to ensure maximum protection during transit. Each seal is individually wrapped in protective cushioning material and placed in a sturdy, custom-designed box to prevent any damage from impact or vibration.

We use high-quality packaging materials that are both durable and environmentally friendly. The packaging is clearly labeled with handling instructions to guarantee safe delivery.

For shipping, we partner with reliable carriers to provide timely and secure delivery worldwide. Tracking information is provided for all shipments, allowing you to monitor your order from dispatch to arrival.

Special shipping arrangements can be made upon request to accommodate any specific requirements or expedited delivery needs.

FAQ:

Q1: What is the minimum order quantity for SSCore Glass To Metal Seals?

A1: The minimum order quantity for SSCore Glass To Metal Seals is 5 pieces.

Q2: What certifications does the SSCore Glass To Metal Seals have?

A2: SSCore Glass To Metal Seals are certified with IATF16949, ensuring high quality and industry standards compliance.

Q3: What is the price range for SSCore Glass To Metal Seals?

A3: The price for SSCore Glass To Metal Seals ranges from 10 to 40 RMB per piece, depending on specifications and order quantity.

Q4: How are the SSCore Glass To Metal Seals packaged?

A4: The seals are packaged in vacuum packages to ensure product integrity and protection during transportation.

Q5: What are the payment terms and delivery time for SSCore Glass To Metal Seals?

A5: Payment terms include L/C, D/A, T/T, and D/P. Delivery time typically ranges from 7 to 14 working days after order confirmation.

Q6: What is the monthly supply capacity for SSCore Glass To Metal Seals?

A6: SSCore can supply up to 50,000 pieces of Glass To Metal Seals per month, ensuring steady availability for bulk orders.
