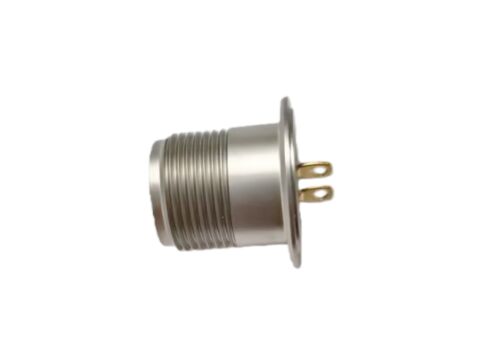

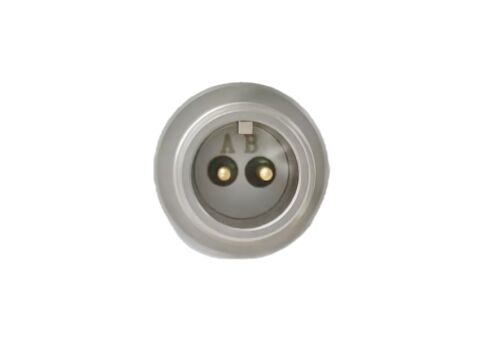

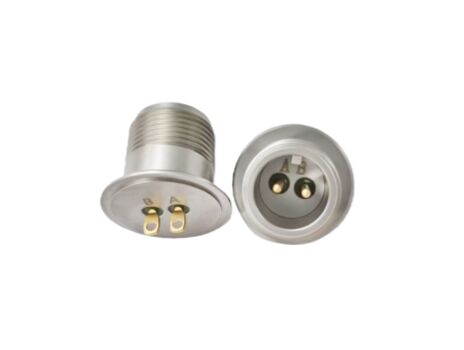

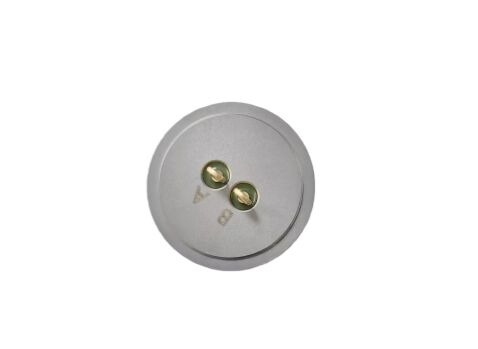

Gold Plating Glass Metal Seals Featuring Dielectric Strength 1000VAC Designed for Electrical Isolation and Sealing Needs

Product Description:

Our Glass To Metal Seals are precision-engineered components designed to provide reliable and durable electrical insulation and mechanical stability in demanding applications. These seals are a critical element in Metal Seal Connectors, ensuring a robust interface between metal and glass components, which is essential for maintaining hermeticity and performance in various industrial and scientific environments.

Constructed with a body made from high-quality 304 stainless steel, our Glass-to-Metal Seals offer exceptional strength and corrosion resistance. The choice of 304 stainless steel guarantees long-term durability and stability even under harsh operating conditions. This material selection ensures that the seals maintain their integrity over time, resisting wear and chemical degradation.

One of the standout features of our Metal-to-Glass Seals is the premium gold plating surface treatment. Gold plating not only enhances the aesthetic appeal of the seals but also significantly improves their electrical conductivity and corrosion resistance. This surface treatment is particularly valuable in applications where consistent electrical performance is critical, as it helps to minimize contact resistance and prevent oxidation.

Our Glass To Metal Seals provide excellent electrical insulation capabilities, supporting voltages of up to 300V AC/DC. This makes them suitable for a wide range of electronic and electrical applications where reliable insulation is paramount. The seals ensure that electrical currents are effectively isolated, preventing leakage and potential short circuits, thereby enhancing the safety and performance of the devices in which they are used.

Temperature resilience is another key advantage of these Metal Seal Connectors. They operate effectively within a wide temperature range from -55°C to 125°C, allowing them to function seamlessly in environments that experience extreme cold or heat. This temperature tolerance makes them ideal for use in aerospace, automotive, medical, and industrial sectors where temperature fluctuations are common.

In terms of operating pressure, our Glass-to-Metal Seals demonstrate outstanding performance with the ability to maintain hermeticity up to an operating pressure of 10^-8 mbar.l/s at 1 atmosphere. This ultra-low leakage rate ensures that the seals provide an airtight barrier between metal and glass components, preventing contamination and preserving the internal environment of sealed devices. This characteristic is crucial for vacuum systems, high-vacuum electronics, and other applications requiring stringent control of gas and moisture ingress.

Metal-to-Glass Seals are widely recognized for their versatility and reliability in creating hermetic seals that combine metal’s mechanical strength with glass’s insulating properties. Our product excels in delivering these benefits, making it an ideal choice for engineers and designers looking for dependable sealing solutions that do not compromise on electrical insulation, mechanical robustness, or environmental resistance.

In summary, our Glass To Metal Seals feature a robust 304 stainless steel body, enhanced with gold plating for superior surface performance, and offer electrical insulation up to 300V AC/DC. They operate reliably across a broad temperature range of -55°C to 125°C and maintain an exceptional operating pressure rating of up to 10^-8 mbar.l/s at 1 atmosphere. These attributes make them indispensable components in Metal Seal Connectors, providing effective and durable Metal-to-Glass Seals for a wide array of high-performance applications.

Features:

• Product Name: Glass To Metal Seals
• Thermal expansion coefficient matched between glass and metal for optimal performance
• Surface treatment: Gold plating for enhanced durability and corrosion resistance
• Pin material: 4J50 alloy ensuring high strength and reliability
• Temperature range: -55°C to 125°C suitable for various operating environments
• Operating pressure: Up to 10 ^-8 Mbar.l/s at 1 ATM for excellent vacuum sealing
• Provides superior Metal-to-Glass Bond Seals ensuring airtight and robust connections
• Ideal for applications requiring reliable Metal-Glass Seals with long-term stability

Technical Parameters:

This product is an excellent example of Glass Seal Connectors, featuring advanced Glass-to-Metal Bond Seals and Metal-Glass Seals technology to ensure reliable performance and durability.

Applications:

SSCore Glass To Metal Seals, also known as Metal-to-Glass Bond Seals or Glass-to-Metal Bond Seals, are engineered to provide exceptional durability and reliability in various demanding applications. Manufactured with a 304 stainless steel body and enhanced by premium gold plating surface treatment, these seals ensure excellent corrosion resistance and superior electrical conductivity. Certified with IATF16949, SSCore guarantees quality and precision in every piece, making them ideal for industries requiring stringent standards.

These Glass-Metal Bond Seals operate efficiently within a wide temperature range of -55°C to 125°C, making them suitable for both extreme cold and high-temperature environments. With a rated current of 5A and electrical insulation up to 300V AC/DC, they are perfect for applications requiring stable electrical performance and safety. The vacuum packaging preserves the product integrity during storage and shipping, ensuring that each seal arrives in optimal condition.

Ideal application occasions for SSCore Glass To Metal Seals include high-tech electronics, aerospace, automotive sensors, medical devices, and industrial instrumentation. Their ability to maintain a hermetic seal between metal and glass components makes them indispensable in vacuum systems, hermetic feedthroughs, and precision electronic assemblies. The robust construction and reliable sealing properties prevent gas or moisture ingress, which is critical in sensitive and high-reliability environments.

The supply ability of 50,000 pieces per month allows SSCore to meet both small and large scale production demands. With a minimum order quantity of just 5 pieces and competitive pricing ranging from 10 to 40 ￥, these seals offer flexibility and cost-effectiveness for various project sizes. Delivery times are efficient, typically between 7 to 14 work days, supported by multiple payment options including L/C, D/A, T/T, and D/P.

In summary, SSCore Glass-to-Metal Bond Seals are the preferred choice for applications that demand a robust, reliable, and electrically insulated metal-to-glass interface. Whether used in electronics, aerospace, or industrial fields, they provide superior performance, long-term stability, and compliance with international quality standards.

Customization:

SSCore offers premium Metal-Glass Seals with IATF16949 certification, ensuring high-quality Metal Seal Connectors tailored to your needs. Our Metal-to-Glass Bond Seals are designed to withstand a temperature range of -55°C to 125°C and provide excellent electrical insulation up to 300V AC/DC with a dielectric strength of 1000VAC.

Each product features 2 pins and supports a rated current of 5A, making them ideal for various industrial applications. We require a minimum order quantity of 5 pieces, priced between 10 to 40 ￥ each, with packaging provided in vacuum-sealed packages to guarantee product integrity.

With a supply ability of 50,000 pieces per month, SSCore ensures timely delivery within 7 to 14 work days. Payment terms are flexible, including L/C, D/A, T/T, and D/P options to accommodate your purchasing preferences.

Trust SSCore for reliable and customizable Metal-to-Glass Bond Seals that meet your specific requirements in Metal Seal Connectors.

Support and Services:

Our Glass To Metal Seals are engineered to provide exceptional hermetic sealing solutions for a wide range of applications. These seals offer outstanding thermal and electrical insulation properties, ensuring reliable performance in demanding environments.

Technical support for our Glass To Metal Seals includes assistance with material selection, design customization, and integration guidance to meet specific application requirements. Our experts can help optimize seal configurations for enhanced durability, thermal expansion compatibility, and mechanical strength.

We provide detailed product documentation, including specifications, installation instructions, and testing procedures to ensure proper implementation and long-term reliability of the seals. Additionally, troubleshooting support is available to address any performance issues or application challenges you may encounter.

Our services extend to custom manufacturing capabilities, allowing for tailored solutions that accommodate unique sizes, shapes, and electrical feedthrough needs. We work closely with customers to develop prototypes and conduct rigorous quality assurance testing to meet stringent industry standards.

For ongoing support, we offer maintenance recommendations, replacement part sourcing, and consultation services to maximize the lifespan and efficiency of your Glass To Metal Seal installations.

Packing and Shipping:

Our Glass To Metal Seals are carefully packaged to ensure maximum protection during transit. Each seal is individually wrapped in protective cushioning material and placed in a sturdy, custom-designed box to prevent any damage. The packaging is clearly labeled with handling instructions to maintain product integrity.

For shipping, we use reliable carriers with tracking options to guarantee timely and secure delivery. We offer various shipping methods to accommodate your needs, including expedited and standard shipping. All shipments are thoroughly inspected before dispatch to ensure you receive the highest quality product.

FAQ:

Q1: What is the minimum order quantity for SSCore Glass To Metal Seals?

A1: The minimum order quantity for SSCore Glass To Metal Seals is 5 pieces.

Q2: What certifications does SSCore Glass To Metal Seals have?

A2: SSCore Glass To Metal Seals are certified with IATF16949, ensuring high quality and reliability.

Q3: What is the price range for SSCore Glass To Metal Seals?

A3: The price for SSCore Glass To Metal Seals ranges from 10 to 40 ￥ per piece, depending on specifications and order quantity.

Q4: How are the SSCore Glass To Metal Seals packaged?

A4: SSCore Glass To Metal Seals are packaged in vacuum packaging to ensure product safety and integrity during transportation.

Q5: What is the typical delivery time for an order of SSCore Glass To Metal Seals?

A5: The delivery time for SSCore Glass To Metal Seals is typically between 7 to 14 working days after order confirmation.

Q6: What payment terms does SSCore accept for Glass To Metal Seals?

A6: SSCore accepts multiple payment terms including L/C, D/A, T/T, and D/P for Glass To Metal Seals orders.

Q7: What is the monthly supply capacity for SSCore Glass To Metal Seals?

A7: SSCore has a supply ability of 50,000 pieces per month for Glass To Metal Seals.
