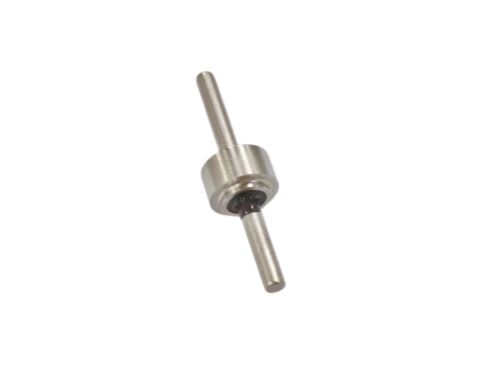

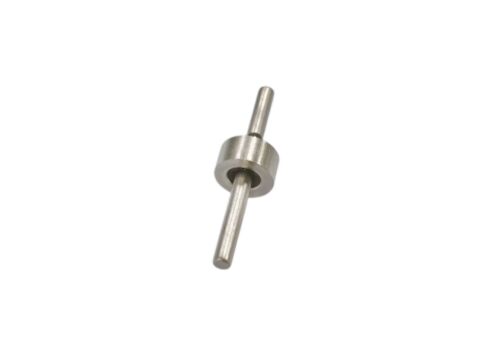

Nickel Plated Glass Metal Seals with Right Angle Connector Orientation Providing Hermetic Sealing and Electrical Isolation

Product Description:

Glass-to-Metal Seals are essential components widely used in various industries to ensure reliable, durable, and hermetic connections between glass and metal parts. These seals play a crucial role in maintaining the integrity of electronic, electrical, and mechanical systems by providing a robust barrier against environmental factors such as moisture, dust, and gases. Our Glass-to-Metal Seals product is designed with precision and quality to meet the demanding requirements of modern applications, offering superior performance and long-lasting reliability.

One of the standout features of our Glass-to-Metal Seals is the connector finish, which is nickel plated. The nickel plating provides excellent corrosion resistance, enhancing the durability and longevity of the connector even in harsh environments. This finish not only contributes to the aesthetic appeal of the product but also ensures that the metal components maintain their structural integrity over time. The nickel plating is particularly beneficial in applications where exposure to moisture or chemicals is a concern, making these seals ideal for use in aerospace, medical devices, telecommunications, and industrial equipment.

Our Glass-to-Metal Seals are designed with a single contact configuration, which simplifies installation and ensures a secure and stable electrical connection. Having a single contact reduces the complexity of the design while maintaining high performance, making it suitable for applications where precision and reliability are paramount. The single contact design is optimized to provide consistent conductivity and minimize signal loss, which is critical in high-frequency and sensitive electronic circuits.

The insulator resistance of our Glass-to-Metal Seals is rated at an impressive 1000MΩ at 750VDC. This high insulator resistance is a testament to the exceptional insulating properties of the glass material used in the seal, which prevents electrical leakage and ensures safe and efficient operation of the connected components. The high resistance level also means that the seals can withstand high voltage conditions without compromising their integrity, making them suitable for use in power electronics, vacuum tubes, and other high-voltage applications.

Mechanical strength is another vital attribute of our Glass-to-Metal Seals. They exhibit high tensile and compressive strength, which means they can endure significant mechanical stress without failure. This mechanical robustness is crucial for applications involving vibrations, shocks, or thermal cycling, where weaker seals might crack or deform. The combination of high tensile and compressive strength ensures that the seal maintains its hermetic properties and continues to provide a reliable barrier under demanding conditions. This durability extends the service life of the product and reduces maintenance costs.

At the core of our product's design is the hermetic seal type, which guarantees an airtight and waterproof connection between the metal and glass components. Hermetic seals are indispensable in applications where maintaining a controlled environment is critical, such as in vacuum systems, sensors, and medical implants. The hermetic nature of our Glass-to-Metal Seals prevents the ingress of contaminants and protects sensitive internal components from environmental damage. This feature not only enhances performance but also ensures compliance with stringent industry standards and regulations.

In summary, our Glass-to-Metal Seals combine nickel-plated connector finishes, single contact design, exceptional insulator resistance, and outstanding mechanical strength to deliver a product that excels in performance and reliability. These Metal-Glass Seals are engineered to provide hermetic sealing solutions that meet the highest standards of quality and durability. Whether you require seals for aerospace, medical, industrial, or electronic applications, our Glass-to-Metal Seals offer the perfect balance of electrical insulation, mechanical robustness, and environmental protection. Trust our Metal-Glass Seals to safeguard your critical systems and ensure optimal functionality in the most challenging environments.

Features:

• Product Name: Glass To Metal Seals
• Nickel Plating Thickness: 2-5μm
• Number of Contacts: Single
• Connector Orientation: Straight and Right Angle options available
• Seal Type: Hermetic for reliable sealing
• Insulator Resistance: 1000MΩ @ 750VDC
• Designed as Metal Seal Connectors for enhanced durability
• High-quality Glass Seal Connectors ensuring excellent insulation
• Robust Metal Seal Connectors suitable for various applications

Technical Parameters:

Applications:

The SSCore Glass To Metal Seals are engineered for a wide range of application occasions and scenarios, offering unmatched reliability and performance. These seals, also known as Glass-Metal Seals, Metal-Glass Seals, or Metal-to-Glass Bond Seals, are ideal for industries requiring robust hermetic sealing solutions that can withstand extreme environmental conditions. With a temperature range from -40°C to 125°C, SSCore’s Glass To Metal Seals are perfectly suited for use in automotive, aerospace, electronics, and industrial equipment where temperature fluctuations are common.

Designed and manufactured by SSCore, a certified IATF16949 organization, these seals guarantee high standards of quality and consistency. The single-contact design and precise nickel plating of 2-5 micrometers provide excellent electrical conductivity and corrosion resistance, making these seals indispensable in electrical connectors, vacuum devices, sensors, and high-pressure systems. The leakage rate is impressively low, rated at 4.0MPa N2 with no leak, ensuring airtight and reliable sealing in critical applications.

SSCore Glass To Metal Seals are particularly valuable in scenarios where vacuum integrity and hermeticity are crucial. Thanks to the vacuum packaging, each batch maintains its pristine condition during transportation and storage. The product is available with a minimum order quantity of just 5 pieces, making it accessible for both small-scale prototyping and large manufacturing runs, with a monthly supply capacity of up to 50,000 pieces.

The price range of 10 to 40 ￥ per piece reflects the high-quality manufacturing processes and materials used. Customers benefit from flexible payment terms including L/C, D/A, T/T, and D/P, along with a delivery time frame of 7 to 14 workdays, ensuring timely fulfillment of orders. Whether used in harsh industrial environments or delicate electronic assemblies, SSCore’s Glass-Metal Seals deliver dependable sealing performance, contributing to product longevity and safety across diverse application occasions and scenarios.

Customization:

SSCore offers premium Glass-to-Metal Bond Seals designed to meet the highest industry standards with IATF16949 certification. Our Metal Seal Connectors provide exceptional mechanical strength, featuring high tensile and compressive strength to ensure durability and reliability in demanding applications.

We provide customizable options including O-RING dimensions of Ø8.5X1.8 and connector orientations available in both straight and right angle configurations. Our Metal Seal Connectors operate efficiently within a temperature range of -40°C to 125°C and maintain excellent insulator resistance of 1000MΩ@750VDC.

With a minimum order quantity of 5 pieces, pricing ranges from 10 to 40 ￥ per unit. Each product is carefully packaged in vacuum packaging to preserve quality during transit. We ensure prompt delivery within 7 to 14 work days, supported by a robust supply ability of 50,000 pieces per month.

Flexible payment terms including L/C, D/A, T/T, and D/P are available to accommodate your purchasing preferences. Choose SSCore for reliable Glass-to-Metal Bond Seals and Metal Seal Connectors tailored to your specific requirements.

Support and Services:

Our Glass To Metal Seals are engineered to provide superior hermetic sealing solutions for a wide range of applications. Designed to withstand extreme temperatures, pressure variations, and corrosive environments, these seals ensure reliable performance and long service life.

Technical support for our Glass To Metal Seals includes assistance with product selection, customization to meet specific application requirements, and guidance on installation procedures to ensure optimal sealing performance. Our experts are available to help you understand the mechanical and thermal properties of the seals to maximize their effectiveness in your projects.

We offer comprehensive services including product testing, quality assurance, and after-sales support to address any operational challenges. Our team can provide detailed documentation, material certifications, and compliance information to meet your regulatory needs.

For customized solutions, we work closely with clients to develop seals tailored to unique specifications, ensuring compatibility with various metals and glass types. Our engineering team can assist with design modifications and prototyping to facilitate seamless integration into your products.

Whether you require standard or specialized Glass To Metal Seals, our commitment to quality and customer satisfaction ensures that you receive reliable, high-performance sealing solutions backed by expert technical support throughout the product lifecycle.

Packing and Shipping:

Each Glass To Metal Seal product is carefully packaged to ensure maximum protection during transit. The seals are individually wrapped in anti-static materials and cushioned with foam inserts to prevent any damage from impact or vibration. The packaging is designed to maintain the integrity and cleanliness of the seals, protecting them from dust, moisture, and other environmental factors.

For shipping, the packaged products are placed in sturdy, double-walled corrugated cardboard boxes. All shipments are handled with care and can be tracked to guarantee timely and safe delivery. We offer various shipping options to meet your requirements, including expedited and international shipping services.

Upon receipt, please inspect the packaging for any signs of damage and notify us immediately if any issues are found. Our priority is to ensure that your Glass To Metal Seals arrive in perfect condition, ready for use in your applications.

FAQ:

Q1: What brand manufactures the Glass To Metal Seals?

A1: The Glass To Metal Seals are manufactured by the brand SSCore.

Q2: Is the Glass To Metal Seals product certified?

A2: Yes, the product is certified under IATF16949.

Q3: What is the minimum order quantity for the Glass To Metal Seals?

A3: The minimum order quantity is 5 pieces.

Q4: What is the price range for the Glass To Metal Seals?

A4: The price range is between 10 to 40 ￥ per piece.

Q5: How are the Glass To Metal Seals packaged and what is the delivery time?

A5: The seals are vacuum packaged, and the delivery time is between 7 to 14 work days.

Q6: What payment terms are accepted for purchasing Glass To Metal Seals?

A6: Accepted payment terms include L/C, D/A, T/T, and D/P.

Q7: What is the monthly supply capacity for the Glass To Metal Seals?

A7: The supply ability is 50,000 pieces per month.
