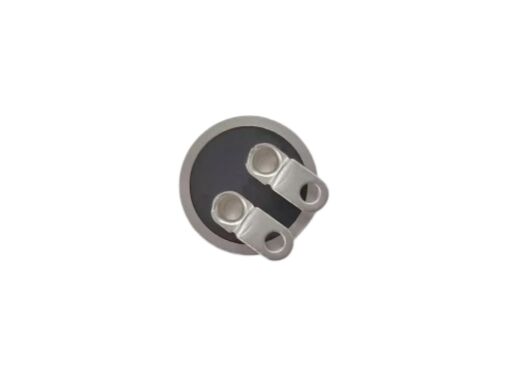

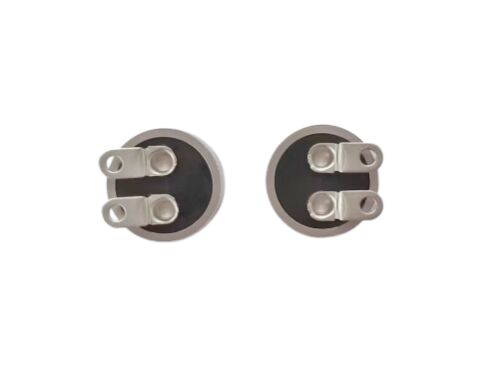

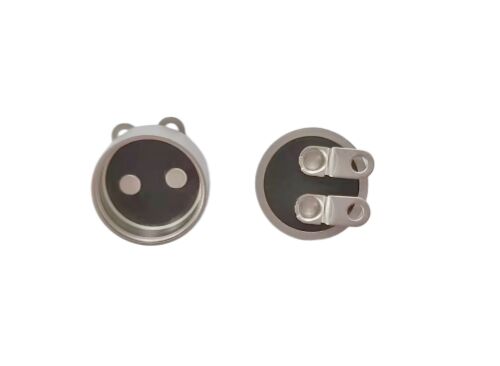

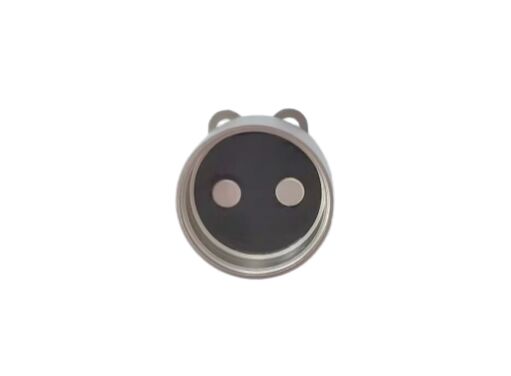

Hermetic Connector Type Glass Metal Seals Made from ELAN 13 or Equivalent Glass Materials Offering Sealing and Electrical Isolation

Product Description:

Our Glass To Metal Seals are precision-engineered components designed to provide exceptional hermetic sealing between metal and glass materials. These seals are critical in applications requiring airtight, durable, and reliable connections, ensuring the integrity and longevity of various electronic and industrial devices. Crafted with high-quality materials and advanced manufacturing techniques, our product guarantees outstanding performance under demanding conditions.

The finish of our Glass To Metal Seals is characterized by a thickness ranging from 2 to 5 micrometers (μm). This precise thickness ensures an optimal balance between mechanical strength and electrical insulation, contributing to the overall robustness of the seal. The controlled thickness plays a key role in maintaining the seal's durability, preventing cracks or defects that could compromise the hermetic barrier.

One of the defining features of these seals is their hermetic connector type. Hermetic seals are essential in applications where the prevention of gas or moisture ingress is critical, such as in vacuum systems, sensors, and high-reliability electronic packages. The hermetic nature of our Metal-Glass Seals guarantees that the internal environment remains uncontaminated, thereby protecting sensitive components from oxidation, corrosion, or other environmental damage.

Our Glass To Metal Seals exhibit a dielectric strength of up to 500V DC, making them highly effective insulators. This high dielectric strength ensures that the seals can withstand significant electrical stress without breakdown, making them suitable for use in high-voltage applications or environments where electrical insulation is paramount. The reliable dielectric properties of these seals help maintain signal integrity and prevent electrical failures.

The glass materials used in these seals are ELAN #13 or equivalent, known for their excellent thermal and electrical properties. ELAN #13 glass provides superb compatibility with metal components, enabling a strong and stable bond during the sealing process. This material also offers resistance to thermal expansion mismatch, which is crucial to prevent seal failure during temperature cycling or extreme operating conditions.

The pins incorporated in our Metal-Glass Bond Seals are made from 52 alloy, a material recognized for its excellent mechanical strength and corrosion resistance. The 52 alloy pins ensure a secure and stable electrical connection while maintaining the hermetic integrity of the seal. Their durability and compatibility with the glass material contribute to the overall reliability of the Metal-Glass Seals.

Metal-Glass Seals, including Metal-Glass Bond Seals, are widely used in a variety of industries such as aerospace, medical devices, telecommunications, and automotive engineering. Their ability to provide robust, hermetic, and electrically insulating connections makes them indispensable in manufacturing sensors, vacuum tubes, feedthroughs, and other critical components. By choosing our Glass To Metal Seals, customers benefit from superior quality, consistent performance, and compliance with stringent industry standards.

In summary, our Glass To Metal Seals combine a precise finish thickness of 2 to 5 μm, hermetic connector type, dielectric strength up to 500V DC, ELAN #13 or equivalent glass materials, and 52 alloy pin materials to deliver a highly reliable sealing solution. These Metal-Glass Seals are designed to meet the demanding requirements of modern technology, providing excellent mechanical, electrical, and environmental performance. Whether you need Metal-Glass Bond Seals for high-performance electronics or specialized industrial applications, our product ensures a dependable and long-lasting seal that upholds the highest standards of quality and functionality.

Features:

• Product Name: Glass To Metal Seals
• Glass Materials: ELAN #13 or equivalent
• Leak Rate: < 2x10^-8 Atm Cc/sec ensuring high reliability
• Dielectric Strength: Up to 500V DC for excellent insulation
• Pin Materials: 52 Alloy providing robust mechanical strength
• Finish: Thickness of 2~5 μm for enhanced durability
• Ideal for use in Glass Seal Connectors and Glass-to-Metal Bond Seals applications
• Highly reliable Glass Seal Connectors suitable for demanding environments

Technical Parameters:

Applications:

SSCore's Glass To Metal Seals are engineered for a variety of demanding applications where reliability and hermetic sealing are paramount. These Metal-to-Glass Seals are ideal for use in industries such as aerospace, automotive, electronics, and medical devices, where maintaining airtight and durable connections is critical. The Glass-Metal Bond Seals provide exceptional performance due to their superior leak rate of less than 2x10^-8 Atm Cc/sec, ensuring long-lasting hermetic integrity in harsh environments.

Thanks to the robust construction using 12L14 or 1215 C.F.S for the connector shell and 52 ALLOY for the pin materials, SSCore’s Metal-to-Glass Bond Seals withstand mechanical stress and thermal cycling effectively. The finish thickness ranging from 2 to 5 μm further enhances corrosion resistance and durability, making them suitable for high-reliability applications such as vacuum systems, sensors, and high-frequency connectors.

Certified with IATF16949, SSCore guarantees high-quality standards for automotive and industrial uses. With a supply ability of 50,000 pieces per month and a minimum order quantity of just 5 pieces, these seals offer flexibility for both small-scale prototyping and large-scale production. The pricing between 10 to 40 ￥ per piece provides a cost-effective solution without compromising on quality.

Packaging is handled with care through vacuum packaging, ensuring the seals remain uncontaminated and ready for immediate use upon delivery. The typical delivery time ranges from 7 to 14 working days, making SSCore’s Glass-Metal Bond Seals an efficient choice for time-sensitive projects. Payment terms including L/C, D/A, T/T, and D/P offer convenience and flexibility to suit various customer needs.

These hermetic connector types are widely used in scenarios such as high-vacuum equipment, optical devices, and electrical feedthroughs, where maintaining a tight seal between metal and glass components is crucial. Whether for advanced electronics, instrumentation, or specialized industrial equipment, SSCore’s Metal-to-Glass Seals consistently deliver reliable sealing performance and exceptional longevity.

Customization:

SSCore offers premium Glass-Metal Seals with exceptional quality and reliability, certified by IATF16949 to meet the highest industry standards. Our Glass-to-Metal Bond Seals are designed with precision using 52 ALLOY pin materials and connector shells made from 12L14 or 1215 C.F.S, ensuring excellent durability and performance.

We specialize in Metal-to-Glass Seals featuring hermetic connector types that provide dielectric strength up to 500V DC, making them ideal for a wide range of applications. Our glass materials include ELAN #13 or equivalent, tailored to suit your specific requirements.

With a minimum order quantity of just 5 pieces, SSCore offers flexible pricing ranging from 10 to 40 ￥ per unit. Each product is carefully packaged in vacuum packaging to maintain optimal integrity during shipping.

We guarantee a prompt delivery time of 7 to 14 work days and a reliable supply ability of 50,000 pieces per month. Payment terms are flexible, including L/C, D/A, T/T, and D/P, to accommodate your business needs.

Choose SSCore for customized Glass-Metal Seals, Glass-to-Metal Bond Seals, and Metal-to-Glass Seals that combine superior materials, rigorous certification, and efficient service to support your projects successfully.

Support and Services:

Our Glass To Metal Seals are designed to provide reliable and durable sealing solutions for a wide range of industrial applications. These seals ensure excellent mechanical strength, hermeticity, and resistance to thermal and chemical stresses.

For technical support, we offer comprehensive assistance including product selection guidance, installation instructions, and troubleshooting tips to optimize the performance and longevity of your Glass To Metal Seals. Our team of experts is available to help you address any technical challenges and ensure seamless integration with your equipment.

We provide detailed datasheets and technical documentation to help you understand the specifications, material properties, and operating conditions of our Glass To Metal Seals. Customization options are also available to meet specific application requirements.

Our services include quality assurance testing, failure analysis, and repair recommendations to maintain the integrity of your sealing systems. We are committed to delivering high-quality products backed by responsive and knowledgeable technical support.

Packing and Shipping:

Each Glass To Metal Seals product is carefully packaged to ensure maximum protection during transit. The seals are individually wrapped in anti-static foam and placed in sturdy, cushioned boxes to prevent any damage from impact or vibration.

Our packaging materials are designed to maintain the integrity and cleanliness of the seals, preventing contamination and ensuring they arrive in perfect condition.

For shipping, we partner with reliable carriers to provide timely and secure delivery worldwide. Tracking information is provided for all orders, allowing customers to monitor their shipment every step of the way.

Additionally, we offer customized packaging options upon request to meet specific requirements or regulatory standards.

Your Glass To Metal Seals will be handled with the utmost care from our facility to your doorstep, guaranteeing quality and satisfaction.

FAQ:

Q1: What is the minimum order quantity for SSCore Glass To Metal Seals?

A1: The minimum order quantity for SSCore Glass To Metal Seals is 5 pieces.

Q2: What certifications does SSCore Glass To Metal Seals have?

A2: SSCore Glass To Metal Seals are certified with IATF16949.

Q3: What is the price range for SSCore Glass To Metal Seals?

A3: The price for SSCore Glass To Metal Seals ranges from 10 to 40 ￥ per piece, depending on specifications and order quantity.

Q4: How are the Glass To Metal Seals packaged?

A4: The Glass To Metal Seals are packaged using a vacuum package to ensure product safety and integrity during shipping.

Q5: What are the payment terms and delivery time for ordering SSCore Glass To Metal Seals?

A5: Payment can be made via L/C, D/A, T/T, or D/P. The delivery time is typically between 7 to 14 working days.

Q6: What is the monthly supply capacity for SSCore Glass To Metal Seals?

A6: SSCore can supply up to 50,000 pieces of Glass To Metal Seals per month.
