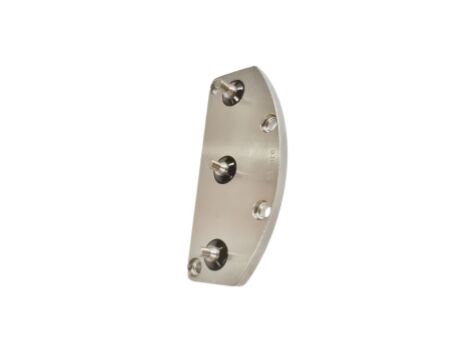

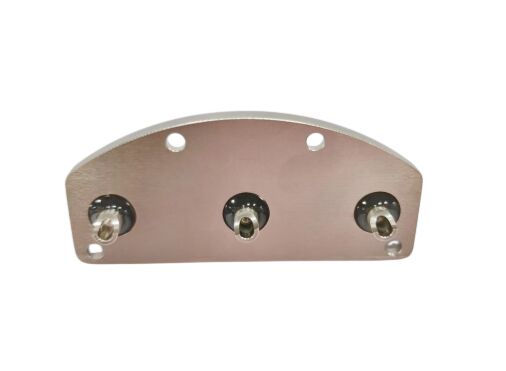

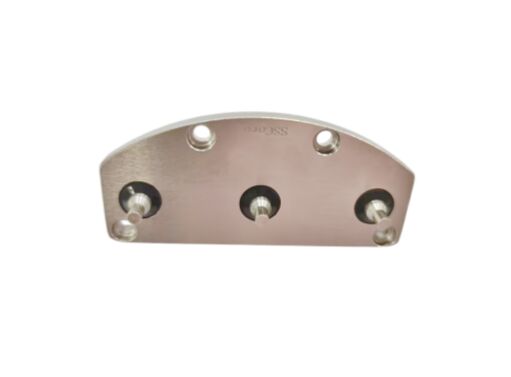

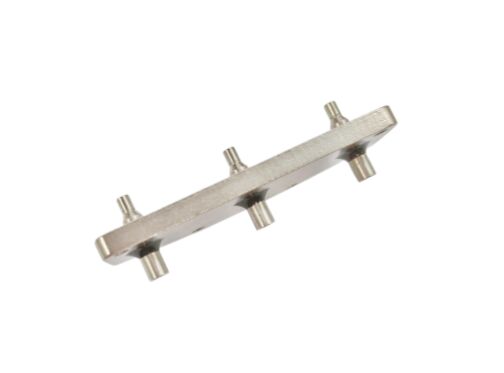

Nickel Contact Plating Hermetically Sealed Terminal Made with SUH446 Copper Cored Pin Material Delivering Consistent and Electrical Performance

Product Description:

The Hermetically Sealed Terminal is an advanced enclosed terminal block designed to provide exceptional sealing performance and reliable electrical connections in demanding environments. With a remarkable sealing capability rated at 2.5MPa that ensures no leakage, this product guarantees the utmost protection for your wiring systems, making it an ideal solution for applications requiring high integrity and safety.

One of the standout features of this hermetically sealed terminal is its construction using premium glass material, specifically ELAN #48. This choice of glass not only enhances the durability of the terminal but also contributes significantly to its ability to withstand harsh operating conditions. The ELAN #48 glass offers excellent insulation properties and is resistant to thermal stress, ensuring that the terminal maintains its integrity even under fluctuating temperatures.

In addition to the superior glass material, the contact plating of the terminal is carefully engineered with nickel. Nickel plating is well-known for its corrosion resistance and stable conductivity, which helps to maintain a secure and efficient electrical connection over prolonged periods. This plating also adds a layer of protection against environmental factors such as moisture, dust, and chemical exposure, which are common challenges in industrial and outdoor applications.

The voltage rating of the Hermetically Sealed Terminal ranges between 18 to 32 volts, making it suitable for a wide array of electrical systems. This voltage range ensures compatibility with various devices and equipment while maintaining a safe and stable connection. Whether you are dealing with low-voltage control circuits or intermediate voltage applications, this terminal block is engineered to meet your requirements effectively.

Another critical attribute of this terminal block is its high-temperature resistance. The materials and design are optimized to perform reliably in environments where elevated temperatures are a concern. This feature is particularly beneficial in industries such as automotive, aerospace, and manufacturing, where electrical components are often exposed to heat generated by machinery or external conditions. The high-temperature resistance ensures that the terminal maintains its sealing and electrical performance without degradation, thus extending the lifespan of your wiring system.

Designed as a protected wiring terminal, the Hermetically Sealed Terminal offers robust protection against environmental hazards. Its hermetic sealing acts as a barrier against moisture ingress, dust, and other contaminants, effectively functioning as a waterproof junction box. This makes it an excellent choice for outdoor installations, marine applications, and any setting where exposure to water or harsh weather is a concern. By preventing the entry of moisture and particulates, the terminal helps avoid short circuits, corrosion, and other electrical failures.

The enclosed terminal block design also simplifies installation and maintenance by providing a secure and organized connection point for wires and cables. This design minimizes the risk of accidental disconnections and enhances overall system reliability. The combination of high sealing performance, quality materials, and thoughtful engineering ensures that this product meets the highest standards expected in critical electrical applications.

In summary, the Hermetically Sealed Terminal is a premium solution for anyone seeking a waterproof junction box that delivers outstanding protection and performance. Its high sealing capacity of 2.5MPa that does not leak, utilization of ELAN #48 glass material, nickel contact plating, voltage rating of 18 to 32 volts, and excellent high-temperature resistance make it a superior choice for secured and protected wiring terminals. Whether you need a dependable enclosed terminal block for industrial machinery, automotive systems, or outdoor electrical installations, this terminal delivers unmatched durability and safety, ensuring your wiring remains intact and operational under the most challenging conditions.

Features:

• Product Name: Hermetically Sealed Terminal
• Pin Material: SUH446 with Copper Cored, Ratio 2:1
• Insulation Resistance: ≥1000 MΩ
• Operating Temperature Range: -40°C to +150°C
• High Sealing Performance: 2.5MPa airtight, does not leak
• High Temperature Resistance for reliable operation under extreme conditions
• Airtight Terminal Block design ensuring superior protection against environmental factors
• Watertight Connector feature providing excellent moisture resistance
• Insulated Terminal Connector for enhanced electrical safety and durability

Technical Parameters:

Applications:

The SSCore Hermetically Sealed Terminal is an advanced solution designed for applications requiring high reliability and protection in harsh environments. Manufactured in China and certified under IATF16949, this product guarantees superior quality and performance. With a voltage rating of 18 to 32V and a current rating between 30 to 40A, it is perfectly suited for electrical systems that demand both safety and efficiency. Its high sealing performance, withstanding pressures up to 2.5MPa without leakage, ensures that the terminal remains secure and impervious to moisture or contaminants. This makes it an ideal choice for use as a Protected Wiring Terminal, where maintaining the integrity of electrical connections is critical.

One of the primary application occasions for the SSCore Hermetically Sealed Terminal is within Closed Circuit Terminals, where airtight sealing is essential to prevent environmental damage and maintain optimal electrical conductivity. The terminal's pin material, composed of SUH446 with a copper core at a 2:1 ratio, provides excellent conductivity and mechanical strength, supporting stable current flow even under stressful conditions. The operation temperature range of -40°C to +150°C further extends its usability across various industries, including automotive, aerospace, and industrial machinery, where temperature extremes are common.

This product is also well-suited for integration within Waterproof Junction Boxes. These junction boxes require terminals that can maintain a hermetic seal to protect internal wiring from water ingress, dust, and other contaminants. SSCore’s vacuum packaging ensures that the terminals are delivered in pristine condition, ready for immediate installation. With a minimum order quantity of just 5 pieces and a supply ability of 50,000 pieces per month, SSCore can efficiently meet both small-scale and large-scale production needs. Delivery times ranging from 7 to 14 workdays and flexible payment terms such as L/C, D/A, T/T, and D/P provide convenience and reliability for customers worldwide.

In summary, the SSCore Hermetically Sealed Terminal is an excellent choice for applications demanding robust, waterproof, and hermetically sealed electrical connections. Its combination of high sealing performance, durable materials, and broad operating temperature range makes it indispensable in protected wiring terminals, closed circuit terminals, and waterproof junction boxes, ensuring long-lasting and dependable electrical connections in challenging environments.

Customization:

SSCore offers customized Hermetically Sealed Terminal products designed to meet your specific requirements. Originating from China and certified with IATF16949, our Airtight Terminal Block ensures exceptional quality and reliability. With a minimum order quantity of 5 pieces, prices range from 10 to 40 ￥ per unit.

Each terminal is packaged in a vacuum package to maintain integrity during shipping and storage. We guarantee delivery within 7 to 14 work days, supported by flexible payment terms including L/C, D/A, T/T, and D/P. Our supply ability reaches up to 50,000 pieces per month, ensuring steady availability for your projects.

Our Watertight Connector features high temperature resistance and superior sealing performance, maintaining a leak rate ≤1x10 ^-8 Mbar.l/s and withstanding pressures up to 2.5MPa without leakage. The glass material used is ELAN #48, providing excellent insulation resistance of ≥1000 MΩ, making it a highly reliable Protected Wiring Terminal solution for demanding environments.

Choose SSCore’s Hermetically Sealed Terminal for a robust, airtight, and watertight connection that meets the highest industry standards and ensures long-lasting performance in your electrical applications.

Support and Services:

Our Hermetically Sealed Terminal products are designed to provide reliable and durable electrical connections in environments requiring airtight and moisture-resistant seals. These terminals ensure optimal performance in applications subject to harsh conditions, including extreme temperatures, pressure variations, and exposure to corrosive substances.

Technical support for Hermetically Sealed Terminals includes assistance with product selection, installation guidelines, and troubleshooting to ensure proper integration within your system. Our experts offer detailed documentation and technical specifications to help you understand the capabilities and limitations of each terminal model.

We provide comprehensive services such as custom configuration, testing, and quality assurance to meet your specific application requirements. Our team is committed to helping you maximize the reliability and lifespan of your electrical connections by recommending best practices for handling, storage, and maintenance.

For any inquiries related to product performance, compatibility, or repair services, our support specialists are available to guide you through the process, ensuring minimal downtime and optimal system functionality.

Packing and Shipping:

Each Hermetically Sealed Terminal is carefully packaged to ensure maximum protection during transit. The terminals are individually enclosed in anti-static bags and cushioned with foam inserts to prevent any damage from shocks or vibrations. The packaging materials are designed to maintain the integrity of the hermetic seal and protect the product from moisture, dust, and other environmental contaminants.

For shipping, the packaged terminals are placed in sturdy, corrugated cardboard boxes with additional padding as needed to avoid movement within the box. All shipments are clearly labeled with handling instructions and product information to ensure proper care throughout the delivery process. We use reliable carriers to guarantee timely and safe delivery to your specified location.

FAQ:

Q1: What is the brand name of the Hermetically Sealed Terminal?

A1: The Hermetically Sealed Terminal is manufactured under the brand name SSCore.

Q2: Where is the Hermetically Sealed Terminal produced?

A2: This product is made in China.

Q3: What certification does the Hermetically Sealed Terminal have?

A3: The Hermetically Sealed Terminal is certified with IATF16949, ensuring it meets high-quality automotive industry standards.

Q4: What is the minimum order quantity and price range for this product?

A4: The minimum order quantity is 5 pieces, with prices ranging from 10 to 40 Chinese Yuan (￥) per piece.

Q5: How is the Hermetically Sealed Terminal packaged and what are the delivery times?

A5: The terminals are packaged using a vacuum package to ensure quality and freshness. Delivery typically takes 7 to 14 working days.

Q6: What payment terms are accepted for purchasing the Hermetically Sealed Terminal?

A6: Accepted payment methods include L/C, D/A, T/T, and D/P.

Q7: What is the monthly supply ability for the Hermetically Sealed Terminal?

A7: The supply ability is up to 50,000 pieces per month.
