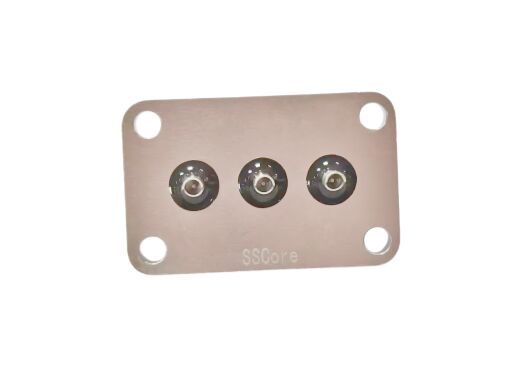

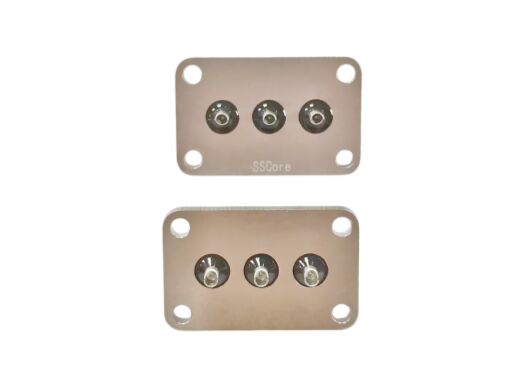

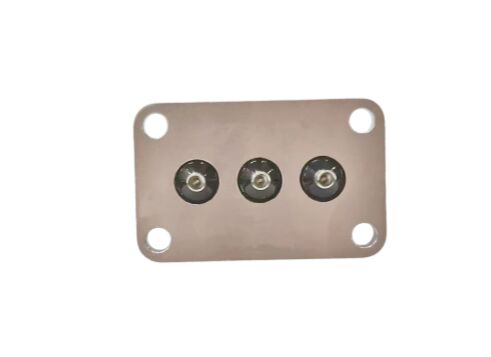

Temperature Rating Minus 40 Celsius To 150 Celsius Hermetically Sealed Terminal Rated Voltage 24VDC Ideal For Industrial Applications

Product Description:

The Hermetically Sealed Terminal is an advanced Protected Wiring Terminal designed to meet the rigorous demands of aerospace, military, and industrial equipment applications. Engineered with precision and durability in mind, this product offers exceptional performance characteristics that ensure reliable electrical connections even in the most extreme environments. Its robust construction and meticulous design make it an indispensable component for systems requiring high levels of protection and integrity.

One of the standout features of this Hermetically Sealed Terminal is its impressive burst test capability. Tested under a nitrogen pressure of 4MPa, the terminal demonstrates a superior ability to maintain its seal and structural integrity under significant stress. This high burst pressure rating guarantees that the terminal can withstand harsh conditions without compromising the safety or functionality of the connected wiring. Such resilience is critical in aerospace and military applications where failure is not an option and the operational environment can be highly demanding.

The terminal’s installation iron shell is crafted from 45 steel, a material known for its excellent strength and durability. This choice of steel ensures that the terminal housing provides robust mechanical protection to the internal components, shielding the wiring from physical damage and environmental factors such as moisture, dust, and corrosive elements. The sturdy iron shell not only enhances the longevity of the terminal but also contributes to maintaining consistent electrical performance over time.

In addition to its mechanical strength, the Hermetically Sealed Terminal boasts a finely controlled thickness of 2 to 4 micrometers in its coating. This precise coating thickness plays a crucial role in safeguarding the terminal against corrosion and wear, thereby extending its operational lifespan. The thin but effective protective layer ensures that the terminal remains reliable and safe to use in challenging conditions, which is particularly important for applications in aerospace and military sectors where maintenance opportunities can be limited.

The terminal pins are made from SUH446, a high-grade stainless steel known for its excellent corrosion resistance and mechanical properties. These pins incorporate a copper core with a ratio of 2:1, combining the strength and durability of stainless steel with the superior electrical conductivity of copper. This unique pin material composition ensures that the Protected Wiring Terminal delivers optimal electrical performance while maintaining robustness. The copper cored pins facilitate efficient current flow and reduce electrical resistance, which is vital for maintaining signal integrity and power transmission in critical systems.

Designed as a Shielded Terminal Board, this Hermetically Sealed Terminal provides an additional layer of protection against electromagnetic interference (EMI) and radio-frequency interference (RFI). The shielding helps to prevent signal degradation and cross-talk between adjacent wiring, ensuring that the connected equipment operates reliably without disruption. This feature is especially beneficial in aerospace and military environments where electronic systems are densely packed and susceptible to interference.

Overall, the Hermetically Sealed Terminal serves as a highly reliable Protected Wiring Terminal solution for high-performance applications. Its combination of a robust 45 steel iron shell, precise coating thickness, copper-cored SUH446 pins, and exceptional burst pressure rating makes it ideally suited for use in aerospace, military, and industrial equipment. By choosing this terminal, engineers and designers can ensure that their wiring systems are protected, durable, and capable of withstanding the most demanding operational conditions.

In summary, this Hermetically Sealed Terminal is not just a connection point but a critical component that enhances the safety, reliability, and performance of electrical systems across various high-stakes industries. Whether deployed in aircraft, defense systems, or heavy industrial machinery, it provides peace of mind with its superior protection and engineering excellence. The product truly exemplifies the best in Protected Wiring Terminal technology, offering unmatched quality and dependability for mission-critical applications.

Features:

• Product Name: Hermetically Sealed Terminal
• Rated Voltage: 24VDC
• Thickness: 2~4 μm
• Installation Iron Shell made of 45 Steel
• Pin Material: SUH446 with Copper Cored, Ratio 2:1
• Burst Test: 4MPa with N2 Press
• Airtight Terminal Block ensuring reliable sealing
• Protected Wiring Terminal designed for enhanced safety
• Sealed Electrical Terminal for secure and durable connections

Technical Parameters:

Applications:

The SSCore Hermetically Sealed Terminal is an advanced electrical connection solution designed to meet the demanding requirements of various industrial and commercial applications. Manufactured in China and certified with IATF16949, this product guarantees high-quality standards and reliability. With a minimum order quantity of just 5 pieces, it offers flexibility for both small-scale and large-scale projects. Featuring a thickness range of 2 to 4 μm and a rated voltage of 24VDC, this terminal ensures stable and efficient electrical performance.

One of the key application occasions for the SSCore Hermetically Sealed Terminal is in environments where protection from external contaminants is critical. As an Enclosed Terminal Block, it provides a hermetically sealed enclosure that safeguards the electrical connections from moisture, dust, and corrosive elements. This makes it ideal for use in harsh industrial settings such as automotive manufacturing, aerospace systems, and heavy machinery, where maintaining the integrity of electrical circuits is paramount.

In addition, the SSCore terminal serves as a Closed Circuit Terminal, ensuring that the electrical wiring remains secure and uninterrupted. Its pin material, composed of SUH446 with a copper core at a 2:1 ratio, offers excellent conductivity and mechanical strength, supporting reliable connectivity even under high-pressure conditions. The product has successfully passed burst tests at 4MPa with nitrogen pressurization, demonstrating its robustness and suitability for critical applications.

The Protected Wiring Terminal feature of the SSCore product is essential in scenarios where temperature fluctuations occur. With a temperature rating ranging from -40°C to 150°C, it can operate efficiently in extreme climates, making it suitable for outdoor installations, refrigeration units, and industrial heating systems. The vacuum packaging ensures that each terminal arrives in pristine condition, ready for immediate use.

Thanks to the supply ability of 50,000 pieces per month and a delivery time frame of 7 to 14 workdays, SSCore is well-equipped to meet the demands of fast-moving production lines and urgent project requirements. Payment terms are flexible, including L/C, D/A, T/T, and D/P, catering to diverse customer preferences.

In summary, the SSCore Hermetically Sealed Terminal is a reliable and durable solution for electrical connectivity needs across various industries. Its attributes as an Enclosed Terminal Block, Closed Circuit Terminal, and Protected Wiring Terminal make it an indispensable component in applications requiring secure, stable, and contamination-free electrical connections.

Customization:

SSCore offers customized Hermetically Sealed Terminal products originating from China, certified under IATF16949 to ensure top quality and reliability. Our Insulated Terminal Connector features a thickness ranging from 2 to 4 μm and is designed with SUH446 pin material with a copper core in a 2:1 ratio, providing excellent conductivity and durability.

The Closed Circuit Terminal is built to withstand rigorous conditions, passing a burst test of 4MPa with N2 press, and comes with an installation iron shell made from 45 steel, ensuring robust protection and stability. Ideal for aerospace, military, and industrial equipment applications, this Insulated Terminal Connector is packaged under vacuum to maintain integrity during transit.

We maintain a supply ability of 50,000 pieces per month, with a minimum order quantity of 5 pieces. Prices range from 10 to 40 ￥ per unit. Delivery time is typically between 7 to 14 working days, and we accept various payment terms including L/C, D/A, T/T, and D/P to accommodate your purchasing preferences.

Support and Services:

Our Hermetically Sealed Terminal product is designed to provide reliable and durable electrical connections in harsh environments. To ensure optimal performance and longevity, please follow the installation and maintenance guidelines provided in the product manual.

For technical support, our team of experts is available to assist with any questions regarding product specifications, installation procedures, or troubleshooting. We offer comprehensive services including product customization, repair, and replacement to meet your specific requirements.

Regular inspection and proper handling are recommended to maintain the integrity of the hermetic seal and to prevent any potential damage. Always use compatible tools and accessories as specified by the manufacturer.

We are committed to delivering high-quality support to ensure your complete satisfaction with our Hermetically Sealed Terminal product.

Packing and Shipping:

Our Hermetically Sealed Terminal is carefully packaged to ensure maximum protection during transit. Each unit is enclosed in an anti-static bag to prevent any electrostatic discharge damage. The terminals are then securely placed in custom-designed foam inserts within sturdy, corrugated cardboard boxes to protect against mechanical shocks and vibrations.

For shipping, we use reliable carriers with tracking and insurance options to guarantee safe and timely delivery. All packages are clearly labeled with handling instructions and product information to facilitate smooth processing. Special care is taken to comply with international shipping regulations for electronic components, ensuring that the Hermetically Sealed Terminals arrive in perfect condition and ready for immediate use.

FAQ:

Q1: What is the brand name of the Hermetically Sealed Terminal?

A1: The Hermetically Sealed Terminal is manufactured under the brand name SSCore.

Q2: Where is the Hermetically Sealed Terminal produced?

A2: This product is made in China.

Q3: What certifications does the Hermetically Sealed Terminal have?

A3: The Hermetically Sealed Terminal is certified with IATF16949.

Q4: What is the minimum order quantity and price range for the Hermetically Sealed Terminal?

A4: The minimum order quantity is 5 pieces, with prices ranging from 10 to 40 ￥ per piece.

Q5: How is the product packaged and what is the typical delivery time?

A5: The product is packaged in a vacuum package and the delivery time is typically 7 to 14 working days.

Q6: What payment terms are accepted for purchasing the Hermetically Sealed Terminal?

A6: Accepted payment terms include L/C, D/A, T/T, and D/P.

Q7: What is the monthly supply capacity for the Hermetically Sealed Terminal?

A7: The supply ability is 50,000 pieces per month.
