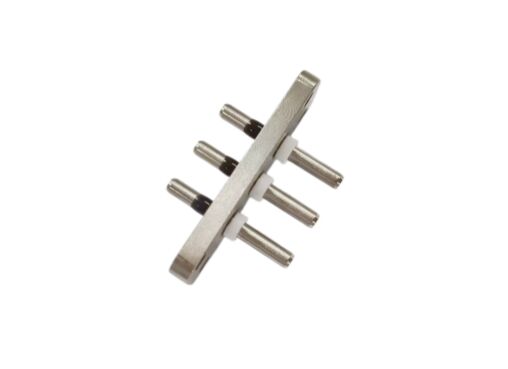

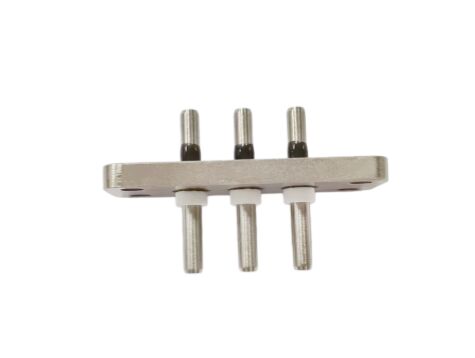

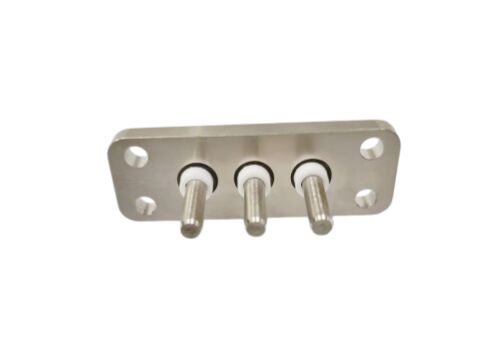

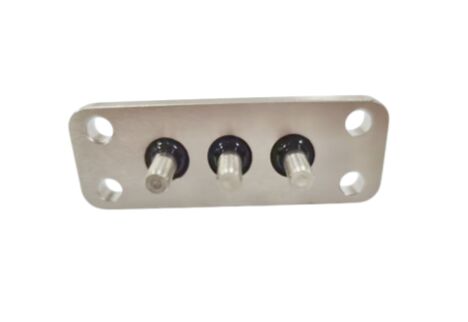

Glass Material ELAN 48 Hermetically Sealed Terminal Providing Thickness 2 to 5 Micrometers Suitable for Harsh Environment

Product Description:

The Hermetically Sealed Terminal is an advanced electrical component designed to provide exceptional reliability and durability in demanding environments. Engineered with precision, this sealed electrical terminal ensures optimal performance even under extreme conditions, making it an ideal choice for critical applications where safety and longevity are paramount. One of the standout features of this product is its ability to operate at temperatures up to 180°C, allowing it to function effectively in high-heat environments without compromising its integrity or electrical conductivity.

At the core of the Hermetically Sealed Terminal’s design is its use of ELAN #48 glass material, which plays a crucial role in its sealing and insulation properties. ELAN #48 glass is known for its excellent thermal stability, mechanical strength, and resistance to chemical corrosion, making it an outstanding choice for applications requiring robust insulation and protection. This glass material ensures that the terminal provides a consistent and reliable barrier against environmental factors, including moisture, dust, and other contaminants.

The sealing type of this terminal is hermetic, meaning it is completely airtight and impervious to external elements. Hermetic sealing is vital for maintaining the integrity of electrical connections in harsh or sensitive environments. It prevents the ingress of moisture and gases, which can otherwise cause corrosion, short circuits, and eventual failure of electrical systems. This makes the Hermetically Sealed Terminal particularly suitable for use in aerospace, military, medical, and industrial applications where reliability is non-negotiable.

In addition to its hermetic sealing, this terminal features plating made from Q355B, a high-quality steel known for its strength and resistance to wear and corrosion. The Q355B plating enhances the terminal’s durability and ensures that it maintains excellent electrical conductivity over time. This combination of hermetic sealing and robust plating results in a product that not only protects electrical connections but also extends their service life, reducing the need for frequent maintenance or replacement.

The Hermetically Sealed Terminal also functions as an insulated terminal connector, providing an additional layer of safety by preventing accidental electrical contact and short circuits. This insulation capability is essential in complex electrical systems where multiple connections are in close proximity. It helps to maintain system integrity and prevents electrical hazards, thereby enhancing overall system reliability.

Another key advantage of this product is its certification compliance with RoHS and REACH standards. These certifications indicate that the Hermetically Sealed Terminal meets stringent environmental and safety regulations, ensuring that it is free from hazardous substances and safe for use in a wide range of applications. Compliance with RoHS and REACH also reflects the manufacturer’s commitment to sustainable and responsible production practices, which is increasingly important in today’s market.

Furthermore, this terminal is designed as a watertight connector, providing secure and leak-proof electrical connections even in wet or submerged conditions. The watertight nature of the connector ensures that it maintains performance and safety in outdoor applications, marine environments, and other settings where exposure to water is unavoidable. This feature significantly broadens the scope of applications for the Hermetically Sealed Terminal, making it a versatile and reliable choice for engineers and designers.

In summary, the Hermetically Sealed Terminal is a high-performance sealed electrical terminal that combines advanced materials, precise engineering, and rigorous certification standards to deliver exceptional reliability and safety. Its ability to operate at elevated temperatures up to 180°C, coupled with the use of ELAN #48 glass and Q355B plating, ensures long-lasting insulation and protection. The hermetic sealing and watertight design provide unparalleled defense against environmental hazards, making it an indispensable component in demanding electrical systems. Whether used as an insulated terminal connector or a watertight connector, this product offers superior performance, durability, and compliance with global safety standards, making it a trusted solution for a wide array of industrial and commercial applications.

Features:

• Product Name: Hermetically Sealed Terminal
• Pin Material: SUH446 with Copper, Cored Ratio 2:1
• Insulation Resistance: ≥1000 MΩ
• Plating: Q355B
• Operating Temperature: Up to 180°C
• Sealing Type: Hermetic
• Sealed Electrical Terminal ensuring reliable performance
• Watertight Connector design for moisture protection
• Airtight Terminal Block for enhanced environmental resistance

Technical Parameters:

Applications:

The SSCore Hermetically Sealed Terminal, originating from China and certified with IATF16949, RoHS, and REACH, is a high-quality protected wiring terminal designed to meet the rigorous demands of modern electrical and electronic applications. With a sealing type that is truly hermetic and a sleeve material made from durable HNBR, this product ensures exceptional protection against environmental factors, making it ideal for use in harsh and sensitive conditions where reliability is paramount.

This hermetically sealed terminal stands out due to its ability to operate at temperatures up to 180°C, supported by a protective sleeve thickness ranging from 2 to 5μm. These features make the SSCore Hermetically Sealed Terminal particularly suitable for industries such as automotive, aerospace, industrial machinery, and telecommunications, where components are exposed to extreme heat, vibration, and contamination risks. The vacuum packaging ensures that each terminal arrives in pristine condition, free from moisture and dust, thus extending its shelf life and performance integrity.

In automotive manufacturing, the SSCore Protected Wiring Terminal can be applied in engine compartments, electrical control units, and sensor connections where hermetic sealing is critical to prevent corrosion and electrical failure. Its compliance with IATF16949 standards guarantees that it meets the stringent quality requirements of the automotive supply chain. Similarly, in aerospace and defense sectors, the hermetically sealed terminal is used in avionics and communication systems where failure is not an option, providing secure and reliable electrical connections under extreme operational conditions.

Industrial automation and heavy machinery benefit from the SSCore protected wiring terminals as well, where exposure to dust, oil, and high temperatures is common. The hermetic seal prevents ingress of contaminants, ensuring long-term stability and reducing maintenance costs. Additionally, the terminals are ideal for use in renewable energy systems, such as solar panels and wind turbines, where environmental sealing enhances durability and efficiency.

With a minimum order quantity of just 5 pieces and a monthly supply capacity of 50,000 pieces, SSCore offers flexibility and scalability for various project sizes. The delivery time ranges from 7 to 14 workdays, and payment terms include L/C, D/A, T/T, and D/P, providing convenient options for global customers. Priced between 10 to 40 ¥, the SSCore Hermetically Sealed Terminal delivers exceptional value, combining advanced sealing technology with robust materials to protect wiring terminals in the most demanding scenarios.

Customization:

SSCore offers premium Hermetically Sealed Terminal products, designed and manufactured in CHINA with IATF16949 certification, ensuring top quality and reliability. Our Waterproof Junction Box solutions feature airtight terminal blocks that provide exceptional sealing performance, making them ideal for use in demanding environments.

We customize each Sealed Electrical Terminal to meet your specific requirements, utilizing high-quality materials such as Q355B plating, SUH446 pins with copper (cored ratio 2:1), and durable HNBR sleeves. With an insulation resistance of ≥1000 MΩ and hermetic sealing type, our terminals guarantee excellent protection against moisture and contaminants.

Our minimum order quantity is 5 pieces, with prices ranging from 10 to 40 ￥ per unit, depending on customization. Products are packaged in vacuum packaging to maintain integrity during shipping. We ensure a delivery time of 7 to 14 work days and support flexible payment terms including L/C, D/A, T/T, and D/P.

SSCore's supply ability reaches up to 50,000 pieces per month, making us a reliable partner for your Waterproof Junction Box and Airtight Terminal Block needs. Trust our hermetically sealed electrical terminals to provide unmatched durability and performance in your applications.

Support and Services:

Our Hermetically Sealed Terminal products are designed to provide reliable and durable connections in environments that demand high levels of protection against moisture, dust, and other contaminants. These terminals are ideal for use in aerospace, military, medical, and industrial applications where hermetic sealing is critical.

Technical support for our Hermetically Sealed Terminals includes assistance with product selection, application guidance, and troubleshooting. Our experts are available to help you determine the best terminal configuration to meet your specific environmental and electrical requirements.

We offer comprehensive services including customization options, performance testing, and quality assurance to ensure that each terminal meets stringent industry standards. Additionally, we provide detailed product documentation, installation instructions, and maintenance tips to maximize the lifespan and reliability of your terminals.

For any technical inquiries or service needs related to our Hermetically Sealed Terminals, our support team is committed to delivering prompt and effective solutions to help you achieve optimal performance in your applications.

Packing and Shipping:

Each Hermetically Sealed Terminal is carefully packaged to ensure maximum protection during transit. The terminals are first placed in anti-static bags to prevent any damage from electrostatic discharge. They are then cushioned with foam inserts inside sturdy, moisture-resistant boxes to safeguard against impact and environmental factors.

For shipping, we use reliable carriers with tracking options to guarantee timely and secure delivery. Each package is clearly labeled with handling instructions and product details to facilitate smooth processing. Our packaging and shipping process is designed to maintain the integrity and functionality of the Hermetically Sealed Terminals from our facility to your doorstep.

FAQ:

Q1: What is the brand name of the Hermetically Sealed Terminal?

A1: The Hermetically Sealed Terminal is manufactured under the brand name SSCore.

Q2: Where is the Hermetically Sealed Terminal produced?

A2: This product is made in China.

Q3: What certifications does the Hermetically Sealed Terminal have?

A3: The Hermetically Sealed Terminal is certified with IATF16949.

Q4: What is the minimum order quantity and price range for this product?

A4: The minimum order quantity is 5 pieces, with a price range of 10 to 40 ￥ per piece.

Q5: How is the Hermetically Sealed Terminal packaged and what is the typical delivery time?

A5: The product is vacuum packaged to ensure quality and has a delivery time of 7 to 14 work days.

Q6: What payment terms are accepted for purchasing the Hermetically Sealed Terminal?

A6: Accepted payment terms include L/C, D/A, T/T, and D/P.

Q7: What is the monthly supply capacity of the Hermetically Sealed Terminal?

A7: The supply ability is 50,000 pieces per month.
