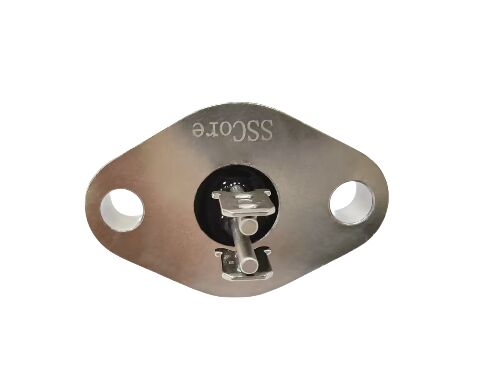

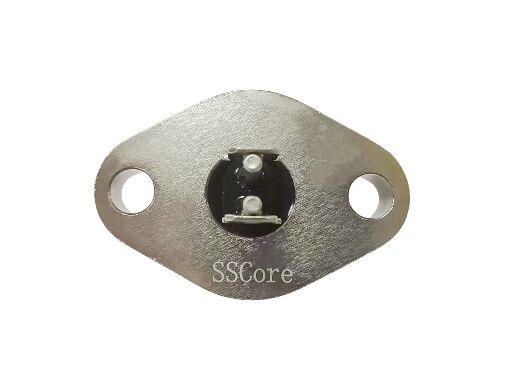

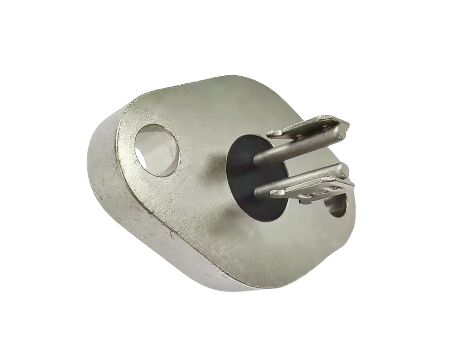

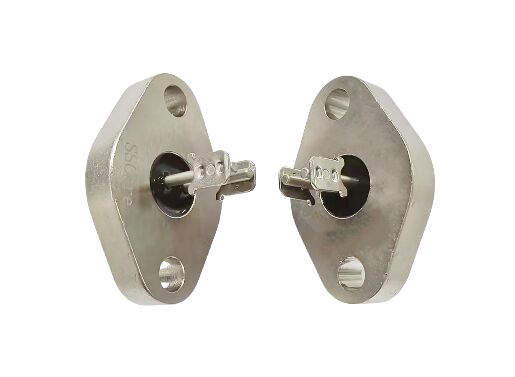

ELAN 48 Glass Materials Glass Metal Seals Incorporating 2 Pin Number Ideal for Electronic Components and Sensor Devices

Product Description:

Our Glass To Metal Seals are precision-engineered components designed to provide reliable and durable connections in a variety of high-performance applications. Utilizing advanced Glass-Metal Bond Seals technology, these products ensure exceptional electrical insulation and mechanical strength, making them ideal for demanding environments where both durability and performance are critical.

The core material used in our Glass To Metal Seals is ELAN #48 glass, known for its superior insulating properties and excellent compatibility with metal components. This specific glass material offers outstanding thermal stability and chemical resistance, which contributes to the longevity and reliability of the seals under varying environmental conditions. The ELAN #48 glass forms a robust, hermetic bond with the metal pins, preventing any leakage or contamination, which is essential for maintaining the integrity of the electrical connections.

One of the standout features of these Metal Seal Connectors is their finish. The pins are nickel plated, providing enhanced corrosion resistance and ensuring consistent conductivity over time. Nickel plating also contributes to the mechanical strength of the connectors, allowing them to withstand harsh physical conditions without compromising their performance. This finish complements the stainless steel pins made from SUH446 stainless steel, a material renowned for its high tensile strength, excellent corrosion resistance, and outstanding fatigue resistance. Together, these materials ensure that the Glass-Metal Bond Seals maintain their structural integrity even in challenging environments.

Our Glass To Metal Seals are designed to operate effectively across a wide temperature range, from -55°C to 125°C. This broad operating window makes them suitable for applications in aerospace, telecommunications, medical devices, and other industries where temperature fluctuations are common. The ability to maintain a stable bond between the glass and metal components across such a temperature range is a testament to the meticulous engineering and quality materials used in these seals.

In terms of electrical performance, the Glass To Metal Seals exhibit high voltage resistance of ≥2000VAC, ensuring safe and reliable operation under high voltage conditions. Additionally, the leakage current is maintained at ≤0.5mA, which minimizes energy loss and enhances the overall efficiency of the electrical system. These electrical characteristics make the Metal Seal Connectors ideal for use in sensitive electronic equipment where maintaining signal integrity and preventing electrical leakage are paramount.

Glass-Metal Bond Seals are critical in applications that demand hermetic sealing and long-term reliability. Our Glass To Metal Seals meet these demands by combining high-quality materials such as ELAN #48 glass and SUH446 stainless steel pins with advanced manufacturing techniques. The result is a product that offers superior performance in terms of mechanical strength, electrical insulation, thermal stability, and corrosion resistance.

Whether used in vacuum systems, high-frequency devices, or power electronics, these Metal Seal Connectors provide a dependable solution that ensures the continuity and safety of electrical connections. Their robust construction and excellent material properties make them a preferred choice for engineers and designers seeking reliable Glass-Metal Bond Seals to enhance the performance and durability of their products.

In summary, our Glass To Metal Seals combine the best materials and finish treatments to deliver high voltage resistance, low leakage current, and a wide operating temperature range. With nickel-plated SUH446 stainless steel pins and ELAN #48 glass, these connectors provide exceptional hermetic sealing and mechanical resilience. Perfectly suited for critical applications requiring trustworthy Glass-Metal Bond Seals, these Metal Seal Connectors represent a pinnacle of quality and performance in the industry.

Features:

• Product Name: Glass To Metal Seals
• Pin Materials: SUH446 Stainless Steel
• Body Materials: Q355B
• Finish: Nickel Plated
• High Voltage Resistance: ≥2000VAC, Leakage Current ≤0.5mA
• Leak Test: 4MPa, No Leak
• Reliable Metal-Glass Bond Seals ensuring durability and performance
• Advanced Metal-to-Glass Bond Seals technology for superior insulation
• Durable Metal Seal Connectors suitable for high voltage applications

Technical Parameters:

Applications:

The SSCore Glass To Metal Seals are engineered for demanding applications requiring reliable and durable Metal-Glass Bond Seals. Certified under IATF16949, these seals ensure high-quality performance and consistency, making them ideal for industries such as automotive, aerospace, electronics, and telecommunications. With a supply ability of 50,000 pieces per month and a minimum order quantity of just 5 pieces, SSCore accommodates both large-scale production needs and smaller, specialized projects.

These Metal-to-Glass Bond Seals utilize premium ELAN #48 glass materials combined with SUH446 stainless steel pins, providing exceptional high voltage resistance of ≥2000VAC with leakage current ≤0.5mA. This makes them perfectly suited for high voltage connectors and applications where electrical insulation and durability under stress are critical. Their temperature range of -55°C to 125°C allows them to operate reliably in harsh environments, from extreme cold to high heat.

SSCore Metal Seal Connectors are vacuum-packaged to ensure product integrity during transport and storage, with a delivery time of 7 to 14 work days to meet tight project schedules. The seals undergo rigorous leak testing at 4MPa with zero leakage, guaranteeing airtight and hermetic sealing essential for sensitive electronic components and hermetically sealed devices.

These seals find wide application in scenarios such as hermetic feedthroughs in aerospace systems, automotive sensors, medical devices requiring robust insulation, and industrial connectors exposed to vibration and temperature fluctuations. The availability of flexible payment terms including L/C, D/A, T/T, and D/P further supports global procurement needs.

In summary, SSCore’s Glass To Metal Seals provide a reliable solution for Metal-Glass Bond Seals that demand high voltage resistance, temperature stability, and leak-proof performance. Their excellent material composition and stringent quality certifications make them the preferred choice for advanced Metal-to-Glass Bond Seals and Metal Seal Connectors in various critical applications.

Customization:

SSCore offers high-quality Glass-Metal Seals with a minimum order quantity of 5 pieces, ensuring reliable Glass-to-Metal Bond Seals and Metal-to-Glass Bond Seals for your applications. Our products are certified to IATF16949 standards, guaranteeing superior performance and quality.

Each Glass-to-Metal Bond Seal features 2 pins made from SUH446 stainless steel, with the body constructed from durable Q355B material and tabs made of SPC. These seals operate efficiently within a temperature range of -55°C to 125°C, making them suitable for various demanding environments.

We provide competitive pricing from 10 to 40 ￥ per piece, with packaging details including vacuum packaging to ensure product integrity during shipment. Our supply ability is 50,000 pieces per month, with delivery times ranging from 7 to 14 workdays to meet your project deadlines.

Payment terms include L/C, D/A, T/T, and D/P for your convenience. Trust SSCore for your Glass-Metal Seals needs, combining expert craftsmanship with reliable supply and excellent customer service.

Support and Services:

Our Glass To Metal Seals product is designed to provide reliable and durable sealing solutions for a wide range of industrial applications. For technical support, our team of experts is available to assist with product selection, installation guidance, and troubleshooting. We offer comprehensive services including custom design consultation, performance optimization, and maintenance advice to ensure optimal functionality and longevity of the seals. Detailed product documentation, including specifications, installation manuals, and safety instructions, are provided to facilitate proper use and handling. We are committed to delivering exceptional customer service and technical support to help you achieve the best performance from our Glass To Metal Seals.

Packing and Shipping:

Our Glass To Metal Seals are carefully packaged to ensure maximum protection during transit. Each seal is individually wrapped in anti-static foam and placed in a sturdy, cushioned box to prevent damage from shocks and vibrations.

The packaging materials are chosen to be environmentally friendly while providing excellent durability. For bulk orders, the seals are securely organized in custom compartments within the shipping container to avoid any movement.

We offer various shipping options to meet your delivery needs, including standard, expedited, and overnight services. All shipments are tracked and insured to guarantee safe and timely arrival.

Upon receiving your order, please inspect the packaging and products immediately. If there are any issues or damages, contact our customer service team promptly for assistance.

FAQ:

Q1: What is the minimum order quantity for SSCore Glass To Metal Seals?

A1: The minimum order quantity is 5 pieces.

Q2: What certifications do the SSCore Glass To Metal Seals have?

A2: SSCore Glass To Metal Seals are certified with IATF16949.

Q3: What is the price range for SSCore Glass To Metal Seals?

A3: The price ranges from 10 to 40 ￥ per piece, depending on specifications and order quantity.

Q4: How are the SSCore Glass To Metal Seals packaged?

A4: They are packaged using a vacuum package to ensure product safety and quality during transportation.

Q5: What are the payment terms accepted for purchasing SSCore Glass To Metal Seals?

A5: We accept payment via L/C, D/A, T/T, and D/P.

Q6: What is the typical delivery time for orders of SSCore Glass To Metal Seals?

A6: Delivery time typically ranges from 7 to 14 working days after order confirmation.

Q7: What is the monthly supply capacity of SSCore for Glass To Metal Seals?

A7: SSCore can supply up to 50,000 pieces per month.
