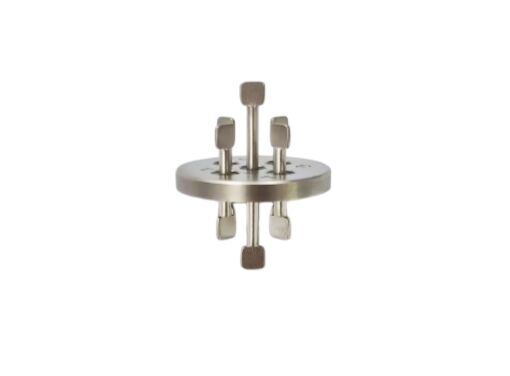

Heating And Sealing Under Controlled Atmosphere Glass Metal Seals Featuring Leak Rate 1x10 -8 Cc sec He Ideal for Vacuum Systems

Product Description:

Our Glass To Metal Seals product is a high-quality and reliable solution designed to meet the demanding requirements of various industrial and electronic applications. Featuring advanced Metal-to-Glass Bond Seals technology, this product ensures exceptional durability, strength, and hermetic sealing, making it an ideal choice for environments where performance and reliability are critical.

At the core of our Glass To Metal Seals is the use of premium Pin Materials, specifically the 450 ALLOY. This alloy is renowned for its excellent mechanical strength, corrosion resistance, and thermal stability, which collectively contribute to the longevity and robustness of the connectors. The 450 ALLOY pins provide a secure and stable electrical connection, ensuring minimal signal loss and reliable conductivity over extended periods of use.

The dielectric strength of this product is rated at an impressive 1000VAC. This high dielectric strength guarantees that the Glass Seal Connectors can withstand significant voltage stress without breakdown or failure. This attribute is particularly important in applications involving high voltage or sensitive electronic components, where insulation and electrical integrity are paramount.

One of the standout features of our Glass To Metal Seals is the remarkably low leak rate, measured at 1x10^-8 Cc/sec He. This ultra-low leak rate ensures an almost perfect hermetic seal, preventing the ingress of moisture, gases, and other contaminants that could compromise the performance and reliability of the connected devices. Such a tight seal is essential in vacuum systems, aerospace, medical devices, and other applications where maintaining a controlled environment is critical.

The glass materials used in these Metal Seal Connectors are based on CORNING 9013 glass, a specially formulated glass known for its excellent thermal expansion compatibility with metals, high chemical resistance, and outstanding mechanical properties. The use of CORNING 9013 glass ensures a strong and stable bond between the metal pins and the glass, enhancing the overall durability and performance of the connectors. This material choice minimizes the risk of cracking or failure due to thermal cycling or mechanical stress.

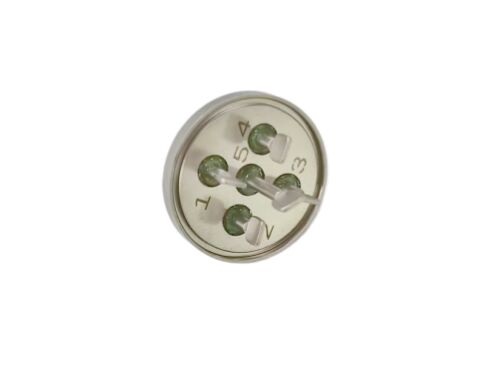

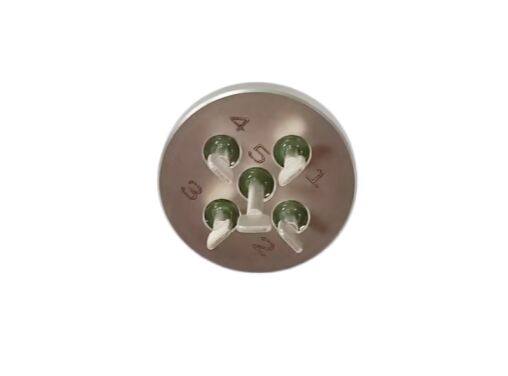

This product features a pin number of 5, providing multiple connection points within a compact and efficient design. The five-pin configuration allows for versatile connectivity options, supporting complex circuit designs and multiple signal pathways while maintaining the integrity of the Metal-to-Glass Bond Seals. This makes the connectors suitable for a wide range of applications, from instrumentation and control systems to aerospace and military electronics.

In summary, our Glass To Metal Seals offering combines the best in materials and engineering to deliver a superior product that excels in performance, reliability, and longevity. The integration of 450 ALLOY pins, CORNING 9013 glass, a high dielectric strength of 1000VAC, and an exceptionally low leak rate of 1x10^-8 Cc/sec He ensures that these Glass Seal Connectors and Metal Seal Connectors meet and exceed industry standards. Whether used in harsh environments or precision electronic assemblies, these connectors provide a dependable solution for maintaining hermetic seals and stable electrical connections.

By choosing our Glass To Metal Seals, customers benefit from a product that not only meets the technical demands of today’s advanced applications but also offers peace of mind through its proven reliability and quality. The combination of Metal-to-Glass Bond Seals technology, robust materials, and meticulous manufacturing processes makes these connectors a trusted choice for engineers and designers seeking excellence in their projects.

Features:

• Product Name: Glass To Metal Seals
• Connector Finish: Nickel Plated for enhanced corrosion resistance
• Housing Material: Durable 316L Stainless Steel ensuring high strength and longevity
• Process Name: Glass-metal Sintering technique for reliable metal-to-glass bond seals
• Manufacturing Process: Heating and sealing under controlled atmosphere to guarantee quality and precision
• Pin Materials: Made from 450 Alloy for excellent conductivity and durability
• Expertly designed Glass-Metal Seals providing superior sealing performance
• Ideal for use in Metal Seal Connectors applications requiring robust and hermetic sealing

Technical Parameters:

Applications:

The SSCore Glass To Metal Seals, model number 41-X0639, are engineered to deliver exceptional performance in demanding environments. These FEEDTHROUGH components are crafted using advanced glass-metal sintering processes, ensuring robust Metal-Glass Bond Seals that provide superior hermetic sealing. Certified under IATF16949, these seals guarantee high quality and reliability, suitable for critical applications requiring leak rates as low as 1x10^-8 Cc/sec He.

Designed with a 5-pin configuration and housed in durable 316L stainless steel, these Metal Seal Connectors offer excellent corrosion resistance and mechanical strength. Their reliable Metal-to-Glass Bond Seals make them ideal for use in vacuum, high pressure, and high temperature scenarios. The vacuum packaging ensures the product arrives in pristine condition, ready for immediate integration into your systems.

Typical application occasions for SSCore’s Glass To Metal Seals include aerospace, medical devices, semiconductor manufacturing equipment, and instrumentation where airtight and electrically insulated feedthroughs are essential. These metal-glass bond seals are commonly employed in environments that demand long-term stability and resistance to harsh chemicals or extreme thermal cycling.

In industrial and research settings, these Metal-Glass Bond Seals facilitate secure electrical connections through vacuum chambers or pressurized vessels without compromising the integrity of the enclosure. Their exceptional hermeticity is critical in scenarios such as sensor housings, vacuum interrupters, and high-frequency communication devices.

SSCore offers a minimum order quantity of 5 pieces, with flexible payment terms including L/C, D/A, T/T, and D/P, catering to diverse procurement needs. With a supply ability of 50,000 pieces per month and delivery times ranging from 7 to 14 work days, these Metal Seal Connectors provide both reliability and availability for large-scale production or specialized projects. Prices range from 10 to 40 ￥ per unit, making them a cost-effective solution without compromising on quality.

Overall, the SSCore 41-X0639 Glass To Metal Seals are indispensable for applications requiring durable, hermetically sealed electrical feedthroughs with excellent mechanical properties and proven leak-tight performance.

Customization:

SSCore offers customized Product Customization Services for our Glass To Metal Seals, model number 41-X0639, certified under IATF16949 to ensure the highest quality standards. Our Metal-Glass Bond Seals, Glass-Metal Bond Seals, and Metal-to-Glass Bond Seals are manufactured using CORNING 9013 glass materials through a precise heating and sealing process under a controlled atmosphere, guaranteeing exceptional leak rates as low as 1x10^-8 Cc/sec He.

We cater to orders with a minimum quantity of 5 pieces, priced between 10 to 40 ￥ per unit, and packaged securely in vacuum packaging to maintain product integrity. With a supply ability of 50,000 pieces per month, we ensure timely delivery within 7 to 14 workdays.

Our FEEDTHROUGH products feature 5 pins and are backed by flexible payment terms including L/C, D/A, T/T, and D/P, providing convenience and reliability for your procurement process. Trust SSCore for your Metal-Glass Bond Seals needs with customized service tailored to your specifications.

Support and Services:

Our Glass To Metal Seals are engineered to provide exceptional hermetic sealing solutions for a wide range of applications including electronics, aerospace, and medical devices. These seals are designed to withstand extreme environmental conditions such as high temperatures, pressure variations, and corrosive atmospheres, ensuring long-term reliability and performance.

Technical support for our Glass To Metal Seals includes assistance with product selection, custom design options, and integration into your specific application. Our team of experts can help you determine the optimal seal configuration based on your mechanical, thermal, and electrical requirements.

We offer comprehensive services including prototyping, testing, and quality assurance to ensure that each seal meets stringent industry standards. Our manufacturing processes comply with international certifications to guarantee product consistency and durability.

For installation and maintenance guidance, we provide detailed technical documentation and troubleshooting support to help you achieve successful implementation and operation of our Glass To Metal Seals. Additionally, we offer training sessions and on-site consultation to facilitate smooth integration and maximize the lifespan of the seals.

Should you require tailored solutions, our engineering team is available to collaborate on custom projects, addressing unique challenges and specifications to deliver seals that perfectly match your application needs.

Packing and Shipping:

Our Glass To Metal Seals are carefully packaged to ensure maximum protection during transit. Each seal is individually wrapped in anti-static foam and placed in a sturdy, custom-designed box to prevent any movement or damage.

For added safety, the boxes are then packed into reinforced shipping cartons with cushioning materials to absorb shocks and vibrations.

We offer multiple shipping options to meet your delivery needs, including standard, expedited, and international shipping services. All shipments are tracked and insured for your peace of mind.

Handling instructions and product specifications are included with each shipment to ensure proper use and installation upon arrival.

FAQ:

Q1: What is the brand and model number of the Glass To Metal Seals?

A1: The Glass To Metal Seals are branded SSCore, and the model number is 41-X0639.

Q2: What certifications does this product have?

A2: The Glass To Metal Seals are certified with IATF16949.

Q3: What is the minimum order quantity and price range for this product?

A3: The minimum order quantity is 5 pieces, and the price ranges from 10 to 40 ￥ per piece.

Q4: How are the Glass To Metal Seals packaged and what is the delivery time?

A4: The products are vacuum packaged to ensure safety during shipping, and the delivery time is between 7 to 14 work days.

Q5: What payment terms are accepted for purchasing these seals?

A5: Payment terms accepted include L/C, D/A, T/T, and D/P.

Q6: What is the monthly supply capacity for the Glass To Metal Seals?

A6: The supply ability is 50,000 pieces per month.
