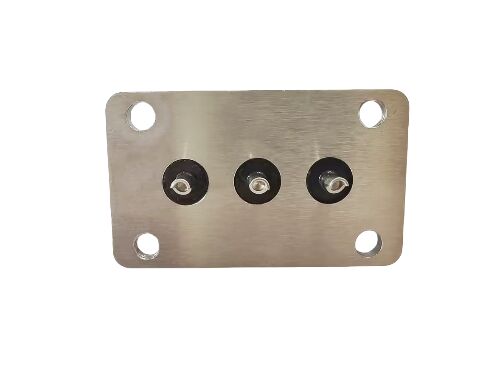

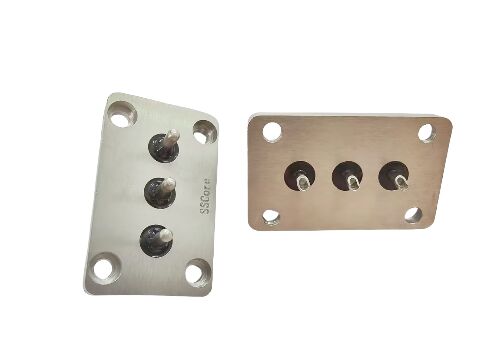

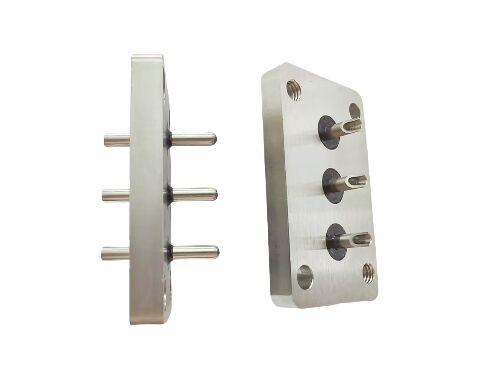

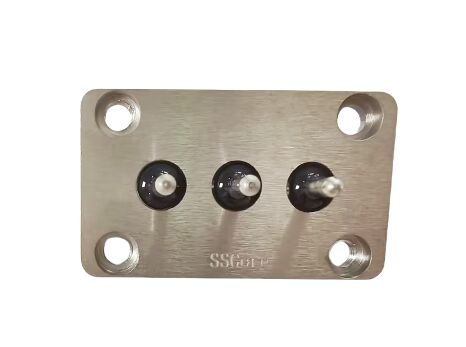

15A Currentrating Hermetically Sealed Terminal Made from 45 Steel Pin Material Designed for Secure and Electrical Connections

Product Description:

The Hermetically Sealed Terminal is an advanced electrical component designed to provide exceptional performance in demanding environments. Operating at a voltage of 24V, this terminal ensures reliable and stable electrical connections, making it an ideal choice for various industrial and commercial applications. Its robust construction and specialized features make it a standout solution for systems requiring secure and long-lasting connectivity.

One of the key attributes of this Hermetically Sealed Terminal is its outstanding high voltage resistance. It can withstand voltages of ≥3000VAC, which ensures safety and durability in high-voltage applications. Additionally, the leakage current is maintained at an impressively low level of ≤0.5mA, further enhancing its safety profile and reducing the risk of electrical faults. This makes the terminal highly reliable for use in sensitive and critical electrical circuits where maintaining integrity is paramount.

The product features contact plating made of nickel, which significantly contributes to its corrosion resistance and overall longevity. Nickel plating provides a stable and conductive surface that minimizes contact resistance and prevents oxidation, ensuring consistent electrical performance over time. This is especially important in environments prone to moisture or other corrosive elements, aligning perfectly with the terminal’s hermetically sealed design.

The pin material is made from high-quality 45 steel, known for its strength and durability. This choice of material guarantees mechanical robustness, allowing the terminal to endure physical stress, vibrations, and repeated connection cycles without degradation. The combination of 45 steel pins with nickel plating offers a perfect balance of mechanical and electrical properties, ensuring the terminal performs reliably under rigorous operating conditions.

With a current rating of 15A, this Hermetically Sealed Terminal supports substantial electrical loads, making it suitable for a wide range of power distribution and control applications. Whether it is integrated into a Shielded Terminal Board or used within a Closed Circuit Terminal setup, it delivers consistent electrical conductivity and stable performance. Its ability to handle moderate to high current loads without overheating or loss of efficiency makes it a versatile component for many electrical systems.

The watertight connector design of this terminal is one of its most notable features. By being hermetically sealed, it prevents the ingress of water, dust, and other contaminants, which is crucial for maintaining the longevity and reliability of electrical connections in harsh environments. This watertight characteristic ensures that the terminal can be confidently used in outdoor or moisture-prone applications, where exposure to elements could otherwise compromise connection integrity.

Furthermore, this Hermetically Sealed Terminal is perfectly suited for use in Shielded Terminal Boards, where electromagnetic interference (EMI) reduction is essential. The shielding capabilities help protect sensitive circuits from external noise and disturbances, ensuring signal integrity and stable operation. Incorporating this terminal into shielded systems enhances overall performance and reliability, making it a valuable component in precision electronics and communication equipment.

In Closed Circuit Terminal configurations, the hermetic sealing and high voltage resistance properties of this product provide a secure and safe connection point. The closed circuit design benefits from the terminal’s ability to maintain a sealed environment, preventing oxidation and contamination that could lead to circuit failure. This makes it an excellent choice for applications demanding high safety standards and minimal maintenance requirements.

In summary, the Hermetically Sealed Terminal combines excellent electrical properties, robust mechanical design, and superior environmental protection. Its 24V operation voltage, high voltage resistance of ≥3000VAC, low leakage current, nickel-plated contacts, and 45 steel pins ensure outstanding performance. Rated for currents up to 15A, and featuring a watertight connector design, this terminal is an ideal solution for Shielded Terminal Boards and Closed Circuit Terminals. It offers a reliable, durable, and efficient connection that meets the needs of modern, high-performance electrical systems.

Features:

• Product Name: Hermetically Sealed Terminal
• High Voltage Resistance: ≥3000VAC, Leakage Current ≤0.5mA
• Working Temperature Range: -40°C to +150°C
• Current Rating: 15A
• Leak Test: 4.0MPa with N2 Pressure
• Features Airtight Terminal Block design for enhanced protection
• Functions as an Enclosed Terminal Block ensuring secure connections
• Serves as a Waterproof Junction Box suitable for harsh environments

Technical Parameters:

Applications:

The SSCore Hermetically Sealed Terminal, model number 41-X0502, is a highly reliable Protected Wiring Terminal designed to meet the rigorous demands of modern electrical and electronic applications. Manufactured in China and certified under IATF16949, this terminal ensures superior quality and performance, making it an ideal choice for industries requiring robust and secure electrical connections. Its hermetic sealing provides excellent protection against moisture, dust, and other environmental contaminants, ensuring a durable and stable connection in even the harshest conditions.

This Protected Wiring Terminal is suitable for use in a wide range of application occasions and scenarios. Due to its exceptional insulation resistance of 1000MΩ and a current rating of 15A, it is perfect for automotive wiring systems, aerospace equipment, industrial machinery, and other critical electrical installations where maintaining a Closed Circuit Terminal with minimal risk of leakage or failure is essential. The terminal’s pin material, made from high-quality 45 steel, guarantees mechanical strength and excellent conductivity, supporting reliable power transmission and signal integrity across various operating environments.

The SSCore Hermetically Sealed Terminal operates efficiently within a wide working temperature range from -40°C to +150°C, making it suitable for applications exposed to extreme temperature fluctuations. This feature ensures stable performance in automotive engine compartments, outdoor electrical enclosures, and other temperature-sensitive environments. The vacuum packaging further protects the terminal during transportation and storage, preserving its sealed integrity until installation.

With a minimum order quantity of only 5 pieces, competitive pricing ranging from 10 to 40 ￥, and a monthly supply ability of 50,000 pieces, SSCore offers a cost-effective and scalable solution for both small-scale projects and large manufacturing operations. Delivery times typically range from 7 to 14 workdays, with flexible payment terms including L/C, D/A, T/T, and D/P, facilitating smooth procurement processes for businesses worldwide.

In summary, the SSCore Hermetically Sealed Terminal model 41-X0502 is an excellent choice for anyone seeking a reliable, high-performance Protected Wiring Terminal or Closed Circuit Terminal. Its durable construction, superior insulation, and broad temperature tolerance make it indispensable across various industrial, automotive, and aerospace applications where secure and protected wiring connections are critical.

Customization:

SSCore offers customized solutions for the Hermetically Sealed Terminal, model number 41-X0502, designed to meet your specific requirements. Manufactured in China and certified with IATF16949, this product ensures high quality and reliability.

Our Hermetically Sealed Terminal is an enclosed terminal block that provides excellent protection against environmental factors. It features a sealed electrical terminal design with a watertight connector, guaranteeing superior high voltage resistance of ≥3000VAC and a leakage current of ≤0.5mA.

Constructed with durable 45 steel for both the body and pin material, the terminal supports a current rating of 15A. We offer a minimum order quantity of 5 pieces with prices ranging from 10 to 40 ￥ per unit.

Each unit is carefully packed in a vacuum package to preserve product integrity during transit. With a supply ability of 50,000 pieces per month, SSCore ensures timely delivery within 7 to 14 work days.

Flexible payment terms including L/C, D/A, T/T, and D/P are available to accommodate your business needs. Trust SSCore for reliable, high-performance enclosed terminal blocks that meet your sealing and connectivity demands.

Support and Services:

Our Hermetically Sealed Terminal products are designed to provide reliable and durable electrical connections in environments that require airtight and moisture-proof sealing. These terminals are ideal for applications in aerospace, military, medical devices, and other high-reliability sectors where contamination and corrosion must be prevented.

Technical support for our Hermetically Sealed Terminals includes assistance with product selection to match your specific environmental and electrical requirements, guidance on installation procedures to ensure the integrity of the hermetic seal, and troubleshooting for any issues related to performance or compatibility.

We offer comprehensive services such as custom terminal design, qualification testing, and documentation to support your quality assurance processes. Our engineering team is available to collaborate on solutions tailored to unique application needs, ensuring optimal functionality and longevity of the sealed terminals.

Additionally, we provide maintenance recommendations and repair services to extend the life of your hermetically sealed terminal installations. Our commitment is to deliver high-quality products backed by expert support to help you achieve dependable and efficient system performance.

Packing and Shipping:

Each Hermetically Sealed Terminal is carefully packaged to ensure maximum protection during transit. The product is enclosed in a custom-fitted, anti-static foam insert that prevents movement and shields it from potential impact or vibration damage. The foam insert is then placed inside a sturdy, corrugated cardboard box designed to withstand rough handling.

To further safeguard the terminal, the packaging is sealed with tamper-evident tape and clearly labeled with handling instructions such as "Fragile" and "Handle with Care." Additionally, moisture-absorbing packets are included inside the box to prevent any potential condensation or humidity-related issues.

For shipping, we partner with reputable carriers that provide tracking and insurance options to ensure the Hermetically Sealed Terminal arrives safely and on time. Each shipment is carefully documented, and customers receive detailed tracking information to monitor the delivery status.

Bulk orders are palletized and shrink-wrapped for added stability, reducing the risk of damage during large-scale transportation. We are committed to delivering our products in pristine condition to meet your operational needs.

FAQ:

Q1: What is the brand and model number of the Hermetically Sealed Terminal?

A1: The Hermetically Sealed Terminal is manufactured by SSCore, and the model number is 41-X0502.

Q2: Where is the Hermetically Sealed Terminal produced?

A2: This product is made in China.

Q3: What certifications does the Hermetically Sealed Terminal have?

A3: It is certified with IATF16949, ensuring it meets quality management standards for the automotive industry.

Q4: What is the minimum order quantity and price range for this product?

A4: The minimum order quantity is 5 pieces, with prices ranging from 10 to 40 Chinese Yuan (￥) per piece.

Q5: How is the product packaged and what is the typical delivery time?

A5: The Hermetically Sealed Terminal is packaged in a vacuum package, and the delivery time is generally between 7 to 14 working days.

Q6: What payment terms are accepted for purchasing this product?

A6: Accepted payment terms include L/C (Letter of Credit), D/A (Documents Against Acceptance), T/T (Telegraphic Transfer), and D/P (Documents Against Payment).

Q7: What is the monthly supply capacity of the Hermetically Sealed Terminal?

A7: The supplier is capable of providing up to 50,000 pieces per month.
