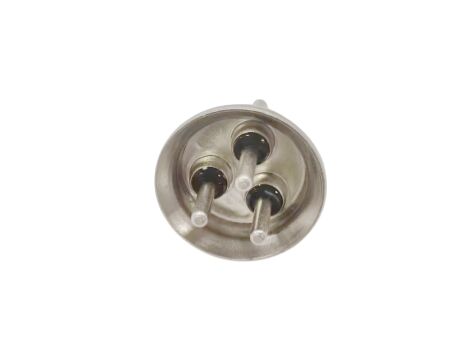

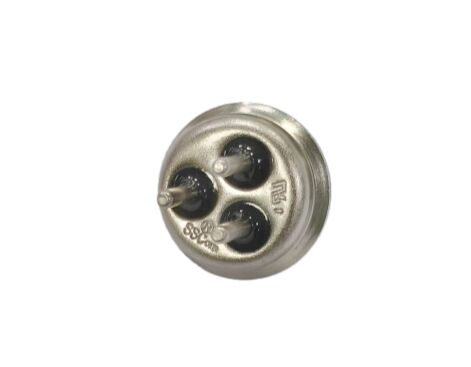

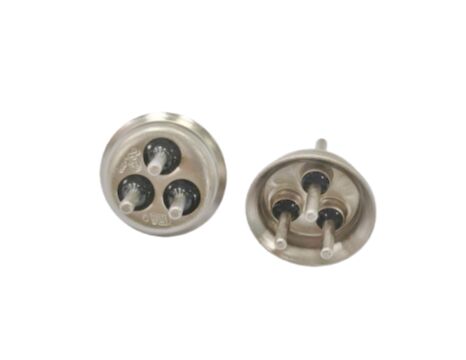

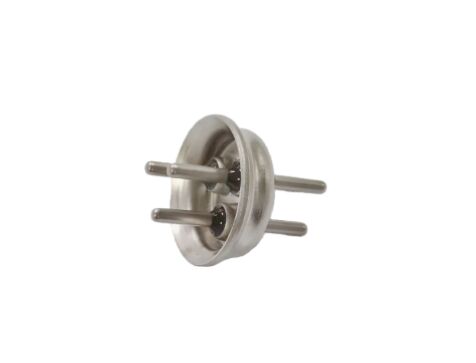

RoHS Compliant Hermetically Sealed Terminal Utilizing Hermetic Sealing Method to Ensure Long Term Electrical Performance

Product Description:

The Hermetically Sealed Terminal is an advanced Closed Circuit Terminal designed to provide exceptional performance and reliability in demanding electrical applications. Engineered with precision and high-quality materials, this terminal ensures a secure and stable electrical connection while protecting against environmental factors that could compromise functionality. With a thickness ranging from 1.0 to 5.0 micrometers, the terminal offers an optimal balance between durability and compactness, making it suitable for a variety of industrial and commercial uses.

One of the key components of the Hermetically Sealed Terminal is its cap, which is made from Cold Rolled Steel. This choice of material contributes significantly to the terminal’s structural integrity and corrosion resistance. Cold Rolled Steel is known for its superior strength and smooth surface finish, which enhances the overall sealing capability of the terminal. This ensures that the terminal maintains its hermetic seal even under extreme conditions, protecting the internal components from moisture, dust, and other contaminants.

In addition to the robust construction, the Hermetically Sealed Terminal boasts exceptional high temperature resistance. This feature makes it ideal for applications where the terminal may be exposed to elevated temperatures for prolonged periods. Whether used in automotive, aerospace, or industrial machinery, the terminal maintains its performance without degradation, ensuring continuous and reliable electrical connectivity.

The contact plating of the terminal is done with Nickel, a material renowned for its excellent conductivity and resistance to oxidation. Nickel plating enhances the terminal’s electrical performance by providing a stable and low-resistance contact surface. This plating also adds an extra layer of protection against corrosion, extending the terminal’s lifespan and maintaining high-quality connections over time. The combination of Nickel plating and Cold Rolled Steel cap makes the Hermetically Sealed Terminal a dependable choice for critical electrical systems.

Electrical resistance is a crucial parameter for terminals, and the Hermetically Sealed Terminal excels in this aspect with a resistance rating of 1000MΩ at 500VDC. This high resistance value indicates superior insulation properties, minimizing leakage currents and preventing electrical faults. This characteristic is particularly important for sensitive electronic systems where insulation integrity is paramount for safe and efficient operation.

The Hermetically Sealed Terminal functions effectively as an Insulated Terminal Connector, providing a secure and insulated connection point for wires and cables. Its hermetic sealing ensures that the connection remains watertight, making it an excellent Watertight Connector option for environments exposed to moisture or harsh weather conditions. This watertight capability prevents corrosion and electrical shorts caused by water ingress, enhancing the reliability of the entire electrical system.

Overall, the Hermetically Sealed Terminal combines advanced material technology, precise manufacturing, and thoughtful design to deliver a high-performance Closed Circuit Terminal solution. Its features such as high temperature resistance, Nickel contact plating, and Cold Rolled Steel cap make it suitable for a wide range of applications requiring durability, reliability, and environmental protection. Whether used in industrial automation, automotive wiring harnesses, or outdoor electrical installations, this terminal ensures outstanding electrical performance and long-term stability.

In summary, the Hermetically Sealed Terminal is an ideal choice for anyone seeking a high-quality Insulated Terminal Connector that offers watertight protection and excellent electrical insulation. Its robust construction, advanced plating, and resistance characteristics guarantee a dependable connection that withstands challenging conditions, making it a valuable component in modern electrical and electronic systems.

Features:

• Product Name: Hermetically Sealed Terminal
• High Resistance: 1000MΩ @ 500VDC ensuring reliable insulation
• Sealing Method: Hermetic Sealing for superior protection
• Thickness Range: 1.0~5.0 μm for durable and consistent performance
• Hermetic Test: 4.0MPa with N2, guaranteeing no leaks
• Contact Plating: Nickel for enhanced conductivity and corrosion resistance
• Ideal for use as an Enclosed Terminal Block in various applications
• Perfect component for Waterproof Junction Box installations
• Designed to function as a Closed Circuit Terminal ensuring secure connections

Technical Parameters:

Applications:

The SSCore Hermetically Sealed Terminal, model number 12-X0383, is a premium enclosed terminal block designed to meet the rigorous demands of modern electrical applications. Originating from China and certified under IATF16949, this sealed electrical terminal ensures exceptional quality and reliability. Its airtight terminal block construction provides superior protection against environmental factors, making it ideal for use in harsh or high-temperature environments.

This product’s high temperature resistance, combined with a contact plating of nickel and a thickness range of 1.0 to 5.0 μm, guarantees long-lasting performance and durability. The hermetic sealing also offers excellent salt spray resistance of up to 48 hours, making it suitable for applications exposed to corrosive atmospheres such as coastal or industrial areas. The SSCore 12-X0383 terminal is compliant with UL and RoHS standards, ensuring safety and environmental friendliness in every use.

The sealed electrical terminal is widely applicable across various industries and scenarios. It is commonly used in automotive manufacturing, where reliable and airtight terminal blocks are critical for maintaining electrical connections under high temperatures and vibrations. Additionally, it finds applications in aerospace, industrial machinery, and renewable energy systems, where durability and protection against moisture and contaminants are paramount.

In electronics assembly and control panels, the enclosed terminal block provides a secure and maintenance-free connection point, reducing the risk of failure due to environmental ingress. Its vacuum packaging ensures that each unit remains pristine until installation, supporting smooth supply chain management and minimizing downtime.

With a supply capacity of 50,000 pieces per month and a minimum order quantity of just 5 pieces, the SSCore hermetically sealed terminal is accessible for both large-scale manufacturers and smaller enterprises. Prices range between 10 to 40 ￥, and delivery is reliably made within 7 to 14 workdays. Flexible payment terms, including L/C, D/A, T/T, and D/P, further enhance the ease of procurement.

Overall, the SSCore 12-X0383 airtight terminal block is an excellent choice for any application requiring robust, high-quality sealed electrical terminals that can withstand challenging environmental conditions while maintaining optimal electrical performance.

Customization:

SSCore offers customizable Hermetically Sealed Terminal products, model number 12-X0383, manufactured in China with IATF16949 certification. Our Insulated Terminal Connector ensures reliable airtight performance with hermetic sealing and a thickness range of 1.0~5.0 μm, guaranteeing durability and resistance to harsh environments.

This Enclosed Terminal Block features superior salt spray resistance of 48 hours and has passed a rigorous hermetic test at 4.0MPa with nitrogen, confirming no leaks. We package each terminal in a vacuum package to maintain quality and integrity throughout delivery.

With a minimum order quantity of 5 pieces and a price range of 10 - 40 ￥, SSCore can supply up to 50 million pieces per month. Our delivery time is 7 - 14 work days, and we accept flexible payment terms including L/C, D/A, T/T, and D/P.

Our Airtight Terminal Block complies with UL and RoHS standards, ensuring safety and environmental responsibility. Trust SSCore for high-quality, customizable hermetically sealed terminal solutions tailored to your specific needs.

Support and Services:

Our Hermetically Sealed Terminal product is designed to provide reliable and durable electrical connections in environments that require airtight and moisture-resistant sealing. This product ensures optimal performance in applications involving extreme temperatures, pressure variations, and exposure to corrosive elements.

For technical support, our team of experts is available to assist with installation guidance, troubleshooting, and maintenance recommendations to maximize the lifespan and efficiency of the Hermetically Sealed Terminal.

We offer comprehensive services including customization options, testing and certification support, and repair services to meet your specific application requirements.

To ensure proper integration and operation, detailed product datasheets, installation manuals, and application notes are provided with every purchase.

Our commitment is to deliver high-quality technical support and services that help you achieve seamless and long-lasting electrical connections in demanding environments.

Packing and Shipping:

Our Hermetically Sealed Terminal products are carefully packaged to ensure maximum protection during transit. Each terminal is enclosed in a protective anti-static bag, followed by a custom-molded foam insert to prevent movement and absorb shocks.

The packaged terminals are then placed in sturdy, corrugated cardboard boxes designed to withstand rough handling and environmental factors. All packages are clearly labeled with product information, handling instructions, and shipping details to ensure proper care throughout the delivery process.

For shipping, we utilize reliable carriers with tracking capabilities to guarantee timely and secure delivery. Depending on the destination, we offer various shipping options including expedited and standard services. Additionally, all shipments include insurance coverage to protect against loss or damage.

Our commitment to quality packaging and reliable shipping ensures that your Hermetically Sealed Terminal products arrive safely and in optimal condition, ready for immediate use.

FAQ:

Q1: What is the brand and model number of this hermetically sealed terminal?

A1: The brand name is SSCore and the model number is 12-X0383.

Q2: Where is the hermetically sealed terminal manufactured?

A2: It is manufactured in China.

Q3: What certifications does this product have?

A3: This product is certified with IATF16949.

Q4: What is the minimum order quantity and price range for this product?

A4: The minimum order quantity is 5 pieces, with a price range of 10 to 40 ￥ per piece.

Q5: How is the product packaged and what is the typical delivery time?

A5: The product is packaged in a vacuum package and the typical delivery time is 7 to 14 work days.

Q6: What payment terms are accepted for purchasing this product?

A6: Accepted payment terms include L/C, D/A, T/T, and D/P.

Q7: What is the supply ability of the hermetically sealed terminal per month?

A7: The supply ability is 50,000 pieces per month.
