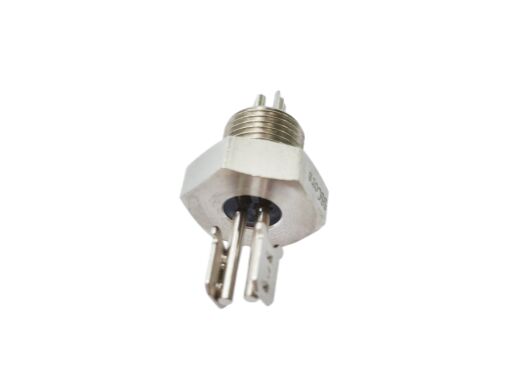

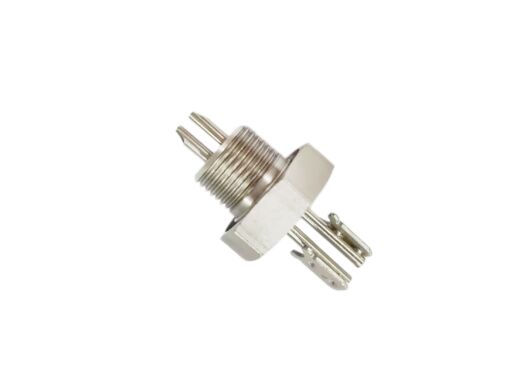

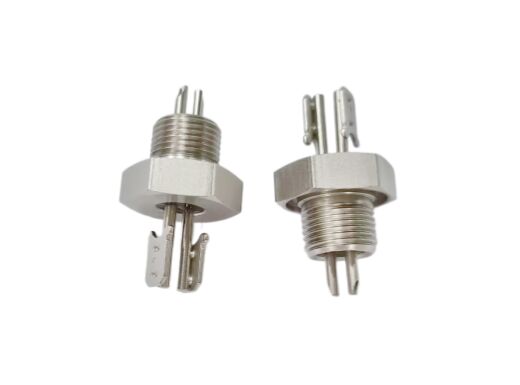

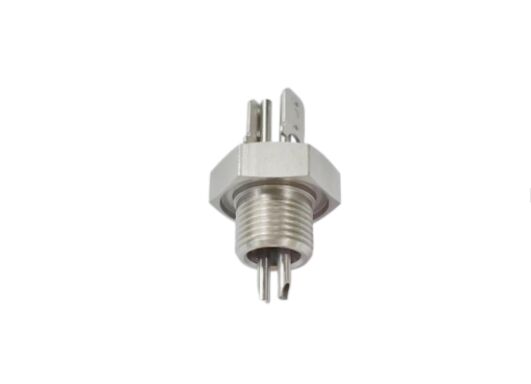

45 Steel Housing Material Glass Metal Seals Offering Thermal Expansion Coefficient Matched Between Glass and Metal for Long Term

Product Description:

Our Glass To Metal Seals are precision-engineered components designed to provide exceptional reliability and durability in a wide range of applications. These seals are an essential part of Metal Seal Connectors, offering superior electrical insulation and mechanical strength by creating a hermetic seal between metal and glass materials. Utilizing advanced manufacturing techniques and high-quality materials, these Metal-to-Glass Seals ensure robust performance even in the most demanding environments.

The core of our Glass To Metal Seals product features pins made from 4J50 alloy, known for its excellent thermal and mechanical properties. This pin material provides outstanding resistance to corrosion and thermal expansion, making the seals highly reliable across a broad temperature range. Specifically, our seals can operate effectively between -40°C and +150°C, ensuring stable performance under both extreme cold and heat conditions. This wide temperature tolerance makes them ideal for use in various industrial, automotive, aerospace, and electronic applications where temperature fluctuations are common.

Each Glass To Metal Seal is equipped with two tabs, a design that facilitates secure and reliable electrical connections. The presence of two tabs improves the mechanical stability of the connector and enhances ease of installation within complex assemblies. Additionally, the connector finish is nickel plated, which not only offers a sleek and professional appearance but also provides excellent resistance to oxidation and wear. The nickel plating enhances the longevity of the metal surfaces, ensuring that the Metal-Glass Seals maintain their integrity and conductive properties over time.

Another critical aspect of our Glass To Metal Seals is the use of ELAN #48 glass as the sealing material. ELAN #48 glass is specially formulated to provide optimal thermal expansion compatibility with the metal components, ensuring a tight and durable hermetic seal. This unique property prevents leaks and maintains electrical insulation, which is vital for the performance of Metal Seal Connectors in sensitive electronic devices and systems. The combination of ELAN #48 glass with 4J50 pins and nickel-plated connectors results in a product that excels in both electrical performance and mechanical resilience.

Our Metal-to-Glass Seals are designed to meet the stringent requirements of modern industries where reliability and performance cannot be compromised. These seals are commonly used in vacuum tubes, sensors, transducers, and other devices that require a high level of hermetic sealing between metal and glass components. The precise engineering and high-quality materials used in our products ensure that they can withstand mechanical stress, thermal cycling, and exposure to harsh environmental conditions without degradation.

In summary, our Glass To Metal Seals deliver a perfect combination of durability, thermal stability, and electrical insulation. Featuring 4J50 pin material, a dual-tab configuration, and nickel-plated connectors, these Metal-Glass Seals are built to perform reliably within a temperature range of -40°C to +150°C. The use of ELAN #48 glass further enhances the seal quality, ensuring a tight, hermetic bond between metal and glass elements. Whether you need Metal Seal Connectors for industrial, automotive, or electronic applications, our Glass To Metal Seals offer the trusted performance and longevity that your projects demand.

Features:

• Product Name: Glass To Metal Seals
• Thermal Expansion Coefficient: Matched Between Glass and Metal for enhanced durability
• Pin Material: High-quality 4J50 ensuring excellent conductivity and strength
• Tab Materials: Durable SPC for reliable electrical connections
• Pin Number: 2 pins for secure and efficient connectivity
• Ideal for Metal-Glass Seals applications requiring precise and reliable sealing
• Designed as Metal Seal Connectors to provide robust and long-lasting performance
• Specialized Glass-to-Metal Seals offering superior thermal and mechanical stability

Technical Parameters:

Applications:

The SSCore Glass To Metal Seals, model number 16-X0950, are precision-engineered components designed to provide reliable and durable connections in a variety of demanding applications. Certified under IATF16949, these glass-metal seals ensure high quality and consistency, making them ideal for industries where safety and performance are paramount. With a minimum order quantity of just 5 pieces and a competitive price range of 10 - 40 ￥, they offer an excellent balance between cost and functionality.

These Glass Seal Connectors are particularly suited for applications requiring superb electrical insulation and high voltage resistance. They can withstand voltages of ≥2000VAC while maintaining a leakage current of ≤0.5mA, ensuring stable and secure performance in high voltage environments. The connectors are nickel plated, which enhances corrosion resistance and longevity even in harsh environmental conditions. The SPC tab materials contribute to their mechanical strength and reliability.

Operating efficiently within a temperature range of -40°C to +150°C, SSCore Glass-Metal Seals are perfect for use in automotive, aerospace, telecommunications, and industrial electronics where temperature variations are common. Their robust vacuum packaging guarantees product integrity during shipping and storage, and with a supply ability of 50,000 pieces per month, SSCore can meet both small and large scale demands promptly.

The Glass To Metal Seals find application in scenarios such as high voltage electrical assemblies, sensor housings, hermetic feedthroughs in vacuum and pressure systems, and connectors in harsh environments where moisture and temperature extremes are factors. Their reliable sealing properties prevent gas or liquid ingress, making them indispensable in medical devices, instrumentation, and aerospace technology.

With flexible payment terms including L/C, D/A, T/T, and D/P, and a delivery time ranging from 7 to 14 work days, customers benefit from efficient procurement processes and quick turnaround times. Overall, SSCore’s Glass-Metal Seals enable engineers and manufacturers to achieve superior performance, durability, and safety in their products, making them an essential component in modern electronic and electrical systems.

Customization:

SSCore offers customized Metal Seal Connectors with model number 16-X0950, certified under IATF16949 to ensure the highest quality standards. Our Metal-Glass Bond Seals feature a pin material of 4J50 and two SPC tab materials, finished with nickel plating for enhanced durability and corrosion resistance. These Glass To Metal Seals provide excellent high voltage resistance of ≥2000VAC with a leakage current of ≤0.5mA, making them ideal for demanding electrical applications.

We accept a minimum order quantity of 5 pieces, with pricing ranging from 10 to 40 ￥ depending on specifications. Each product is carefully packaged in a vacuum package to maintain integrity during shipping. Our supply ability reaches up to 50w pieces per month, ensuring reliable delivery within 7 to 14 work days.

Flexible payment terms including L/C, D/A, T/T, and D/P are available for your convenience. Trust SSCore for premium Metal Seal Connectors and Metal-Glass Bond Seals tailored to your exact requirements.

Support and Services:

Our Glass To Metal Seals product is designed to provide reliable and durable sealing solutions for various industrial applications. For technical support, we offer comprehensive assistance including installation guidance, troubleshooting, and maintenance tips to ensure optimal performance of the seals.

Our support team is equipped with extensive knowledge of glass to metal sealing technologies and can help address any challenges you may encounter. We provide detailed product documentation, including specifications, handling instructions, and compatibility information to assist you in selecting the right seal for your application.

Additionally, we offer customized services such as tailored seal designs and material selection to meet specific requirements. Our engineering experts can collaborate with you to develop solutions that fit your unique needs.

For ongoing service, we recommend regular inspection and cleaning of the seals to maintain their integrity and functionality. We can also provide repair and replacement services to minimize downtime and extend the lifespan of your equipment.

Trust our technical support and services to maximize the efficiency and reliability of your Glass To Metal Seals installations.

Packing and Shipping:

Our Glass To Metal Seals are carefully packaged to ensure maximum protection during transit. Each seal is individually wrapped in anti-static foam and placed in a sturdy, cushioned box to prevent any damage from shocks or vibrations.

For bulk orders, the individually packed seals are securely arranged in reinforced cartons with additional padding to maintain product integrity. All packages are clearly labeled with handling instructions and product details to facilitate smooth shipping and receiving processes.

We partner with reliable shipping carriers to provide timely and safe delivery worldwide. Tracking information is provided for all shipments, and we offer various shipping options to meet your specific needs, including expedited and insured services.

Our commitment to quality packaging and dependable shipping ensures that your Glass To Metal Seals arrive in perfect condition, ready for immediate use in your applications.

FAQ:

Q1: What is the brand and model number of this Glass To Metal Seal?

A1: The Glass To Metal Seal is from the brand SSCore, and the model number is 16-X0950.

Q2: What certifications does the SSCore Glass To Metal Seal have?

A2: This product is certified with IATF16949, ensuring high quality and reliability.

Q3: What is the minimum order quantity and price range for the Glass To Metal Seal?

A3: The minimum order quantity is 5 pieces, with prices ranging from 10 to 40 ￥ per piece.

Q4: How is the product packaged and what is the typical delivery time?

A4: The Glass To Metal Seals are packaged in vacuum packaging to ensure safety and quality. Delivery time is typically between 7 to 14 working days.

Q5: What payment terms are accepted and what is the monthly supply capacity?

A5: Accepted payment terms include L/C, D/A, T/T, and D/P. The supply ability is 50,000 pieces per month.
