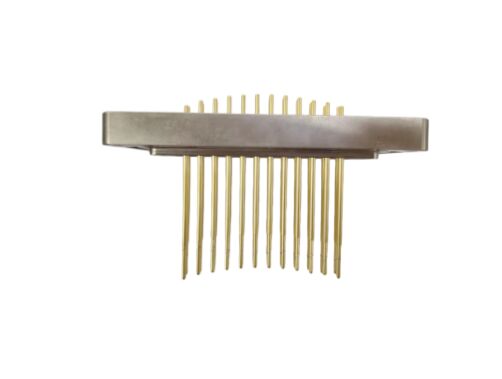

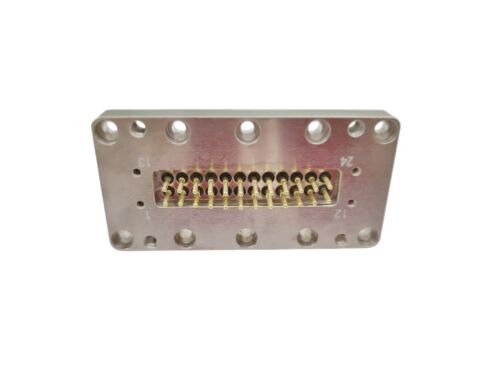

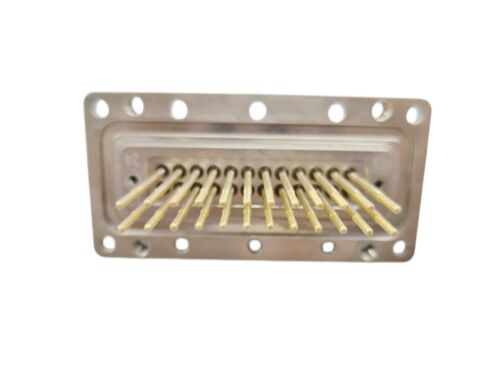

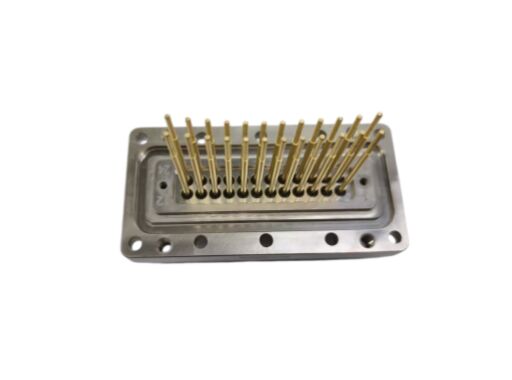

Pin 4J50 Glass Metal Seals Featuring Excellent Resistance To Chemical Corrosion Engineered For And Durable Sealing Solutions

Product Description:

Glass To Metal Seals are an essential component in many industrial and electronic applications, offering a reliable and durable solution for hermetic sealing requirements. These seals are specially designed to provide an airtight and robust bond between glass and metal materials, ensuring long-lasting performance even in demanding environments. Known for their exceptional corrosion resistance, Glass-Metal Seals effectively withstand exposure to various chemicals, making them ideal for use in harsh chemical environments where other sealing methods may fail.

The core advantage of Glass-Metal Seals lies in their unique construction that combines the properties of glass and metal through a precise bonding process. This results in Glass-Metal Bond Seals that create a hermetic seal, preventing the ingress of moisture, gases, and contaminants. Such hermetic sealing is critical in applications such as vacuum systems, sensors, and electronic devices where maintaining an inert or controlled atmosphere is vital for proper functioning and longevity.

One of the standout features of these seals is their excellent corrosion resistance. Crafted with a body made from 304 stainless steel, these seals benefit from the steel’s inherent durability and resistance to rust and chemical attack. The 304 stainless steel body ensures that the seal maintains its structural integrity and performance even when exposed to aggressive chemicals, moisture, and varying environmental conditions. This corrosion resistance significantly extends the service life of the seals and the components they protect.

In addition to corrosion resistance, the operating temperature range of Glass-Metal Seals is notably broad, spanning from -40°C to +150°C. This wide temperature tolerance means that these seals can function effectively in both low-temperature and high-temperature environments without compromising the hermetic integrity. Whether used in cryogenic applications or moderately high-temperature processes, these seals maintain their sealing performance reliably.

The electrical properties of Glass-Metal Seals also make them suitable for various electronic and electrical applications. With an operating voltage range of 140V to 300V, these seals can withstand moderate electrical stresses, ensuring safety and reliability in devices where electrical insulation and hermetic sealing are required simultaneously. The metal-glass bond in these seals provides excellent electrical insulation while maintaining mechanical strength.

Metal-Glass Bond Seals are widely used in industries such as aerospace, automotive, medical devices, and telecommunications. Their ability to create a hermetic seal between dissimilar materials like glass and metal makes them indispensable in the manufacture of vacuum tubes, feedthroughs, sensors, and other critical components. Their robust design ensures that they can endure mechanical stresses, thermal cycling, and chemical exposure without failure.

In summary, Glass To Metal Seals are a high-performance sealing solution that combines the best attributes of glass and metal to provide hermetic sealing with excellent corrosion resistance. Featuring a 304 stainless steel body, they offer durability and resistance to chemical corrosion, making them suitable for challenging environments. Their operating temperature range from -40°C to +150°C and operating voltage capacity of 140V to 300V further enhance their versatility across various applications. Whether referred to as Glass-Metal Seals, Glass-Metal Bond Seals, or Metal-Glass Bond Seals, these products represent a reliable and essential technology for ensuring airtight, chemically resistant, and electrically safe seals in numerous industrial sectors.

Features:

• Product Name: Glass To Metal Seals
• Pin Finish: Gold Plated
• Gold Plating Thickness: 0.1-0.3um
• Operating Voltage Range: 140V-300V
• Corrosion Resistance: Excellent Resistance To Chemical Corrosion
• Body Material: 304 Stainless Steel
• Reliable Glass Seal Connectors for durable electrical connections
• Advanced Metal-to-Glass Bond Seals ensuring airtight and secure sealing
• High-quality Metal Seal Connectors designed for robust performance

Technical Parameters:

Applications:

The SSCore Glass To Metal Seals, model number 41-X1099, are precision-engineered components designed for a variety of demanding applications requiring hermetic sealing and reliable electrical connectivity. Certified with IATF16949, these Glass-Metal Seals guarantee high quality and performance, making them ideal for industries such as aerospace, automotive, telecommunications, medical devices, and electronics manufacturing.

One of the primary application occasions for these Glass-Metal Bond Seals is in high-voltage electrical systems operating between 140V and 300V, where maintaining an airtight and durable seal is critical to prevent contamination and ensure safety. The use of 304 stainless steel for the body provides excellent corrosion resistance and mechanical strength, making the seals suitable for harsh environments including industrial machinery and outdoor equipment.

Glass Seal Connectors like the SSCore 41-X1099 are commonly used in hermetic feedthroughs, vacuum tubes, sensors, and various electronic enclosures that require a reliable barrier between metal and glass components. Their hermetic seal type and precise nickel plating of 2-5 micrometers on the pin (4J50) help maintain signal integrity and prevent environmental ingress, which is essential in medical instrumentation and aerospace avionics.

These seals are packaged in vacuum packaging to preserve their integrity during shipping and storage, ensuring that each unit arrives in optimal condition. With a supply ability of 50,000 pieces per month and a minimum order quantity of just 5 pieces, SSCore offers flexibility for both small-scale prototyping and large-scale production. Delivery times range from 7 to 14 working days, supporting efficient project timelines.

Payment terms including L/C, D/A, T/T, and D/P provide convenience for international customers. The price range of 10 to 40 ￥ per piece reflects the high-quality materials and manufacturing processes used in producing these Glass-Metal Seals. In summary, the SSCore 41-X1099 Glass-Metal Bond Seals are perfectly suited for applications that demand robust hermetic sealing, reliable electrical connections, and superior durability across various industrial and technological scenarios.

Customization:

SSCore offers customized Metal-to-Glass Seals with model number 41-X1099, certified under IATF16949 to ensure top quality and reliability. Our Glass Seal Connectors are designed with a hermetic seal type, featuring a nickel plating thickness of 2-5μm and gold-plated pin finish for excellent conductivity and durability. Utilizing advanced glass-metal sintering processes, these Glass-Metal Bond Seals support operating currents from 10A to 30A, making them ideal for various industrial applications.

We provide flexible customization options with a minimum order quantity of 5 pieces, priced between 10 to 40 ￥ each. All products are securely packaged in vacuum packaging to maintain integrity during transit. With a supply ability of 50,000 pieces per month, SSCore ensures timely delivery within 7 to 14 working days. Payment terms include L/C, D/A, T/T, and D/P to accommodate your convenience.

Choose SSCore for reliable, high-performance Metal-to-Glass Seals and Glass Seal Connectors tailored to your specific requirements, backed by industry-leading process expertise and quality assurance.

Support and Services:

Our Glass To Metal Seals are engineered for exceptional durability and reliability in a variety of industrial applications. These seals provide a hermetic seal between glass and metal components, ensuring airtight and moisture-resistant performance.

For technical support, our team of experts is available to assist with product selection, installation guidance, and troubleshooting to optimize the performance of your Glass To Metal Seals. We offer comprehensive documentation, including datasheets, installation manuals, and maintenance tips to help you achieve the best results.

We also provide custom sealing solutions tailored to your specific requirements, including variations in size, shape, and material compatibility. Our services include product testing, quality assurance, and after-sales support to ensure long-term satisfaction and reliability.

Whether you need assistance with standard products or custom designs, our technical support and service teams are committed to helping you maximize the efficiency and lifespan of your Glass To Metal Seals.
