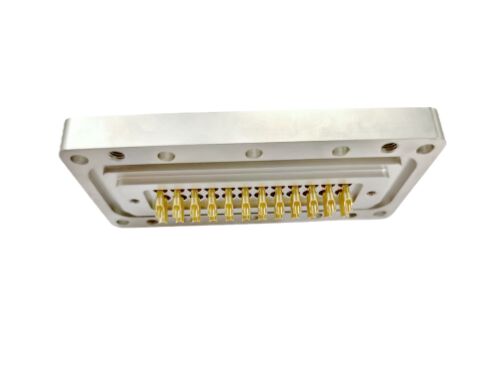

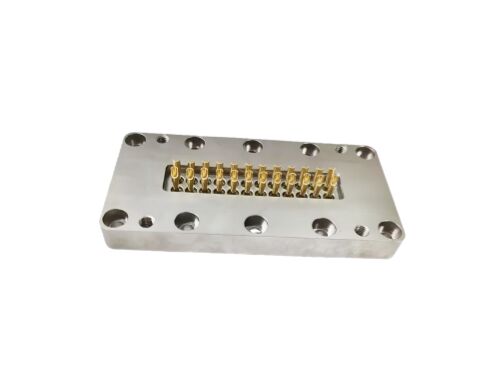

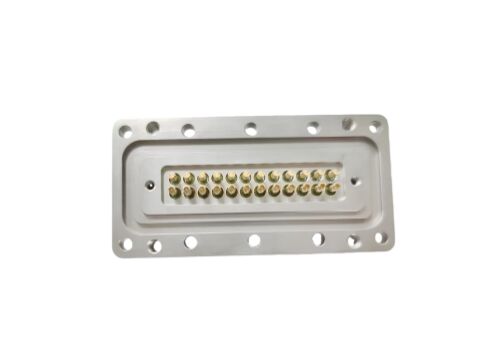

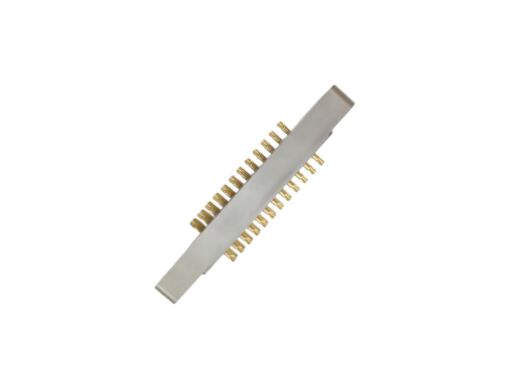

Temperature range minus 40 degrees Celsius to 150 degrees Celsius Glass Metal Seals applying controlled heating and cooling process for stress free sealing

Product Description:

SSCore proudly presents its advanced Glass To Metal Seals, engineered to deliver exceptional performance and reliability in demanding applications. These Glass-to-Metal Bond Seals are meticulously crafted using high-quality glass materials, specifically ST-4B/K, to ensure optimal compatibility and durability. Renowned for their robustness, these seals offer a remarkable combination of airtight integrity and mechanical strength, making them an ideal choice for industries requiring precise and long-lasting sealing solutions.

One of the standout features of SSCore’s Glass-Metal Seals is their outstanding leakage rate. With a leakage rate of ≤10^-8 Mbar L/s (10^-9 Pa.m^3/s) (10^-8 Atm Cc/s), these seals guarantee an exceptionally tight barrier against gas and liquid permeation. This ultra-low leakage rate is critical for applications in vacuum technology, aerospace, electronics, and other high-precision fields where maintaining an uncontaminated and stable environment is paramount. The superior sealing performance ensures enhanced system reliability and longevity, reducing maintenance needs and operational costs.

Designed to operate efficiently across a wide range of electrical conditions, these Metal-to-Glass Bond Seals support a working voltage range from 140V to 300V. This flexibility allows them to be integrated seamlessly into various electrical and electronic assemblies, providing reliable insulation and stable electrical performance even under fluctuating voltage conditions. The precise electrical characteristics of these seals make them suitable for use in vacuum feedthroughs, sensors, and hermetic connectors, where consistent voltage handling is essential.

The core of SSCore’s Glass-to-Metal Bond Seals lies in their choice of glass material—ST-4B/K. This specialized glass type is selected for its thermal expansion compatibility with metals, ensuring a strong and durable bond that resists cracking and mechanical failure over time. The excellent thermal and chemical stability of ST-4B/K glass enhances the overall resilience of the seals, allowing them to withstand harsh environmental conditions without degradation.

Mechanical strength is another critical attribute of SSCore’s Glass-Metal Seals. Featuring high tensile strength, these seals provide robust mechanical integrity that can endure significant stress and strain during assembly and operation. This high mechanical strength ensures that the seals maintain their structural integrity under mechanical loads, thermal cycling, and vibration, making them highly reliable in demanding industrial environments. Whether used in vacuum systems, medical devices, or instrumentation, these seals offer dependable performance throughout their service life.

Manufactured with precision and care, SSCore’s Metal-to-Glass Bond Seals are the result of advanced engineering and stringent quality control processes. The company’s commitment to excellence guarantees that each seal meets exacting standards for leak-tightness, electrical properties, and mechanical durability. Customers benefit from a product that not only meets but often exceeds industry expectations, providing peace of mind and superior operational performance.

In summary, SSCore’s Glass To Metal Seals stand out as a premier choice for applications requiring reliable Glass-to-Metal Bond Seals with ultra-low leakage rates, high working voltage capabilities, and exceptional mechanical strength. The use of ST-4B/K glass material ensures a durable and thermally compatible bond, while the high tensile strength of the seals guarantees mechanical resilience. Ideal for a wide range of industrial and scientific applications, these Glass-Metal Seals deliver unmatched performance and longevity, reinforcing SSCore’s reputation as a leading manufacturer in the sealing technology market.

Features:

• Product Name: Glass-to-Metal Seals
• Leak Test: 3.0MPa (N2), 30 minutes, no leak
• Temperature Range: -40°C to 150°C
• Mechanical Strength: High tensile strength for durable performance
• Electrical Insulation: High electrical insulation properties
• Certifications: RoHS and REACH compliant
• Suitable for use in Metal Seal Connectors and Metal-to-Glass Bond Seals applications

Technical Parameters:

Applications:

The SSCore Glass To Metal Seals, model number 41-X1098, are precision-engineered components designed for high-performance applications requiring reliable and durable sealing solutions. Certified under IATF16949, these Glass-Metal Seals are manufactured using premium ST-4B/K glass materials to ensure exceptional mechanical strength and high tensile durability. With a rated current range of 10-30A, these seals are ideal for electrical connectors that demand both excellent insulation and robust conductivity.

These Glass Seal Connectors are widely applicable in various industrial scenarios where airtight and leak-proof connections are critical. Their vacuum packaging ensures that each piece arrives in pristine condition, maintaining the integrity of the seal and guaranteeing consistent performance. The leak test standard of 3.0MPa(N2) for 30 minutes with no leakage confirms their superior sealing capability, making them suitable for use in high-pressure environments and sensitive electronic systems.

In automotive manufacturing, the SSCore Glass To Metal Seals are utilized to enhance the reliability of electrical connectors exposed to extreme temperature fluctuations and mechanical stresses. Their high tensile strength makes them resistant to vibrations and mechanical shocks, which is essential for vehicle electrical systems. Additionally, their application extends to aerospace and defense industries, where they provide dependable sealing solutions for avionics and communication equipment.

Industrial automation and robotics also benefit from these Glass-Metal Seals, as they ensure stable electrical connections in complex machinery that operates continuously under demanding conditions. The seals’ ability to maintain airtight connections prevents contamination and moisture ingress, thus extending the lifespan of the components they protect.

With a supply ability of 50,000 pieces per month and a minimum order quantity of just 5 pieces, SSCore offers flexibility for both large-scale manufacturers and smaller enterprises. Pricing ranges from 10 to 40 ￥ per piece, making it a cost-effective choice without compromising quality. Delivery times range from 7 to 14 working days, and payment terms include L/C, D/A, T/T, and D/P, facilitating smooth transactions worldwide.

Overall, SSCore’s Glass-Metal Seals are the preferred solution for industries requiring durable, high-performance Glass Seal Connectors that combine advanced materials, rigorous quality control, and efficient supply chain management. Whether for automotive, aerospace, or industrial applications, these seals provide unmatched reliability and performance.

Customization:

SSCore offers customized Glass To Metal Seals, model number 41-X1098, designed to meet your specific requirements with exceptional quality and reliability. Our Metal Seal Connectors are manufactured using premium 304 Stainless Steel for the body and 4J50 ALLOY pins, ensuring durability and excellent conductivity.

Featuring Glass Seal Connectors with ST-4B/K glass materials, these Metal-to-Glass Bond Seals provide superior hermetic sealing and thermal stability, suitable for temperature ranges from -40°C to 150°C. Certified under IATF16949, SSCore guarantees high standards in every product.

We support customization with a minimum order quantity of 5 pieces, priced between 10 to 40 ￥. Each unit is carefully packed in vacuum packaging to maintain quality during transit. Our supply ability reaches up to 50,000 pieces per month, with delivery times ranging from 7 to 14 work days.

Flexible payment terms including L/C, D/A, T/T, and D/P are available to facilitate smooth transactions. Trust SSCore, the manufacturer specializing in Metal Seal Connectors and Glass Seal Connectors, to provide tailored solutions that meet your industrial needs.

Support and Services:

Our Glass To Metal Seals are engineered for durability and reliability in a variety of applications. For technical support, we provide comprehensive assistance including product selection guidance, installation instructions, and troubleshooting tips to ensure optimal performance.

We offer a range of services such as custom seal design, quality assurance testing, and after-sales support to meet your specific requirements. Our team of experts is dedicated to helping you achieve the best results with our Glass To Metal Seals.

Whether you need help with standard products or customized solutions, our technical support services are available to assist you throughout the product lifecycle.

Packing and Shipping:

Our Glass To Metal Seals are carefully packaged to ensure maximum protection during transit. Each seal is individually wrapped in anti-static foam and placed in a sturdy, cushioned box to prevent any damage. For bulk orders, seals are securely arranged in custom compartments within the packaging to avoid movement and impact.

We use high-quality, durable outer cartons labeled with handling instructions to facilitate safe shipping. Our shipping methods include reliable carriers with tracking options to guarantee timely delivery. Fragile handling is requested to maintain the integrity of the Glass To Metal Seals throughout the shipping process.

FAQ:

Q1: What is the brand and model number of the Glass To Metal Seals?

A1: The Glass To Metal Seals are manufactured by SSCore, and the model number is 41-X1098.

Q2: Are the Glass To Metal Seals certified?

A2: Yes, these seals are certified under the IATF16949 standard, ensuring high quality and reliability.

Q3: What is the minimum order quantity for this product?

A3: The minimum order quantity for the Glass To Metal Seals is 5 pieces.

Q4: How are the products packaged and what are the delivery times?

A4: The Glass To Metal Seals are packaged in vacuum packaging to ensure product integrity, and the delivery time ranges from 7 to 14 working days.

Q5: What payment terms are accepted for purchasing these seals?

A5: The accepted payment terms include L/C, D/A, T/T, and D/P.

Q6: What is the supply capacity for these Glass To Metal Seals?

A6: The supply ability is up to 50,000 pieces per month.

Q7: What is the price range for the Glass To Metal Seals?

A7: The price range for the seals is between 10 to 40 Chinese Yuan (￥) depending on the order quantity and specifications.
