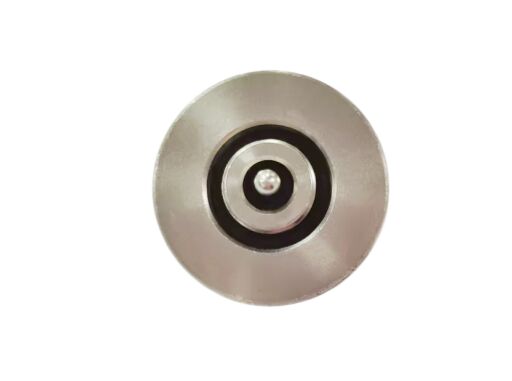

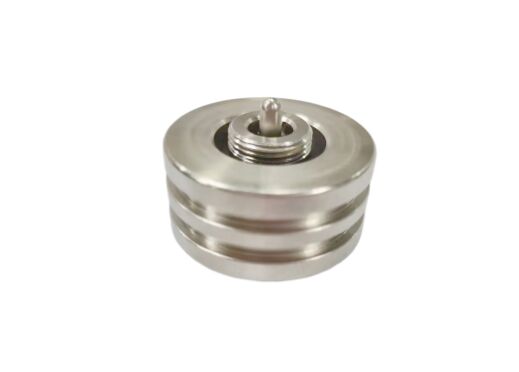

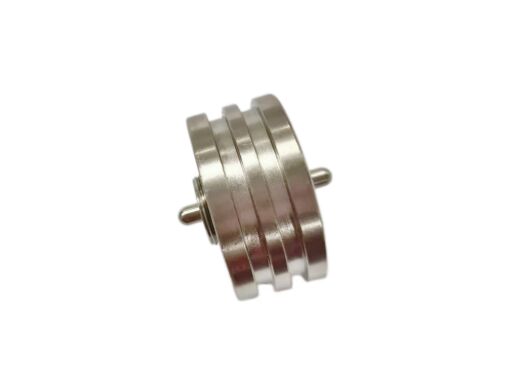

C45 Steel Body Material Glass Metal Seals Capable of Burst Test 140MPa at 175°C Perfect for Demanding Industrial Conditions

Product Description:

Glass to metal seals are precision-engineered components designed to provide hermetic sealing between metal and glass materials. These seals are critical in various high-reliability applications, including electronics, vacuum systems, medical devices, and aerospace industries. The primary function of glass-metal seals is to maintain a durable and leak-proof bond between the glass and metal parts, ensuring optimal performance under demanding conditions. Our Glass-Metal Seals are manufactured using advanced techniques to guarantee exceptional quality and reliability.

One of the key features of our Glass to Metal Seals is their ability to operate effectively within a wide working temperature range of -30°C to +175°C. This makes them suitable for applications exposed to varying thermal environments, where maintaining the integrity of the seal is crucial. The seals are engineered with a carefully matched coefficient of thermal expansion between the glass and metal components, minimizing stress and preventing cracking or failure during thermal cycling. This precise matching is essential for achieving long-term durability and performance of Metal-Glass Bond Seals.

The body finish of our glass to metal seals is nickel plated, providing enhanced corrosion resistance and improved mechanical strength. The nickel plating thickness ranges from 2 to 4 micrometers, ensuring a consistent and robust protective layer. Nickel plating not only improves the aesthetic appeal of the seals but also enhances their resistance to oxidation and environmental degradation. This finish is particularly beneficial for applications in harsh or corrosive environments, extending the lifespan of the Metal-to-Glass Bond Seals.

Our manufacturing process for these seals utilizes the Single Pin Feedthrough technique, a specialized method designed to create reliable, hermetic feedthroughs where a single metal pin is sealed within a glass insulator. This process involves precise control over the heating and cooling cycles to achieve the optimal bond between metal and glass. The Single Pin Feedthrough process ensures that the seals maintain excellent electrical insulation properties while withstanding mechanical stresses, making them ideal for electronic components and sensors requiring metal-to-glass connections.

Glass-Metal Seals produced using the Single Pin Feedthrough method are known for their outstanding hermeticity and mechanical integrity. The process allows for customization to meet specific design requirements, such as varying pin diameters and glass types, to suit different application needs. With the coefficient of thermal expansion carefully matched between the glass and metal, these Metal-Glass Bond Seals exhibit minimal internal stresses, preventing seal degradation over time.

In addition to their thermal and mechanical advantages, our Glass to Metal Seals demonstrate excellent electrical insulation properties, which are critical in electronic and electrical applications. The hermetic seal formed between the metal pin and the glass insulator prevents moisture ingress and contamination, safeguarding sensitive components from environmental damage. This reliable sealing solution is widely used in vacuum tubes, sensors, connectors, and other devices where maintaining a controlled atmosphere is essential.

Choosing our Glass to Metal Seals ensures that you receive a product that combines superior material properties, precise manufacturing, and exceptional performance. The nickel-plated body finish enhances durability, while the matched thermal expansion coefficients guarantee stability across a broad temperature range. The use of the Single Pin Feedthrough process further assures that each seal meets stringent quality standards for hermeticity and mechanical strength.

Overall, our Metal-to-Glass Bond Seals are engineered to provide reliable, long-lasting performance in challenging environments. Whether you require seals for industrial electronics, medical devices, or aerospace applications, our Glass-Metal Seals offer the optimal solution. The combination of advanced materials, precise engineering, and proven manufacturing processes results in metal-glass seals that consistently meet and exceed industry standards.

In summary, our Glass to Metal Seals feature a working temperature range from -30°C to +175°C, a nickel plating thickness of 2-4 micrometers, and a nickel-plated body finish. The coefficient of thermal expansion is expertly matched between the glass and metal components to minimize stress and maximize durability. Manufactured using the Single Pin Feedthrough process, these seals provide hermetic, mechanically robust, and electrically insulating connections. These Metal-Glass Bond Seals are ideal for a wide array of applications requiring dependable metal-to-glass bonding solutions.

Features:

• Product Name: Glass To Metal Seals
• Body Finish: Nickel Plated
• Burst Test: 140MPa @ 175°C
• Color: Silver
• Coefficient of Thermal Expansion: Matched Between Glass and Metal
• Process Name: Single Pin Feedthrough
• Reliable Metal-Glass Bond Seals ensuring durability and strength
• High-quality Glass-Metal Seals for excellent hermetic sealing
• Advanced Glass-to-Metal Seals technology for superior performance

Technical Parameters:

Applications:

The SSCore Glass To Metal Seals, model number 16-X0611, are precision-engineered components designed for a wide range of industrial applications requiring reliable and durable metal-glass interfaces. These Metal-Glass Seals are manufactured with high-quality glass insulation material and feature a nickel plating thickness of 2-4μm, ensuring excellent corrosion resistance and mechanical strength. Certified under IATF16949, the product guarantees high standards of quality and performance, making it ideal for critical applications.

These Glass-Metal Bond Seals are perfectly suited for environments where stable electrical insulation and hermetic sealing are essential. With an insulator resistance of 500MΩ or greater at 500VDC and a working temperature range from -30°C to +175°C, the 16-X0611 model can perform reliably in harsh conditions, including automotive, aerospace, electronics, and vacuum systems. The single pin feedthrough process used in manufacturing ensures precise and consistent sealing, suitable for integration into assemblies requiring robust and leak-proof feedthroughs.

In automotive applications, these Metal-to-Glass Seals are commonly utilized in sensor housings, connectors, and electronic control units where temperature fluctuations and environmental exposure demand durable and stable seals. The vacuum packaging ensures that each unit arrives in pristine condition, free from contamination, and ready for immediate use. The product's supply ability of up to 50,000 pieces per month and a minimum order quantity of just 5 pieces allow flexibility for both small-scale prototyping and large production runs.

The SSCore Glass To Metal Seals are also ideal for medical devices, instrumentation, and semiconductor manufacturing equipment, where hermetic sealing prevents contamination and maintains device integrity. Payment terms including L/C, D/A, T/T, and D/P provide convenient options for diverse customer needs, while delivery times of 7 to 14 working days ensure timely fulfillment of orders.

Overall, these Glass-Metal Bond Seals from SSCore combine advanced materials and precision manufacturing to offer dependable Metal-Glass Seals for a variety of challenging applications, ensuring long-lasting performance and superior electrical insulation in demanding industrial scenarios.

Customization:

SSCore offers premium Glass-to-Metal Bond Seals with model number 16-X0611, certified under IATF16949 to ensure top quality and reliability. Our Glass To Metal Seals feature a hermetic connector type and a silver color finish, providing excellent corrosion resistance and durability.

Designed with a coefficient of thermal expansion perfectly matched between glass and metal, these Metal-Glass Bond Seals maintain structural integrity under varying temperatures. They boast an insulator resistance of ≥500MΩ @500VDC and have passed rigorous burst tests at 140MPa @175°C, guaranteeing outstanding performance in demanding environments.

We supply these Glass-to-Metal Bond Seals with a minimum order quantity of 5 pieces, priced between 10 to 40 ￥ each. All products are carefully packaged in vacuum packaging to ensure protection during transit. SSCore can deliver orders within 7 to 14 work days, with a monthly supply ability of 50,000 pieces.

Flexible payment terms including L/C, D/A, T/T, and D/P are accepted to facilitate smooth transactions. Trust SSCore for your Metal-Glass Bond Seals needs, combining precision engineering with reliable supply and excellent service.

Support and Services:

Our Glass To Metal Seals product comes with comprehensive technical support and services designed to ensure optimal performance and reliability. We provide detailed product documentation, including specifications, installation guidelines, and maintenance instructions to assist you throughout the product lifecycle.

Our experienced technical support team is available to offer expert advice on product selection, application techniques, and troubleshooting. We also provide customized solutions to meet specific project requirements, ensuring the Glass To Metal Seals perform effectively in your unique application environment.

Additionally, we offer quality assurance services including testing and inspection to verify product integrity and compliance with industry standards. Our commitment to customer satisfaction includes ongoing support to address any issues promptly and efficiently.

For large-scale or specialized orders, we can provide tailored engineering support and consultation to optimize the integration of Glass To Metal Seals into your systems.

Packing and Shipping:

Our Glass To Metal Seals are carefully packaged to ensure maximum protection during transit. Each seal is individually cushioned with anti-static foam and securely placed in a custom-fitted box to prevent movement and damage.

The packaging materials are selected to provide shock absorption and moisture resistance, preserving the integrity of the seals until they reach your facility.

For shipping, we use reliable carriers with tracking options to guarantee timely and safe delivery. Depending on your location and order size, we offer various shipping methods including standard ground, expedited, and overnight services.

All shipments include detailed documentation and handling instructions to ensure proper receipt and storage of the Glass To Metal Seals.

If you require special packaging or shipping arrangements, please contact our customer service team for customized solutions tailored to your needs.

FAQ:

Q1: What is the brand and model number of this Glass To Metal Seals product?

A1: The product is branded SSCore and the model number is 16-X0611.

Q2: What certifications does the SSCore Glass To Metal Seals have?

A2: This product is certified with IATF16949, ensuring high quality standards.

Q3: What is the minimum order quantity and price range for the Glass To Metal Seals?

A3: The minimum order quantity is 5 pieces, with prices ranging from 10 to 40 ￥ per piece.

Q4: How are the Glass To Metal Seals packaged and what is the typical delivery time?

A4: The seals are packaged in a vacuum package to ensure safety and quality, and delivery typically takes 7 to 14 work days.

Q5: What payment terms are accepted for purchasing the SSCore Glass To Metal Seals?

A5: Accepted payment terms include L/C (Letter of Credit), D/A (Documents Against Acceptance), T/T (Telegraphic Transfer), and D/P (Documents Against Payment).

Q6: What is the supply ability for this product?

A6: SSCore can supply up to 50,000 pieces of Glass To Metal Seals per month.
