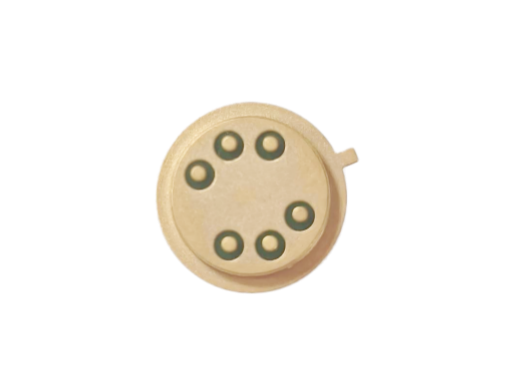

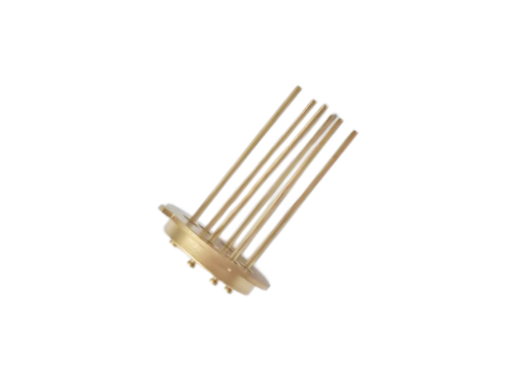

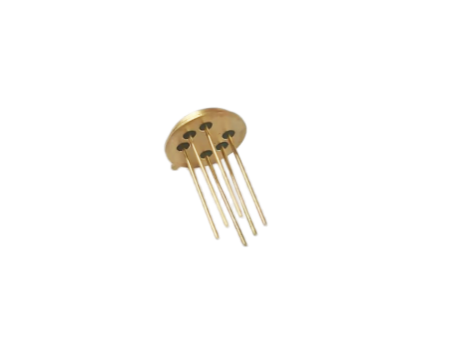

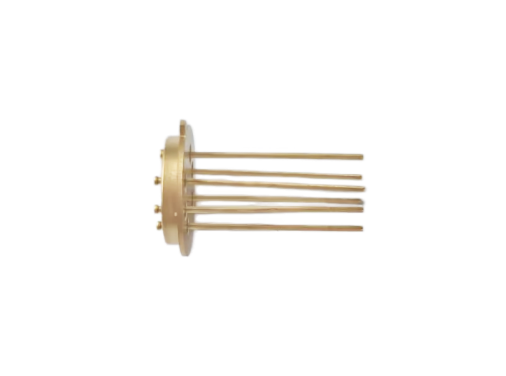

Thermal Cycle Minus 40 Celsius Plus 107 Celsius Glass Metal Seals Featuring Insulation Resistance At Least 100 Megaohms Designed for Industrial

Product Description:

Our Glass To Metal Seals are precision-engineered components designed to provide exceptional electrical insulation and mechanical strength in demanding applications. These seals are widely recognized for their reliability and durability, making them an essential choice in various industrial and electronic devices. The product features a robust construction with a pin number of 6, ensuring multiple connection points for enhanced functionality and versatility.

One of the standout features of these Glass-to-Metal Seals is their impressive thermal cycle range, operating efficiently between -40°C to +107°C. This wide temperature tolerance makes them ideal for use in environments subjected to extreme temperature fluctuations, guaranteeing consistent performance and long-term stability. Whether used in aerospace, automotive, or industrial electronics, these seals maintain their structural integrity and electrical insulation capabilities throughout rigorous thermal cycling.

The rated current capacity of 30A further highlights the product’s suitability for high-power applications. This rating ensures that the Glass-Metal Seals can handle substantial electrical loads without compromising safety or functionality. Engineers and designers can confidently incorporate these seals into their systems, knowing they will support reliable current flow while preventing leakage and ensuring optimal insulation.

Both the pins and the body of the seals are made from high-quality 4J29 alloy, a material known for its excellent thermal expansion compatibility with glass. This material choice is critical in forming a stable and durable Glass-to-Metal Bond Seal, as it minimizes stress and potential failures caused by differential expansion between metal and glass components. The use of 4J29 in both the pin and body ensures a uniform expansion rate, enhancing the overall mechanical strength and longevity of the seal.

Glass-to-Metal Bond Seals like these are essential in various applications requiring hermetic sealing and electrical feedthrough capabilities. The hermetic seal created between the glass and metal components prevents the ingress of moisture, gases, and contaminants, protecting sensitive electronic circuits and components housed within sealed enclosures. This feature is particularly important in medical devices, vacuum tubes, sensors, and other precision instruments where maintaining a controlled internal environment is paramount.

The design of our Glass-to-Metal Seals ensures easy integration into existing systems. With six pins, the seals provide multiple electrical pathways while maintaining a compact footprint. This multi-pin configuration is advantageous for complex circuitry that demands multiple connections through a single sealing interface, reducing assembly complexity and improving overall system reliability.

In summary, our Glass To Metal Seals combine superior material selection, robust design, and excellent thermal and electrical performance to deliver a high-quality sealing solution. Their ability to withstand thermal cycling from -40°C to +107°C, support a rated current of 30A, and utilize 4J29 alloy for both pins and body makes them an outstanding choice for demanding applications. Whether referred to as Glass-Metal Seals, Glass-to-Metal Seals, or Glass-to-Metal Bond Seals, these products offer unparalleled reliability, hermetic sealing, and electrical insulation for a wide range of industrial and electronic uses.

Features:

• Product Name: Glass To Metal Seals
• Hermetic Seal Type: Glass-to-Metal
• Leak Test: Helium Test with leakage shall be max 1x10 ^-8 STD CC/SEC
• Thermal Cycle Range: -40°C to +107°C
• Insulation Resistance: 500±25 VDC, ≥100MΩ
• Body Material: 4J29
• High reliability Glass Seal Connectors ensuring superior hermeticity
• Advanced Glass-to-Metal Bond Seals for enhanced durability and performance
• Robust Glass-Metal Bond Seals designed for extreme thermal cycles and leak tightness

Technical Parameters:

Applications:

The SSCore Glass To Metal Seals, model number 41-X1236, are precision-engineered components designed for high-reliability applications requiring robust Metal-to-Glass Seals. Certified under IATF16949, these seals ensure exceptional quality and performance, making them ideal for industries where hermetic sealing is critical. With a rated current of 30A and insulation resistance of 500±25 VDC, ≥100MΩ, these Glass-Metal Seals offer excellent electrical insulation and durability.

These Metal Seal Connectors are widely used in environments that demand airtight and moisture-proof sealing between metal and glass parts. Typical application occasions include aerospace systems, automotive electronic modules, medical devices, and industrial sensors. The hermetic seal type, Glass-to-Metal, guarantees an unyielding barrier against environmental contaminants, ensuring long-lasting performance in harsh conditions.

In automotive manufacturing, SSCore’s Glass To Metal Seals are perfect for sensor housings and electronic connectors that require reliable Metal-to-Glass Seals to withstand vibrations, temperature fluctuations, and exposure to chemicals. In aerospace, these Glass-Metal Seals provide crucial protection for avionics and instrumentation, where reliability and precision are non-negotiable.

Medical devices, such as implantable electronics and diagnostic equipment, benefit from the hermetic sealing properties of these Metal Seal Connectors, preventing fluid ingress and maintaining device integrity. Industrial automation and instrumentation also rely on the SSCore Glass To Metal Seals to protect sensitive components from dust, moisture, and mechanical stress.

SSCore offers these premium Glass-Metal Seals in a gold color body made of 4J29 material, vacuum packaged to preserve product integrity during shipping. With a supply ability of 50,000 pieces per month, a minimum order quantity of 5 pieces, and pricing ranging from 10 to 40 ￥, they provide both scalability and affordability. The delivery time is typically 7 to 14 workdays, with flexible payment terms including L/C, D/A, T/T, and D/P, making it convenient for various procurement processes.

Whether for high-performance electronics, critical sealing applications, or innovative product designs, the SSCore Glass To Metal Seals 41-X1236 are a reliable choice, combining advanced engineering with stringent quality standards to meet diverse industrial needs.

Customization:

SSCore offers customized Glass To Metal Seals under model number 41-X1236, certified with IATF16949 to ensure the highest quality standards. Our Glass-Metal Seals are designed with a hermetic glass-to-metal seal type, providing excellent durability and reliability for various applications.

We support a minimum order quantity of 5 pieces, with prices ranging from 10 to 40 ￥ per unit. Each product is carefully packaged in a vacuum package to maintain integrity during shipment. Our supply ability is 50,000 pieces per month, ensuring timely delivery within 7 to 14 work days.

The Glass-Metal Seals are rated for a current of 30A and undergo rigorous helium leak testing, with leakage not exceeding 1x10-8 STD CC/SEC. They also withstand thermal cycles from -40°C to +107°C, making them suitable for demanding environments.

Payment terms available include L/C, D/A, T/T, and D/P, providing flexible options for our customers. Manufactured by SSCore, our Metal-Glass Seals combine precision engineering and superior materials to meet your specific needs in product customization services.

Support and Services:

Our Glass To Metal Seals product is designed to provide reliable and durable sealing solutions for a variety of applications, ensuring high performance under extreme conditions. For technical support, we offer comprehensive assistance including product selection guidance, installation instructions, and troubleshooting tips to help you achieve optimal results.

We provide detailed documentation and datasheets to assist with your design and engineering needs. Our experienced technical team is available to answer your questions and provide customized solutions tailored to your specific requirements.

In addition to support, we offer a range of services including custom manufacturing, quality testing, and post-sale maintenance to ensure the longevity and effectiveness of your Glass To Metal Seals. Our commitment is to deliver exceptional service and support throughout the product lifecycle.

Packing and Shipping:

Our Glass To Metal Seals are carefully packaged to ensure maximum protection during transit. Each seal is individually wrapped in anti-static foam and placed in a sturdy, cushioned box to prevent damage from shocks and vibrations. For bulk orders, seals are separated by dividers and securely packed in reinforced cartons to maintain integrity.

We offer reliable shipping options with tracking and insurance to guarantee timely and safe delivery. Our logistics partners are experienced in handling delicate components, ensuring that your Glass To Metal Seals arrive in perfect condition, ready for immediate use.

FAQ:

Q1: What is the brand and model number of this Glass To Metal Seals product?

A1: The product is branded as SSCore, and the model number is 41-X1236.

Q2: What certifications does the Glass To Metal Seals have?

A2: This product is certified with IATF16949, ensuring high quality and industry standards compliance.

Q3: What is the minimum order quantity and price range for this product?

A3: The minimum order quantity is 5 pieces, with prices ranging from 10 to 40 ￥ per piece.

Q4: How is the product packaged and what is the typical delivery time?

A4: The Glass To Metal Seals are vacuum packaged to ensure safety during transit, and the delivery time is typically 7 to 14 working days.

Q5: What payment methods are accepted for purchasing this product?

A5: Accepted payment terms include L/C (Letter of Credit), D/A (Documents Against Acceptance), T/T (Telegraphic Transfer), and D/P (Documents Against Payment).
