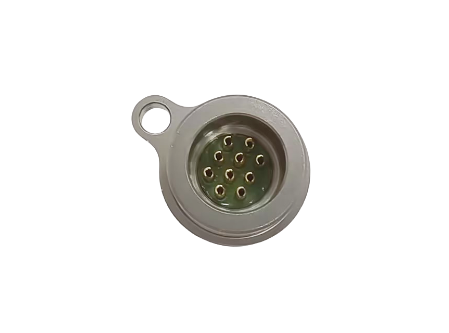

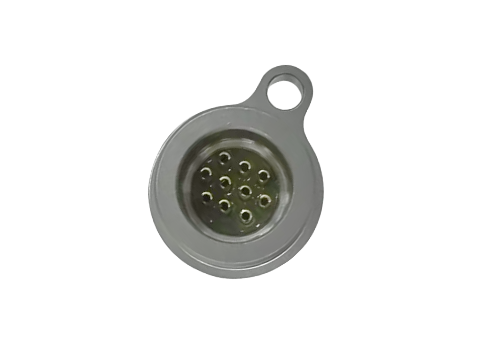

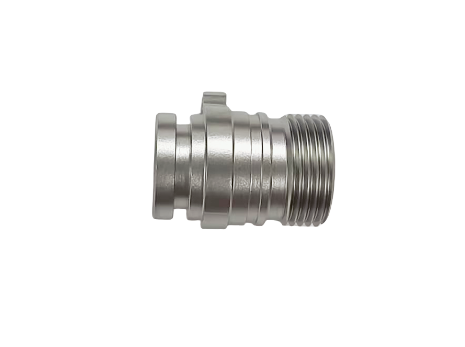

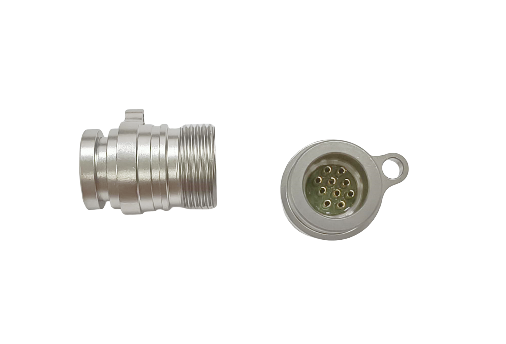

Glass Coring 9013 Glass Metal Seals Incorporating Nickel Plating 2-5um Suitable for Sensors Valves and Electronic Devices

Product Description:

The Glass To Metal Seals product is a high-quality, precision-engineered component designed to provide reliable and durable electrical insulation and mechanical strength in various applications. Specifically crafted with advanced Metal-to-Glass Bond Seals technology, this product ensures exceptional performance and longevity, making it an ideal choice for industries that demand robust and stable electrical connections under challenging conditions.

One of the standout features of this Glass To Metal Seals product is its rated voltage of 600V, which guarantees safe and efficient operation in medium-voltage environments. This makes it suitable for use in electrical assemblies, instrumentation, and industrial equipment where reliable insulation is critical. The 600V rating assures users that the product can withstand significant electrical stress without compromising its sealing integrity or electrical insulation properties.

The mounting style of this product is threaded, which facilitates easy and secure installation. Threaded mounting allows for a tight and stable fit, minimizing the risk of loosening due to vibrations or mechanical shocks. This mounting style is widely preferred in applications where maintenance and replacement need to be straightforward, ensuring minimal downtime and hassle-free servicing.

Constructed with a robust body made from SUS316 stainless steel, the Glass To Metal Seals product offers excellent corrosion resistance, mechanical strength, and durability. SUS316 stainless steel is known for its superior resistance to harsh environmental conditions, including exposure to chemicals, moisture, and extreme temperatures. This makes the product highly reliable for use in demanding industrial settings, marine environments, and other applications where corrosion resistance is paramount.

Enhancing the product’s durability and conductivity is its nickel plating, which ranges between 2 to 5 micrometers in thickness. The nickel plating provides an additional protective layer over the stainless steel body, improving corrosion resistance and ensuring a stable electrical interface. This plating thickness is carefully controlled to optimize performance without adding unnecessary bulk or compromising the product’s mechanical properties.

The Glass To Metal Seals product features 10 pins, designed to offer multiple connection points for electrical signals or power transmission. The 10-pin configuration provides versatility and flexibility in wiring arrangements, making it suitable for complex electrical systems that require multiple connections through a single sealed interface. Each pin is securely sealed within the glass-to-metal bond, ensuring excellent electrical insulation and preventing moisture or contaminants from entering the connection area.

The core technology behind this product is the Metal-to-Glass Bond Seals, which create a hermetic seal between the metal pins and the surrounding glass. This seal is crucial for maintaining the integrity of the electrical connection by preventing the ingress of moisture, gases, or other contaminants that could degrade performance or cause failure. Glass-Metal Bond Seals are renowned for their ability to combine the mechanical strength of metal with the insulating properties of glass, resulting in a product that is both durable and electrically reliable.

In addition to the Metal-to-Glass Bond Seals, this product also exemplifies the quality and precision associated with Glass-Metal Seals technology. These seals are manufactured under stringent quality control processes to ensure consistent performance across all units. The result is a product that engineers and designers can trust to meet or exceed industry standards in insulation, mechanical robustness, and longevity.

Overall, the Glass To Metal Seals product is an excellent solution for applications requiring robust electrical insulation coupled with mechanical strength and environmental resilience. Whether used in industrial machinery, aerospace, medical devices, or other high-reliability fields, the combination of a 600V rated voltage, threaded mounting style, nickel plating, SUS316 stainless steel body, and 10-pin configuration makes this product a reliable and versatile choice. Its advanced Metal-to-Glass Bond Seals and Glass-Metal Bond Seals technologies ensure that it delivers superior performance, longevity, and safety in any demanding environment.

Features:

• Product Name: Glass To Metal Seals
• Pin Number: 10
• Pin Material: Alloy 52
• Rated Voltage: 600V
• Compliance Standards: RoHS, REACH
• Application: Electrical Feedthroughs, Vacuum Tubes, Sensors
• Features reliable Glass-Metal Bond Seals for enhanced durability
• Provides excellent Metal-Glass Bond Seals ensuring airtight and robust connections
• Designed with Metal-to-Glass Bond Seals technology for superior electrical insulation

Technical Parameters:

Applications:

SSCore Glass To Metal Seals are precision-engineered components designed to provide reliable and durable connections in various high-demand applications. These Metal Seal Connectors are ideal for use in industries requiring robust electrical insulation and mechanical strength, such as aerospace, automotive, medical devices, and industrial machinery. The combination of SUS316 stainless steel body, coring 9013 glass, and a nickel plating thickness of 2-5um ensures excellent corrosion resistance and long-lasting performance under harsh environments.

Certified to IATF16949 standards and compliant with RoHS and REACH regulations, SSCore Glass-Metal Seals guarantee quality and environmental safety. With a voltage rating ranging from 12V to 540V, these Glass-Metal Bond Seals are perfect for applications where precise electrical insulation and vacuum-tight sealing are critical. Their vacuum packaging ensures product integrity during transportation and storage, maintaining their superior sealing capabilities.

Ideal application occasions for SSCore Glass To Metal Seals include high-reliability connectors in automotive electronics, hermetic feedthroughs in medical instruments, and vacuum-tight seals in aerospace components. They are also extensively used in sensors, semiconductor manufacturing equipment, and power supply units where stable electrical performance and resistance to thermal cycling and mechanical stress are required.

With a supply ability of 50,000 pieces per month and a minimum order quantity of 5 pieces, SSCore provides flexible purchasing options to accommodate both small-scale prototyping and large-scale production runs. The price range of 10 to 40 ￥ per piece, combined with multiple payment terms such as L/C, D/A, T/T, and D/P, makes these Glass-Metal Bond Seals accessible for various business needs.

Delivery times between 7 to 14 workdays ensure prompt fulfillment, supporting time-sensitive projects. Whether used in custom connector assemblies or as critical components in complex systems, SSCore Glass-Metal Seals deliver consistent performance, making them an excellent choice for engineers and manufacturers seeking high-quality Metal Seal Connectors with proven reliability.

Customization:

SSCore offers customized Metal-to-Glass Bond Seals and Glass-to-Metal Bond Seals tailored to meet your specific requirements. Our Glass-to-Metal Bond Seals are manufactured using high-quality Corning 9013 glass and Alloy 52 pin material, with a precise nickel plating thickness of 2-5um to ensure optimal performance and durability.

Certified under IATF16949, our Metal-to-Glass Bond Seals comply with RoHS and REACH standards, guaranteeing environmentally friendly and reliable products. We support a minimum order quantity of just 5 pieces, with prices ranging from 10 to 40 ￥ depending on specifications.

Each product is carefully vacuum packaged to maintain quality during shipping, with a delivery time of 7 to 14 work days. Our supply ability is 50,000 pieces per month, ensuring timely fulfillment of large and small orders alike.

Payment terms are flexible, including L/C, D/A, T/T, and D/P options to accommodate your needs. Our Metal-to-Glass Bond Seals and Glass-to-Metal Bond Seals are designed to operate reliably within an operating temperature range of -196°C to 450°C, suitable for a wide variety of industrial applications.

Choose SSCore for your product customization needs and benefit from expert craftsmanship, stringent quality control, and dedicated customer service.

Support and Services:

Our Glass To Metal Seals product is designed to provide reliable and durable sealing solutions for various industrial applications. For technical support, we offer comprehensive assistance including installation guidance, troubleshooting, and maintenance tips to ensure optimal performance of the seals.

Our team of experts is available to help with product selection, compatibility inquiries, and customization options to meet specific application requirements. We also provide detailed technical documentation and datasheets to support your engineering and quality assurance processes.

In addition to support, we offer a range of services such as product testing, quality inspections, and failure analysis to help maintain the integrity and longevity of your Glass To Metal Seals. Our commitment is to deliver high-quality solutions and responsive service to support your operational needs.

Packing and Shipping:

Our Glass To Metal Seals are carefully packaged to ensure maximum protection during transit. Each seal is individually wrapped in anti-static foam and placed in a sturdy, cushioned box to prevent any movement or damage.

For larger orders, multiple units are securely packed in reinforced cartons with additional padding to safeguard against impact and vibration.

We use reliable shipping carriers and provide tracking information for every shipment to guarantee timely and safe delivery to your destination.

Special handling instructions can be accommodated upon request to meet your specific requirements.

FAQ:

Q1: What is the minimum order quantity for SSCore Glass To Metal Seals?

A1: The minimum order quantity for SSCore Glass To Metal Seals is 5 pieces.

Q2: What certifications does SSCore Glass To Metal Seals have?

A2: SSCore Glass To Metal Seals are certified with IATF16949.

Q3: What is the price range for the Glass To Metal Seals from SSCore?

A3: The price range for SSCore Glass To Metal Seals is between 10 to 40 ￥ per piece.

Q4: How are the SSCore Glass To Metal Seals packaged?

A4: The Glass To Metal Seals are packaged using a vacuum package to ensure product safety and quality.

Q5: What is the typical delivery time for orders of SSCore Glass To Metal Seals?

A5: The delivery time for SSCore Glass To Metal Seals is typically between 7 to 14 working days.

Q6: What payment terms does SSCore accept for Glass To Metal Seals?

A6: SSCore accepts payment terms including L/C, D/A, T/T, and D/P.

Q7: What is the monthly supply capacity of SSCore for Glass To Metal Seals?

A7: SSCore has a supply ability of 50,000 pieces per month for Glass To Metal Seals.
