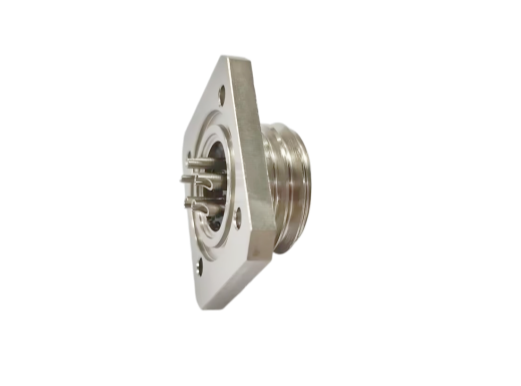

Electroless Nickel Contact Plating Glass Metal Seals Featuring 4J50 Pin Providing Hermetic Sealing for Industrial Electronics

Product Description:

Glass To Metal Seals are critical components widely used in various industries requiring reliable hermetic sealing solutions. These seals are designed to provide a robust and airtight interface between metal and glass, ensuring long-term durability and exceptional performance under demanding conditions. Our Glass To Metal Seals feature a hermetic seal type, which guarantees an impermeable barrier that prevents the ingress of gases, moisture, and contaminants, making them ideal for applications where maintaining a controlled environment is essential.

One of the standout characteristics of our Glass To Metal Seals is their impressive insulator resistance of 1000MΩ at 500VDC. This high insulation resistance ensures excellent electrical isolation between the metal pins and the surrounding metal shell, which is crucial for maintaining signal integrity and preventing electrical leakage. This attribute makes our seals particularly suitable for use in sensitive electronic applications where reliability and safety are paramount.

Leak rate is a key performance indicator for any sealing solution, and our Glass To Metal Seals excel in this aspect with a leak rate of less than 1x10 ^-8 Mbar.l/s at 1 ATM. This ultra-low leak rate confirms the hermetic integrity of the seal, ensuring that no gases or fluids can penetrate through the seal interface. This level of sealing performance is essential for applications in aerospace, medical devices, vacuum systems, and other high-reliability fields where even the smallest leak can result in system failure or compromised performance.

The pins used in our Glass To Metal Seals are made from 4J50, a high-performance alloy known for its excellent mechanical strength and corrosion resistance. The use of 4J50 pins ensures that the seals can withstand harsh environments and maintain their structural integrity over extended periods. This material choice also contributes to the overall reliability and longevity of the product, making it suitable for use in extreme temperature and pressure conditions.

Current rating is another critical specification for these seals, and our Glass To Metal Seals are capable of handling currents ranging from 20A to 30A. This high current rating makes them suitable for a wide range of electrical and electronic applications, including power supplies, industrial machinery, and communication equipment. The ability to carry substantial current without degradation or failure highlights the robustness and quality of the metal-to-glass seal design.

Glass Seal Connectors are an essential part of modern electronic and electrical systems, providing a reliable interface where metal components need to be sealed hermetically to glass insulators. Our product line of Glass Seal Connectors offers exceptional quality, combining advanced manufacturing techniques with high-grade materials to deliver outstanding performance. These connectors are engineered to meet stringent industry standards, ensuring compatibility and reliability across various applications.

Metal-to-Glass Seals are integral to the construction of these Glass Seal Connectors, providing the critical hermetic bond that prevents contamination and maintains electrical isolation. The precision bonding process used in creating these metal-to-glass seals ensures consistent and repeatable performance, which is vital for high-volume production and critical applications alike. Our seals undergo rigorous testing to verify their leak rate, insulation resistance, and mechanical strength, guaranteeing that each unit meets or exceeds customer expectations.

In summary, our Glass To Metal Seals offer a comprehensive solution for applications requiring hermetic sealing, excellent electrical insulation, low leak rates, and high current carrying capacity. With pins made from 4J50 alloy and a current rating of 20A to 30A, these seals are built to perform reliably in the most challenging environments. Whether you are seeking Glass Seal Connectors for aerospace, medical, industrial, or communication systems, our metal-to-glass seals provide the durability and performance needed to ensure long-term success and operational stability.

Features:

• Product Name: Glass To Metal Seals
• Application: Vacuum Tubes, Electronic Components, Sensors
• RoHS Compliant: Yes
• Rated Voltage: 600V
• Insulator Resistance: 1000MΩ @ 500VDC
• Seal Type: Hermetic
• High-quality Metal-to-Glass Seals ensuring reliable performance
• Designed for use in Metal Seal Connectors
• Ideal for applications requiring Metal Seal Connectors with superior hermetic sealing

Technical Parameters:

Applications:

The SSCore Glass To Metal Seals, model number 41-X1193, are precision-engineered components designed for a variety of high-performance applications where reliable hermetic sealing is critical. These Metal-Glass Bond Seals are essential in industries that require airtight and electrically insulating connections between metal and glass materials. Certified with IATF16949, these seals meet stringent quality standards, ensuring durability and performance in demanding environments.

One of the primary application occasions for the SSCore Metal-to-Glass Seals is in vacuum tubes, where maintaining a vacuum-tight environment is crucial for device functionality. The hermetic sealtype and high insulator resistance of 1000MΩ@500VDC make these seals ideal for electronic components that operate under high voltage and require long-term reliability. Sensors, another key application scenario, benefit from these Metal-Glass Bond Seals by achieving stable and leak-proof interfaces, which are vital for accurate measurements and sensor longevity.

SSCore’s Glass To Metal Seals are also highly suitable for use in advanced electronic assemblies where precision and reliability are paramount. Their electroless nickel contact plating enhances corrosion resistance and electrical conductivity, ensuring consistent performance in harsh environments. With a pin specification of 4J50, these seals provide robust mechanical and electrical connections, supporting a wide range of electronic and sensor applications.

Packaging details include a vacuum package to protect the seals from contamination and damage during transportation and storage. Customers can order a minimum quantity of 5 pieces, with prices ranging from 10 to 40 ￥ per unit. The supply ability of 50,000 pieces per month guarantees availability for both small-scale projects and large production runs. Delivery is efficient, with a lead time of 7 to 14 workdays, and flexible payment terms such as L/C, D/A, T/T, and D/P are accepted to accommodate various business needs.

In summary, the SSCore 41-X1193 Glass To Metal Seals are indispensable for applications requiring reliable Metal-Glass Bond Seals, especially in vacuum tubes, electronic components, and sensors. Their hermetic sealing capability, certified quality, and robust construction make them a preferred choice for engineers and manufacturers seeking dependable Metal-to-Glass Seals for their critical projects.

Customization:

SSCore offers customized Glass-Metal Seals with model number 41-X1193, certified under IATF16949 to ensure top-quality standards. Our Metal-Glass Seals are designed for applications including vacuum tubes, electronic components, and sensors, supporting a rated voltage of 600V and featuring an insulator resistance of 1000MΩ@500VDC.

We guarantee superior Metal-Glass Bond Seals with a leak rate of less than 1x10^-8 Mbar.l/s at 1 ATM, ensuring exceptional vacuum integrity. Each seal is plated with electroless nickel for enhanced durability and performance.

Our minimum order quantity is 5 pieces, with prices ranging from 10 to 40 ￥ per unit. All products are vacuum packaged to maintain quality during delivery.

With a supply capacity of 50,000 pieces per month, we ensure a delivery time of 7 to 14 working days. Payment terms are flexible, including L/C, D/A, T/T, and D/P options to suit your needs.

Choose SSCore for reliable and high-quality Glass-Metal Seals, Metal-Glass Seals, and Metal-Glass Bond Seals customized to your specifications.

Support and Services:

Our Glass To Metal Seals product is designed to provide reliable, hermetic sealing solutions for a variety of electrical and electronic applications. For technical support, our team of experts is available to assist with installation guidance, troubleshooting, and customization options to meet your specific requirements.

We offer comprehensive services including product consultation, design assistance, and quality assurance to ensure optimal performance and durability of the seals in your application. Detailed documentation and technical datasheets are available to support your engineering and maintenance teams.

Should you require replacement parts, repair services, or custom manufacturing, please reach out to our service department. We are committed to delivering prompt and effective support to minimize downtime and maximize the lifespan of your Glass To Metal Seals.

For ongoing maintenance, we recommend regular inspection and adherence to the specified operating conditions to prevent seal degradation and ensure continued hermeticity.

Packing and Shipping:

Our Glass To Metal Seals are carefully packaged to ensure maximum protection during transit. Each seal is individually wrapped with protective materials and placed in a sturdy, cushioned box to prevent any damage from impact or vibration.

For shipping, we use reliable carriers with tracking options to guarantee timely and safe delivery. All packages are clearly labeled with handling instructions to ensure careful treatment throughout the shipping process.

We also offer custom packaging solutions upon request to meet specific requirements. Please contact our customer service team for more information on bulk orders and special packaging needs.

FAQ:

Q1: What is the brand and model number of the Glass To Metal Seals?

A1: The Glass To Metal Seals are branded SSCore, with the model number 41-X1193.

Q2: What certifications do these Glass To Metal Seals have?

A2: These seals are certified under IATF16949, ensuring high quality and industry standards compliance.

Q3: What is the minimum order quantity and price range for the Glass To Metal Seals?

A3: The minimum order quantity is 5 pieces, with prices ranging from 10 to 40 ￥ per piece.

Q4: How are the Glass To Metal Seals packaged and what is the typical delivery time?

A4: The seals are vacuum packaged to ensure safety and freshness, with a delivery time of 7 to 14 working days.

Q5: What payment terms are accepted and what is the monthly supply capacity?

A5: Accepted payment terms include L/C, D/A, T/T, and D/P. The supply ability is 50,000 pieces per month.
