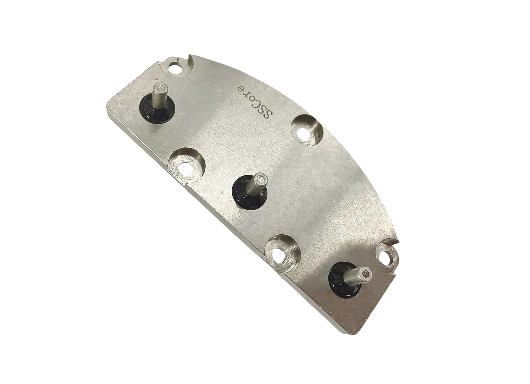

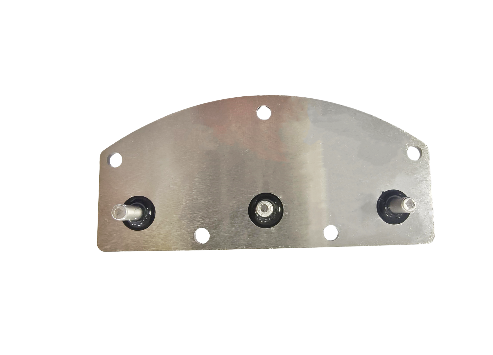

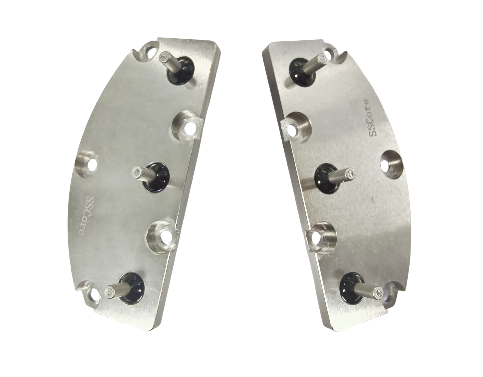

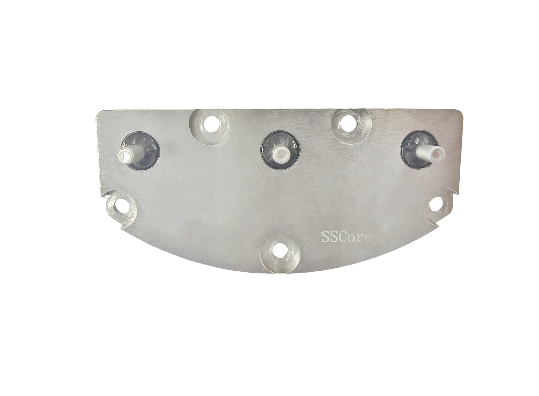

Hermetic Sealtype Hermetically Sealed Terminal Featuring Leak Test LEAK RATE≤1X10 -8 Mbarl s Ensuring Superior Protection and Durability

Product Description:

The Hermetically Sealed Terminal is an advanced Insulated Terminal Connector designed to provide superior electrical connectivity and protection in demanding environments. Engineered with precision and reliability in mind, this product is ideal for applications requiring a robust and durable connection that can withstand harsh conditions. With a voltage rating of 18-32V and a rated current capacity of 30A, the Hermetically Sealed Terminal ensures efficient power transmission while maintaining safety and performance standards.

One of the key features of this Hermetically Sealed Terminal is its exceptional insulation resistance, rated at a minimum of 1000MΩ. This high insulation resistance guarantees minimal leakage currents and protects sensitive electronic components from electrical interference, making it suitable for use in critical systems where uninterrupted operation is essential. The superior insulation also contributes to enhanced durability and longevity, reducing the need for frequent maintenance or replacements.

The seal type of this product is hermetic, meaning it provides an airtight and waterproof barrier around the terminal connection. This hermetic sealing is vital in preventing moisture, dust, and other environmental contaminants from entering the connection point, which could otherwise cause corrosion, short circuits, or signal degradation. As a result, the Hermetically Sealed Terminal is especially well-suited for integration into waterproof junction box assemblies, where maintaining a sealed environment is crucial for system reliability and safety.

Designed as a premium Insulated Terminal Connector, this product offers ease of installation and compatibility with a wide range of wiring systems. Its robust construction ensures that it can withstand mechanical stresses and vibrations commonly encountered in automotive, industrial, and outdoor electrical applications. Whether used in a waterproof junction box or as part of a larger electrical assembly, the Hermetically Sealed Terminal delivers consistent performance and peace of mind to engineers and technicians alike.

Additionally, the Hermetically Sealed Terminal’s compact design allows for efficient use of space within electrical enclosures, contributing to streamlined system layouts without sacrificing functionality. The insulation properties combined with the hermetic seal create a reliable interface that supports long-term stability and prevents electrical faults caused by environmental exposure.

In summary, the Hermetically Sealed Terminal is a high-quality Insulated Terminal Connector engineered to meet the rigorous demands of modern electrical systems. Its voltage rating of 18-32V and rated current of 30A make it a versatile choice for various applications requiring dependable electrical connections. The minimum insulation resistance of 1000MΩ ensures excellent electrical isolation, while the hermetic seal protects against moisture and contaminants, making it an ideal component for waterproof junction box installations. For professionals seeking a durable, efficient, and secure terminal connection, the Hermetically Sealed Terminal stands out as a superior solution.

Features:

• Product Name: Hermetically Sealed Terminal
• Plating Material: 45 Steel for enhanced durability
• Voltage Rating: Supports 18-32V applications
• Seal Type: Hermetic sealing ensures protection against environmental factors
• Operating Temperature: Can withstand temperatures up to 150°C
• Insulation Resistance: Minimum of 1000MΩ for reliable insulation
• Designed as an Insulated Terminal Connector for safe and secure connections
• Functions as an Enclosed Terminal Block providing excellent protection and longevity

Technical Parameters:

Applications:

The SSCore Hermetically Sealed Terminal, model number 41-X0647, is a high-quality insulated terminal connector designed to meet the demanding requirements of various industrial and automotive applications. Manufactured in China and certified under IATF16949, this product ensures exceptional reliability and performance. With a rated current of 30A and a voltage rating between 18-32V, it is ideal for use in circuits that require stable electrical connections under harsh conditions. The terminal is constructed from durable 45 steel plating, offering excellent resistance to corrosion and mechanical wear.

This hermetically sealed terminal excels in environments where protection against dust, moisture, and contaminants is critical. Its vacuum packaging and robust sealing provide a shielded terminal board solution that guarantees long-term insulation resistance of 1000MΩ minimum, even in temperatures up to 150°C. These features make it especially suitable for automotive wiring harnesses, industrial machinery, heavy equipment, and other electrical systems that demand protected wiring terminals to maintain safety and functionality.

The product’s compact size and reliable sealing allow it to be used in confined spaces where traditional connectors might fail due to exposure to environmental factors. Its insulation and shielding properties reduce the risk of short circuits and electrical interference, ensuring the integrity of the entire electrical network. With a supply ability of 50,000 pieces per month and delivery time ranging from 7 to 14 workdays, SSCore meets both small and large order requirements efficiently, with a minimum order quantity of just 5 pieces.

SSCore’s hermetically sealed terminals are widely applied in automotive electronics, aerospace controls, telecommunications equipment, and renewable energy systems. They are perfect for engineers and technicians looking for a reliable, high-performance insulated terminal connector that provides a protected wiring terminal solution with excellent durability and safety. Payment terms including L/C, D/A, T/T, and D/P offer flexible purchasing options to suit diverse business needs.

Customization:

SSCore offers customized Hermetically Sealed Terminals, model number 41-X0647, designed to meet your specific requirements for Closed Circuit Terminals and Sealed Electrical Terminals. Manufactured in China and certified with IATF16949, these Protected Wiring Terminals ensure high quality and reliability.

Our Hermetic Sealtype guarantees superior insulation resistance of 1000MΩ minimum and supports a working current up to 40A max with a voltage rating between 18-32V, making it ideal for secure and stable electrical connections.

The minimum order quantity is 5 pieces, with prices ranging from 10 to 40 ￥ each. Each unit is carefully packed using vacuum packaging to maintain product integrity during delivery.

We have a strong supply ability of 50,000 pieces per month, with a delivery time of 7 to 14 working days. Payment terms include L/C, D/A, T/T, and D/P options to accommodate your purchasing preferences.

Trust SSCore for your Protected Wiring Terminal needs and experience reliable, high-performance sealed electrical solutions tailored to your applications.

Support and Services:

Our Hermetically Sealed Terminal products are designed to provide reliable and durable electrical connections in environments requiring airtight sealing. For technical support, we offer comprehensive assistance including product selection guidance, installation instructions, and troubleshooting help to ensure optimal performance.

Our services include detailed documentation, application consulting, and customization options to meet specific requirements. We also provide testing and validation support to guarantee compliance with industry standards and customer specifications.

For maintenance and repair, we offer expert advice and replacement parts to extend the lifespan of your Hermetically Sealed Terminals. Our technical team is committed to delivering prompt and effective solutions to minimize downtime and maximize productivity.

Whether you need help with design integration, environmental compatibility, or operational issues, our support services are tailored to address the unique challenges of hermetically sealed electrical connections.

Packing and Shipping:

The Hermetically Sealed Terminal product is carefully packaged to ensure maximum protection during transit. Each terminal is individually sealed in anti-static bags and cushioned with foam inserts to prevent any damage from shock or vibration. The packaging is designed to be moisture-resistant and tamper-evident, maintaining the integrity of the hermetic seal throughout shipping.

For shipping, the products are placed in sturdy, double-walled corrugated boxes with clear labeling indicating the fragile nature of the contents. Multiple layers of packaging materials are used to provide additional protection against environmental factors such as humidity, dust, and temperature variations.

We partner with reliable carriers to guarantee timely and safe delivery. All shipments include tracking information and are insured to cover any unforeseen damages or losses during transit. Upon receipt, customers are advised to inspect the packaging for any signs of damage before opening and to report any issues immediately.

FAQ:

Q1: What is the brand and model number of the Hermetically Sealed Terminal?

A1: The Hermetically Sealed Terminal is branded SSCore and the model number is 41-X0647.

Q2: Where is the Hermetically Sealed Terminal manufactured?

A2: This product is manufactured in China.

Q3: What certifications does the Hermetically Sealed Terminal have?

A3: The Hermetically Sealed Terminal is certified with IATF16949.

Q4: What is the minimum order quantity and price range for this product?

A4: The minimum order quantity is 5 pieces, and the price ranges from 10 to 40 ￥ per piece.

Q5: What are the packaging and delivery details for the Hermetically Sealed Terminal?

A5: The product is packaged using a vacuum package to ensure quality and is delivered within 7 to 14 work days.

Q6: What payment terms are accepted for ordering the Hermetically Sealed Terminal?

A6: Accepted payment terms include L/C, D/A, T/T, and D/P.

Q7: What is the monthly supply capacity for this Hermetically Sealed Terminal?

A7: The supply ability is 50,000 pieces per month.
