OEM Connection Terminal Plate Commercial Air Conditioning Wiring Panels

5pcs
MOQ
¥ 800.00 5PCS starting batch ¥ 700.00 50-499PCS ¥ 600.00 ≥500PCS
Price
OEM Connection Terminal Plate Commercial Air Conditioning Wiring Panels
Features Gallery Product Description Request A Quote
Features
Specifications
High Insulation Performance: Static Test At 500VDC, Insulation Greater Than 10000MΩ
High Sealing Performance: 4MPa Does Not Leak
High Voltage Resistance: ≥4000VAC, Leakage Current ≤0.5mA
Corrosion Resistance: Refer To The Salt Spray Standard GB/T2423.17, Which Can Reach The Level Of 8 Or Above
Resistant To Various Refrigerant And Refrigerant Oil: R114a,R410a,R22 And CO2 Refrigerant
Thermal Shock Resistance: It Can Maintain Normal Operation In The Environment Of Minus 40℃ To 300℃
Maximum Current: 300A
Highlight:

OEM Connection Terminal Plate

,

Commercial Air Conditioning Wiring Panels

,

OEM Commercial Air Conditioning Wiring Panels
Basic Infomation
Place of Origin: ShenZheng
Brand Name: SSCore
Certification: ISO16949
Model Number: SC-4-66
Payment & Shipping Terms
Packaging Details: Separate package
Delivery Time: 7-14 work days
Payment Terms: L/C, D/A, T/T
Supply Ability: 2000 per day
Product Description

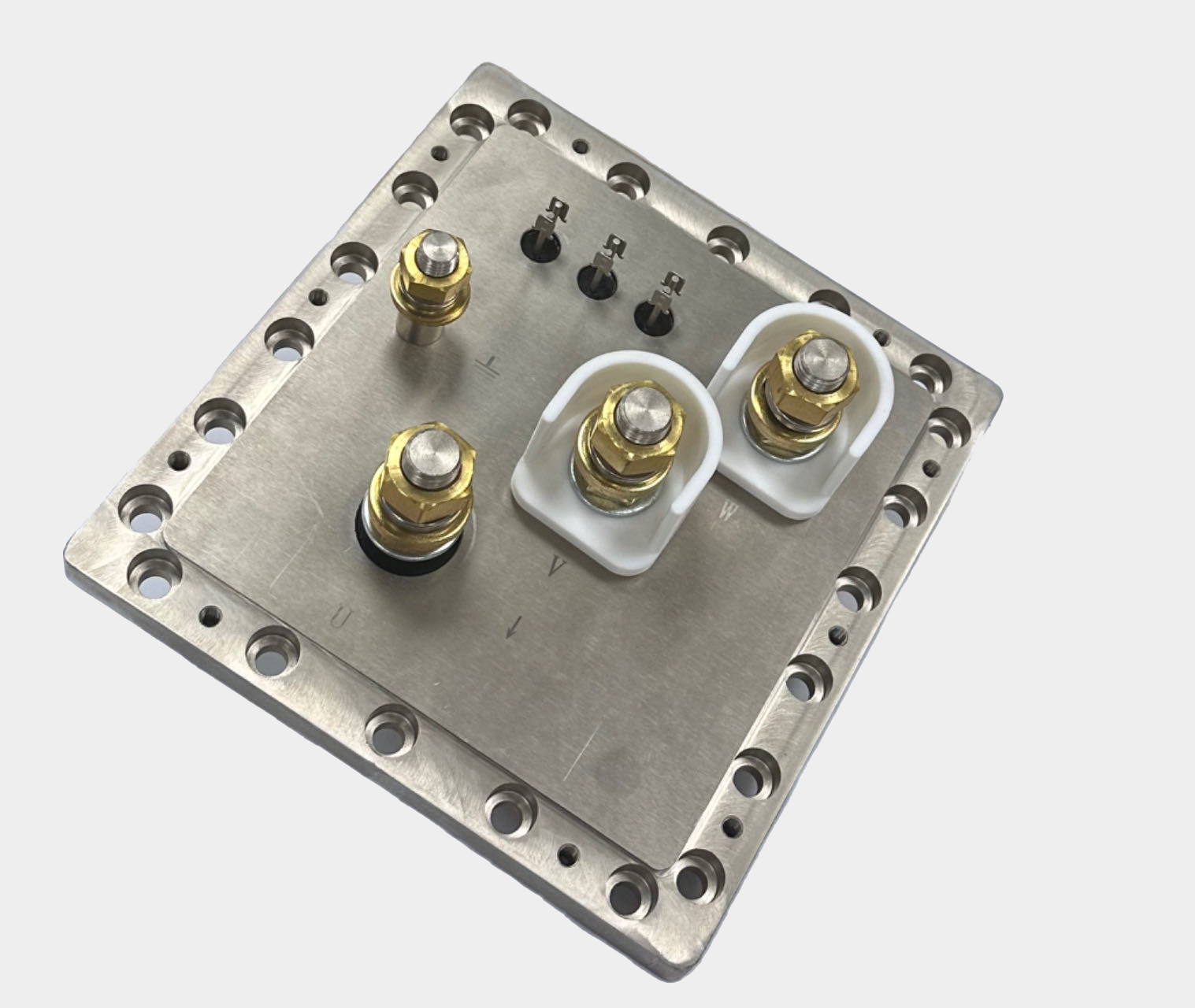

Commercial Air Conditioning Wiring Panels [Large Current Carrying Capacity]



This series of sintered sealed terminal board is mainly used in large chiller, which requires the terminal board to have super current carrying capacity and high voltage and strong mechanical pressure resistance, and play the role of electrical connection.

OEM Connection Terminal Plate Commercial Air Conditioning Wiring Panels 0
