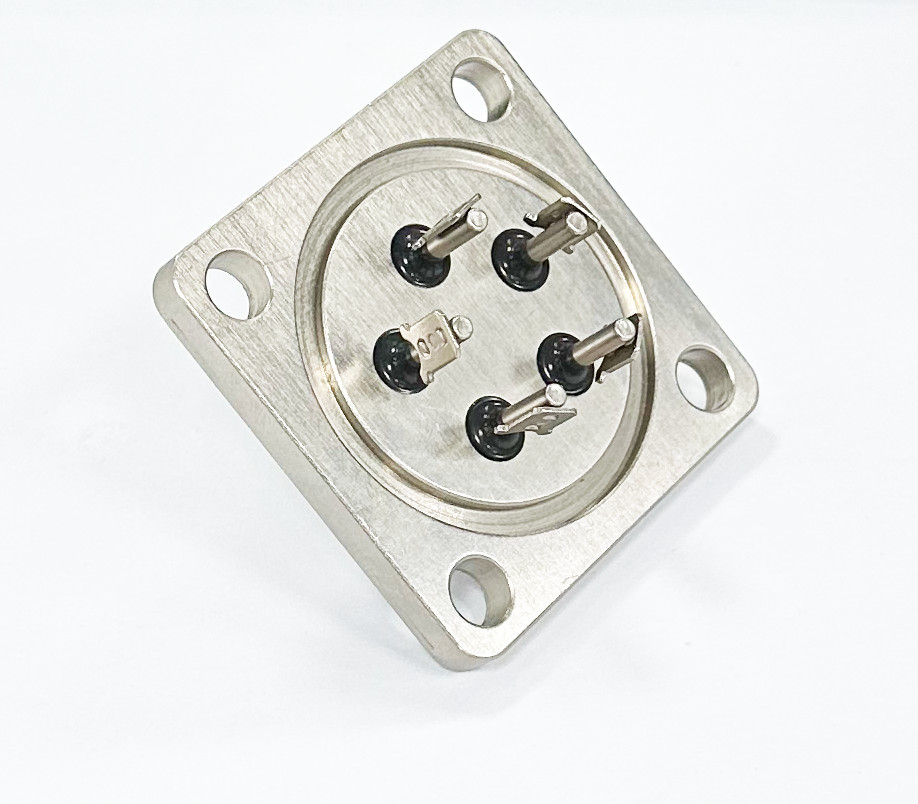

ODM Electrical Connection Terminal Board Insulating Property 5000MΩ 30A-300A

We can offer customized sintered seal terminals to meet customers’ demands. The performance parameters of these terminals can reach the following standards:

• Material: 45 Steel
• Hi-pot: 3000v, leak current ≤ 0.5MA
• IR: 1000V, IR > 1000MΩ
• Leak Test: 4MPa N2 pressure, no leak
• Burst Test: 5MPa, no leak
• Operating Temperature Range: -70°C-300°C

Features:

• Product Name: Connection Terminal Plate
• Connection: Screw
• Insulating property: 5000MΩ
• Surface treatment: Electroless Nickel Plating
• Voltage: 220V
• Current: 30A-300A
• Plate Board Connection
• Connection Terminal Board
• Terminal Plate Connection

Technical Parameters:

All products produced by the company are friendly to the environment, using the electroless nickel plating method with a coating thickness ranging from 3-5 microns. This type of protective agent does not contain any harmful elements, such as the mercury, lead, cadmium, or the hexavalent chromium. Thus, it meets the standards set by the European Union and has a SGS environmental testing report.

The nickle coating is widely used in the 3C industry, as well as in electronics, automobile, mould production, or medical products due to its role in electrical connections.

Applications:

Sscore Connection Terminal Plate, made in ShenZheng, is certified by IATF16949 which ensures the quality of the product. The minimum order quantity is 5 pcs and the price range is 300 - 800 $. We provide Cato packing and the delivery time is 7 - 14 work days. You can pay by L/C, D/A, T/T, D/P. The supply ability is 10w pieces a month. This product has excellent insulating property which is up to 5000MΩ. It is widely used in Electrical Equipment. The surface treatment is Electroless Nickel Plating and the connection is by screw. The range of current is 30A-300A.

Customization:

Sscore Customized Terminal Plate Connection

Place of Origin: ShenZheng
Certification: IATF16949
Minimum Order Quantity: 5 pcs
Price: 300 - 800 $
Packaging Details: Cato packing
Delivery Time: 7 - 14 work days
Payment Terms: L/C, D/A, T/T, D/P
Supply Ability: 10w pieces a month
Surface Treatment: Electroless Nickel Plating
Current: 30A-300A
Connection: Screw
Insulating Property: 5000MΩ
Voltage: 220V

Sscore customized terminal plate connection is designed for board connection, and it has strong insulation property of up to 5000MΩ, which can meet the voltage of 220V. It is certified by IATF16949, with electroless nickel plating surface treatment and screw connection. The current range is from 30A to 300A. The minimum order quantity is 5 pieces, and the price ranges from 300 - 800 $. It is packed in cato packing and can be delivered within 7 - 14 work days after payment. Sscore can provide 10w pieces a month.
