45 Steel Hermetic EV Connector 30A Hermetic Bulkhead Connector

5 pcs
MOQ
10 - 40 ￥
Price
45 Steel Hermetic EV Connector 30A Hermetic Bulkhead Connector
Features Gallery Product Description Request A Quote
Features
Specifications
Operating Temperature: -70°C To +300°C
Voltage Rating: 600V
Product Name: Hermetic EV Connector
Mounting Type: Terminal Fixation-bolts
Current Rating: 30A
Surface Treatment: Electroless Nickel Plating
Highlight:

45 Steel Hermetic EV Connector

,

30A Hermetic Bulkhead Connector

,

45 Steel Hermetic Bulkhead Connector
Basic Infomation
Place of Origin: ShenZheng
Brand Name: SSCore
Certification: IATF16949
Payment & Shipping Terms
Packaging Details: Cato packing
Delivery Time: 7 - 14 work days
Product Description

30A Hermetic Straight EV Connector For Electric Vehicle



We can customize different types of sintered seal terminals according to customer requirements. The performance parameters of the terminals we produce can be as follows:



1,Material : 45 Steel
2,Hi-pot : 3000v leak current ≤ 0.5MA
3,IR:1000V IR > 1000MΩ
4,leak Test: 4MPa N2 pressure No leak
5,Burst Test:5MPa No leak
6,Operating Temperature Range:-70°C - 300°C

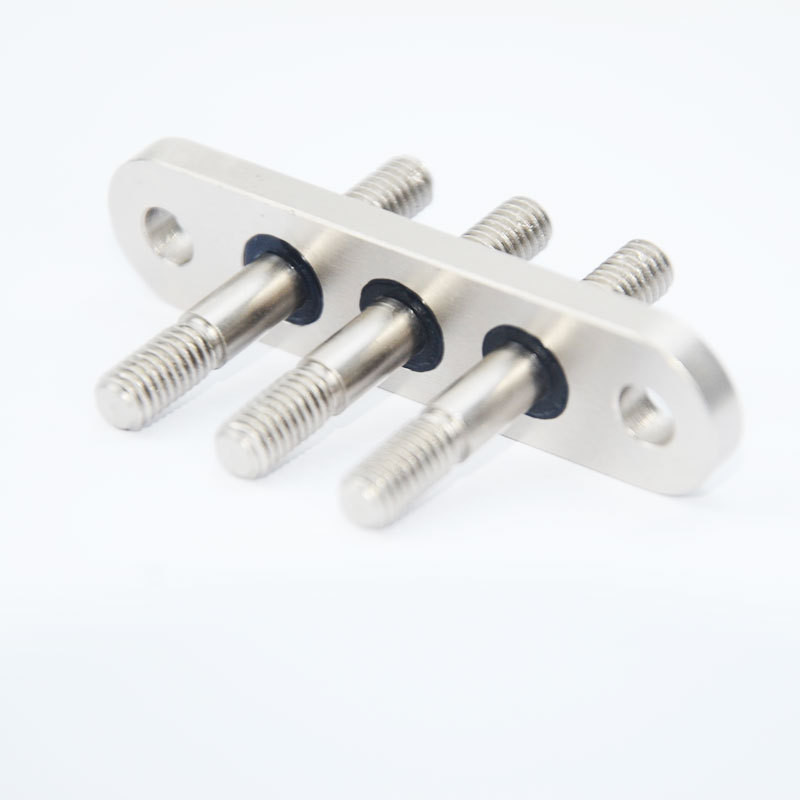

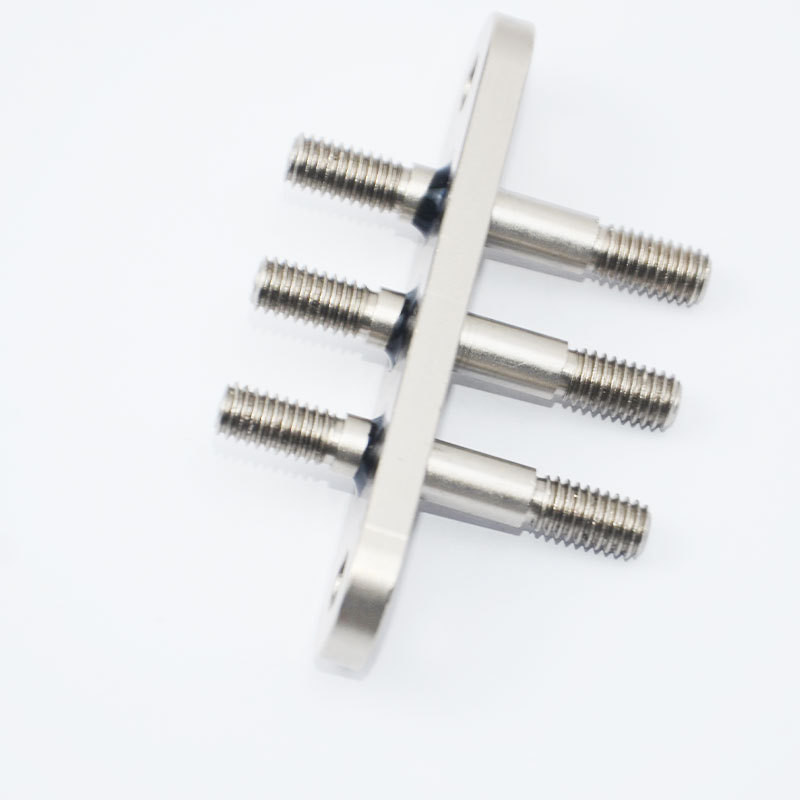

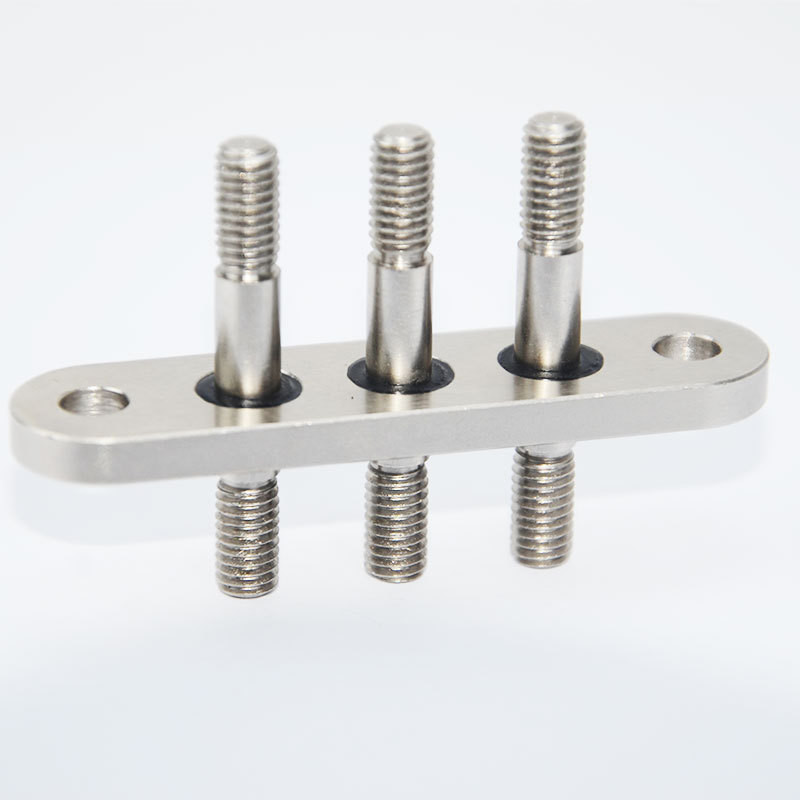

45 Steel Hermetic EV Connector 30A Hermetic Bulkhead Connector 0
45 Steel Hermetic EV Connector 30A Hermetic Bulkhead Connector 145 Steel Hermetic EV Connector 30A Hermetic Bulkhead Connector 2


All products of the company are environmentally friendly electroless nickel plating method, coating thickness of 3-5 microns. Environmentally friendly nickel coating does not contain mercury, lead, cadmium and hexavalent chromium and other harmful substances, up to EU standards, with SGS environmental testing report. The role of electrical connections.
