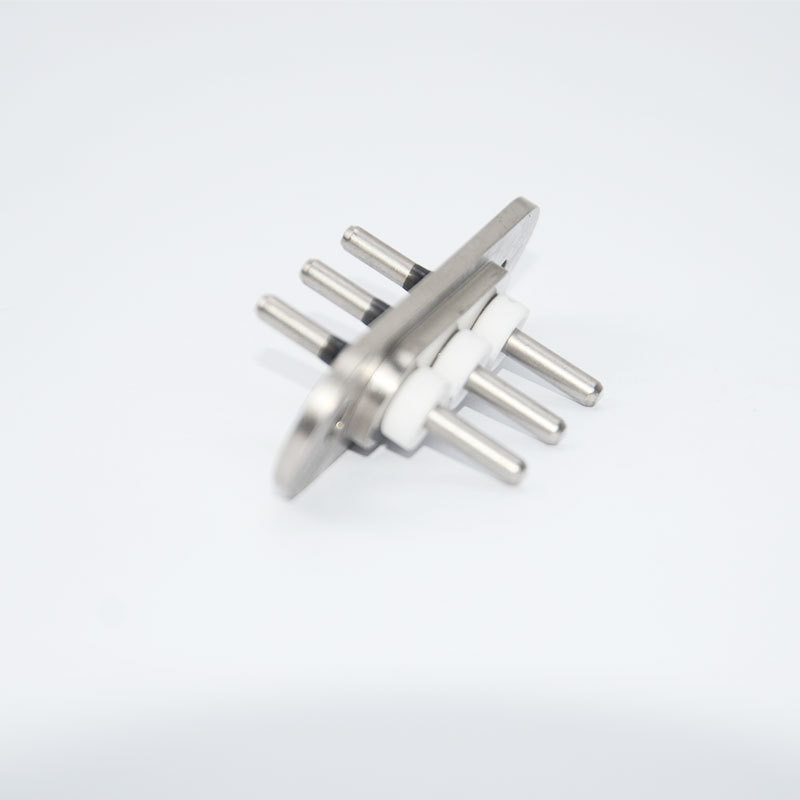

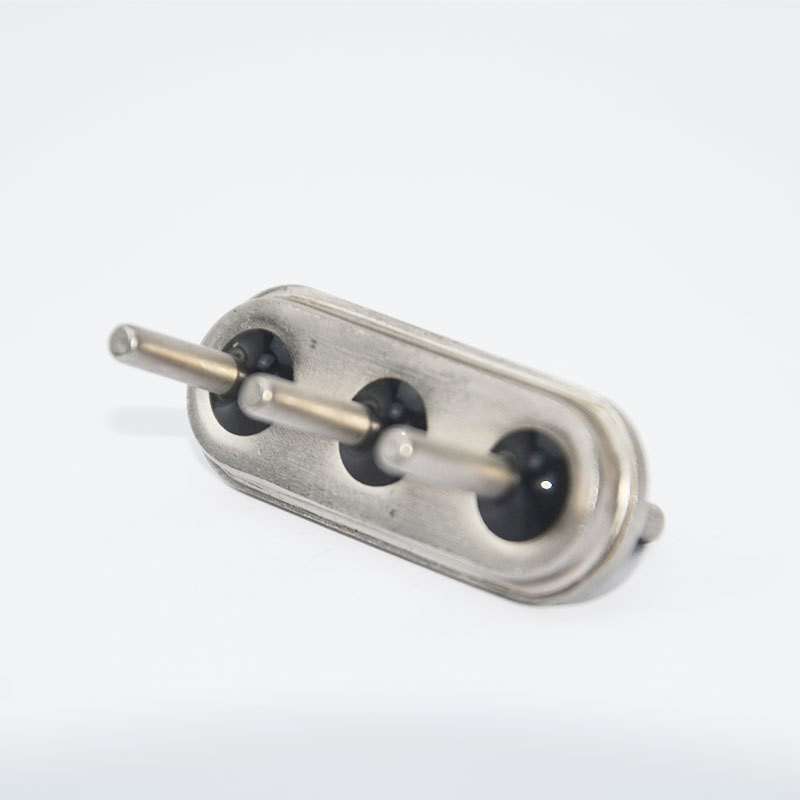

Electroless Nickel Plating Hermetic Ethernet Connector 5MPa No Leak
| Product Name: | Hermetic EV Connector | Connector Style: | EV |
| Material: | 45Steel | Current Rating: | 30A |
| Connection type: | Terminal Fixation-bolts | Surface Treatment: | Electroless Nickel Plating |
| High Light: | Hermetic Ethernet Connector 5MPa,No Leak Hermetic Ethernet Connector |
||
Hermetic EV Connector For Electric Vehicle Applications
We can customize different types of sintered seal terminals according to customer requirements. The performance parameters of the terminals we produce can be as follows:
1,Material : 45 Steel
2,Hi-pot : 3000v leak current ≤ 0.5MA
3,IR:1000V IR > 1000MΩ
4,leak Test: 4MPa N2 pressure No leak
5,Burst Test: 5MPa No leak
6,Operating Temperature Range:-70°C - 300°C
All products of the company are environmentally friendly electroless nickel plating method, coating thickness of 3-5 microns. Environmentally friendly nickel coating does not contain mercury, lead, cadmium and hexavalent chromium and other harmful substances, up to EU standards, with SGS environmental testing report. The role of electrical connections.
OEM Hermetically Sealed Electrical Connectors 12V-540V For Electric Vehicle
Hermetic EV Connector 12V-540V For Electric Vehicle Product Description: At our company, we specialize in sintered seal terminals, and can make customized designs upon request. Below are some of the specifications of the terminals that we can produce: Material: 45 Steel Hi-pot: 3000v, leak current ≤ ...
600V Hermetic EV Connectors Electrical With PPS Insulator Solder Termination
600V Hermetic Automobile Connector With PPS Insulator And Solder Termination We can customize different types of sintered seal terminals according to customer requirements. The performance parameters of the terminals we produce can be as follows: 1,Material : 45 Steel 2,Hi-pot : 3000v leak current ≤ ...
540V Hermetic EV Connector 30A Hermetic Electrical Connectors
12V-540V Hermetic EV Connector With Glass And Ceramic Insulator Material Product Description: We can tailor-make different sorts of sintered seal terminals based on customer needs. Our produced terminals are mutually-agreeable with following criteria in terms of performance: Made of 45 Steel Hi-pot ...
Waterproof Hermetic Circular Connector 20A For Electric Vehicle Charging Stations
SSCore Hermetic EV Connector For Electric Vehicle Charging Stations Waterproof Durable Reliable Product Description: We have the ability to customize a variety of sintered seal terminals based on the customer's needs. The performance features of such terminals produced by us are as follows: 1. ...
