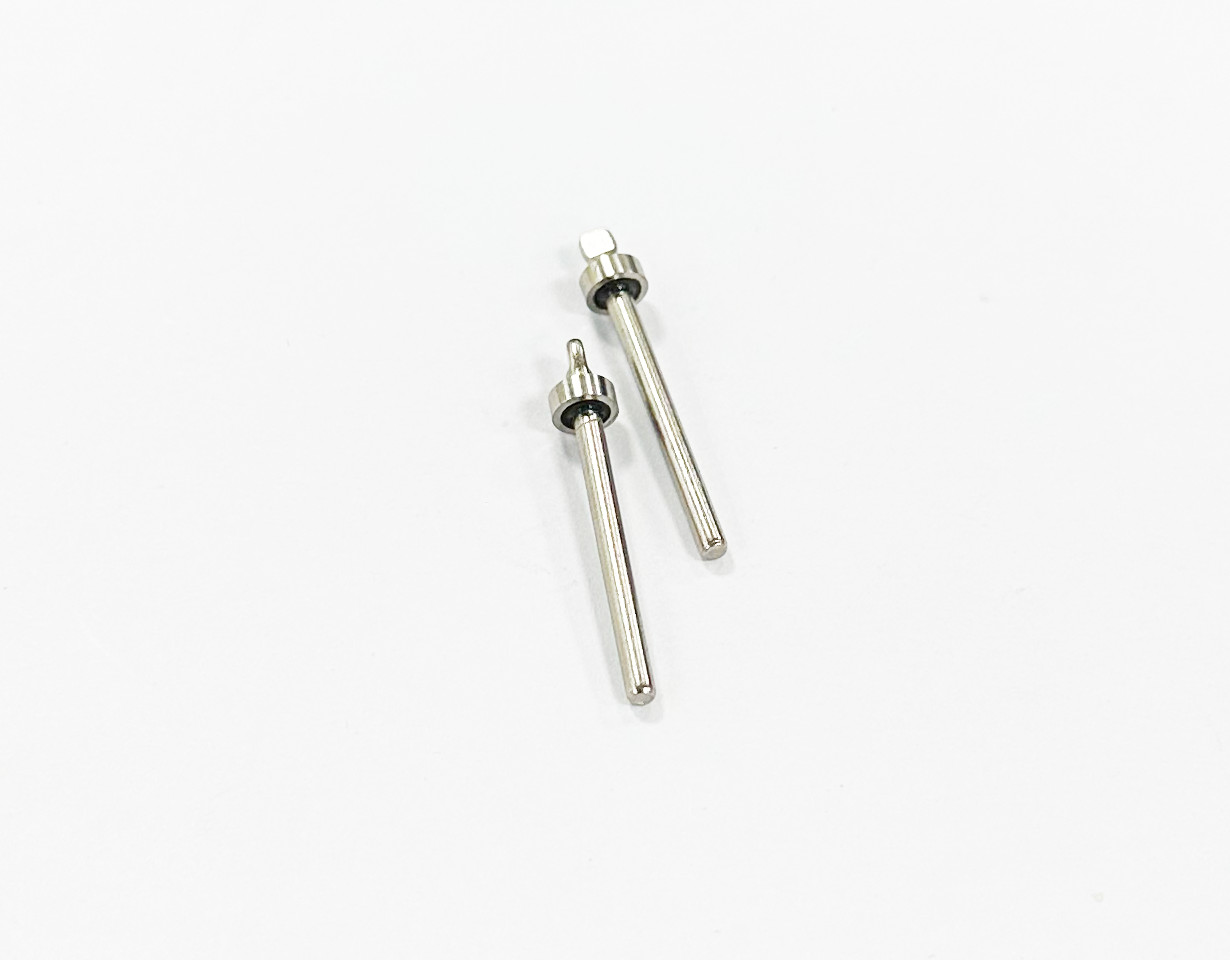

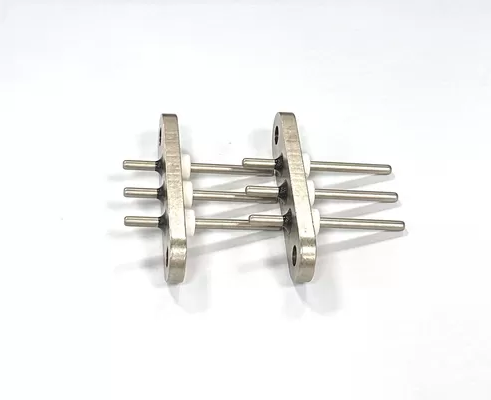

45 Steel Hermetic Seal Connectors Electrical Current Rating 100A

45 Steel Hermetic Connectors Current Rating 100A-300A

Product Description:

We provide custom solutions for our customer's needs in sintered seal terminals. Our terminals present the following performance parameters:

• Material: 45 Steel
• Hi-pot: Voltage of 3000V, and leakage current ≤ 0.5MA
• IR: Voltage of 1000V, and insulation resistance > 1000MΩ
• Leak Test: Pressure of 4MPa and no leakage
• Burst Test: Pressure of 5MPa and no leakage
• Operating Temperature Range: -70°C - 300°C

Features:

• Product Name: Hermetic Seal Connectors
• Insulation Material: Glass
• Manufacturer: SSCore
• Material: 45 Steel
• Operating Temperature: -70°C To +300°C
• Connector Style: Mounting Screw
• Hermetic Sealing Connector Assemblies
• Hermetic Sealing Connectors
• Hermetic Connector Systems

Technical Parameters:

Our company offers an environmentally friendly electroless nickel plating method on all products. The coating has a thickness of 3-5 microns. It does not contain any mercury, lead, cadmium, hexavalent chromium or other harmful substances, meeting EU standards. In addition, we can provide a SGS environmental testing report for referenced use.

Our electroless nickel plating process provides obvious improvements in electrical connections. It's an environmentally friendly solution which contributes to people's health and well-being.

Applications:

SSCore hermetic sealing connector components and systems from ShenZheng offer an unparalleled level of reliability, durability and performance for applications requiring hermetic sealing. Our hermetic sealing connectors are made of 45 steel, and feature a surface treatment of electroless nickel, providing superior anti-corrosion properties. The current rating of our hermetic sealing connectors range from 100A - 300A, and they are capable of operating in temperatures between -70°C To +300°C. With a minimum order quantity of 5 pcs, and prices ranging from 60-300$, you can rest assured that SSCore hermetic sealing connectors offer both exceptional value and quality. We package our hermetic sealing connectors in high quality cato packing, and can deliver them to you within 7 - 14 work days. We accept payment via L/C, D/A, T/T, and D/P, and have a supply ability of 50w pieces a month. For the highest quality hermetic sealing connectors, choose SSCore.

Customization:

SSCore offers customized Hermetic Sealing Connector Systems, Hermetic Connector Systems, Hermetic Sealing Connector Assemblies with 45 Steel material, 100A - 300A current rating and -70°C to +300°C operating temperature.

Brand Name: SSCore
Place of Origin: ShenZheng
Minimum Order Quantity: 5 pcs
Price: 60-300$
Packaging Details: Cato packing
Delivery Time: 7 - 14 work days
Payment Terms: L/C, D/A, T/T, D/P
Supply Ability: 50w pieces a month
Insulation Material: Glass
Manufacturer: SSCore

Support and Services:

We offer comprehensive technical support and service for hermetic seal connectors, so that our customers can get the most out of our products. Our technical support team is comprised of highly trained and experienced engineers with extensive knowledge in hermetic sealing processes and connector design.

We provide a range of services, such as:

• Design and engineering consultation
• Product selection and troubleshooting
• Installation and maintenance guidance
• Testing and qualification services

We are committed to providing reliable and efficient technical support and service, so that our customers can enjoy the best possible results from our hermetic seal connectors.
