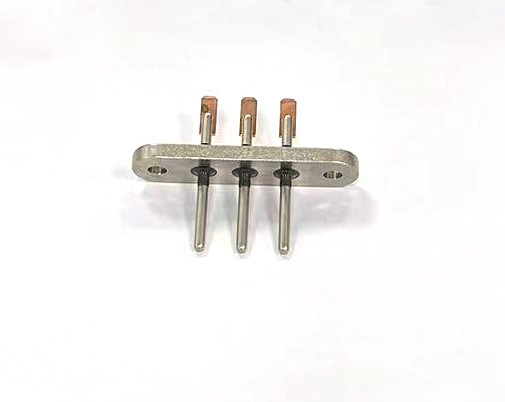

45 Steel Hermetic Compressor Terminals 10A-30A Sintered Seal Terminals

45 Steel Hermetic Compressor Terminals 10A-30A -70C~+300C Temperature Range

Product Description:

We are capable of tailoring a variety of sintered seal terminals to conform to customer specifications. The performance parameters of our produced terminals could include the following:

• Material: 45 Steel
• Hi-pot: 3000v leak current ≤ 0.5MA
• IR: 1000V IR > 1000MΩ
• Leak Test: 4MPa N2 pressure No leak
• Burst Test: 5MPa No leak
• Operating Temperature Range: -70°C - 300°C

Features:

• Product Name: Hermetic Compressor Terminals
• Mounting Type: Terminal Fixation-bolts
• Surface Treatment: Electroless Nickel Plating
• Current: 10A - 30A
• Voltage Rating: 72V - 810V
• Temperature Range: -70℃~+300℃
• Application: auto shop air compressor, electric air compressor, industrial portable air compressor

Technical Parameters:

All the products of the company are with environmentally friendly electroless nickel plating method with coating thickness range from 3 microns to 5 microns. This kind of nickel coating does not involve any harmful elements such as mercury, lead, cadmium and hexavalent chromium. It is compliant with the EU standards and has also passed the environmental testing from SGS. It serves as an efficient electrical connection.

Applications:

Hermetic Compressor Terminals, produced by SSCore, are made with 45Steel and electroless nickel plating to provide superior corrosion resistance. The terminals are designed for a range of voltage ratings from 72V to 810V, and they can withstand temperatures ranging from -70°C to +300°C. The terminals are designed with a terminal fixation-bolts mounting type, making them suitable for use in a variety of applications, including auto shop air compressors, dental air compressors, and other industrial equipment. The terminals are certified by IATF16949 and come with a minimum order quantity of 5 pieces. Prices range from 10 to 40 ¥ per piece, and the product is packaged in a vacuum package for safe delivery. Supply capacity is 50w pieces per month, and payment terms include L/C, D/A, T/T, and D/P. Delivery time is 7 to 14 work days.

Customization:

Support and Services:

At Hermetic Compressor Terminals, we provide our customers with comprehensive technical support and service. We have a team of experienced technicians available to answer any questions you may have. Our customer service team is available 24 hours a day, 7 days a week to assist you with any issue. We can provide technical advice and assistance with installation, maintenance, and repairs. We also offer on-site maintenance and repair services if needed. We take pride in our customer service and strive to provide our customers with the best service possible.
