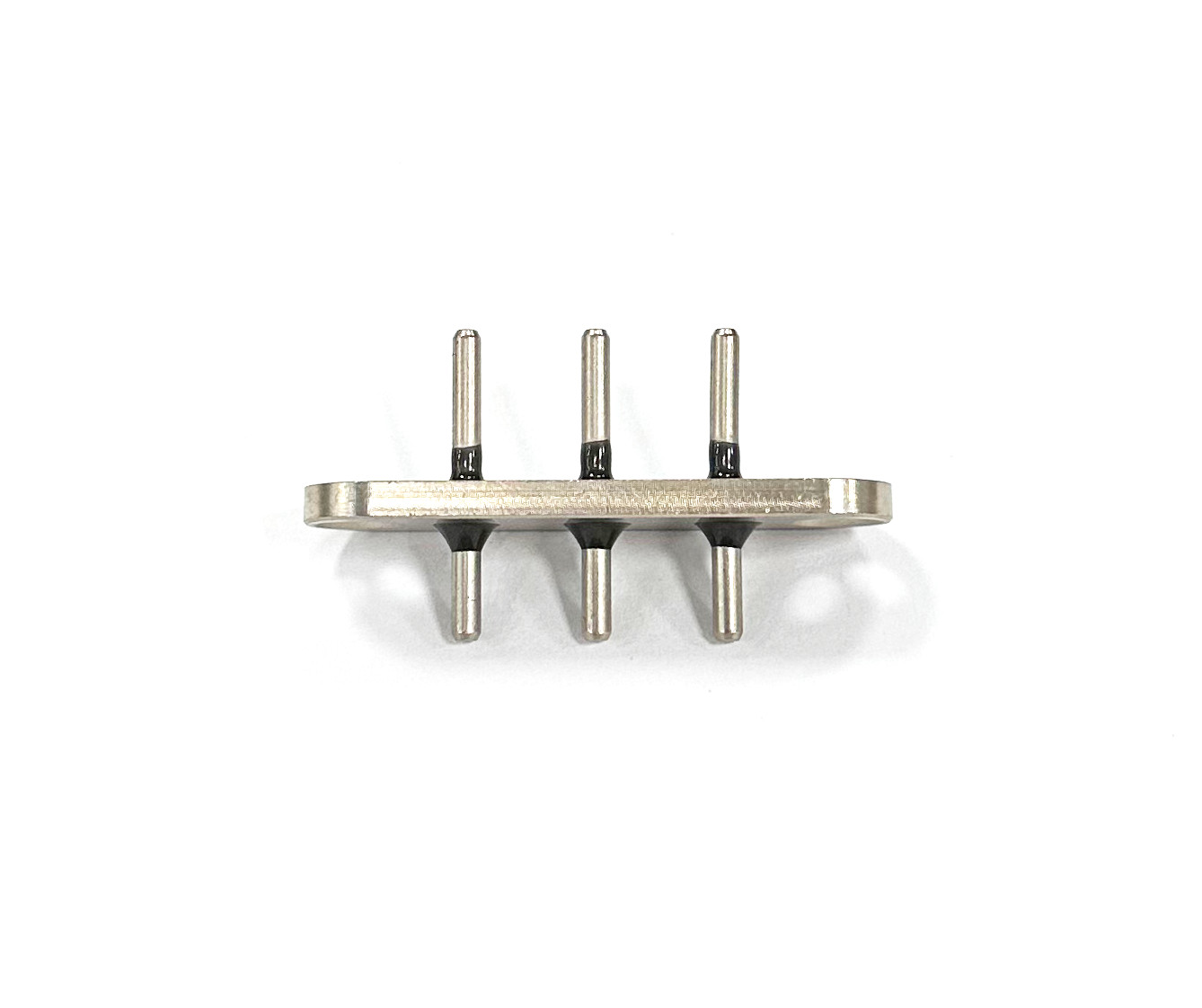

High-Performance Hermetically Sealed Terminal For Extreme Temperature Environments
Product Description:
Customizing Sintered Seal Terminals
At our production site, we are able to customize different types of sintered seal terminals according to customer requirements. The performance parameters of the terminals we produce are the following:
- Material: 45 Steel
- Hi-pot: 3000V leak current is less than 0.5MA
- IR: 1000V IR is greater than 1000MΩ
- Leak Test: 4MPa N2 pressure has 0 leak
- Burst Test: 5MPa has 0 leak
- Operating Temperature Range: -70°C - 300°C
We believe that terminals with our quality should be able to meet or exceed most customer needs.
Features:
- Product Name: Hermetically Sealed Terminal
- Hermetically Sealed Construction: Impact Resistance of 200N, Dielectric Strength of 3500VAC, Insulation Resistance of 1000MΩ, Voltage Rating of 1000V, and Temperature Rating of -70°C - 300°C
- Hermetically Sealed Interface: Impact Resistance of 200N, Dielectric Strength of 3500VAC, Insulation Resistance of 1000MΩ, Voltage Rating of 1000V, and Temperature Rating of -70°C - 300°C
- Hermetically Sealed Control: Impact Resistance of 200N, Dielectric Strength of 3500VAC, Insulation Resistance of 1000MΩ, Voltage Rating of 1000V, and Temperature Rating of -70°C - 300°C
Technical Parameters:
Our company provides an environmentally friendly electroless nickel plating method, with a coating thickness of 3-5 microns. None of our products contain hazardous substances, such as mercury, lead, cadmium and hexavalent chromium, and they meet EU standards for environmental protection. In addition, SGS provides a comprehensive environmental testing report.
Our electroless nickel plating method is perfect for electrical connections, providing long-term reliability and stability.Our nickel-plated product will not corrode under normal usage even when exposed to extreme environmental conditions, while electrical performance is rarely affected.
Applications:
SSCore Hermetically Sealed Terminal is a device designed for hermetically sealed control, kit, interface and terminal applications. It is made of 45 steel with a dielectric strength of 3500VAC, current rating of 20A-30A and insulation resistance of 1000MΩ, and its temperature rating is -70°C to 300°C. It is certified by IATF16949 and originates from Shenzhen, China. The minimum order quantity is 5 pcs, and the price range is 10-40 RMB. The packaging is vacuum package, delivery time is 7-14 workdays, and payment terms are L/C, D/A, T/T, D/P. The supply ability is up to 50W pieces a month.
Customization:
Hermetically Sealed Terminal
Brand Name: SSCore
Place of Origin: ShenZheng
Certification: IATF16949
Minimum Order Quantity: 5 pcs
Price: 10 - 40 $
Packaging Details: vacuum package
Delivery Time: 7 - 14 work days
Payment Terms: L/C, D/A, T/T, D/P
Supply Ability: 50w pieces a month
Dielectric Strength: 3500VAC
Insulation Resistance: 1000MΩ
Salt Spray Resistance: 48h The Rusted Area < 5%
Material: 45 Steel
Temperature Rating: -70°C - 300°C
Hermetically Sealed Terminal Features:
- Hermetically Sealed Interface
- Hermetically Sealed Equipment
- Hermetically Sealed Connectors
- Hermetically Sealed Switches
Support and Services:
Hermetically Sealed Terminal Technical Support and Service
We provide technical support and service for our Hermetically Sealed Terminal. Our technical support team is available to answer any questions you may have about installation, operation, maintenance and troubleshooting. We also offer regular maintenance services to ensure the optimal performance of your Hermetically Sealed Terminal.
If you need help with any of the above, please contact us at support@example.com. Our technical support team will be happy to assist you.
