Features

Specifications

WORKING TEMPERATURE: -40°C ~ + 150°C

CURRENT: 25A-30A

INSULATION: 1000MΩ @ 1000VDC

CERAMIC MATERIALS: 95% AL2O3

THICKNESS: 3~5 μm

Highlight:

Bimetallic Tinned Welding Sheets Sealed Terminal

30A Sealed Terminal

Basic Infomation

Place of Origin: China

Brand Name: SSCOre

Certification: ISO9001/ISO1400

Model Number: 41-X0711

Payment & Shipping Terms

Gallery

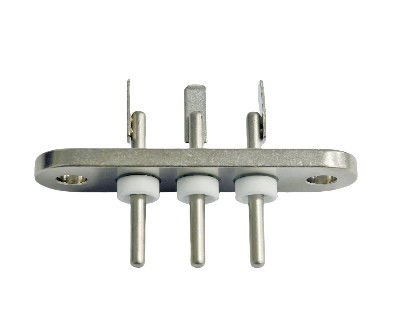

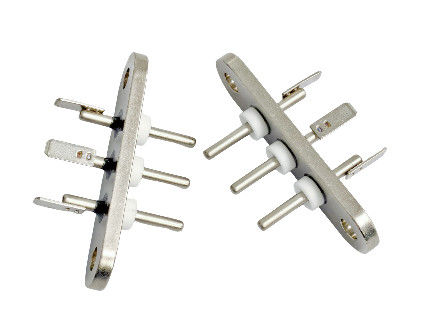

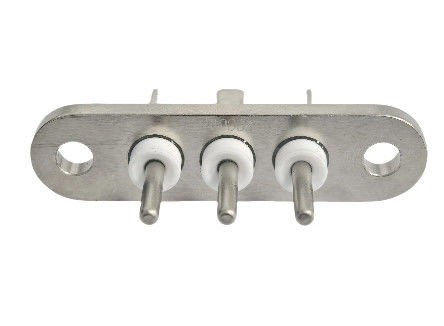

30A Sealed Terminal with Bimetallic Tinned Welding Sheets -40°C 150°C Two Oppositely Oriented Solder Joints

Product Description

This meticulously engineered product is a result of combining top-notch materials. The body, crafted from 45 Steel, provides a sturdy and reliable foundation, ensuring durability in various operating conditions. The SUH446 stainless steel pins are designed not only to offer excellent corrosion resistance but also to maintain seamless electrical conductivity. The ELAN #48 glass and 95% AL2O3 ceramic play crucial roles in enhancing insulation and heat resistance respectively, safeguarding the overall integrity of the product. The SPCC TAB, with nickel plating, serves as an efficient electrical connection interface. It is purpose-built to meet the demanding requirements of multiple industries, guaranteeing reliable performance over an extended period.

Features

Feature	Description
Sealing Area Integrity	Stringent inspection ensures the sealing area is free from scratches, cracks, and burrs. This pristine condition is vital to prevent any potential leakage or compromise in the product's performance, safeguarding its functionality.
High Insulation Resistance	Undergoes a static check of 1000MΩ @ 1000VDC for insulation resistance. This high level of resistance effectively isolates electrical currents, minimizing the risk of short circuits and ensuring stable operation in electrical systems.
Superior Hi-Pot Performance	Withstands a static check of 3000VAC for 1 second, with a maximum leakage current of 0.5mA and no breakdown or flashover. This remarkable ability to handle high voltages makes it suitable for applications where voltage spikes are common, providing enhanced safety and reliability.
Leak-Proof Design	Successfully passes a 4 MPa N2 pressure leak test, demonstrating its airtight integrity. This feature is essential for applications involving gas or fluid containment, preventing any unwanted leakage that could lead to system failures.
Robust Tab Welding	The TAB welding strength is tested to a minimum torque of 0.98N.m, ensuring it remains firmly attached and shedding is not allowed. This reliable connection is crucial for maintaining continuous electrical conductivity and preventing disruptions in the circuit.
Surface Protection	Except for the TABS, the product features electroless nickel plating with a thickness of 3 - 5 μm. This plating not only gives an appealing finish but also significantly enhances corrosion resistance and surface hardness, prolonging the product's lifespan.

Technical Parameters

Body Material: 45 Steel
Pins Material: SUH446 Stainless Steel
Glass Type: ELAN #48
Ceramic Composition: 95% AL2O3
TAB Material: SPCC, nickel plated
Insulation Resistance: 1000MΩ @ 1000VDC
Hi-Pot: 3000VAC, 1 second, 0.5mA max. leakage current
Leak Test Pressure: 4 MPa
Tab Welding Strength: Torque 0.98N.m min.
Maximum Current: 30A
Normal Working Current: 25A
Temperature Rise: Less than 40°C
Working Temperature: -40°C to +150°C

30A Sealed Terminal with Bimetallic Tinned Welding Sheets -40°C 150°C Two Oppositely Oriented Solder Joints 0

Applications

This product finds extensive use in diverse industries. In the automotive sector, it can be integrated into engine control units, power distribution modules, and other electrical systems, thanks to its ability to withstand high temperatures and provide reliable electrical connections. In industrial automation, it is suitable for control panels, robotics, and manufacturing equipment, where its high insulation and voltage resistance are essential for smooth operation. Additionally, it can be applied in power generation and distribution systems, safeguarding against power surges and maintaining stable power flow.

Customization

We understand that every customer has unique requirements. Our team of experts is dedicated to providing customization services. Whether it's altering the dimensions to fit specific installation spaces, modifying the material composition to meet specialized performance needs, or adjusting the technical parameters for optimal functionality, we work closely with you to develop a tailor-made solution.

Support and Services

Technical Support: Our experienced technical team is available to offer comprehensive assistance. From providing installation guidance to troubleshooting any issues, we ensure you can make the most of our product.
Warranty: We offer a warranty period to cover any manufacturing defects or performance issues. If you encounter any problems during this time, we will promptly address them to your satisfaction.
After-Sales Service: Our commitment extends beyond the sale. We provide long-term after-sales service, including maintenance advice, replacement parts availability, and assistance with any upgrades or modifications to keep your product performing at its best.

Packing and Shipping

Packing: The product is carefully packaged using anti-static and shock-absorbing materials. This protects it from damage during transit, ensuring it arrives in perfect condition.
Shipping: We collaborate with reliable shipping carriers to offer a variety of shipping options. Whether you need expedited delivery for time-sensitive projects or cost-effective standard shipping, we can meet your delivery requirements.

FAQ

Q: What is the material of the body?
A: The body is made of 45 Steel.
Q: What is the insulation resistance test specification?
A: Static check 1000MΩ @ 1000VDC.
Q: Does the product come with a warranty?
A: Yes, we offer a warranty period for manufacturing defects and performance issues.
Q: Can the product be customized?
A: Absolutely. Our team can customize it according to your specific needs
