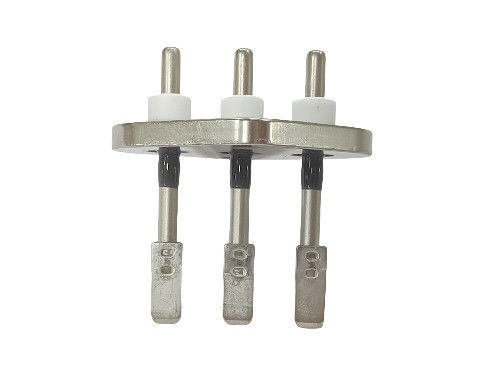

Product Overview

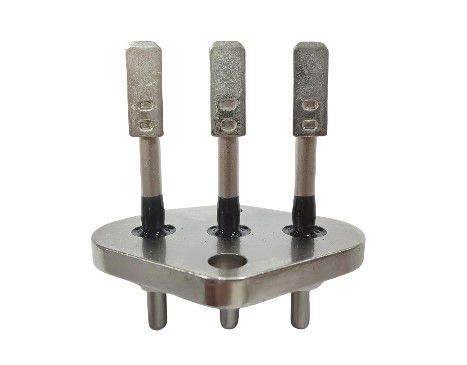

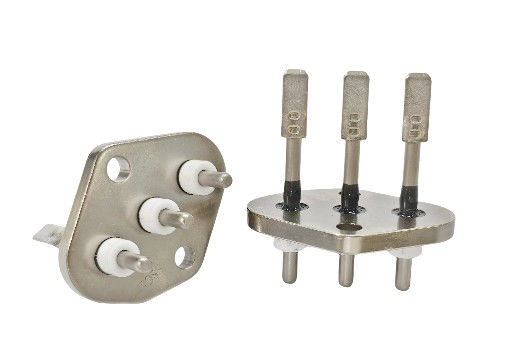

Component Materials

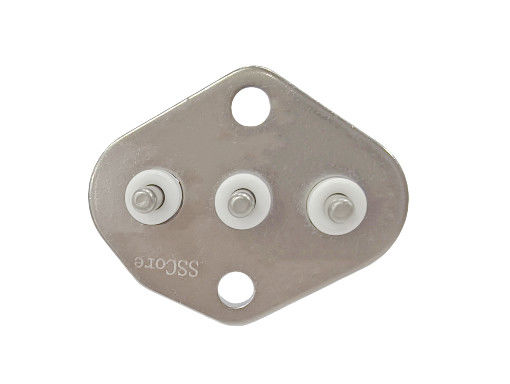

• Plate: Composed of SAPH440, this material offers a firm and stable foundation. Its excellent mechanical properties enable it to endure significant stresses, ensuring the product's structural integrity.
• Pin: Engineered with SUH446 and a copper core in a 2:1 ratio, it combines the corrosion resistance of stainless steel with the enhanced electrical conductivity provided by copper. This unique combination is essential for efficient power conveyance within the electrical system.
• Glass: The ELAN #48 glass is incorporated for its outstanding insulating properties. It forms a reliable barrier against electrical leakage, safeguarding the integrity of the circuitry and preventing potential short circuits.
• Ceramic: Made of 95% AL2O3 and featuring a pristine white color, the ceramic component not only exhibits remarkable heat resistance but also adds an aesthetic touch. It allows the product to function optimally in a wide temperature range.
• TAB: Constructed from SPCC, the TABS have a specialized coating on each of their four faces. This coating configuration is designed to ensure reliable electrical connections while maintaining durability over time.

Key Features

1. Geometric Precision
   • Unless otherwise stipulated, the product's geometries are centered and symmetrical. This symmetry is crucial for balanced performance and seamless integration into complex assemblies.
   • Every edge is meticulously chamfered with a maximum of C0.3 and is burr-free. This design detail enhances safety during handling and installation, minimizing the risk of damage to adjacent components.
2. Electrical Performance
   • Insulator Resistance: It surpasses the insulator resistance test with a remarkable >5000MΩ@1000VDC. Conducted under controlled environmental conditions of 23 ± 5°C and 50 ± 20% humidity, this high resistance level guarantees excellent electrical isolation.
   • Voltage Resistance: Capable of withstanding 3500VAC at 50Hz for 2 seconds, with a maximum leakage current of 1mA and no breakdown or flashover. This robustness makes it suitable for high-voltage applications.
3. Sealing Integrity
   • Leak Test: Successfully endures a leak test at 2.9 MPa with a 70% N2 and 30% Helium mix. This airtight integrity is vital for applications where gas containment is of utmost importance.
   • Burst Test: Can withstand a burst test pressure of 5.2 MPa without any leakage, further attesting to its robust construction and reliability in pressurized environments.
4. Surface Finish
   • Except for the TABS, the product features a nickel plated finish with a thickness of 2 - 5μm. This plating provides enhanced corrosion resistance and a smooth, professional appearance.

Technical Specifications

Application Areas

Customization Options

Support and After-Sales Service

• Technical Support: Our team of experts is readily available to offer installation guidance, troubleshoot any issues, and address all your technical queries.
• Warranty: We stand behind our product with a comprehensive warranty period. Should any manufacturing defects or performance issues arise, we'll take prompt action to rectify the situation.
• After-Sales Service: Committed to your long-term satisfaction, we provide maintenance advice, supply replacement parts when needed, and assist with any upgrades to keep your product performing at its peak.

Packaging and Shipping

• Packaging: The product is carefully encased using anti-static and shock-absorbing materials. This protective packaging ensures it arrives at your destination in pristine condition, free from any transit damage.
• Shipping: We've partnered with reliable shipping carriers to offer a range of shipping options. Whether you require expedited delivery for a time-sensitive project or a more cost-effective standard shipping method, we can accommodate your needs.

Frequently Asked Questions

• Q: What is the material of the plate?
  A: The plate is made of SAPH440.
• Q: What is the insulator resistance test specification?
  A: >5000MΩ@1000VDC under 23 ± 5°C and 50 ± 20% static humidity.
• Q: Does the product come with a warranty?
  A: Yes, we offer a warranty period for manufacturing defects or performance issues.
