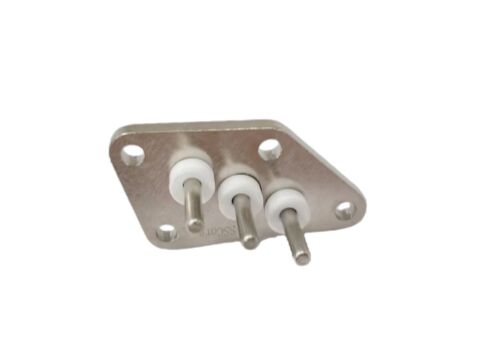

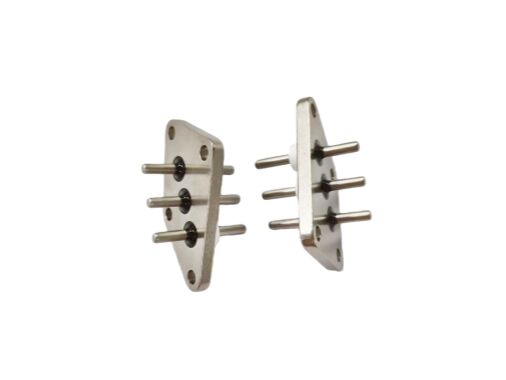

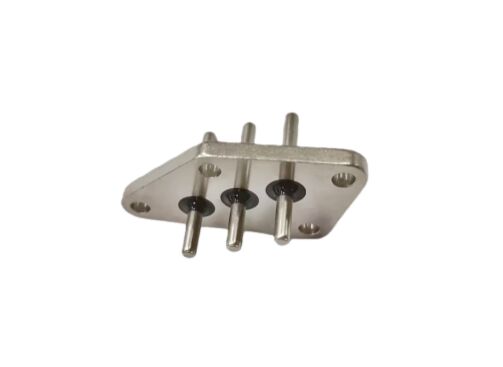

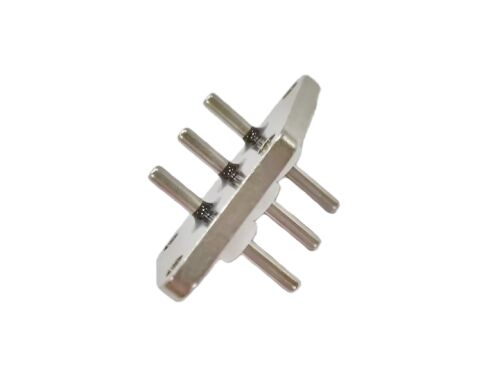

Insulation Resistance 1000MΩ Hermetic Electric Vehicle Connector Suitable for Temperature Range Minus 40°C To 150°C Durable

Product Description:

The Hermetic EV Connector is a cutting-edge solution designed to meet the rigorous demands of modern electric vehicle (EV) applications. Engineered with precision and durability in mind, this connector offers exceptional sealing performance, ensuring a reliable and leak-proof connection under the most challenging conditions. With a rated sealing pressure of 4.0MPa, the Hermetic EV Connector guarantees that no leakage occurs, maintaining the integrity of the electrical system and protecting sensitive components from environmental contaminants such as moisture, dust, and dirt.

Constructed from high-grade SUH446 stainless steel, the Hermetic EV Connector boasts outstanding corrosion resistance, mechanical strength, and longevity. This premium material selection ensures that the connector performs optimally in harsh environments, including exposure to chemicals, temperature fluctuations, and physical wear. The SUH446 stainless steel body not only provides robustness but also contributes to the overall safety and reliability of the electrical connection in electric vehicles.

Designed to operate efficiently over a wide temperature range from -40°C to 150°C, the Hermetic EV Connector is suitable for use in diverse climatic conditions, from freezing cold winters to hot summer days. This extensive temperature tolerance makes it an ideal choice for automotive manufacturers aiming to deliver vehicles that perform consistently and reliably across different geographical regions and weather conditions.

With a maximum current rating of 30A, the Hermetic EV Connector supports high power transfer requirements typical of EV charging and power distribution systems. This capability ensures efficient energy flow and minimizes power loss, contributing to faster charging times and optimized vehicle performance. The connector features three contacts, carefully designed to provide secure electrical connections while maintaining compactness and ease of integration within the vehicle’s electrical architecture.

The Hermetic EV Connector is also known as the Hermetic Automobile Port or Hermetic EV Port, reflecting its specialized application in electric vehicles and automotive systems. These ports are critical components that facilitate safe and efficient electrical connections between the vehicle and external charging infrastructure or internal power modules. Their hermetic sealing capabilities help to prevent corrosion and electrical faults, thereby enhancing the overall safety and reliability of the vehicle’s electrical system.

In addition to its technical merits, the Hermetic Automobile Port is designed with user convenience and installation efficiency in mind. Its robust construction and precise engineering simplify the assembly process, reduce maintenance requirements, and extend the service life of the vehicle’s electrical connections. This makes it an indispensable component for manufacturers and engineers striving to develop next-generation electric vehicles with superior performance and durability.

Overall, the Hermetic EV Connector stands out as a high-performance, reliable, and durable solution tailored for the evolving needs of the electric vehicle industry. Its combination of high sealing performance at 4.0MPa, premium SUH446 stainless steel construction, wide operating temperature range, 30A maximum current capacity, and three-contact design positions it as a leading choice for automotive applications. Whether referred to as a Hermetic Automobile Port or Hermetic EV Port, this connector embodies the future of secure and efficient electrical connectivity in electric vehicles.

Features:

• Product Name: Hermetic EV Connector
• Material: Hermetic Material ensuring durability and reliability
• Maximum Current: Supports up to 30A for efficient power delivery
• High Sealing Performance: Withstands 4.0MPa without any leakage
• Insulation Resistance: Excellent insulation with 1000MΩ resistance
• Number of Contacts: 3 contacts for secure electrical connection
• Designed as a Hermetic Vehicle Port for enhanced protection
• Functions as a Hermetic Automobile Port, suitable for automotive applications
• Serves as a reliable Hermetic Automobile Connector in electric vehicles

Technical Parameters:

Applications:

The Sscore Hermetic EV Connector is specifically designed to meet the rigorous demands of modern electric vehicle applications, ensuring reliability and safety in various automotive scenarios. As a high-quality Hermetic Automobile Connector, it is crafted from SUH446 stainless steel and hermetic material, providing exceptional durability and resistance to harsh environmental conditions. With a certification of IATF16949, this connector guarantees compliance with stringent automotive industry standards.

Ideal for use in electric vehicles, the Hermetic EV Connector offers a maximum current capacity of 30A and features 3 contacts, making it suitable for power and signal transmission in EV powertrains and battery management systems. Its high sealing performance can withstand pressures up to 4.0MPa without leaking, ensuring reliable operation even in extreme conditions such as high humidity, dust, and vibration commonly encountered in automotive environments.

The Hermetic Automobile Connector is perfect for various application occasions including electric vehicle charging stations, onboard vehicle power modules, and motor control units. It is also well-suited for use in hybrid vehicles and other automotive electronic systems that require airtight and robust electrical connections to maintain performance and safety.

Sscore offers this Hermetic EV Connector with a minimum order quantity of 5 pieces, priced between 10 to 40 ￥ per unit, making it accessible for both small-scale projects and large production runs. The product is packaged carefully using Cato packing to ensure safe delivery, with a typical delivery time frame of 7 to 14 workdays. Payment terms are flexible, accepting L/C, D/A, T/T, and D/P methods to accommodate various customer preferences.

With a strong supply ability of 50,000 pieces per month, Sscore ensures consistent availability to meet industrial demands. Whether you are integrating the connector into new electric vehicle designs or replacing components in existing systems, the Sscore Hermetic Automobile Connector stands out as a reliable, certified, and high-performance solution for all your automotive electrical connection needs.

Customization:

Introducing the Sscore Hermetic Electric Vehicle Connector, a premium quality Hermetic Electric Vehicle Port designed to meet the highest industry standards with IATF16949 certification. Manufactured using durable SUH446 stainless steel and hermetic material, this Hermetic Automobile Port ensures exceptional insulation resistance of 1000MΩ and supports a maximum current of 30A.

With a high sealing performance rated at 4.0MPa, the connector guarantees no leaks, providing reliable and secure connections for electric vehicles. The product is available with a minimum order quantity of 5 pieces, priced competitively between 10 to 40 ￥ per unit, and packaged securely in Cato packing.

We offer a supply ability of 50,000 pieces per month, with a delivery time ranging from 7 to 14 work days. Flexible payment terms including L/C, D/A, T/T, and D/P make the purchasing process convenient. Customize your Hermetic Electric Vehicle Connector today to enhance your electric vehicle systems with superior performance and reliability.

Support and Services:

Our Hermetic EV Connector is designed to provide reliable and secure connections for electric vehicle charging applications. For technical support, please refer to the product manual included with your purchase, which contains detailed installation instructions, specifications, and troubleshooting tips.

If you experience any issues with the Hermetic EV Connector, ensure that all connections are properly tightened and that the connector is compatible with your EV charging system. Regular maintenance, such as cleaning the connector contacts and inspecting for wear or damage, will help maintain optimal performance.

For advanced technical assistance, we offer expert support services including product diagnostics, repair guidance, and replacement part sourcing. Our technical team is equipped to help with integration, customization, and resolving any operational concerns to ensure your EV charging setup functions seamlessly.

Additionally, we provide comprehensive warranty coverage and service plans tailored to protect your investment in the Hermetic EV Connector. Please consult your warranty documentation for detailed terms and conditions.

For software updates or firmware upgrades related to smart features of the Hermetic EV Connector, please refer to our online resources and support portal. Keeping your connector's software up to date ensures compatibility with the latest EV models and charging standards.

Packing and Shipping:

The Hermetic EV Connector is carefully packaged to ensure maximum protection during transit. Each connector is sealed in an anti-static, moisture-resistant bag and cushioned within a custom-designed foam insert to prevent any damage from shocks or vibrations.

The packaging box is made from durable, recyclable cardboard with clear labeling to facilitate easy handling and identification. All necessary installation accessories and user manuals are included within the package.

For shipping, the Hermetic EV Connector is securely placed in a sturdy outer carton, with additional padding to safeguard against external impacts. The shipment is handled by trusted carriers, with tracking and insurance options available to guarantee safe and timely delivery to the customer.

FAQ:

Q1: What certification does the Sscore Hermetic EV Connector have?

A1: The Sscore Hermetic EV Connector is certified with IATF16949, ensuring high quality and reliability standards.

Q2: What is the minimum order quantity for the Hermetic EV Connector?

A2: The minimum order quantity for the Hermetic EV Connector is 5 pieces.

Q3: What is the price range for the Sscore Hermetic EV Connector?

A3: The price range for the Hermetic EV Connector is between 10 to 40 ￥ per piece, depending on the specifications and order quantity.

Q4: How is the Hermetic EV Connector packaged?

A4: The connectors are packaged using Cato Packing to ensure safe and secure delivery.

Q5: What are the payment terms accepted for purchasing the Hermetic EV Connector?

A5: Sscore accepts various payment terms including L/C (Letter of Credit), D/A (Documents Against Acceptance), T/T (Telegraphic Transfer), and D/P (Documents Against Payment).

Q6: What is the typical delivery time for orders of the Hermetic EV Connector?

A6: The delivery time for orders is typically between 7 to 14 working days.

Q7: What is the monthly supply capacity for the Sscore Hermetic EV Connector?

A7: Sscore can supply up to 50,000 pieces of the Hermetic EV Connector per month.
