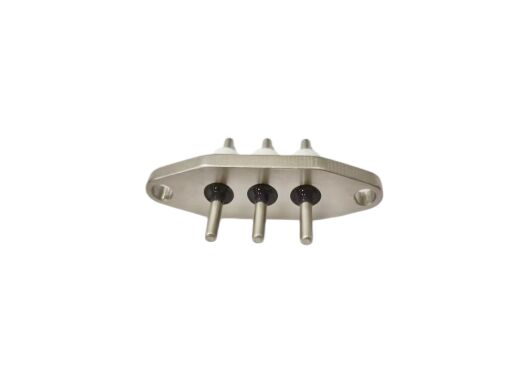

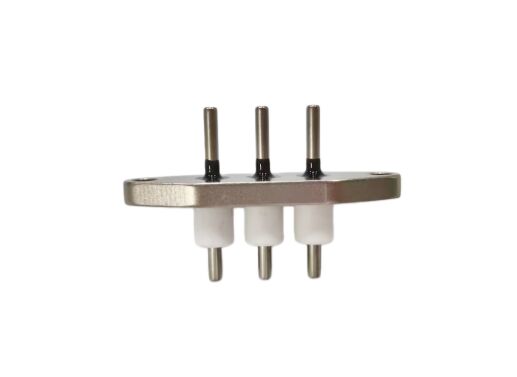

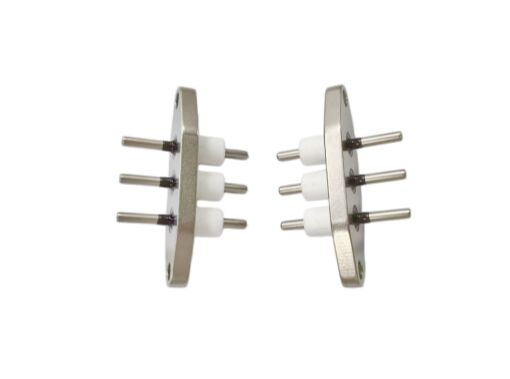

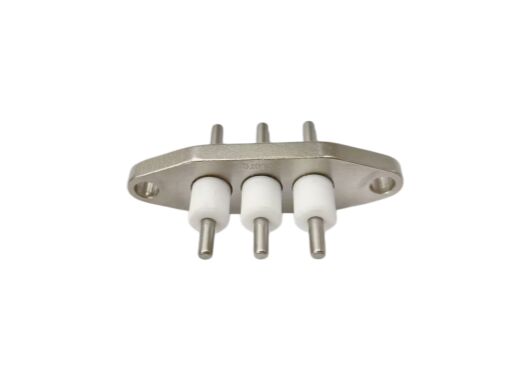

C45 Plate Materials Hermetic Electric Vehicle Connector Providing Insulation 500MΩ at 500VDC Ensuring Electric Vehicle Connections

Product Description:

The Hermetic EV Connector is a high-performance electric vehicle connector designed to meet the rigorous demands of modern automotive applications. Engineered specifically for use as a hermetic automobile port, this connector ensures exceptional reliability and durability in a wide range of environmental conditions, making it an ideal choice for electric vehicle manufacturers and service providers seeking robust and long-lasting connectivity solutions.

One of the standout features of this Hermetic Electric Vehicle Port is its impressive working temperature range, which spans from -40°C to +150°C. This wide thermal tolerance guarantees stable operation in extreme cold and heat, ensuring consistent electrical performance regardless of climate or operating environment. Whether deployed in frigid winters or scorching summer conditions, the Hermetic EV Port maintains optimal functionality, providing peace of mind for users and engineers alike.

Insulation performance is another critical aspect of this connector's design. With an insulation resistance of 500MΩ at 500VDC, the Hermetic EV Connector offers excellent electrical isolation, preventing leakage currents and enhancing safety during vehicle operation. This high level of insulation is essential for maintaining the integrity of the electrical system, reducing the risk of short circuits, and ensuring the efficient transfer of power within the vehicle’s charging infrastructure.

The pins within the Hermetic Electric Vehicle Port are constructed from SUH446 material combined with a copper core at a ratio of 2:1. This specific composition delivers superior conductivity and mechanical strength, enabling the connector to handle high current loads while resisting wear and corrosion. The use of SUH446 with a copper core ensures that the connector pins remain reliable over extended periods of use, contributing to the overall longevity and performance of the hermetic automobile port.

Corrosion resistance is a vital consideration for any automotive connector, particularly those exposed to harsh environments. The Hermetic EV Connector excels in this regard, featuring a salt spray resistance rating of 48 hours with rusted areas limited to less than 5%. This remarkable resistance to corrosive elements ensures that the Hermetic EV Port maintains its structural integrity and electrical performance even when subjected to salty air, moisture, and other challenging conditions commonly encountered in automotive applications.

As a hermetic automobile port, this connector is designed to provide a sealed interface that prevents the ingress of dust, moisture, and other contaminants. This hermetic sealing capability not only protects the internal electrical contacts but also contributes to the overall safety and reliability of the electric vehicle’s charging system. By maintaining a clean and secure connection, the Hermetic EV Connector helps to optimize charging efficiency and extend the service life of the vehicle’s electrical components.

In summary, the Hermetic EV Connector represents a cutting-edge solution for electric vehicle connectivity, combining a wide operating temperature range, excellent insulation, robust pin materials, and outstanding corrosion resistance. Its hermetic sealing ensures reliable performance in demanding automotive environments, making it a trusted choice for manufacturers and operators seeking to enhance the durability and safety of their electric vehicle ports. Whether referred to as a Hermetic Automobile Port, Hermetic Electric Vehicle Port, or Hermetic EV Port, this connector stands out as an essential component in the evolving landscape of electric mobility.

Features:

• Product Name: Hermetic EV Connector
• Designed as a reliable Hermetic Electric Vehicle Port for secure connections
• Salt Spray Resistance: 48 hours with rusted area less than 5%
• Operating Temperature Range: -40°C to +150°C, suitable for various environments
• Pin Materials: SUH446 with copper cored, ratio 2:1 for enhanced conductivity
• Operation Current: Supports up to 40A for efficient power transmission
• Nickel Plating Thickness: 2 to 4 μm for superior corrosion resistance
• Ensures durability and longevity as a Hermetic Electric Vehicle Port solution

Technical Parameters:

Applications:

The Sscore Hermetic EV Connector, model number 41-X1197, is an advanced Hermetic Electric Vehicle Connector designed specifically for the demanding needs of modern electric vehicles. Certified under IATF16949, this connector ensures top-quality standards in the automotive industry. Its robust construction using C45 plating materials and a thick nickel plating layer of 2~4μm guarantees excellent corrosion resistance and durability, making it ideal for harsh environmental conditions.

One of the key application occasions for the Sscore Hermetic Electric Vehicle Connector is in electric vehicle manufacturing plants, where reliable and high-performance connectors are essential for assembling EV powertrains and battery management systems. The connector’s rated voltage of 1000VDC and its ability to operate in extreme temperatures ranging from -40°C to +150°C make it perfectly suited for use in various electric vehicle components, including battery packs, charging ports, and power distribution modules.

In addition to manufacturing, the Hermetic Automobile Connector is also widely used in EV charging infrastructure. Its hermetic sealing properties ensure that the connector remains watertight and dustproof, providing safe and efficient electrical connections in outdoor charging stations exposed to varying weather conditions. This makes the Sscore Hermetic Automobile Port an ideal choice for public and private EV charging applications where reliability and safety are paramount.

Moreover, the Hermetic Automobile Port finds extensive use in the maintenance and repair of electric vehicles, where replacement connectors must meet stringent quality and performance criteria. Its packaging in cato packing and a supply ability of 50,000 pieces per month ensures availability for large-scale production and aftermarket needs. With a minimum order quantity of 5 pieces and competitive pricing between 10 to 40 ￥, it accommodates both small and large orders efficiently.

The delivery time of 7 to 14 work days combined with flexible payment terms such as L/C, D/A, T/T, and D/P makes procurement straightforward and convenient for businesses. Overall, the Sscore Hermetic Electric Vehicle Connector 41-X1197 is an essential component for automotive manufacturers, EV infrastructure developers, and service providers seeking a reliable, high-quality hermetic connector solution for various electric vehicle applications.

Customization:

The Hermetic EV Connector by Sscore, model number 41-X1197, is a high-quality electric vehicle connector designed to meet the rigorous standards of IATF16949 certification. With a rated voltage of 1000VDC, this Hermetic EV Connector ensures reliable and safe electrical connections for electric vehicles under various operating conditions.

Manufactured using durable C45 plate materials and pins made from SUH446 with copper cored in a 2:1 ratio, the Hermetic EV Connector performs efficiently within a wide working temperature range of -40°C to +150°C. This makes it suitable for demanding environments and ensures long-lasting performance.

We offer customization services for the Hermetic EV Connector with a minimum order quantity of 5 pieces. Pricing ranges from 10 to 40 ￥ per piece, depending on the specifications and order volume. Each connector is carefully packaged using Cato packing to ensure safe delivery.

Our supply ability is 50,000 pieces per month, with a delivery time of 7 to 14 work days. Payment terms accepted include L/C, D/A, T/T, and D/P, providing flexibility for our customers. Choose the Hermetic EV Connector from Sscore for a reliable, certified, and customizable electric vehicle connector solution.

Support and Services:

Our Hermetic EV Connector is designed to provide reliable and secure connections for electric vehicle charging systems in all environments. For technical support, please refer to the product manual included with your connector, which contains detailed installation instructions, safety guidelines, and troubleshooting tips.

If you encounter any issues during installation or operation, ensure that all connections are properly sealed and that the connector is compatible with your EV charging system. Regular maintenance, such as inspecting seals and cleaning contact points, will help maintain optimal performance.

We offer comprehensive services including product customization, repair, and replacement under warranty conditions. For detailed service options, please consult the warranty terms provided with your product or visit our official website for additional resources and FAQs.

Our technical support team is ready to assist with any inquiries related to the Hermetic EV Connector’s specifications, compatibility, and performance to ensure your electric vehicle charging setup operates safely and efficiently.

Packing and Shipping:

Product Packaging: The Hermetic EV Connector is securely packaged in a custom-designed, eco-friendly box that provides optimal protection during transit. Each connector is wrapped in anti-static foam to prevent damage from shocks and vibrations. The packaging includes a user manual, installation guide, and necessary mounting accessories, all neatly organized to ensure a seamless unboxing experience.

Shipping: We offer reliable shipping options worldwide with tracking capabilities to ensure timely delivery. The Hermetic EV Connector is shipped in sturdy outer cartons with additional cushioning to safeguard against environmental factors and handling impacts. Expedited and standard shipping services are available, with careful handling protocols followed to maintain the integrity and hermetic sealing of the product throughout the shipping process.

FAQ:

Q1: What is the brand and model number of the Hermetic EV Connector?

A1: The Hermetic EV Connector is branded as Sscore, and its model number is 41-X1197.

Q2: Is the Hermetic EV Connector certified?

A2: Yes, the Hermetic EV Connector is certified with IATF16949 certification.

Q3: What is the minimum order quantity for the Hermetic EV Connector?

A3: The minimum order quantity for this product is 5 pieces.

Q4: What are the payment terms accepted for purchasing the Hermetic EV Connector?

A4: Payment terms accepted include L/C, D/A, T/T, and D/P.

Q5: How long does it take to deliver the Hermetic EV Connector?

A5: The delivery time ranges from 7 to 14 working days after the order is placed.

Q6: What is the pricing range for the Hermetic EV Connector?

A6: The price ranges from 10 to 40 ￥ per piece, depending on the order quantity and specifications.

Q7: What packaging is used for the Hermetic EV Connector?

A7: The product is packaged using Cato Packing to ensure safe delivery.

Q8: What is the monthly supply capacity for the Hermetic EV Connector?

A8: The supplier can provide up to 50,000 pieces per month.
