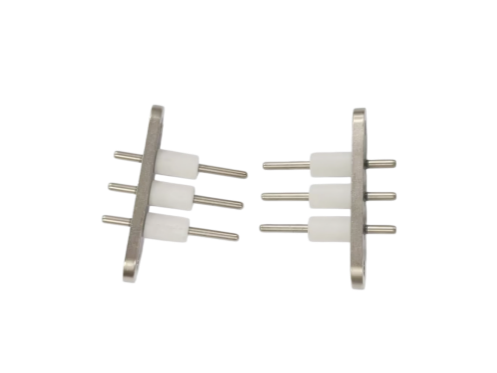

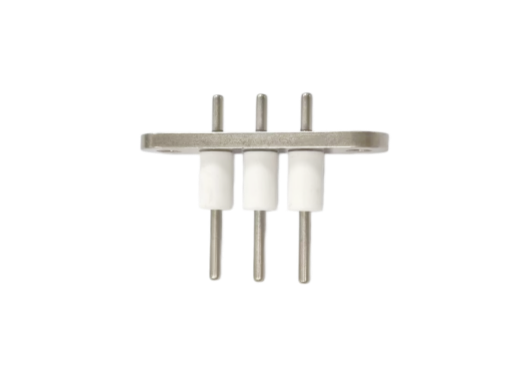

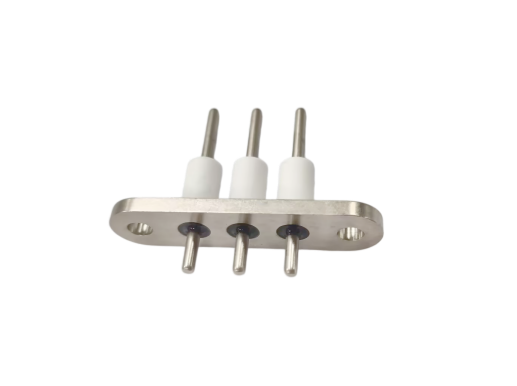

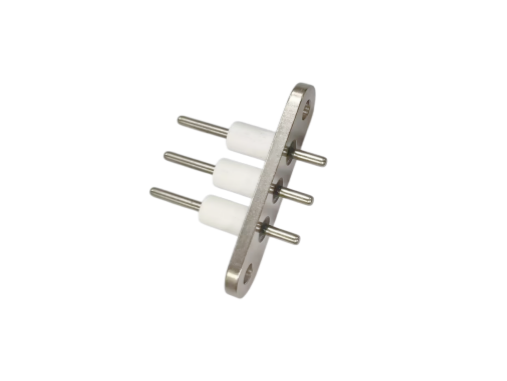

Contact Resistance 1000MΩ at 1000VDC Hermetic Electric Vehicle Connector IP67 Rated Sealed Connector for EV Power Transmission

Product Description:

The Hermetic Electric Vehicle Connector is a state-of-the-art solution designed to meet the demanding requirements of modern electric vehicle (EV) charging systems. Engineered with precision and high-quality materials, this Hermetic EV Connector ensures superior performance, reliability, and safety in various operating environments.

One of the standout features of this Hermetic Electric Vehicle Connector is its exceptional ingress protection rating of IP67. This rating guarantees that the connector is completely dust-tight and can withstand immersion in water up to a depth of one meter for thirty minutes without compromising its functionality. This level of protection makes the Hermetic EV Connector ideal for outdoor applications and harsh environmental conditions, ensuring consistent operation regardless of weather or exposure to contaminants.

Crafted from advanced ceramic materials, the Hermetic EV Connector boasts a ceramic composition of 95% aluminum oxide (Al2O3). This high-purity ceramic provides excellent thermal stability, mechanical strength, and resistance to wear and corrosion. The use of 95% Al2O3 ceramic material significantly enhances the durability and longevity of the connector, making it a reliable component in electric vehicle charging infrastructure where long-term performance is critical.

The insulation system of the Hermetic Electric Vehicle Connector is meticulously designed using a combination of glass and ceramic materials. This dual-material insulation ensures outstanding electrical isolation and thermal resistance, preventing short circuits and maintaining safety during high-current operations. The glass and ceramic insulation materials work synergistically to provide robust protection against electrical faults and temperature fluctuations, contributing to the overall reliability of the connector.

With an operational current rating of 25A, the Hermetic EV Connector is well-suited for handling substantial electrical loads typical in EV charging scenarios. This rating ensures that the connector can efficiently conduct electricity without overheating or degradation, supporting fast and efficient vehicle charging. The 25A operation current capacity strikes a balance between high performance and compact design, making the connector compatible with a wide range of electric vehicle models and charging stations.

Another critical specification of the Hermetic Electric Vehicle Connector is its exceptional contact resistance, measured at 1000MΩ when tested at 1000VDC. This extremely high contact resistance indicates excellent insulation and minimal leakage current, which are vital for maintaining the safety and efficiency of the electrical connection. The low leakage current reduces energy loss and enhances the overall performance of the EV charging system, making the Hermetic EV Connector a dependable choice for both manufacturers and end-users.

In summary, the Hermetic Electric Vehicle Connector combines advanced materials, rigorous engineering, and superior electrical properties to deliver a top-tier connector solution for electric vehicles. Its IP67 ingress protection rating, 95% Al2O3 ceramic construction, glass and ceramic insulation, 25A operational current, and 1000MΩ contact resistance at 1000VDC collectively ensure that this Hermetic EV Connector meets the high standards required in the evolving EV market.

Whether used in residential charging stations, commercial EV infrastructure, or industrial applications, the Hermetic Electric Vehicle Connector provides unmatched reliability, safety, and efficiency. Its robust design and high-performance attributes make it an essential component for advancing electric vehicle technology and supporting the global transition to sustainable transportation.

Features:

• Product Name: Hermetic EV Connector
• Pin Number: 3
• Body Materials: C45
• Temperature Range: -40℃ to +150℃
• Operation Current: 25A
• Insulation Material: Glass and Ceramic
• Designed as a reliable Hermetic EV Port for electric vehicles
• Suitable for use as a Hermetic Vehicle Port ensuring secure connections
• High-quality Hermetic Automobile Connector for enhanced durability and performance

Technical Parameters:

Applications:

The Sscore Hermetic Electric Vehicle Connector is an essential component designed for various demanding applications in the electric vehicle industry. Certified with IATF16949, this connector guarantees high quality and reliability, making it ideal for use in modern electric vehicles where durability and performance are paramount. Its robust construction, utilizing C45 body materials, ensures excellent mechanical strength and longevity under harsh conditions.

This Hermetic Electric Vehicle Connector is perfectly suited for automotive manufacturers and suppliers seeking dependable solutions for electrical connections in electric vehicles. With a pin number of 3 and an operation current rating of 25A, it supports efficient power transmission while maintaining a low contact resistance of 1000MΩ @ 1000VDC, ensuring minimal signal loss and high electrical integrity. Its wide temperature range of -40℃ to +150℃ makes it highly adaptable for both extreme cold and high-temperature environments, which are common in automotive applications.

In terms of application occasions, this Hermetic Automobile Port is ideal for use in battery management systems, charging stations, powertrain components, and onboard electronic modules. It provides a hermetically sealed connection that prevents moisture, dust, and other contaminants from compromising the electrical interface, thus enhancing vehicle safety and reliability. The connector’s design supports seamless integration in electric vehicle assembly lines, making it a preferred choice for original equipment manufacturers (OEMs) and aftermarket service providers.

Supply chain efficiency is another highlight of the Sscore Hermetic Electric Vehicle Connector. With a minimum order quantity of just 5 pieces and a competitive price range of 10 - 40 ￥ per unit, it offers flexibility for both small-scale and large-scale production needs. The product is packaged carefully using Cato Packing to ensure protection during transportation. Customers benefit from a delivery time of 7 to 14 workdays and multiple payment terms including L/C, D/A, T/T, and D/P, facilitating smooth procurement processes.

Thanks to a supply ability of 50,000 pieces per month, the Sscore Hermetic Electric Vehicle Connector meets the demands of high-volume manufacturing while maintaining consistent quality standards. Its application scenarios extend beyond electric vehicles to include hybrid automobiles and other advanced transportation systems requiring reliable, hermetically sealed electric connectors. Overall, this connector is an indispensable component for ensuring robust electrical connections in the evolving landscape of electric mobility.

Customization:

The Hermetic EV Connector by Sscore offers exceptional product customization services tailored to meet your specific requirements. As a certified product under IATF16949, our Hermetic Electric Vehicle Port ensures top quality and reliability for your applications.

We support a minimum order quantity of 5 pieces, making it convenient for both small and large-scale projects. The pricing ranges from 10 to 40 ￥ per unit, depending on the customization options selected.

Packaging is done using Cato Packing to ensure the Hermetic Vehicle Port reaches you in perfect condition. Our efficient supply chain guarantees a delivery time of 7 to 14 work days, supported by flexible payment terms including L/C, D/A, T/T, and D/P.

With a supply ability of 50,000 pieces per month, we can accommodate high-volume orders while maintaining quality. The connector body is made from durable C45 material, complemented by a ceramic component composed of 95% AL2O3 for excellent insulation and heat resistance.

This Hermetic Vehicle Port features 3 pins and offers outstanding electrical performance with a contact resistance of 1000MΩ at 1000VDC. It operates reliably within a temperature range of -40℃ to +150℃, making it suitable for harsh environments.

Choose Sscore’s Hermetic EV Connector for a customizable, high-performance solution that meets your electric vehicle port needs with precision and durability.

Support and Services:

Our Hermetic EV Connector is designed to provide reliable and secure connections for electric vehicle charging applications in harsh environments. For technical support, please ensure that you have the product model number and serial number available before contacting support.

Installation guidance is included in the product manual, which details proper mounting, sealing, and wiring procedures to maintain the hermetic integrity of the connector.

If you encounter any issues with the Hermetic EV Connector, such as connectivity problems, physical damage, or environmental exposure concerns, our technical support team is ready to assist with troubleshooting and repair options.

We also offer maintenance services to ensure the longevity and optimal performance of your Hermetic EV Connector, including inspection, cleaning, and replacement of worn components.

For warranty information and service requests, please refer to the warranty terms provided with your product documentation.

Additional resources such as datasheets, installation guides, and FAQs are available on our website to help you get the most out of your Hermetic EV Connector.

Packing and Shipping:

Product Packaging: The Hermetic EV Connector is carefully packaged to ensure maximum protection during transit. Each connector is individually wrapped in anti-static bubble wrap and placed inside a custom-fitted foam insert to prevent movement and damage. The foam insert is then housed within a sturdy corrugated cardboard box featuring clear labeling and handling instructions. Additionally, desiccant packets are included inside the packaging to protect the product from moisture and humidity.

Shipping: The Hermetic EV Connector is shipped via reliable courier services with tracking and insurance options available. Standard shipping includes secure palletizing for bulk orders to minimize the risk of damage during transport. For international shipments, all necessary export documentation and customs declarations are prepared to ensure smooth delivery. Customers are provided with estimated delivery times and can access real-time tracking information through the shipping carrier’s platform.

FAQ:

Q1: What is the brand name of the Hermetic EV Connector?

A1: The Hermetic EV Connector is manufactured by the brand Sscore.

Q2: Is the Hermetic EV Connector certified?

A2: Yes, it has the IATF16949 certification, ensuring high-quality standards.

Q3: What is the minimum order quantity for this product?

A3: The minimum order quantity for the Hermetic EV Connector is 5 pieces.

Q4: What are the payment terms available for purchasing the Hermetic EV Connector?

A4: Payment terms include L/C, D/A, T/T, and D/P.

Q5: How long does it take to deliver the Hermetic EV Connector?

A5: The delivery time is typically between 7 to 14 working days.

Q6: What is the price range for the Hermetic EV Connector?

A6: The price ranges from 10 to 40 ￥ depending on the specifications and order quantity.

Q7: How many units can be supplied monthly?

A7: The supply ability is 50,000 pieces per month.

Q8: How is the Hermetic EV Connector packaged?

A8: The product is packaged using Cato Packing to ensure safe delivery.
