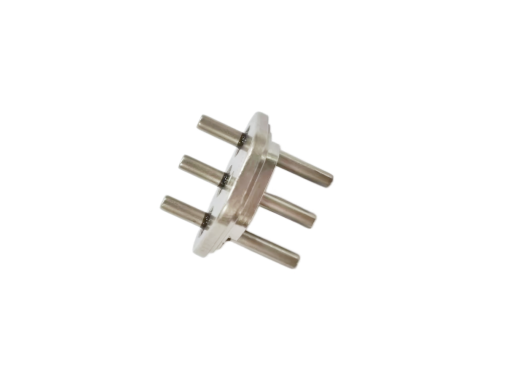

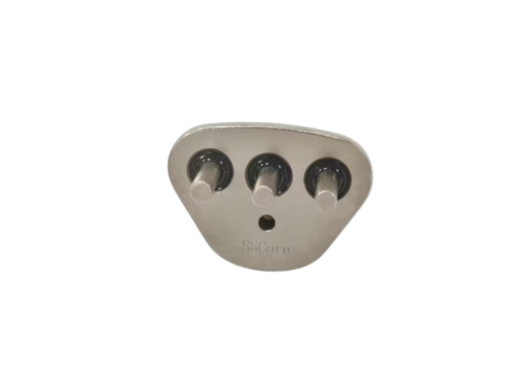

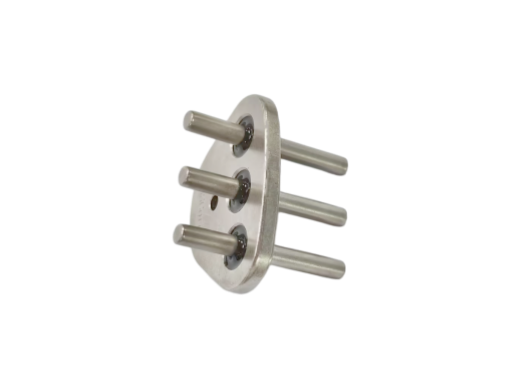

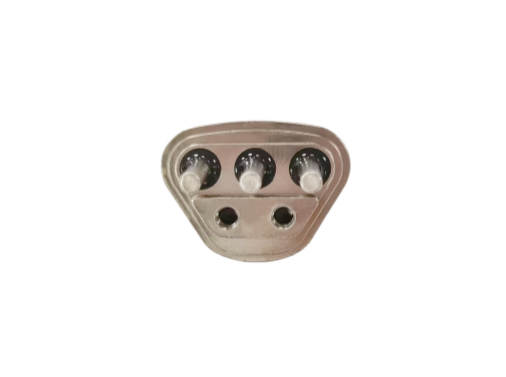

RoHS Certified Hermetic Electric Vehicle Connector Featuring 1000MΩ Insulator Resistance at 500VDC for EV Electrical Connections

Product Description:

The Hermetic EV Connector is a cutting-edge solution designed specifically for electric vehicles, offering unparalleled performance and reliability in demanding automotive environments. Engineered with precision, this Hermetic Automobile Connector ensures a secure and efficient connection that meets the rigorous standards required for modern electric vehicle applications. With an operational current rating of 34A, it is perfectly suited to handle substantial electrical loads, providing consistent power delivery essential for the optimal functioning of electric drivetrains and associated systems.

One of the defining features of this connector is its hermetic terminal connection type. Unlike conventional connectors, the Hermetic EV Connector employs a hermetic sealing mechanism that guarantees airtight and watertight integrity. This design results in exceptional sealing performance, capable of withstanding pressures up to 4.0MPa without any leakage. Such high sealing performance is critical in automotive environments where connectors are exposed to moisture, dust, and other contaminants that could compromise electrical connections and vehicle safety.

The Hermetic Vehicle Port is thoughtfully designed with three contacts, balancing simplicity and functionality. These three contacts provide stable and reliable electrical pathways, ensuring that current flows smoothly without interruption or degradation. This configuration supports efficient power transmission and communication between the electric vehicle’s battery, charging system, and other electronic components. The precise alignment and robust construction of the contacts further enhance the overall durability and longevity of the connector.

In addition to its superior mechanical and electrical properties, the Hermetic EV Connector is certified under the Restriction of Hazardous Substances (RoHS) directive. This certification confirms that the product complies with stringent environmental and safety standards by limiting the use of hazardous materials in its manufacture. For manufacturers and consumers alike, this RoHS compliance provides confidence that the Hermetic Automobile Connector not only performs excellently but also aligns with global sustainability and health regulations.

From an application standpoint, the Hermetic Vehicle Port is ideal for use in electric vehicles, hybrid cars, and other advanced automotive platforms requiring robust, hermetically sealed electrical connections. Its high sealing performance ensures protection against environmental factors such as humidity, dust, and corrosive agents, which are common in automotive settings. This resilience extends the lifespan of both the connector and the vehicle’s electrical system, reducing maintenance needs and enhancing overall vehicle reliability.

Moreover, the Hermetic EV Connector’s design facilitates easy installation and maintenance, making it a preferred choice for automotive engineers and technicians. Its compact form factor, combined with the hermetic sealing and reliable contact arrangement, allows seamless integration into various vehicle architectures without compromising space or performance. This adaptability makes it an essential component in the evolving landscape of electric mobility, where efficiency, safety, and durability are paramount.

In summary, the Hermetic EV Connector stands out as a premium electrical connector solution tailored for electric vehicles. With a 34A operational current capacity, hermetic terminal connection type, and a robust three-contact design, it delivers unmatched reliability and performance. Its exceptional sealing performance up to 4.0MPa ensures no leakage, safeguarding the vehicle’s electrical system from environmental hazards. Certified with RoHS, it meets the highest standards for safety and environmental responsibility. Whether used as a Hermetic Automobile Connector or integrated into a Hermetic Vehicle Port, this product represents the forefront of technology for secure and durable electric vehicle connections.

Features:

• Product Name: Hermetic EV Connector
• Number of Contacts: 3
• Insulator Resistance: 1000MΩ @ 500VDC
• Temperature Range: -40°C to 125°C
• Operation Current: 34A
• Connection Type: Hermetic Terminal
• Designed as a Hermetic Electric Vehicle Port for reliable sealing
• Ideal for use as a Hermetic EV Port in electric vehicle applications
• Ensures secure and durable connections with the Hermetic EV Port design

Technical Parameters:

Applications:

The Sscore Hermetic EV Connector, model number 41-X1199, is an advanced Hermetic Electric Vehicle Port designed to meet the rigorous demands of modern electric vehicles. Certified under IATF16949, this connector guarantees high quality and reliability, making it an ideal choice for automotive manufacturers and suppliers. With a minimum order quantity of just 5 pieces and a price range of 10 - 40 ￥, it offers both affordability and performance. The connector is packaged securely in Cato Packing to ensure safe delivery within 7 to 14 work days, supported by flexible payment terms including L/C, D/A, T/T, and D/P. The supply ability of 50w pieces per month ensures steady availability for large-scale production needs.

This Hermetic Electric Vehicle Port features a hermetic terminal connection type that provides exceptional sealing performance. It maintains a high-pressure seal of 4.0MPa without leakage, making it suitable for environments requiring airtight and waterproof connections. The connector includes three contacts, which are designed to deliver reliable electrical connectivity essential for electric vehicle applications. Its insulator resistance reaches 1000MΩ at 500VDC, ensuring excellent insulation and minimizing electrical faults. Additionally, the product boasts impressive salt spray resistance with less than 5% rusted area after 48 hours, further proving its durability in harsh environmental conditions.

The Hermetic Vehicle Port is perfectly suited for various application occasions and scenarios within the electric vehicle industry. It can be used in EV charging stations, onboard charging systems, battery management systems, and powertrain modules where secure, leak-proof electrical connections are critical. Its hermetic sealing capability makes it ideal for outdoor and marine environments where exposure to moisture, dust, and corrosive elements is common. Additionally, it can be employed in industrial electric vehicle fleets, such as electric buses, delivery trucks, and automated guided vehicles (AGVs), providing reliable power connectivity and safeguarding against environmental contaminants.

In summary, the Sscore 41-X1199 Hermetic EV Connector is a robust and versatile Hermetic Electric Vehicle Port designed to meet the high standards of electric vehicle manufacturers. Its combination of high sealing performance, electrical reliability, and environmental resistance ensures optimal functionality in a wide range of EV applications, making it a vital component in advancing electric mobility technology.

Customization:

The Sscore Hermetic Electric Vehicle Connector, model number 41-X1199, offers exceptional product customization services tailored to meet your specific needs. Certified with IATF16949, this Hermetic Electric Vehicle Connector ensures high quality and reliability for your automotive applications.

With a minimum order quantity of just 5 pieces, you can easily customize the Hermetic Automobile Port to suit your requirements. The connector supports 3 contacts and an operation current of 34A, making it ideal for robust electric vehicle systems.

Featuring high sealing performance with a pressure resistance of 4.0MPa that does not leak, and an insulation material made of glass, this connector operates efficiently within a temperature range of -40°C to 125°C. These attributes guarantee durability and safety in harsh environments.

Our packaging details include secure Cato Packing to ensure that your order arrives safely, with a delivery time ranging from 7 to 14 work days. We support flexible payment terms including L/C, D/A, T/T, and D/P.

With a supply ability of 50,000 pieces per month, Sscore is well-equipped to handle large volume orders while maintaining competitive pricing between 10 to 40 ￥ per piece. Trust our Hermetic Electric Vehicle Connector and Hermetic Automobile Port customization services to deliver high performance and reliability for your electric vehicle projects.

Support and Services:

Our Hermetic EV Connector is designed to provide reliable and safe connections for electric vehicle charging applications. For technical support, please ensure that you have the product model number and serial number available when seeking assistance.

We offer comprehensive installation guides and troubleshooting documentation to help you get the most out of your Hermetic EV Connector. Detailed manuals include step-by-step instructions for proper installation, maintenance recommendations, and safety precautions.

If you encounter any issues during installation or operation, our technical support team is ready to assist you with diagnostics and problem resolution to minimize downtime and ensure optimal performance.

Additionally, we provide repair and replacement services for connectors that do not meet performance standards or have been damaged under normal usage conditions. Warranty terms and conditions apply.

For software updates and firmware upgrades related to the Hermetic EV Connector, please refer to our official website or authorized service centers to ensure compatibility and security.

We are committed to supporting our customers with high-quality service and technical expertise to guarantee the longevity and efficiency of your electric vehicle charging infrastructure.

Packing and Shipping:

Product Packaging: The Hermetic EV Connector is carefully packaged to ensure maximum protection during transit. Each connector is sealed in an anti-static bag to prevent dust and moisture ingress, then securely placed within a custom-molded foam insert. This insert is housed inside a sturdy, corrugated cardboard box designed to absorb shocks and prevent damage. The packaging includes clear labeling with product specifications, handling instructions, and barcode for easy identification and inventory management.

Shipping: The Hermetic EV Connector is shipped using reliable carriers with tracking and insurance options to guarantee safe and timely delivery. We offer multiple shipping methods including standard ground, expedited air freight, and international shipping to accommodate customer needs. All shipments comply with relevant international shipping regulations and are accompanied by the necessary documentation such as commercial invoices and packing lists. Special care is taken to handle the connectors with care, ensuring they arrive in perfect condition ready for installation.

FAQ:

Q1: What is the brand and model number of the Hermetic EV Connector?

A1: The Hermetic EV Connector is branded as Sscore and the model number is 41-X1199.

Q2: Is the Hermetic EV Connector certified?

A2: Yes, the Hermetic EV Connector is certified with IATF16949.

Q3: What is the minimum order quantity for the Hermetic EV Connector?

A3: The minimum order quantity for this product is 5 pieces.

Q4: What are the payment terms available for purchasing the Hermetic EV Connector?

A4: Payment terms include L/C, D/A, T/T, and D/P.

Q5: What is the typical delivery time and packaging details for the Hermetic EV Connector?

A5: The delivery time is usually between 7 to 14 working days, and the product is packaged using Cato Packing.

Q6: What is the price range and supply ability for the Hermetic EV Connector?

A6: The price ranges from 10 to 40 ￥ per piece, with a supply ability of 50,000 pieces per month.
