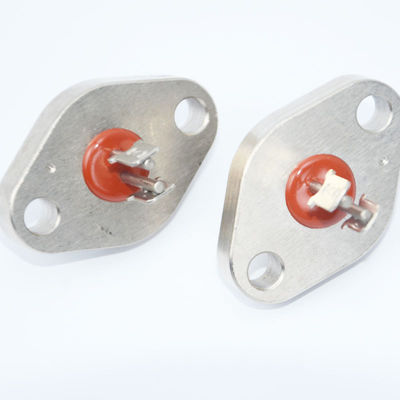

SSCore 45 Steel Hermetic Bulkhead Connector 0.5mm-3.2mm Electroless Nickel
| Mounting Type: | Mounting Screw | Manufacturer: | SSCore |
| Core column: | Φ0.5mm-Φ3.2mm | Product Name: | Hermetic Feedthrough Connectors |
| Contact Plating: | Electroless Nickel | Temperature Rating: | -70°C To 300°C. |
| Connector Type: | Hermetic | Material: | 45 Steel |
| High Light: | Hermetic Bulkhead Connector 45 Steel,3.2mm Hermetic Bulkhead Connector |
||
Product Description:
We are able to manufacture sintered seal terminals according to customer specifications. The performance parameters of the terminals are as follows:
- Material: 45 Steel.
- Hi-pot: 3000v with a leak current of ≤ 0.5MA.
- IR: 1000V, with an IR of > 1000MΩ.
- Leak Test: 4MPa N2 pressure, without any leak.
- Burst Test: 5MPa, with no leak.
- Operating Temperature Range: -70°C to 300°C.
Features:
- Product Name: Hermetic Feedthrough Connectors
- Manufacturer: SSCore
- Connector Type: Hermetic Sealing Connectors
- Temperature Rating: -70°C To 300°C.
- Core column: Φ0.5mm-Φ3.2mm
- Hermetic Connectors System
- Hermetic Seal Connectors
- Hermetic Connectors
- Hermetic Feedthrough Connector
Technical Parameters:
All products of the company are made with environmentally friendly electroless nickel plating method. The coating is applied thinly - 3 to 5 microns - and contains no mercury, lead, cadmium, or hexavalent chromium, thus standing up to EU standards and receiving an SGS environmental testing report.
The electroless nickel coating ensures the product's electrical connections.
Applications:
These sintered joints we provide are mainly used in various sensors. They help serves to seal, insulate and transmit pressure signals. This includes pressure, temperature, and other signals.
This sintered joint provides reliable performance as it can help withstand pressure in order to protect all electronics as well as the people in the area.
Customization:
- Brand Name: SSCore
- Place of Origin: ShenZheng
- Minimum Order Quantity: 5 pcs
- Price: 10 - 60 $
- Packaging Details: vacuum package
- Delivery Time: 7 - 14 work days
- Payment Terms: L/C, D/A, T/T, D/P
- Supply Ability: 50w pieces a month
- Product Name: Hermetic Feedthrough Connectors
- Temperature Rating: -70°C To 300°C.
- Core column: Φ0.5mm-Φ3.2mm
- Material: 45 Steel
- Connector Type: Hermetic
We offer a wide range of specialized Hermetic Feedthrough Terminals, Hermetic Feedthrough Couplers and Hermetic Feedthrough Connectors for your needs.
Support and Services:
We offer a variety of technical support services to help you design, install, and maintain your Hermetic Feedthrough Connectors. Our technical support team is available to provide design advice, installation instructions, troubleshooting tips, and more.
We offer a full range of services for Hermetic Feedthrough Connectors, including repairs, replacements, and upgrades. Our service team can assess any damage or malfunctioning components and provide solutions that will keep your system running smoothly.
