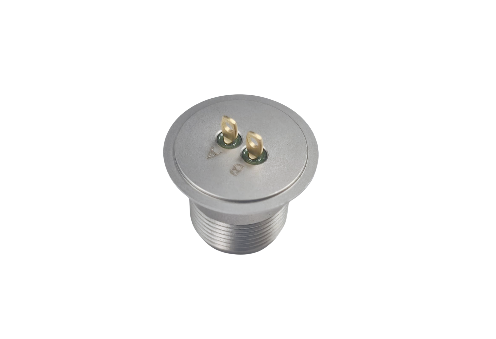

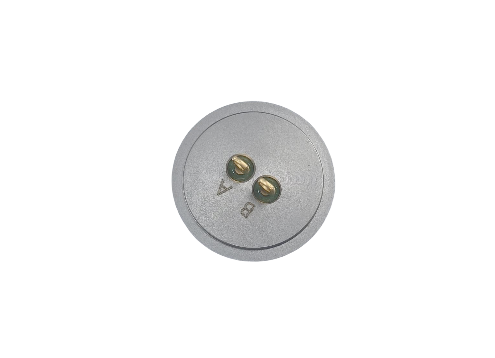

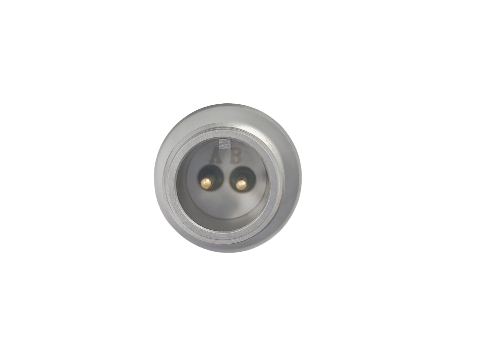

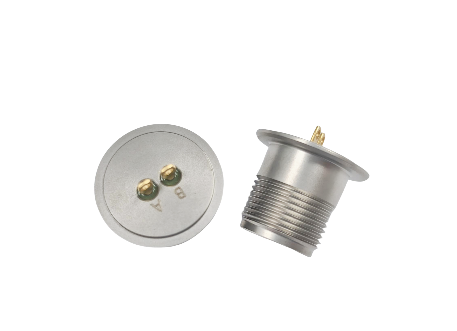

Vacuum To 10 Pressure Range Hermetic Seal Connectors Designed With Mounting Screw For Easy Assembly And Leak Proof Performance

Product Description:

The Hermetic Feedthrough Connectors are precision-engineered components designed to provide reliable electrical connectivity in environments that demand airtight sealing and exceptional durability. These connectors are specifically crafted to maintain their hermetic integrity while allowing electrical signals or power to pass through barriers such as vacuum chambers, pressure vessels, or other sealed enclosures. With a robust design, the Hermetic Feedthrough Connectors ensure optimal performance across a wide range of demanding applications.

One of the standout features of the Hermetic Feedthrough Connectors is their impressive temperature range, operating effectively from -55°C to 125°C. This wide temperature tolerance makes them suitable for use in harsh environments where temperature fluctuations are common, such as aerospace, military, industrial, and scientific research applications. The connectors maintain their sealing and electrical properties even under extreme thermal stress, ensuring consistent and reliable operation.

The connectors utilize a high-quality 4J50 alloy for their pins, a material known for its excellent mechanical strength, corrosion resistance, and electrical conductivity. The use of 4J50 alloy pins enhances the longevity and reliability of the Hermetic Feedthrough Assemblies by minimizing the risk of pin degradation or failure over time. This alloy is particularly well-suited for applications where durability and dependable electrical contact are critical.

Designed as 2 Pin Feedthrough connectors, these components provide a straightforward yet highly effective solution for transmitting electrical signals or power through sealed barriers. The two-pin configuration allows for a balanced and stable connection, which is essential in sensitive electronic systems. Whether used in simple signal transmission or more complex electrical setups, these connectors deliver dependable performance.

Another critical attribute of the Hermetic Feedthrough Connectors is their ability to withstand a broad pressure range, from vacuum conditions up to 10,000 psi. This exceptional pressure tolerance makes them ideal for use in environments where maintaining a hermetic seal is crucial, such as in vacuum chambers, high-pressure vessels, or deep-sea applications. The connectors ensure that the sealed environment remains uncompromised, preventing leaks and contamination while maintaining electrical connectivity.

Hermetic Feedthrough Assemblies, including these connectors, are essential components in systems requiring both electrical isolation and airtight sealing. These assemblies are widely used in medical devices, aerospace instrumentation, semiconductor manufacturing equipment, and defense systems, where failure is not an option. The Hermetic Cable Connectors provide a seamless interface between external wiring and internal electronics, maintaining environmental integrity without sacrificing performance.

In addition to their technical specifications, the Hermetic Feedthrough Connectors are engineered for ease of integration into existing systems. Their compact design and standardized dimensions allow for straightforward installation and replacement. The connectors are manufactured to meet stringent quality standards, ensuring consistency and reliability in every unit.

Overall, the Hermetic Feedthrough Connectors represent a robust and dependable solution for applications requiring secure, hermetically sealed electrical feedthroughs. Their combination of a wide temperature range, durable 4J50 alloy pins, a practical 2-pin configuration, and high-pressure tolerance makes them an excellent choice for engineers and designers seeking reliable Hermetic Feedthrough Assemblies. Whether used as standalone connectors or as part of broader Hermetic Cable Connectors systems, these feedthrough connectors deliver exceptional performance and peace of mind in challenging environments.

Features:

• Product Name: Hermetic Feedthrough Connectors
• Body Materials: 316L Stainless Steel
• Connector Type: 2 Pin Feedthrough
• Glass Materials: Coring 9013
• Compliance Standards: UL, RoHS Compliant
• Provides reliable Hermetic Seal Connectors for secure and airtight connections
• Ideal for use as Hermetic Feedthrough Terminals in various industrial applications
• Designed to function as Hermetic Cable Connectors ensuring durability and performance

Technical Parameters:

Applications:

The SSCore Hermetic Feedthrough Connectors, model number 41-X0990, are precision-engineered components designed to provide reliable and durable electrical connections in demanding environments. These Hermetic Seal Connectors are ideal for applications requiring an airtight and pressure-resistant interface, ensuring signal integrity and protection against harsh conditions. With a robust body made from 316L stainless steel, they offer exceptional corrosion resistance and mechanical strength, making them suitable for use across a wide temperature range from -55°C to 125°C.

These Hermetic Feedthrough Devices excel in scenarios where maintaining a vacuum or high-pressure environment is critical. They are capable of withstanding pressures from vacuum levels up to 10,000 Psi, which makes them perfect for aerospace, military, and industrial applications where reliability under extreme conditions is essential. The Mounting Screw design ensures secure and stable installation, further enhancing their suitability for vibration-prone or high-stress environments.

Hermetic Fitting Connectors from SSCore are commonly used in medical devices, scientific instrumentation, and semiconductor manufacturing equipment, where hermetic sealing is vital to protect sensitive electronics from moisture, contaminants, and pressure variations. Their compliance with UL and RoHS standards guarantees safety and environmental responsibility, aligning with stringent regulatory requirements.

With a minimum order quantity of 5 pieces, these connectors are accessible for both prototyping and large-scale production. They come vacuum-packaged to preserve their integrity during storage and shipping, with delivery times ranging from 7 to 14 workdays. SSCore supports flexible payment terms including L/C, D/A, T/T, and D/P, accommodating various purchasing preferences. The brand’s supply ability of 50,000 pieces per month ensures consistent availability for ongoing projects and mass production needs.

In summary, SSCore’s 41-X0990 Hermetic Feedthrough Connectors are the ideal choice for engineers and manufacturers seeking high-performance Hermetic Seal Connectors that deliver reliability, durability, and compliance across a broad spectrum of demanding application occasions and scenarios.

Customization:

SSCore offers customizable Hermetic Feedthrough Connectors, model number 41-X0990, designed to meet your specific requirements. These 2 Pin Feedthrough connectors feature a mounting screw type and are made with durable 4J50 Alloy pins, ensuring reliable performance within a temperature range of -55°C to 125°C.

Our Hermetic Fitting Connectors provide exceptional hermeticity, rated greater than 1x10 ^-8 Atm Cc/sec, guaranteeing a superior hermetic seal for sensitive applications. Whether you need Hermetic Cable Connectors or Hermetic Seal Connectors, SSCore’s products are engineered for precision and durability.

We support minimum order quantities starting from 5 pieces, with pricing ranging between 10 to 60 ￥ per unit. Each connector is carefully packaged in a vacuum package to preserve quality during transit. Our supply ability is 50,000 pieces per month, ensuring timely fulfillment of your orders.

Delivery times typically range from 7 to 14 working days. Payment terms include L/C, D/A, T/T, and D/P options for your convenience. Trust SSCore for high-quality, customizable hermetic feedthrough solutions that meet your technical and commercial needs.

Support and Services:

Our Hermetic Feedthrough Connectors are designed to provide reliable and durable connections in environments requiring airtight and vacuum-tight seals. For technical support, we offer comprehensive assistance including installation guidance, troubleshooting, and maintenance recommendations to ensure optimal performance of your connectors.

We provide detailed product documentation, including datasheets, application notes, and wiring diagrams to support your engineering and integration processes. Our technical team is equipped to assist with custom configurations and answer any specific application questions you may have.

Additionally, we offer repair and refurbishment services to extend the life of your hermetic feedthrough connectors. Our quality assurance processes guarantee that all serviced products meet stringent performance standards.

For ongoing support, we recommend regular inspection and testing of connectors to detect any potential issues early. Proper handling and cleaning procedures should be followed as outlined in the product manual to maintain the integrity of the hermetic seal.

Packing and Shipping:

Our Hermetic Feedthrough Connectors are carefully packaged to ensure maximum protection during transit. Each connector is individually sealed in anti-static packaging material to prevent contamination and damage. The connectors are then cushioned with foam inserts and placed in sturdy, custom-designed boxes to minimize movement and absorb shocks.

For shipping, we use reliable carriers with tracking options to guarantee timely and secure delivery. Depending on the destination and customer requirements, we offer various shipping methods including standard, expedited, and express services. International shipments comply with all applicable regulations and include necessary documentation to facilitate smooth customs clearance.

We prioritize the safe arrival of our Hermetic Feedthrough Connectors to maintain their integrity and performance, providing our customers with confidence and satisfaction upon receiving their orders.

FAQ:

Q1: What is the brand and model number of this Hermetic Feedthrough Connector?

A1: The Hermetic Feedthrough Connector is from the brand SSCore, and the model number is 41-X0990.

Q2: What is the minimum order quantity for the SSCore 41-X0990 Hermetic Feedthrough Connectors?

A2: The minimum order quantity for this product is 5 pieces.

Q3: How much does one Hermetic Feedthrough Connector cost?

A3: The price range for the SSCore 41-X0990 Hermetic Feedthrough Connector is between 10 ￥ and 60 ￥ per piece.

Q4: What are the packaging details for the Hermetic Feedthrough Connectors?

A4: The connectors are packaged using a vacuum package to ensure product integrity during shipping and storage.

Q5: What is the typical delivery time and payment terms for ordering these connectors?

A5: The delivery time ranges from 7 to 14 work days. Accepted payment terms include L/C, D/A, T/T, and D/P.

Q6: What is the monthly supply ability of the SSCore Hermetic Feedthrough Connectors?

A6: The supply ability is 50,000 pieces per month.
