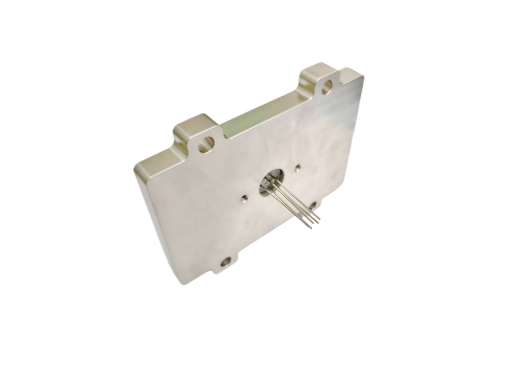

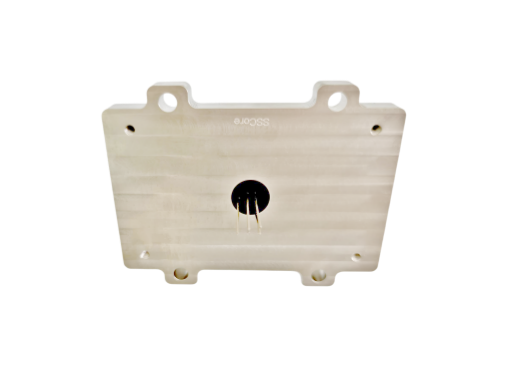

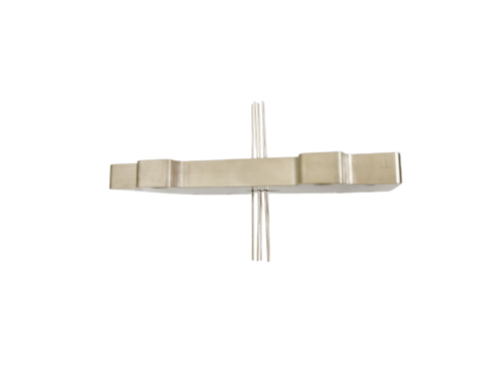

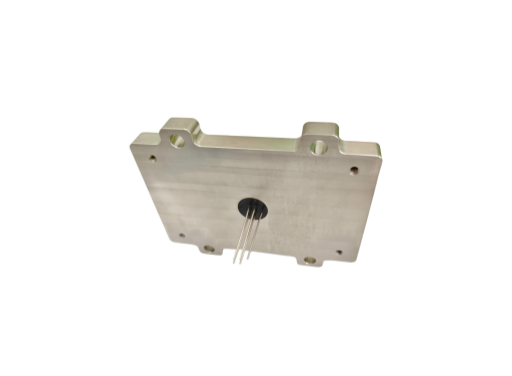

RoHS Compliant Hermetic Seal Connectors Providing 4MPa Working Press Ideal for Electrical Connections Requiring Leak Tight Sealing

Product Description:

Hermetic Feedthrough Connectors are specialized components designed to provide reliable electrical connections through pressure boundaries while ensuring an airtight seal. These connectors are essential in applications where maintaining the integrity of a sealed environment is critical, such as in aerospace, medical devices, vacuum systems, and high-pressure instrumentation. The Hermetic Feedthrough Connectors excel by combining robust mechanical strength with excellent electrical performance, making them indispensable for demanding industrial and scientific applications.

One of the standout features of these Hermetic Feedthrough Connectors is their impressive working pressure capacity of up to 4 MPa. This high working pressure rating ensures that the connectors can withstand substantial mechanical stress and pressure differentials without compromising their sealing integrity or electrical functionality. This makes them ideal for use in environments where maintaining a sealed atmosphere under high pressure is essential.

The sealing method employed in these connectors is the glass-to-metal seal, a renowned technique that guarantees hermeticity by bonding metal components directly to glass. This method provides a robust, leak-proof, and durable seal that resists a wide range of environmental factors including temperature fluctuations, vibrations, and mechanical shocks. The glass-to-metal sealing technique is highly valued for its long-term reliability and stability, ensuring that the connectors maintain their hermetic seal throughout their service life.

Compliance with industry standards is critical for ensuring safety, reliability, and environmental responsibility. These Hermetic Feedthrough Connectors are RoHS compliant, which means they adhere to the Restriction of Hazardous Substances Directive. This compliance guarantees that the connectors are free from harmful substances such as lead, mercury, cadmium, and other hazardous materials, making them environmentally friendly and safe for use in various applications.

In addition to their mechanical and environmental attributes, these connectors offer excellent electrical performance. They feature a high voltage resistance rating of ≥2000VAC, which ensures safe operation even under high voltage conditions. Furthermore, the leakage current is kept to a minimum, with values not exceeding 10mA, thereby enhancing safety and reducing the risk of electrical faults. This combination of high voltage resistance and low leakage current makes these connectors suitable for sensitive and high-power electrical applications.

The pin materials used in these Hermetic Feedthrough Connectors are made from 4J50 alloy, a high-performance material known for its excellent mechanical strength, corrosion resistance, and electrical conductivity. The use of 4J50 alloy pins ensures reliable electrical connections and durability even in harsh environments. This material choice contributes significantly to the overall performance and longevity of the connectors.

These Hermetic Feedthrough Connectors are available as Hermetic Feedthrough Adapters and Hermetic Feedthrough Assemblies, offering versatile solutions to meet different application needs. Hermetic Feedthrough Adapters provide a convenient interface for connecting various electrical components while maintaining hermetic sealing. Hermetic Feedthrough Assemblies, on the other hand, are complete units designed for direct integration into systems requiring hermetic sealing and high-pressure tolerance.

Overall, the Hermetic Feedthrough Connectors deliver exceptional performance through their high working pressure capacity, reliable glass-to-metal sealing, RoHS compliance, superior electrical insulation, and durable 4J50 alloy pin construction. Whether used as Hermetic Feedthrough Adapters or Hermetic Feedthrough Assemblies, these Hermetic Sealing Connectors provide a dependable solution for ensuring hermeticity and electrical connectivity in challenging environments. Their robust design and comprehensive compliance make them an excellent choice for applications demanding the highest standards of reliability and safety.

Features:

• Product Name: Hermetic Feedthrough Connectors
• Connector Type: 5 Pin Feedthrough
• Compliances: RoHS Compliant
• Working Pressure: 4MPa
• High Voltage Resistance: ≥2000VAC, Leakage Current ≤10mA
• Body Materials: 304 Stainless Steel
• Ensures reliable hermetic sealing for electrical connections
• Ideal for use as Hermetic Sealing Connectors in demanding environments
• Designed as Hermetic Feedthrough Assemblies for secure feedthrough applications
• Functions efficiently as Hermetic Feedthrough Terminals for various industrial uses

Technical Parameters:

Applications:

The SSCore Hermetic Feedthrough Connectors, model number 41-X0744, are precision-engineered components designed for applications requiring reliable and durable electrical connections in challenging environments. These connectors are essential Hermetic Feedthrough Devices that provide an airtight seal while allowing electrical signals to pass through barriers such as vacuum chambers, pressure vessels, and other sealed enclosures. Their robust construction using 304 stainless steel body materials ensures exceptional corrosion resistance and mechanical strength, making them suitable for use in harsh industrial and scientific settings.

One of the prominent application occasions for the SSCore Hermetic Cable Connectors is in high-pressure environments, as they can withstand working pressures up to 4MPa. Their outstanding high voltage resistance of ≥2000VAC and leakage current ≤10mA guarantees secure and stable electrical performance even under demanding electrical conditions. The insulation material, Coring 9013, further enhances the reliability and safety of these connectors by providing superior electrical insulation and thermal stability.

These Hermetic Feedthrough Couplers are widely used in aerospace, medical devices, semiconductor manufacturing, and military equipment where maintaining hermeticity is crucial to prevent contamination and ensure operational integrity. Their vacuum packaging ensures that every piece arrives in pristine condition, ready for immediate integration into systems. With a minimum order quantity of 5 pieces and a supply capacity of 50,000 pieces per month, SSCore can efficiently meet both small batch and large-scale production requirements.

The product complies with RoHS standards, reflecting SSCore’s commitment to environmental safety and sustainability. Customers benefit from flexible payment terms including L/C, D/A, T/T, and D/P, and the standard delivery time ranges from 7 to 14 workdays, ensuring timely project completion. The price range of 10 to 60 RMB per unit makes these connectors a cost-effective solution for a broad spectrum of hermetic sealing and electrical feedthrough needs.

In summary, the SSCore Hermetic Feedthrough Connectors are indispensable components for applications requiring dependable hermetic feedthrough devices, hermetic cable connectors, and hermetic feedthrough couplers. Their combination of superior materials, electrical performance, and compliance with industry standards makes them an ideal choice for engineers and designers seeking high-quality, reliable solutions in critical operating environments.

Customization:

SSCore offers customized Hermetic Feedthrough Terminals with model number 41-X0744, designed to meet your specific requirements. Our 5 Pin Feedthrough connectors are crafted from high-quality 304 stainless steel, ensuring durability and reliability in demanding environments.

These Hermetic Feedthrough Terminals operate efficiently within a temperature range of -40°C to +200°C and can withstand a working pressure of up to 4MPa. Each unit is RoHS compliant, guaranteeing environmentally friendly and safe usage.

We provide a minimum order quantity of 5 pieces, with prices ranging from 10 to 60 ￥ per unit. All products are securely packed in vacuum packaging to ensure quality and integrity during delivery.

Our supply ability is 50,000 pieces per month, with a delivery time of 7 to 14 working days. We accept various payment terms including L/C, D/A, T/T, and D/P to facilitate smooth transactions.

Choose SSCore for your Hermetic Feedthrough Terminals customization needs and experience superior quality and service tailored to your applications.

Support and Services:

Our Hermetic Feedthrough Connectors are designed to provide reliable and durable electrical connections in environments requiring airtight and pressure-resistant sealing. For technical support, we offer comprehensive assistance including product selection guidance, installation instructions, and troubleshooting advice to ensure optimal performance.

We provide detailed technical documentation, including datasheets, installation manuals, and compliance certifications to support your engineering and quality assurance processes. Our expert team is available to answer any questions regarding customization options, compatibility with various materials and systems, and integration into your specific application.

In addition to support, we offer a range of services such as custom feedthrough design, testing and validation services, and repair or refurbishment of existing connectors. Our goal is to deliver solutions that meet stringent industry standards while maintaining the integrity of your hermetic seal.

For ongoing maintenance, we recommend regular inspection and testing according to the guidelines provided in our technical documentation. Proper handling and installation are crucial to maintain the hermetic properties and electrical performance of the connectors.

Choose our Hermetic Feedthrough Connectors for your critical sealing needs and benefit from our dedicated technical support and tailored services designed to ensure reliability and longevity in demanding applications.

Packing and Shipping:

Our Hermetic Feedthrough Connectors are meticulously packaged to ensure maximum protection during transit. Each connector is individually sealed in anti-static, moisture-resistant bags to prevent contamination and corrosion. The connectors are then cushioned with foam inserts and placed in sturdy, custom-designed boxes that absorb shocks and vibrations, safeguarding the delicate internal components.

For shipping, we utilize reliable carriers with proven track records in handling sensitive electronic components. Each package is labeled with clear handling instructions and tracking information to maintain full visibility throughout the delivery process. We also offer expedited shipping options and international delivery services to meet diverse customer needs.

Upon receipt, customers are advised to inspect the packaging for any signs of damage and to verify the contents against the packing list. Our commitment to quality packaging and careful shipping ensures that every Hermetic Feedthrough Connector arrives in optimal condition, ready for immediate use in your critical applications.

FAQ:

Q1: What is the brand and model number of the Hermetic Feedthrough Connectors?

A1: The Hermetic Feedthrough Connectors are branded SSCore and the model number is 41-X0744.

Q2: What is the minimum order quantity for this product?

A2: The minimum order quantity for the SSCore 41-X0744 Hermetic Feedthrough Connectors is 5 pieces.

Q3: What is the price range for these connectors?

A3: The price for the Hermetic Feedthrough Connectors ranges from 10 to 60 ￥ per piece.

Q4: How are the Hermetic Feedthrough Connectors packaged?

A4: The connectors are packaged in a vacuum package to ensure protection and maintain product integrity.

Q5: What are the delivery time and payment terms for ordering these connectors?

A5: The delivery time is between 7 to 14 working days. Accepted payment terms include L/C, D/A, T/T, and D/P.

Q6: What is the monthly supply ability of the SSCore Hermetic Feedthrough Connectors?

A6: SSCore can supply up to 50,000 pieces of the Hermetic Feedthrough Connectors per month.
